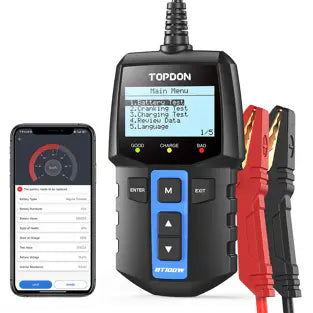

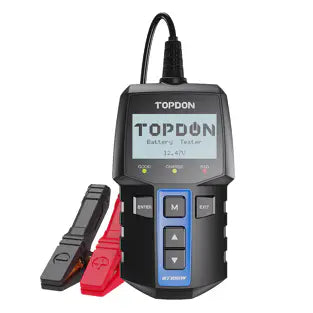

Topdon BT100W: 12 V Monochrome Display Battery / System Tester

The BT100W is a Battery tool that gives users the efficiency of a plug and play tool and the robust data analysis of a high tech digital Tester.  The BT100W brings versatility to every garage because it can function as a standalone Battery Tester and run a variety of tests.  Users can tap into the device's app for more advanced functions, enhanced data analysis, and view or save Battery Test reports in a separate folder.  The versatility of the BT100W even extends into the number of languages the tool operates in.  Users can select from 8 and 9 languages to operate the BT100W device and the app.

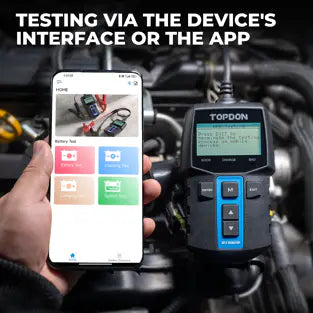

Testing via the device's interface or the app:

Pair alongside the BT100W's app to perform System Testing.  Access the Battery library through the app to always have the Battery data you need to get the job done.

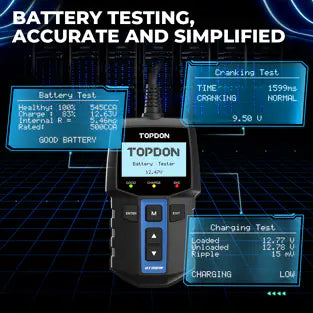

Battery, cranking, charging, and System Tests:

Find and mitigate potential issues through Battery Tests.  Operate on a variety of Battery types and analyze the Battery’'s state of health, state of charge, and cold cranking amplifier.

By monitoring the cranking Time and cranking voltage, that kind of a Test helps to check the health and service life of a Battery.

Know by having certainty whether the charging System is working properly and the car is ready for the road.

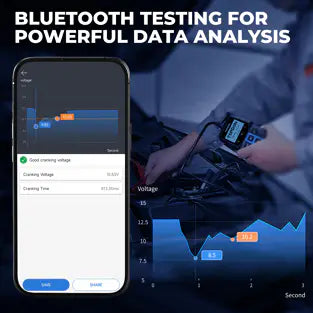

Step into the BT100W app to run System Tests.  This Battery Tester supports a System Test function, which enables technicians to perform a Battery, cranking, and charging Test, through only 1 click.  The perfect tool for technicians seeking greater efficiency.

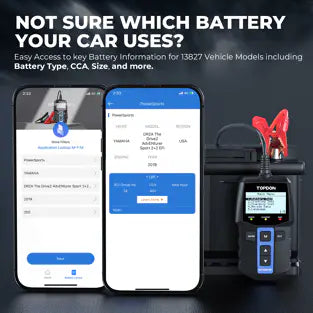

Battery library:

The BT100W's Battery library allows for easy access to key Battery information such as standards, CCA, specifications and more.

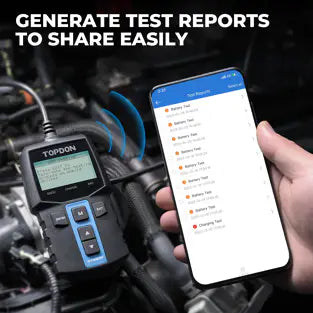

Generates Test reports:

Create Test reports to compile important Battery status information in 1 spot.  View data such as state of health, state of charge, internal resistance and more.

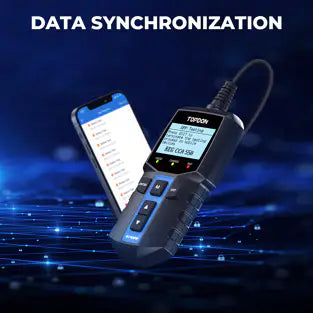

Data synchronization:

Data synchronization between the BT100W Tester and the mobile application is performed seamlessly to ensure accurate information is displayed across both platforms.

Specs:

• Working voltage: 9 - 18 V
• Working temperature Fahrenheit: 14 - ° F
• Working temperature Celsius: - 10 - 55 ° C
• Storage temperature Fahrenheit: - 4 - 167 ° F
• Storage temperature Celsius: - 20 - 75 ° C
• Product width ("): 3"
• Product weight (lbs): 0.5 Ibs
• Product length ("): 5.4"
• Product height ("): 0.9"
• Languages supported: device: English / French / Spanish / German / Italian / Portuguese / Russian / Japanese
• Languages supported: app: Chinese / English / French / Spanish / German / Italian / Portuguese / Russian / Japanese
• Display resolution: 128 x 64 pixels
• Connectivity: Bluetooth 5
• Cable length: 31.5"
