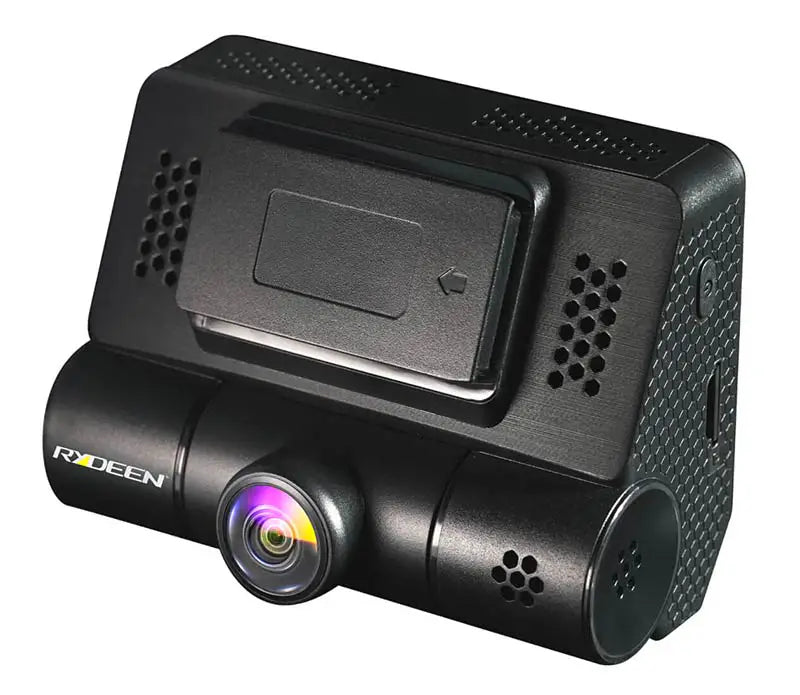

Rydeen MINY360: 2 K 32 GB 12 V HD WIFI GPS Socket Front / Rear Dash Camera

The MINY360 is Rydeen's answer to a question every driver eventually asks: why does my Dash Camera only see part of what happened?  Front and Rear systems record 2 directions.

The MINY360 records all 4, simultaneously, in panorama view 2 K ultra HD, powered by a Sony imaging chip that handles the light conditions other Cameras miss entirely.  At the core is Rydeen's patented 360 ° optical platform, the same architecture that powers the tombo 360 X, one of the most capable surround view systems in the professional 12 V market.

That technology now lives in a compact windshield mounted unit available to any vehicle, any driver, at a fraction of the tombo's price point.

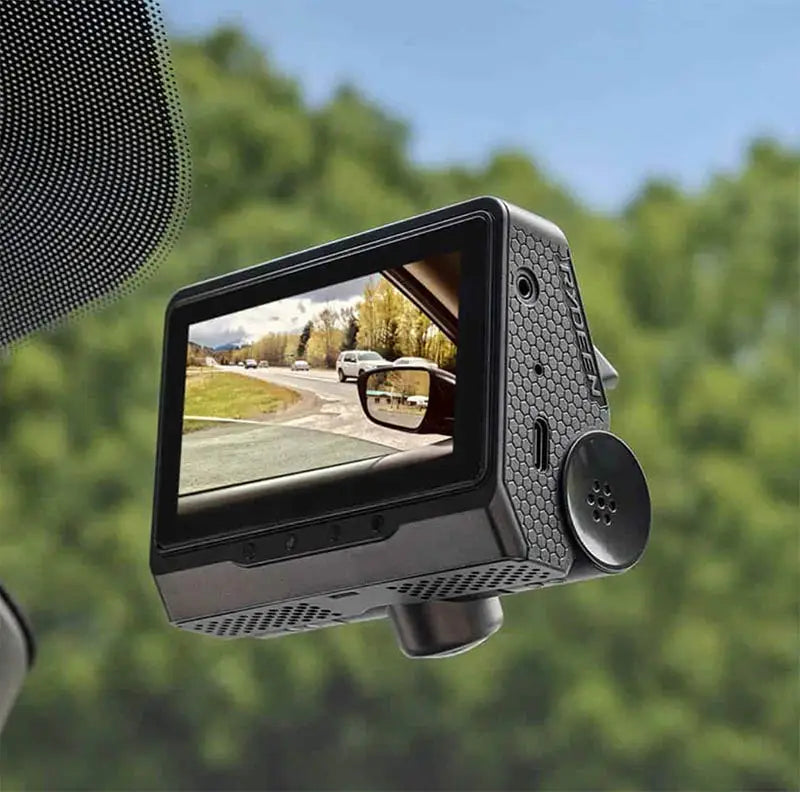

The 3" touchscreen lets you swipe through the full 360 ° surround view directly on the unit. The Rydeen MINY360 app mirrors that experience on your smartphone, live view, playback, GPS location, and fast video download over genuine 5 gHz WIFI.  1 interface and app. Zero confusion.

When your vehicle is parked, the proximity radar sensor (sold separately) takes over,  monitoring for approach and triggering recording automatically, engine off.  The car that dents your door in a parking lot.  The hit and run at 2 am.  The MINY360 is watching even when you aren't there.

360 ° surround view, not just Front and Rear:

The MINY360 captures every angle around your vehicle simultaneously, Front, Rear, left, and right, in a single compact unit.  Most Dash Cameras cover 2 directions.  Your vehicle has 4. This is the only standalone Dash Camera built on Rydeen's patented 360 ° optical platform, the same technology powering the industry proven tombo 360X.

Proximity radar parking protection, optional (P / N PWH-102):

The MINY360 monitors your parked vehicle 24 / 7 using an optional proximity radar sensor (sold separately, P / N PWH-102) that triggers recording the moment someone approaches, engine off, key in your pocket.

2 K ultra HD + Sony imaging chip + WDR:

Records in 2 K ultra HD using a Sony imaging chip through wide dynamic range (WDR) technology, the same sensor standard trusted by professional Camera manufacturers. License plates are legible.  Faces are identifiable.  Lighting conditions that defeat generic sensors, dawn, dusk, parking lot artificial light, are handled automatically.  The included Rear Camera is IP67 waterproof rated.

5 gHz WIFI, genuine chipset, not simulated:

The MINY360 uses a real 5 gHz chipset for fast, reliable video transfer to your smartphone via the Rydeen MINY360 app.  Many competing Cameras advertise 5 gHz WIFI using modified 2.4 gHz chipsets that can't deliver real transfer speeds.  The MINY360 reads 5 gHz on any phone's WIFI settings.  Every time.  Live view, video playback, and GPS location, all from one app, across the entire Rydeen lineup.

360 ° surround view 2 K HD Dash Camera including a cigarette lighter Socket USB C wire harness.  3" touchscreen.  32 GB SD included.  Rear digital Camera (waterproof) and extension cable included.  Rydeen MINY360 app.

Key features:

• Panorama 360 ° surround view
• Cigarette lighter Socket USB C wire harness
• 2 K ultra HD + Sony imaging chip + WDR
• Waterproof (IP67) Rear digital Camera and extension cable included
• True 5 gHz WIFI
• AHD platform
• Patent pending technology

Basic parameters:

• Video input (backup Camera): AHD
• System language: English, French, Spanish, Japanese
• Screen dimensions: 480 x 854
• Front Camera: 1920 x 1920 / H: 360 ° / V: 220 °
• WIFI: 5.8 gHz
• Speaker: 8 Ω / 1 W
• GPS: built in
• Power supply voltage: DC 5 V (DC approximately 12 - 24 V)
• Rated current: built in micro SD card (class-10 high speed card)
• Super capacitor: 5.5 V @ 5 F
• System: Linux
• Storage: micro SD / ≥ class-10 / 16 - 256 GB
• Operational temperature: approximately -10 - + 60 ° C
• Storage temperature: approximately -30 - + 70 ° C
• Operational humidity: approximately 45 - 80 % RH
• Storage humidity: approximately 30 - 90 % RH

Backup Camera parameters:

• Resolution: 1920 x 1080
• Construction: 3 G + P
• Waterproof: IP67
• Viewing angle: H: 116 ± 5° / H: 58 ± 5 °

Proximity radar parameters:

• Voltage output: 5 V
• Low voltage protection: 11.8 V
• Sensing distance: high (5 - 7 m) mid (3 - 5 m) low (1 - 3 m)
• Detection angle: 360 °
• Latency: the device will enter sleep mode after the sensor detects no moving object for 70 seconds

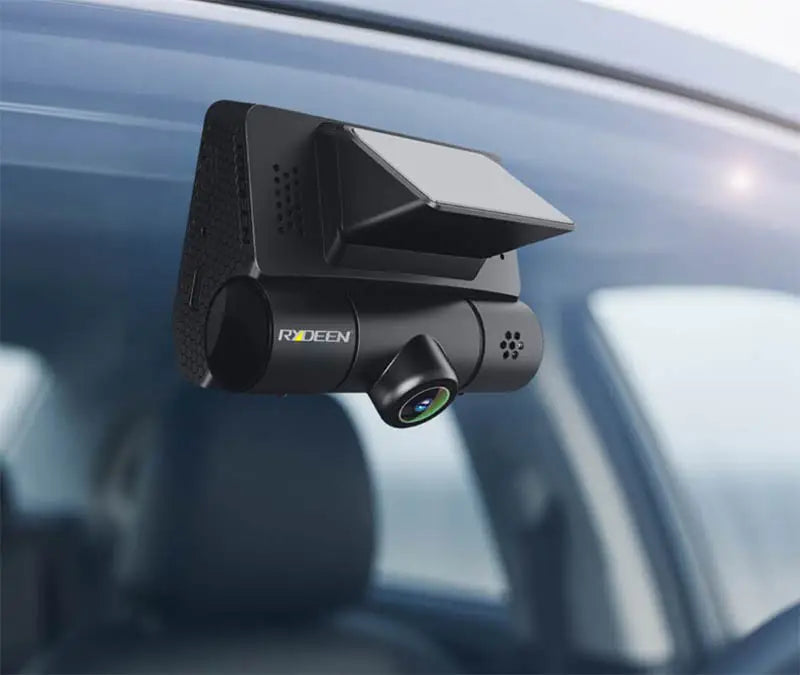

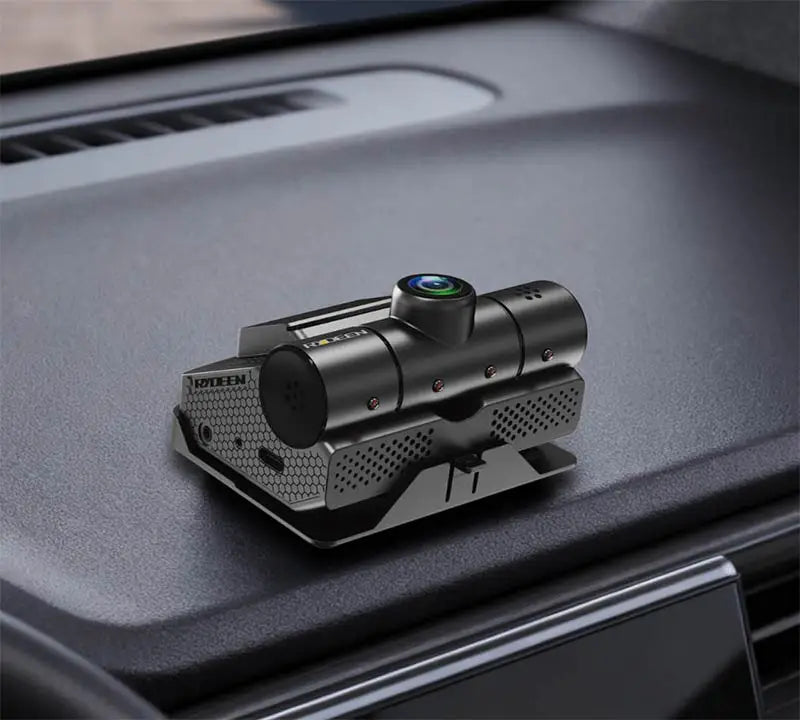

• Installation location: Front windshield, Dashboard

In the box:

• MINY360
• Dashboard bracket
• Electrostatic sticker
• Cigarette lighter Socket USB C wire harness
• 28 FT AHD Rear Camera (CM-AHD7) and 28 FT extension cable

• 27 & 21 ° wedge brackets
• 32 GB SD card
