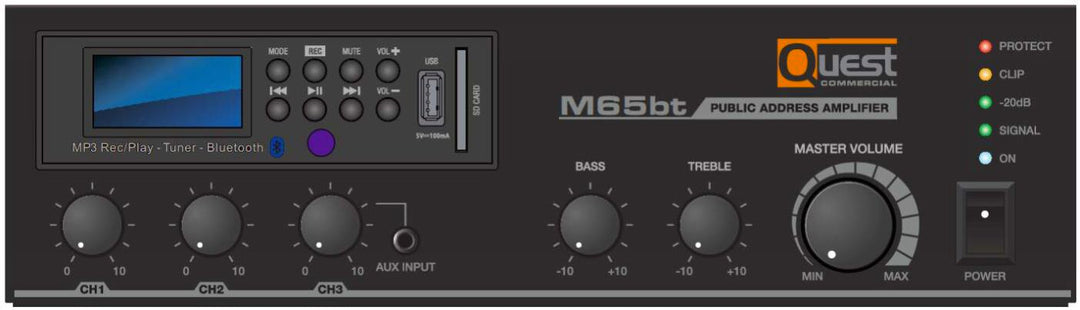

Quest Commercial M65BT: 65 W Compact Mixer / Amplifier

About the Quest Commercial M65BT: 65 W Compact Mixer / Amplifier

Quest Commercial Mixing Amplifiers are the ultimate solution for sound distribution systems in small to medium sized Commercial premises, delivering the best and highest quality audio at an affordable price.  These models have a constant voltage power Amplifier allowing use at 25 / 70 V or at low impedance of 4 / 8 ohms.  The M35BT can deliver a power of 35 W, and the M65BT a power of 65 W.  They offer 3 input channels (terminal block / RCA and 3.5 mm on the front panel) through independent level controls to facilitate the connection of sound sources.  A music on hold feature is also available for businesses wishing to enhance their customers' telephone experience.  So when you connect these Mixers to a telecommunications system, customers can listen to music or pre recorded messages while they wait.

These models are equipped through Bluetooth, an FM receiver and a media player on USB port or SD / HC cards.

The M35 and 65BT Mixer amplifiers are complete all in one Mixer Amplifier solutions for commercial and industrial applications.  These low cost units offer all the necessary features in a simple format.

Features:

• 3 and 2 microphone and line inputs (terminal block, RCA and 3.5 mm on the front panel).
• Rated power output: 35 and 65 W for the M35 and 65BT.
• A 2 bands tone control helps correct the overall sonic response of the PA system.
• Acceptable wide range input level (up to 44 dB)
• Terminal block telephone paging input through volume and attenuation level controls.
• 2 layer priority muting.
• Bluetooth, MP3 media player on USB or SD / HC card, FM tuner, through remote control.
• Music on hold (MOH) output used to connect the Mixer to the telephone system to play music or pre recorded messages.  This output can also be used to supply a line level signal to a power Amplifier.
• Microphone inputs 1 through phantom power for connecting condenser microphones.
• Low distortion and noise level.
• To ensure long term reliability, M-series mixers are equipped through a sophisticated protection circuit and current limiting to avoid problems associated alongside overloading and overheating.
• Compact size makes it easy to install on a work desk or in a standard 48.3 cm (19") rack using optional brackets.
• An ideal solution for Commercial and industrial applications.
• An extended 3 years warranty.

Specifications:

• Rated power output: 65 W
• Speaker output: 4 / 8 Ω; 25 / 70 V
• Connectors: CH 1: microphone / line on balanced 3 conductor phoenix connectors through phantom power; CH 2 - 3: microphone input on 3 conductor phoenix connectors, line input on stereo RCA; CH 3: 3.5 mm stereo AUX input on front panel
• Input sensitivity / impedance: microphone 1 - 3 : '- 50 - - 6 dB variable / 20 kΩ balanced; line 2, 3: '- 30 - + 14 dB variable / 47 kΩ unbalanced; telephone paging: - 21 ± 3 dB / 600 Ω balanced
• Music on hold output level: approximately + 10 dB variable / 600 Ω balanced
• Frequency response: 80 hz - 18 kHz (± 3 dB)
• Tone control: ± 10 dB for bass and treble
• S / N ratio: < 90 dB
• THD (1 kHz): < 0.5 %
• Protection: output current limiting, thermal protection & DC offset protection
• Power supply: 110 V AC, 50 - 60 hz
• Chassis dimensions: 10.6 x 3 x 9.1" (270 x 76 x 230 mm)
• Weight (net): 8 lbs (3.6 kg)
