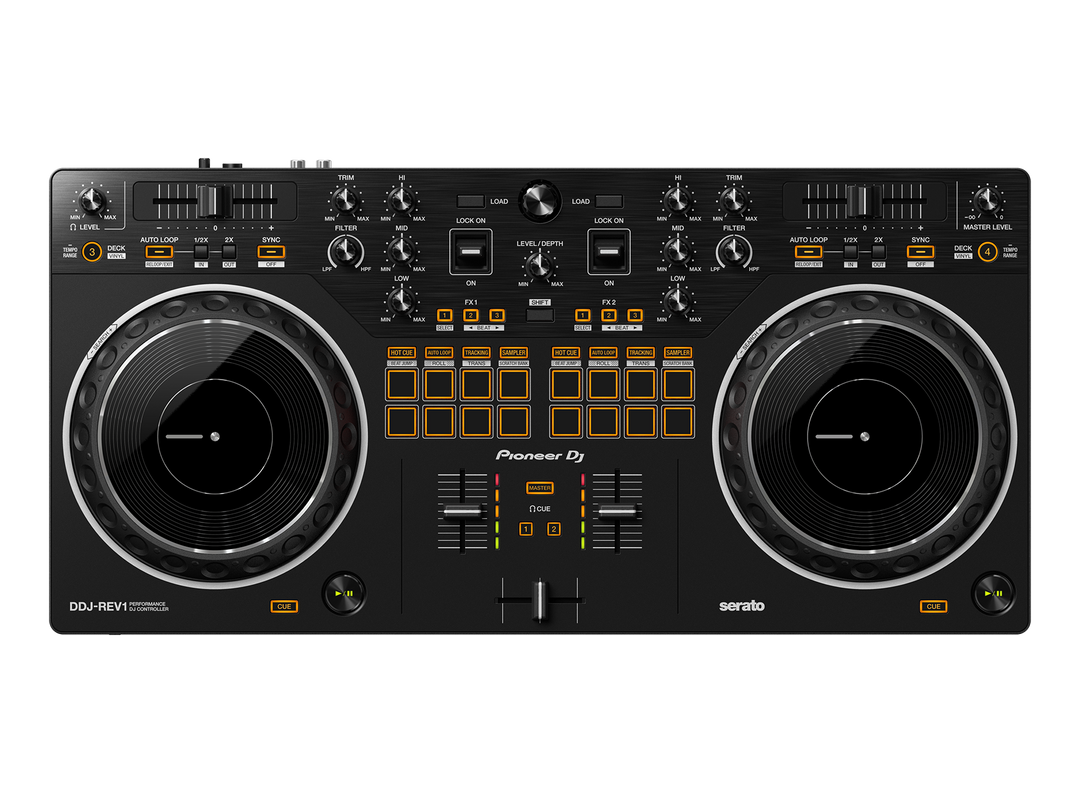

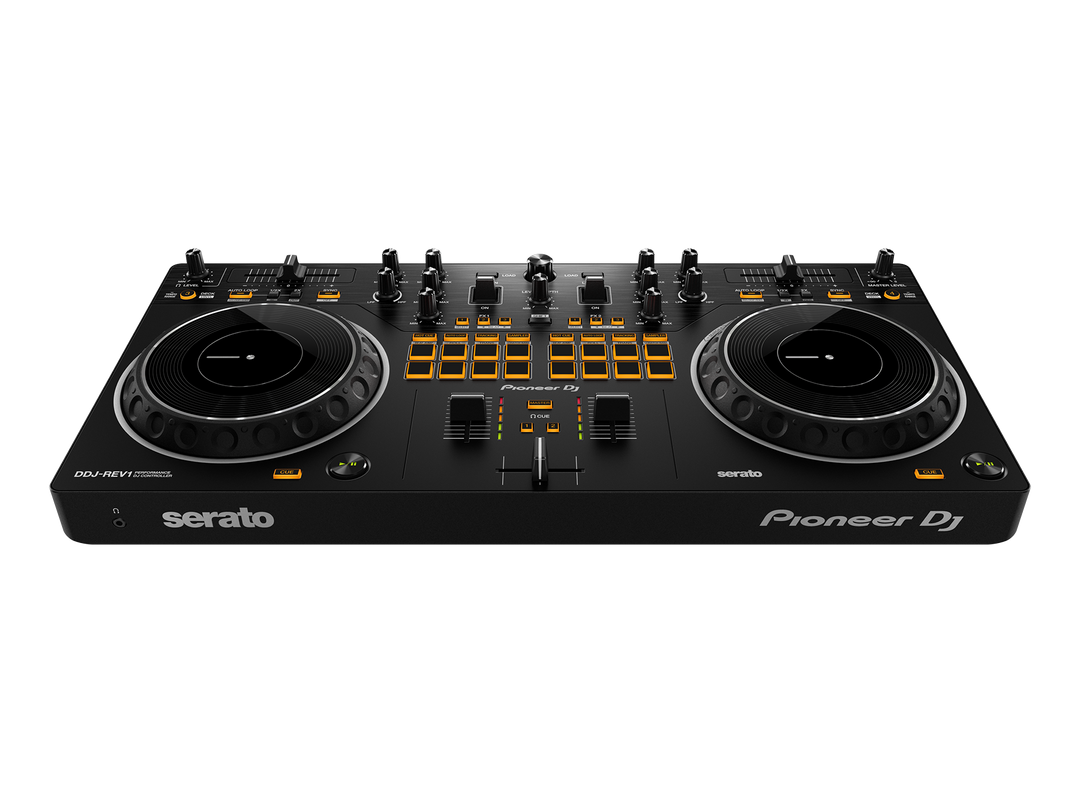

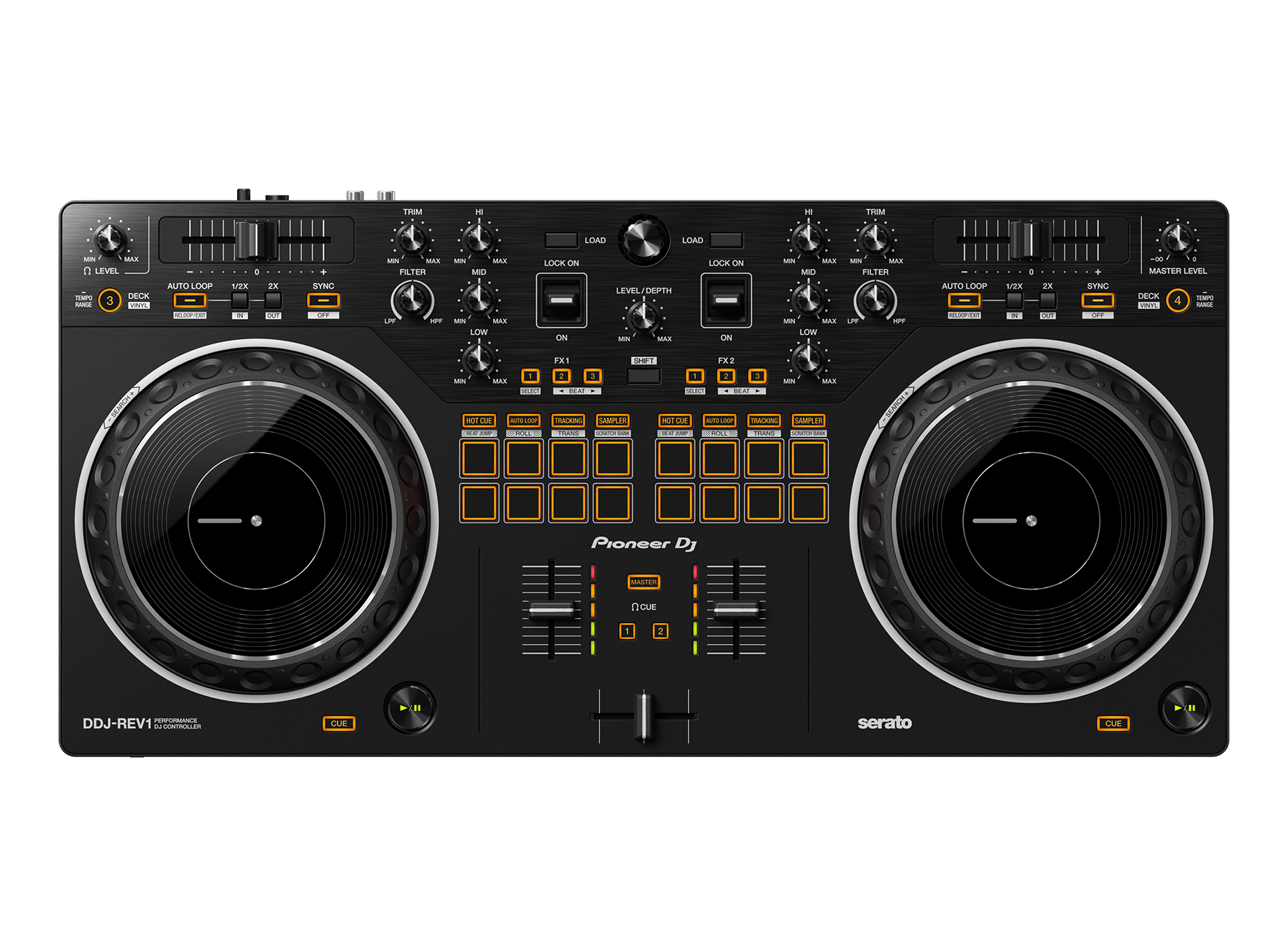

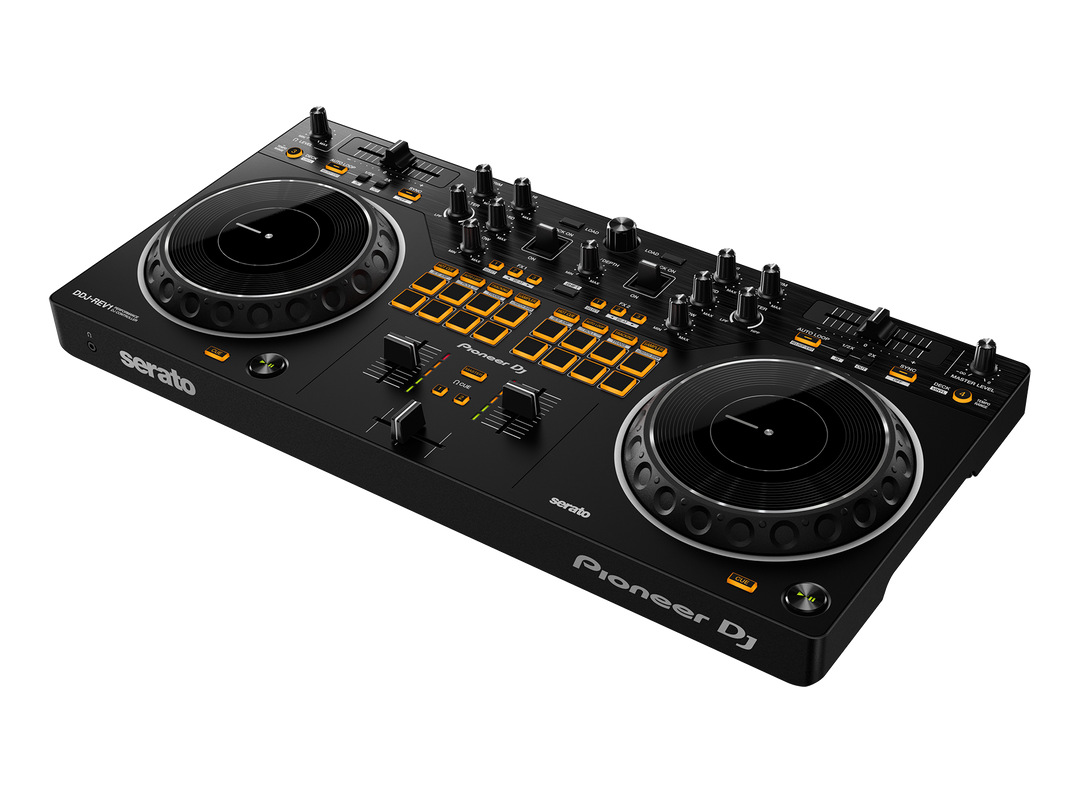

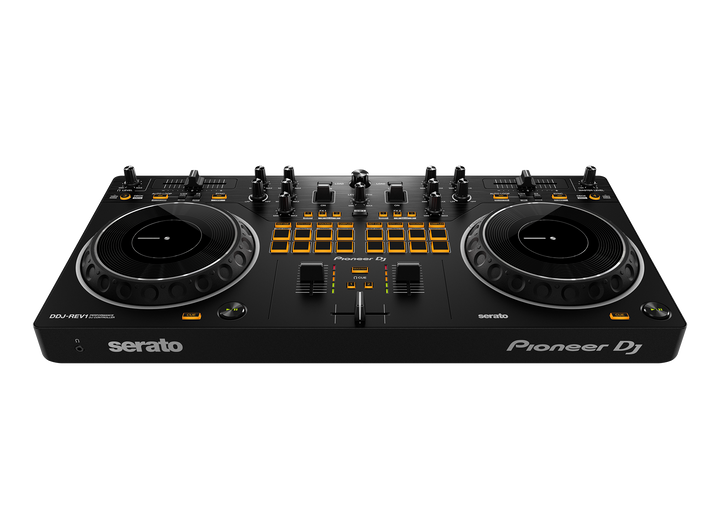

Pioneer DJ DDJ-REV1: 2-Channel Scratch-Style DJ Controller

About the Pioneer DJ DDJ-REV1: 2-Channel Scratch-Style DJ Controller

The DDJ-REV1 matches perfectly through the free serato DJ lite software, boasting a brand new battle-Style layout that's easy to use and perfect for playing like a professional.  The design of this 2-Channel DJ Controller emulates a professional DJM-S mixer + PLX turntable setup, including specialized features for open format and Scratch- DJ's.

Brand new battle-Style layout:

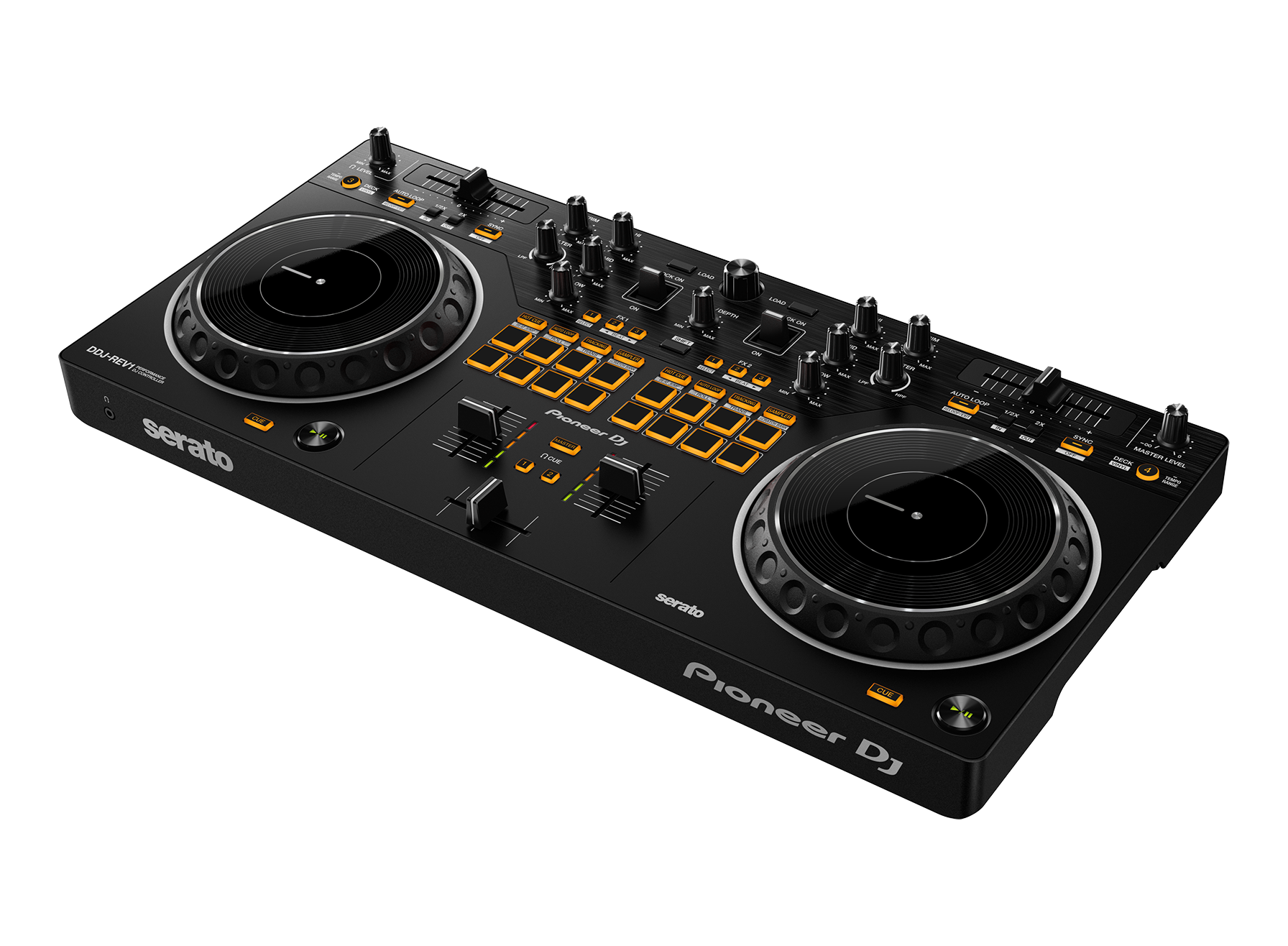

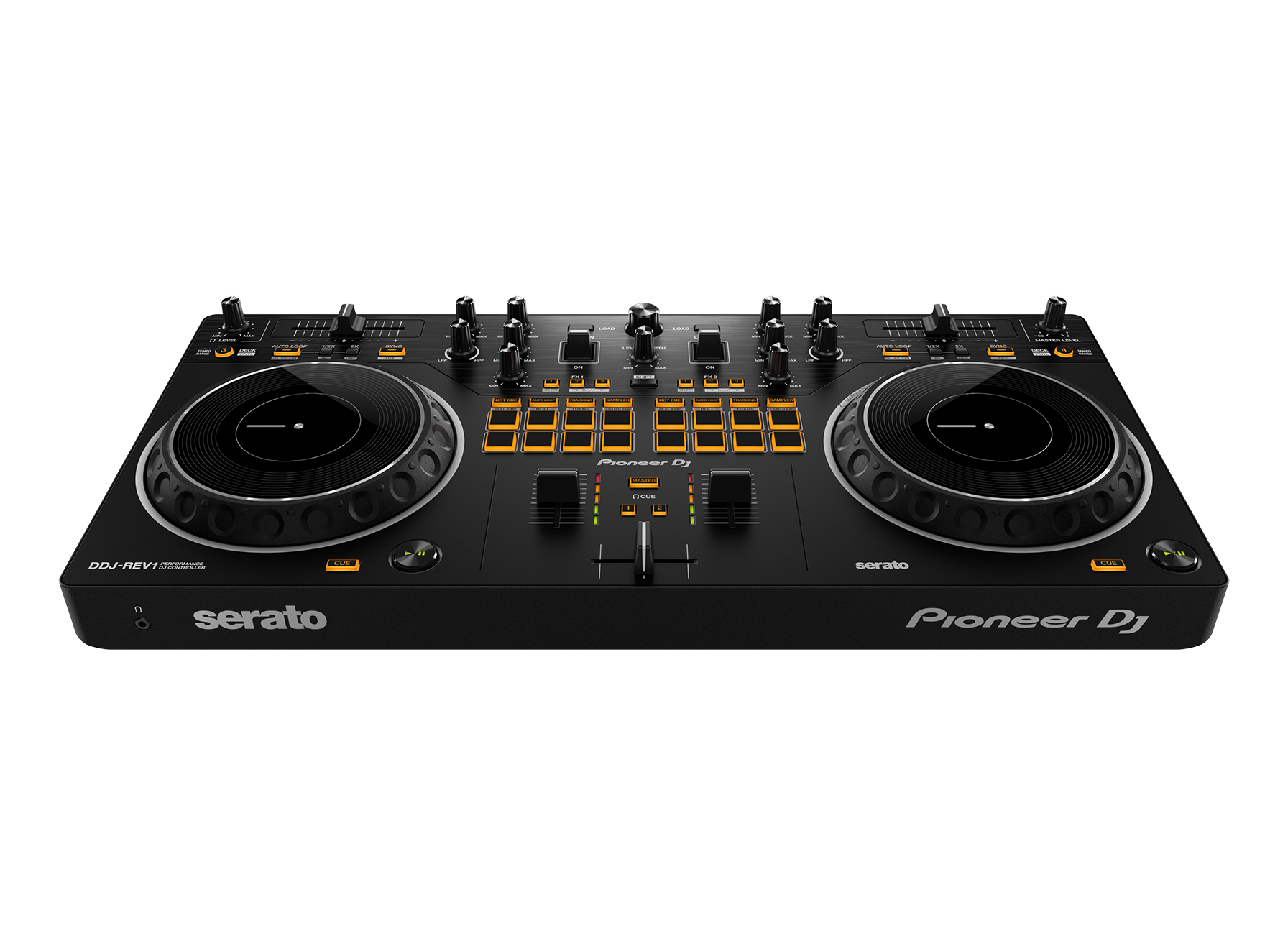

Get hands on through an interface designed to emulate 2 PLX turntables and a DJM-S-series mixer, the kind of setup used by professional battle DJ's.  There's plenty of space to perform mixing and Scratching-techniques thanks to the new arrangement of the Controls on the DDJ-REV1.  The tempo sliders are 60 mm, longer than those on the DDJ-SB3 to give you finer control, and they run horizontally above the decks while the performance pads have been moved into the mixer section so you can intuitively combine effects, trigger samples, and Scratch-your tracks.

Bigger jog wheels:

The bigger the jog wheels, the better for Scratching-.  The jogs on the DDJ-REV1 are the same size as the ones on the DDJ-SR2, a popular Controller that's higher up in our range.

Lever FX:

Dynamically add texture to the music through lever FX.  Pull the levers down and hold them to apply effects from serato DJ lite in short bursts or push them up to lock on effects and free up your hands for Scratching-or track browsing.

Tracking Scratch-: get a helping hand through Scratching-:

The tracking Scratch feature silently takes the music back to the cue point the moment you move the jog wheel from back to forward or lift your hand away, saving you from closing the fader and finding the right place in the music to start the Scratch-again.  All you need to do is to select the tracking Scratch-pad mode, press a performance pad to choose the Scratch-crossfader cuts pattern you want to use, then start moving the jog.

Mixed microphone audio: easily add your voice while you're streaming:

For the 1st time in a Pioneer DJ Controller at this level, the output of the master audio is mixed through the sound from the microphone if you have one plugged in.  This means you don't need any external equipment such as a sound card or separate mixer if you want to add speech or vocals to your performance and route it through your computer. All sounds are sent to serato DJ lite so you can stream from there.

Serato DJ lite integration: enjoy full use of the free software:

As soon as you've downloaded serato DJ lite to your PC / mac for free, you can simply connect the DDJ-REV1 via the supplied USB cable and start DJ'ing.  Enjoy tactile control of various features and effects in the software by manipulating the buttons, knobs, faders, and jog wheels on the Controller.

Through the Scratch-bank pad mode, you can instantly load Scratch-samples from 4 banks that you've assigned in serato DJ lite or professional by simply tapping the dedicated Scratch-bank button.

Other features:

• Deck 3 / 4 Control: play tracks and sounds loaded on any of the 4 decks in serato DJ lite.
• Support for serato DJ professional: take your performances to the next level through a free trial of serato DJ professional paid permanent upgrade available separately)
• Class compliant: plug your DDJ-REV1 into your PC / mac and start DJ'ing, there's no need to install an audio driver.
• Firmware update manager: you'll be automatically notified when they become available.

Specifications:

• Compatible DJ software: serato DJ lite and professional (license / subscription not included)
• Software system requirements: serato DJ lite and professional system requirements
• Soundcard: 24 bits / 48 kHz
• Signal to noise ratio: 103 dB
• Distortion: < 0.0 %
• Power consumption: 5 V 500 mA
• Power supply: USB  type B bus powered
• Frequency range: 20 - 20000 hz
• Performance control:-Channels: 2; deck Control and hot cues: 4; trim knob: yes; jog wheel (maximum dimensions): 154 mm; filter: yes; sampler: yes; pad modes

• Auto and manual loop: yes
• Tracking Scratch-bank
• Sampler
• Trans
• Fader: -Channel and crossfader start and curve adjust: yes

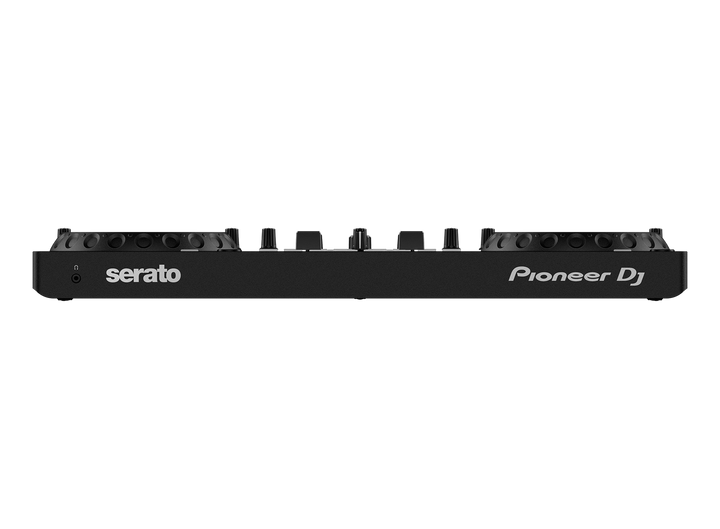

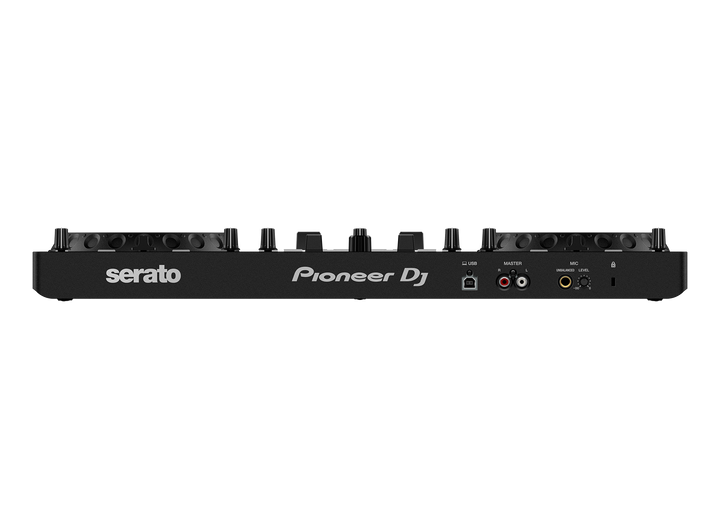

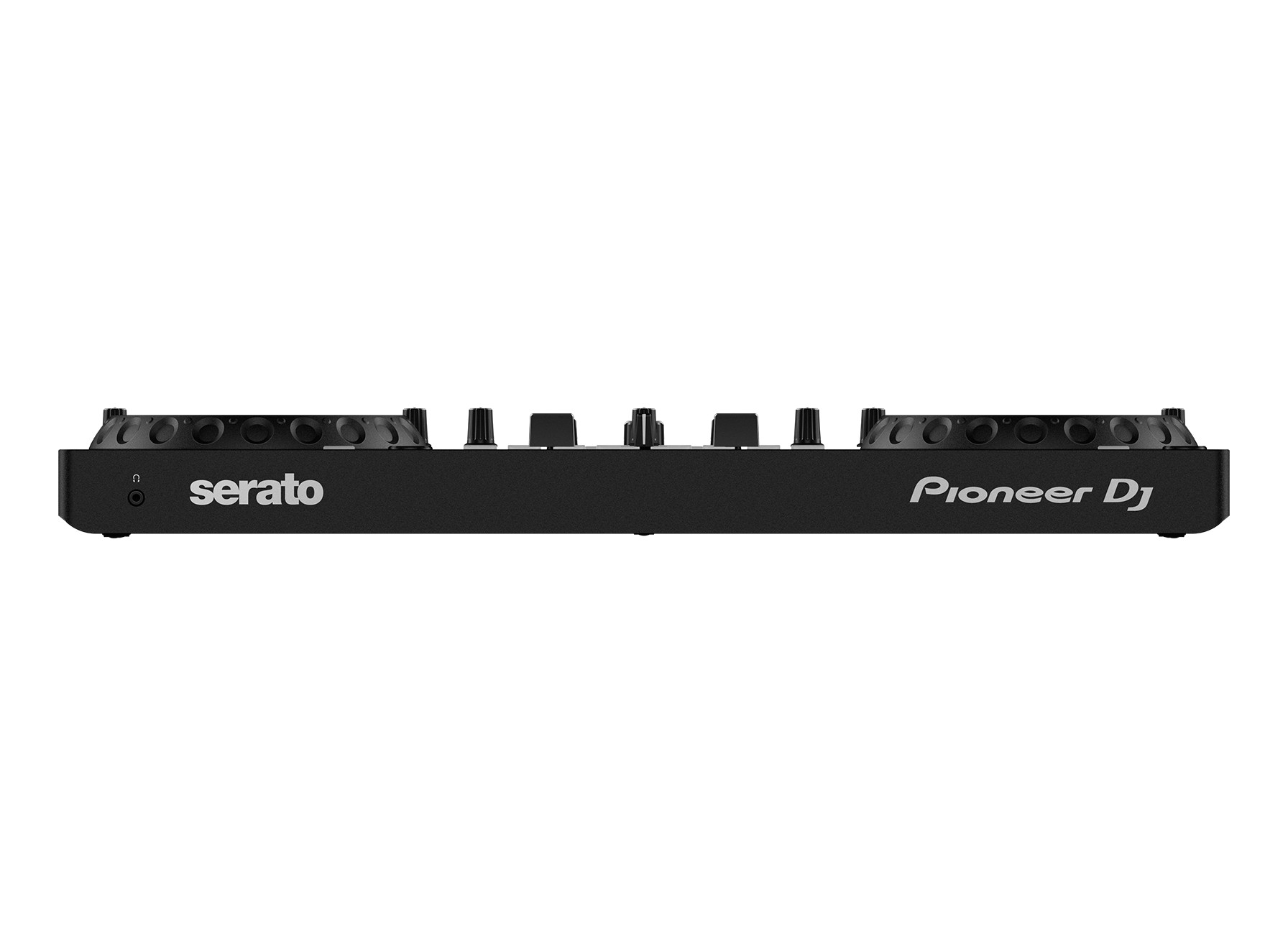

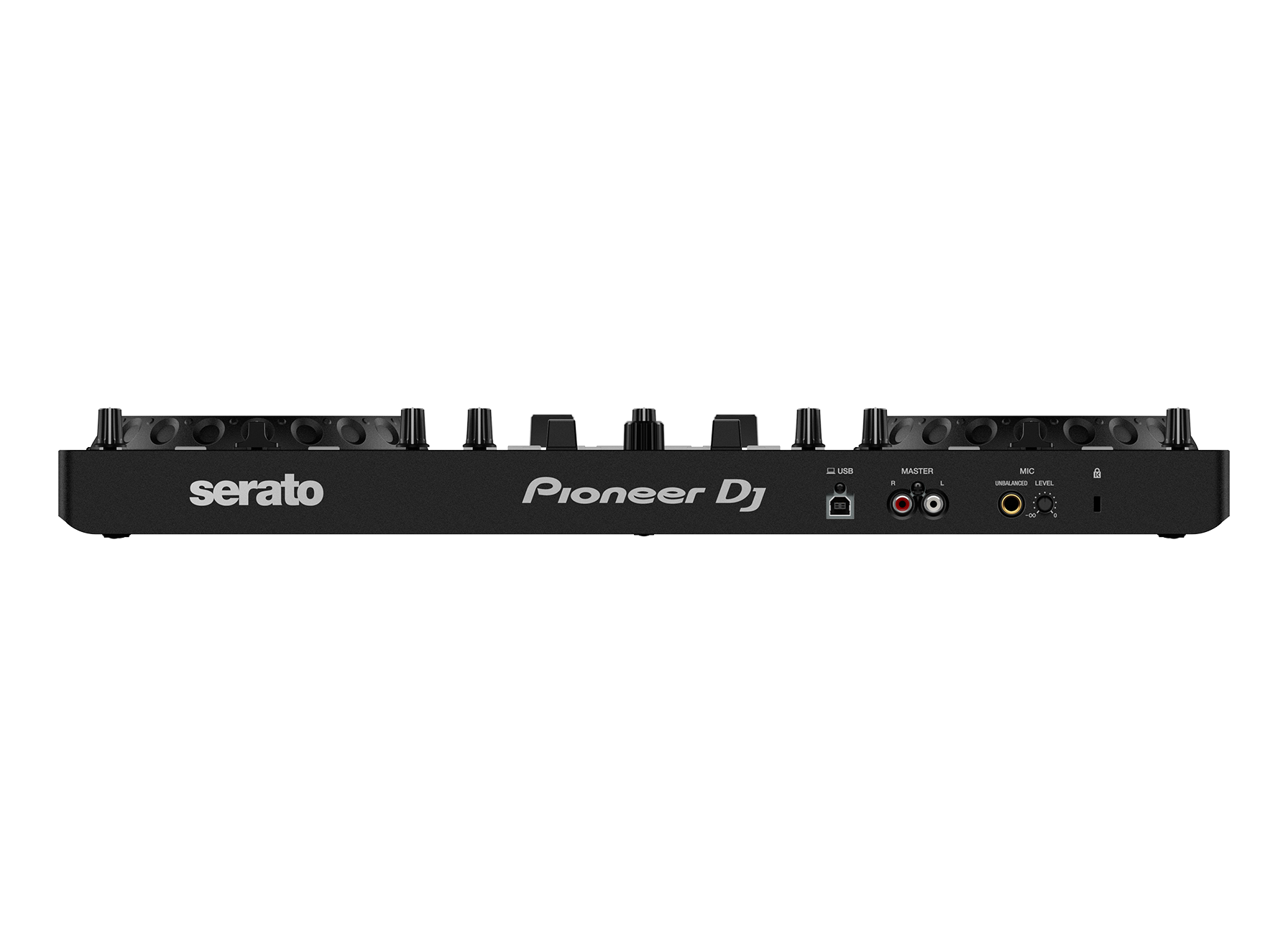

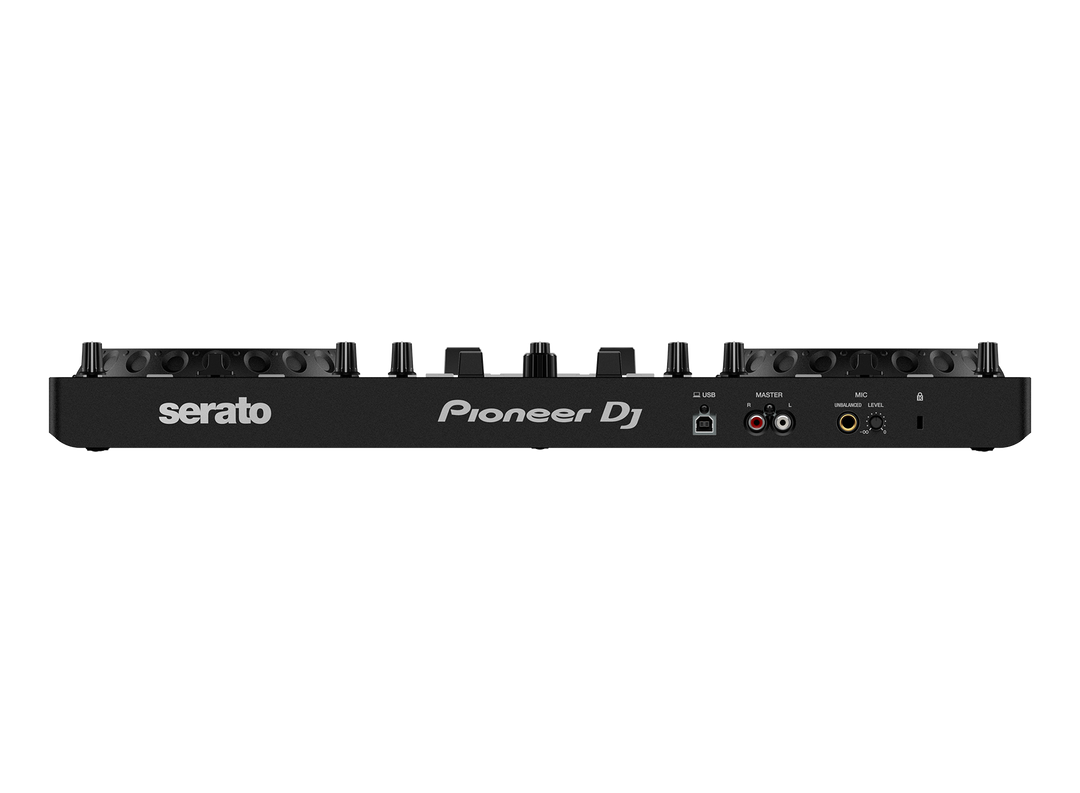

• Terminals: inputs and outputs: 1 microphone and master (RCA) and phones (1 / 4" and 3.5 mm TS and stereo mini jack)
• USB: 1 type B port
• Dimensions (W x D x H): 20.7 x 10.1 x 2.3" (526 x 255.5 x 59.2 mm)
• Weight: 4.6 lbs (2.1 kg)

What's included:

• DDJ-REV1
• USB cable
• Warranty (for some regions)
• Quick start guide
• Precautions for use
