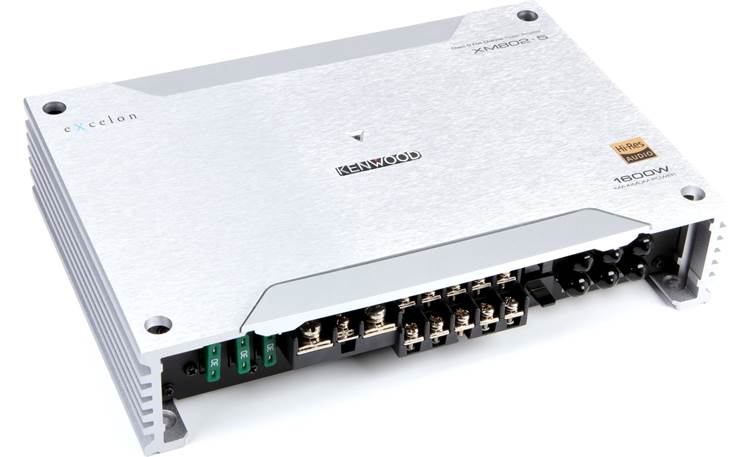

Kenwood Excelon XM802-5: 5-channel powersports/marine amplifier — 50 watts RMS x 4 at 4 ohms + 500 watts RMS x 1 at 2 ohms
- In stock, ready to ship
- Backordered, shipping soon
About the Kenwood Excelon XM802-5
This tiny all-weather amp will power your whole system
Need more power for your entire system, but lack space in your boat or off-road vehicle? Kenwood's Excelon XM802-5 five-channel amplifier delivers 50 watts RMS to each of your front and rear speakers, while sending up to 500 watts RMS to a sub, yet it'll still fit almost anywhere in your vehicle. You can also use this amp in 3-channel mode to power a pair of high-performance speakers with 150 watts RMS each, and a sub with 500 watts.
Fine-tuning included
High-and low-pass filters let you optimize the sound for your vehicle and speakers. For the subwoofer channel, a precise low-pass filter lets you optimize the sound for your sub, while the built-in bass boost lets you dial in just the right amount of thump. An optional wired remote control lets you control your sub's level from the driver's seat.
Convenient weather-proof technology
Conformal coating protects the internal circuits from water and dirt, so the show will always go on, even through the roughest conditions on road, trail, or waterway. Class D technology ensures that this compact amp will run cool and perform reliably. The amp accepts input signals from a receiver's RCA outputs or speaker wiring, so it'll work with almost any audio system. If you do use the speaker-level inputs, the amp can sense the signal and turn itself on, so you won't need to run a separate remote turn-on lead to the receiver or fuse box.
Product highlights:
- 5-channel car amplifier
- 50 watts RMS x 4 + 300 watts x 1 at 4 ohms
- 75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
- 150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
- Class D amp technology
- separate variable high-pass filters on front and rear channels (50-200 Hz at 12 dB/octave)
- variable low-pass filter on subwoofer channel (50-200 Hz at 24 dB per octave)
- variable bass boost on sub channel (0-18 dB at 40 Hz)
- optional wired remote control available for sub channel
More Info:
- conformal-coated circuit boards — suitable for powersports and marine applications
- preamp and speaker-level inputs
- high-level inputs handle up to 5V (about 6 watts)
- wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended
- fuse rating: 30A x 3
- dimensions: 9-13/16"W x 2-1/8"H x 6-3/4"D
- warranty: 2 years
- Our 60-day money-back guarantee
- MFR # XM802-5
What's in the box:
Kenwood Excelon XM802-5 owner's manual
- 5-Channel amplifier
- Three 30-amp ATC fuses (installed)
- Terminal cover (installed)
- Control panel cover (installed)
- 6 RCA input covers (installed)
- Speaker level input port cover (installed)
- Wired remote control port cover (installed)
- 7" Speaker level input harness
- Four 5/8" Screws
- Instruction manual (English/ French/ Spanish)
