JL Audio JLTWK-88: 8 + Digital Inputs / Outputs System Tuning Digital Signal Processor

Features:

• System Tuning DSP through 8 channel stereo RCA In and Outputs / 2 Digital (optical and coaxial) Inputs / 1 Digital optical Output
• The JLTWK-88 is a state of the art Digital Signal Processor engineered to deliver world class System tuning capabilities in an easy to use format.  Equipped through an advanced 24 bits DSP Processor, the JLTWK-88 includes flexible Input / Output options, 80 total bands of equalization and powerful mixing tools.  The included DRC-200 Digital remote controller offers dual level controls, toggles up to 6 presets, and has an LED indicator.

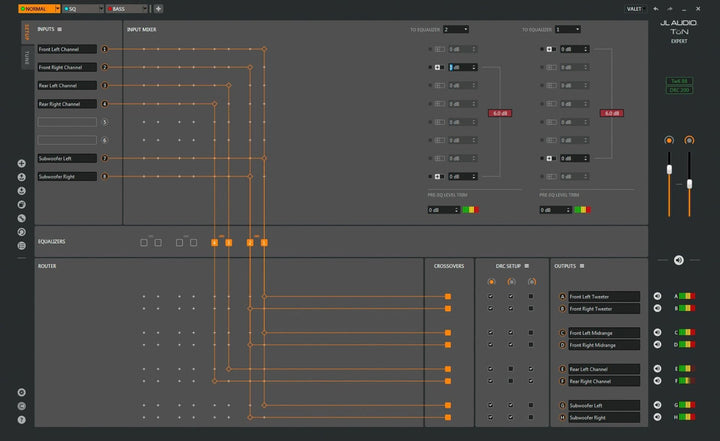

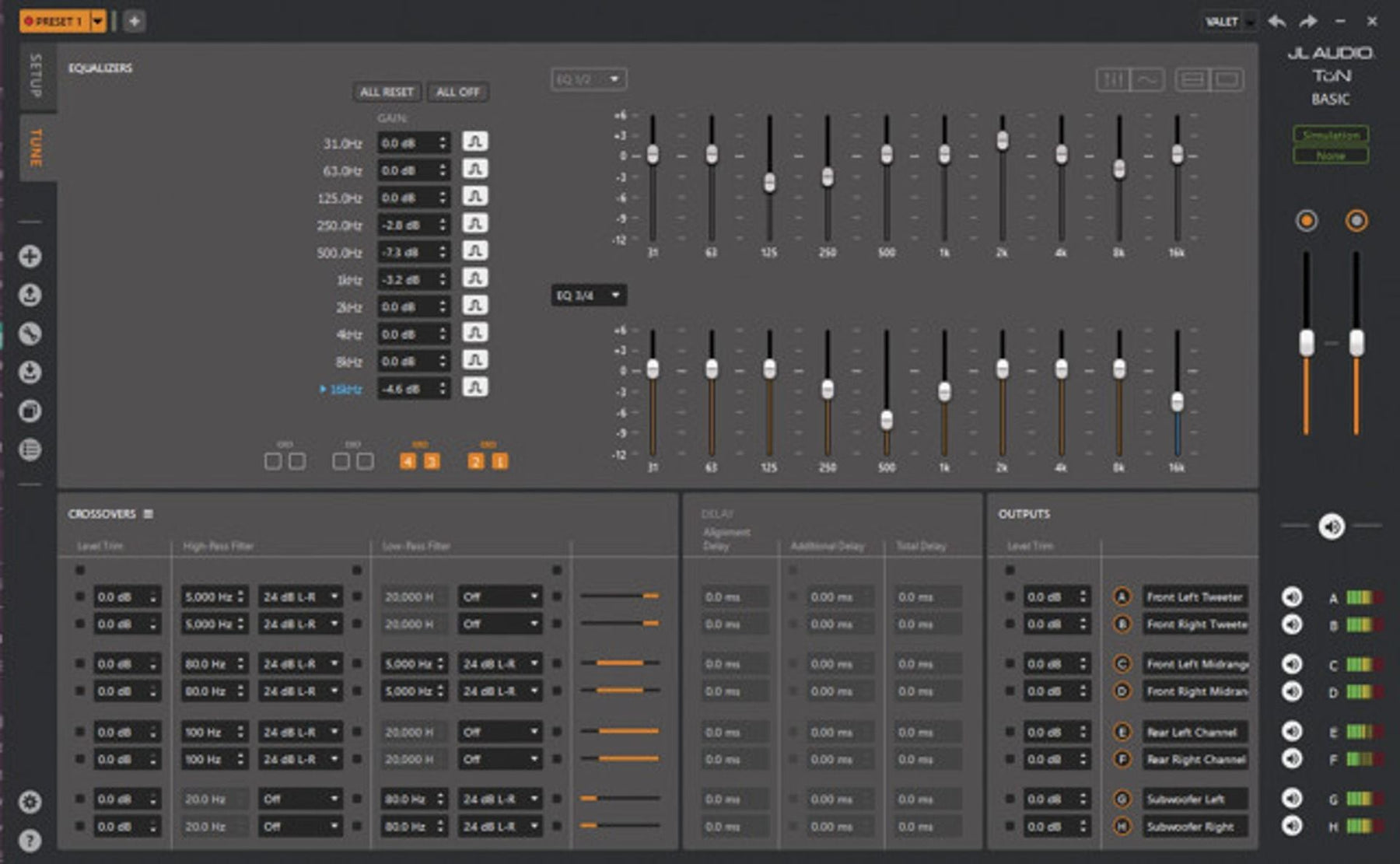

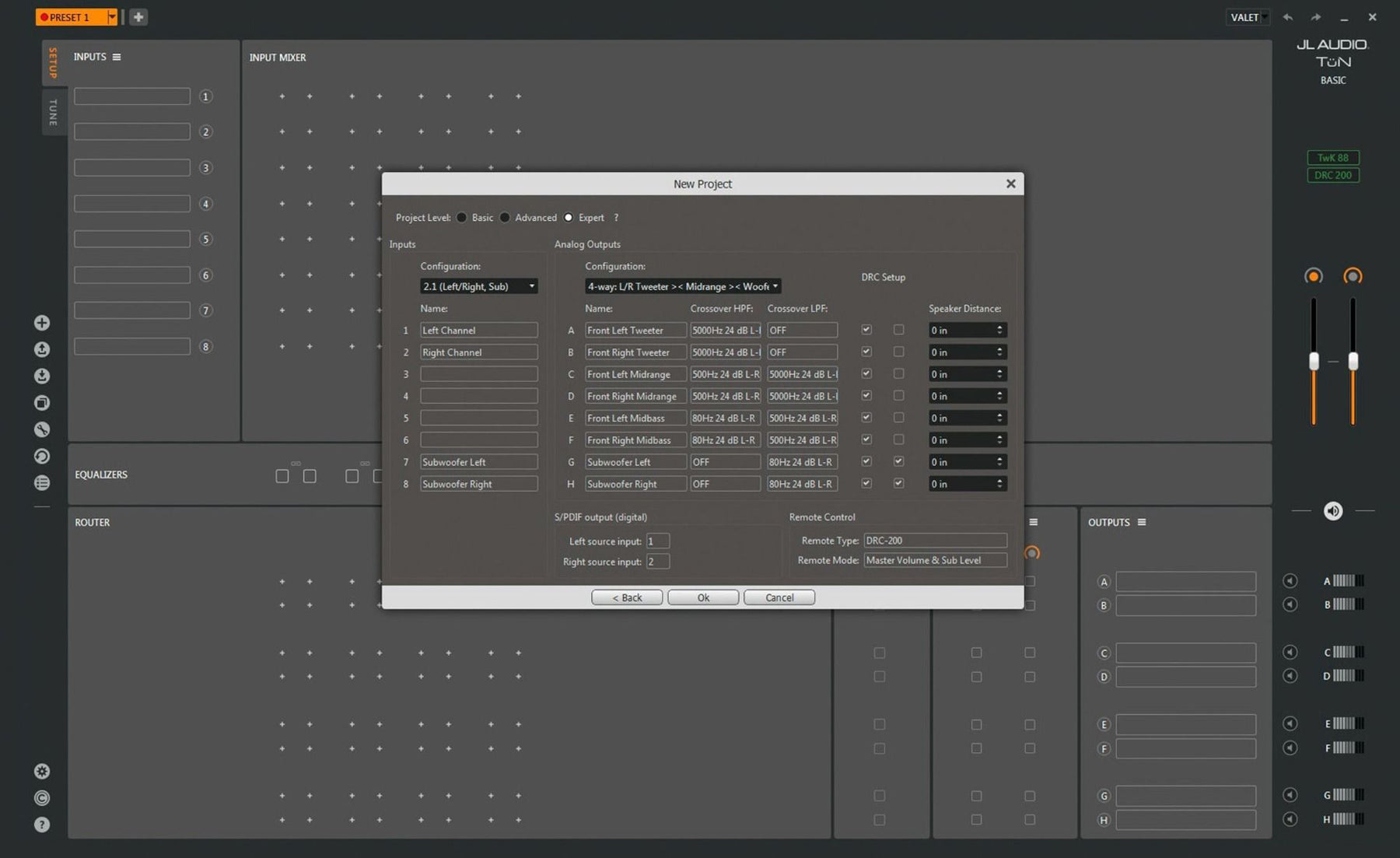

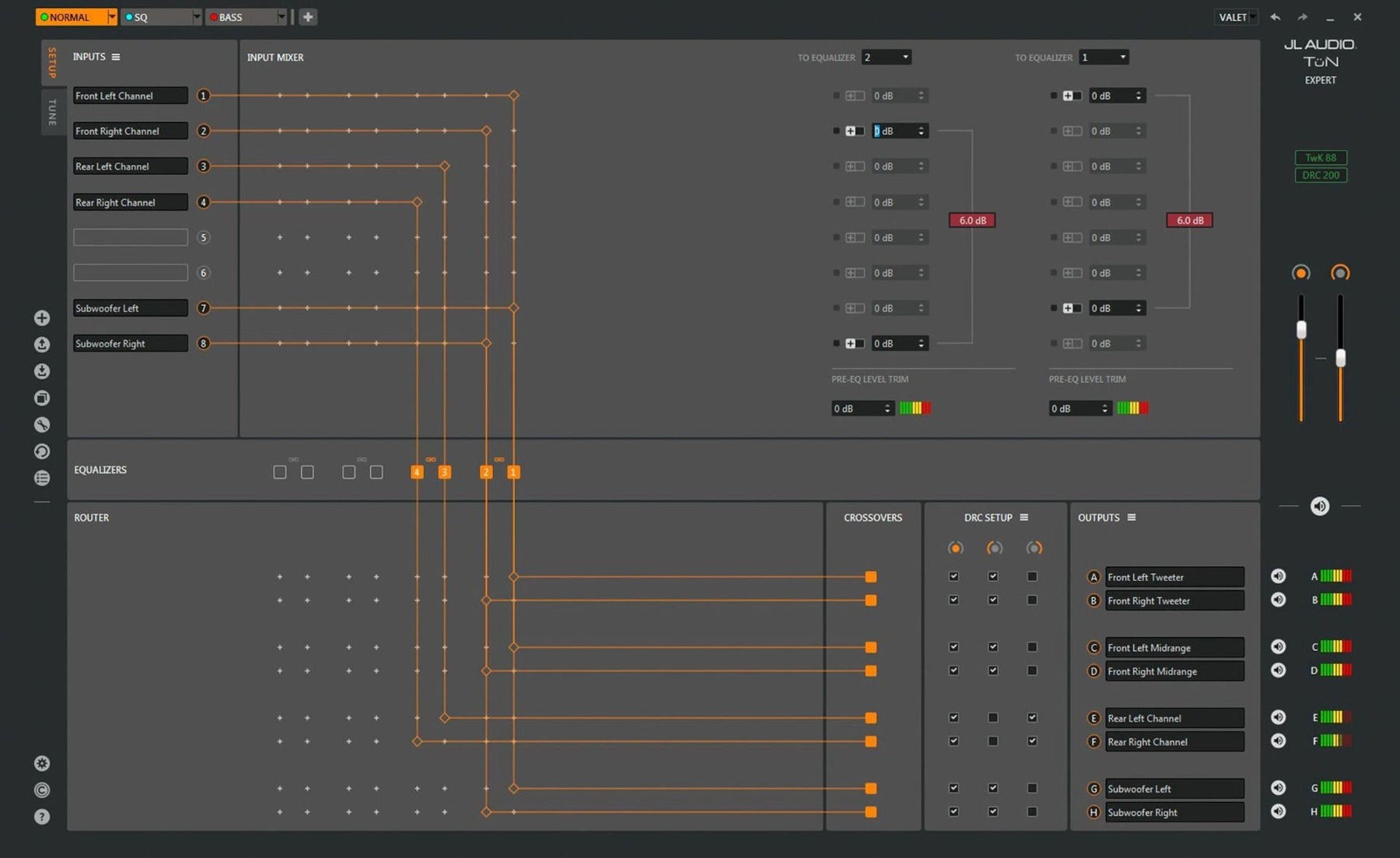

• Control the JLTWK-88's entire feature set by connecting it to your PC via USB, using the companion tun software interface.
• Flexible Input design through 8 differential balanced, line level analog Inputs (RCA), accepting line level signals up to 7.1 V (RMS)
• Separate optical (toslink) and coaxial Digital Inputs for connection to Digital S / PDIF sources.

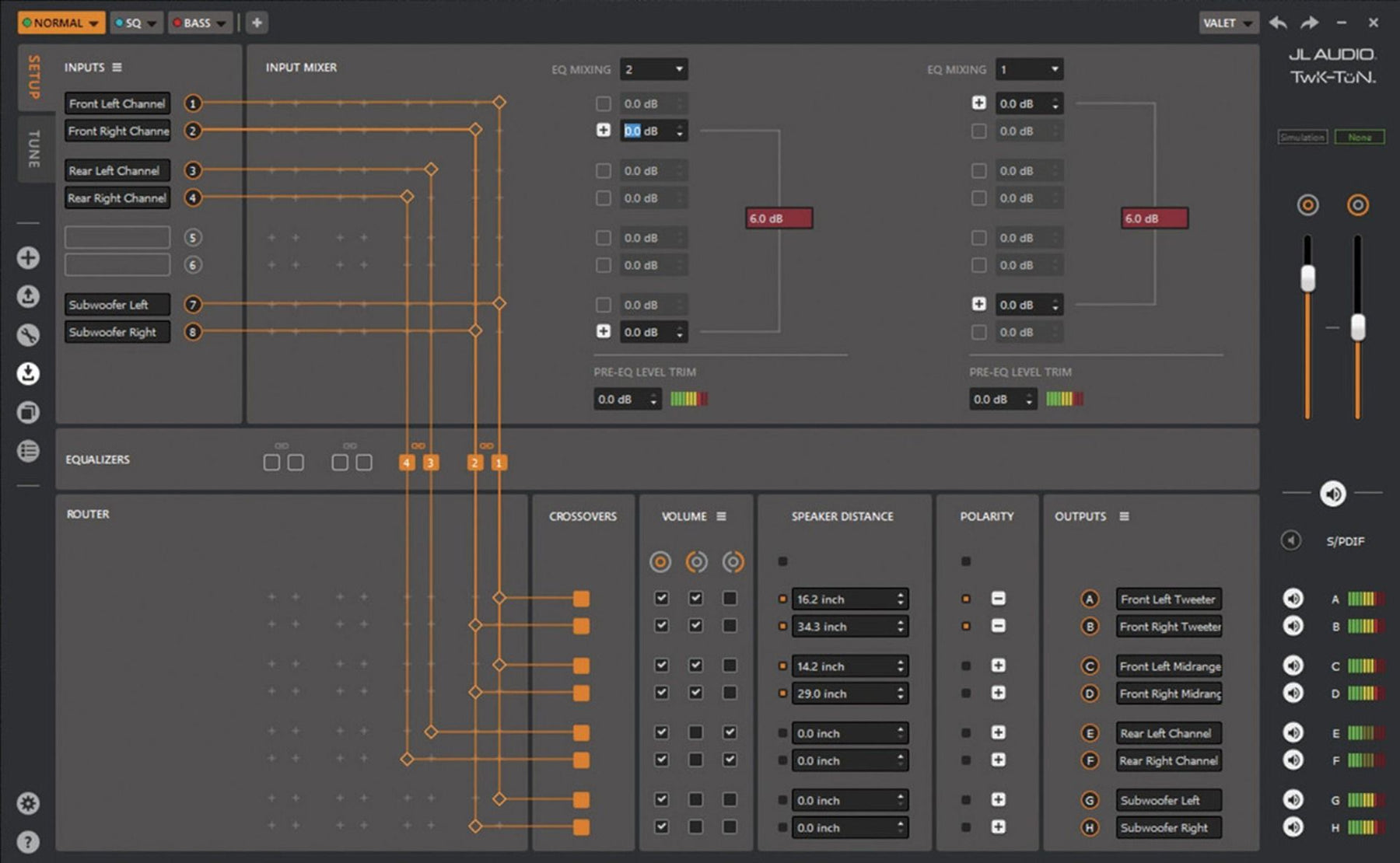

• Flexible Input mixer allows channels to be combined through full control over each Input's level and polarity.

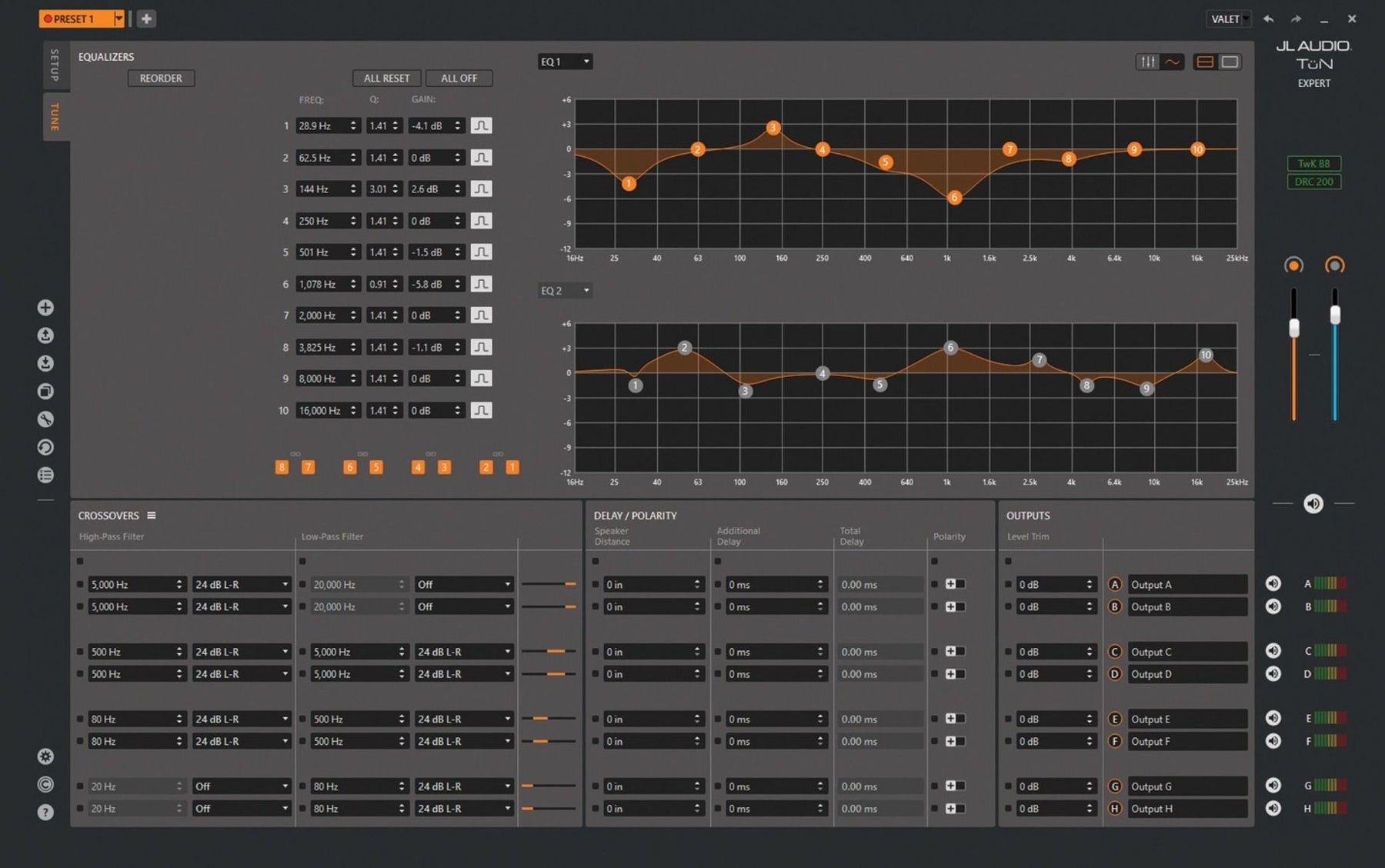

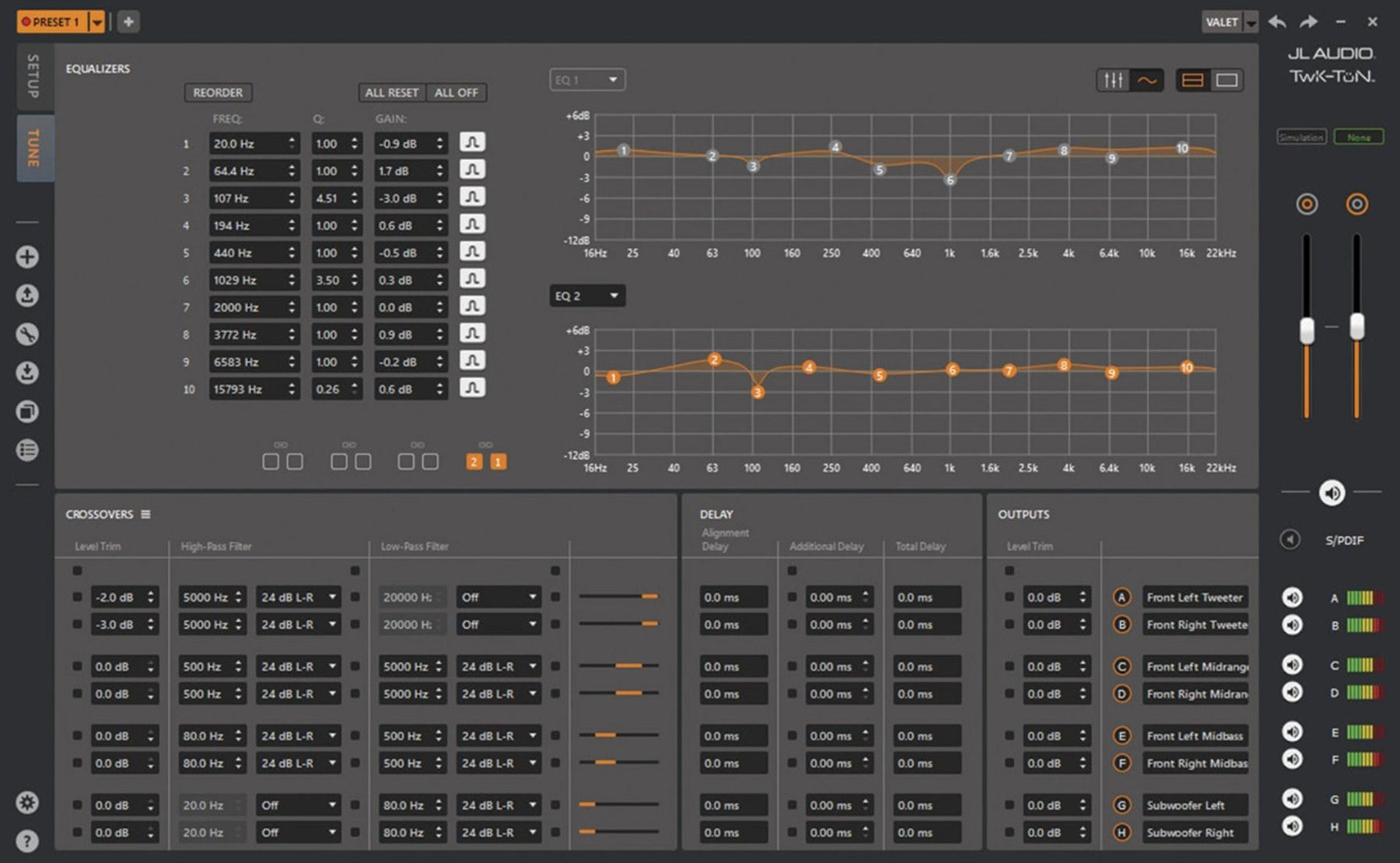

• 8 banks of 10 bands graphic or parametric equalizers through configurable EQ assignment

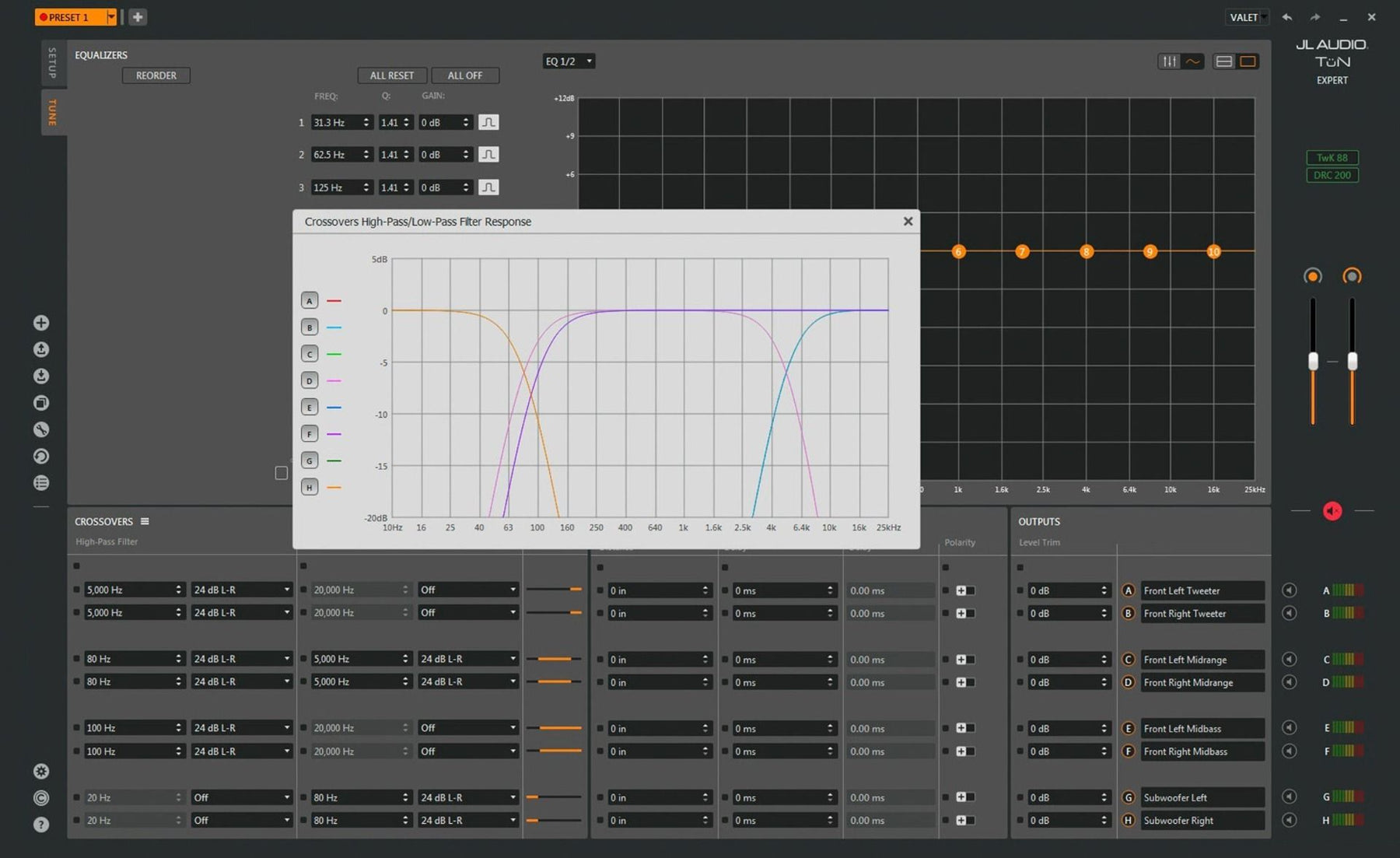

• Powerful crossover section through fully variable, high and low pass filters, crossover slopes are selectable from 6 - 48 dB / octave (in increments)
• Configurable polarity and delay settings, through separate entries for speaker distance plus offset control; fully linkable through other channels, in any combination, for adjustment
• Precise Output level controls, adjustable in 0.5 / 0.1 dB increments, fully linkable through other channels, in any combination
• 8 analogs, line level RCA output jacks (4 V RMS)
• Optical (toslink) Output jack provides a pass through Digital Audio (S / PDIF) Signal from any pair of Input channels, and no Signal Processing applied.
• Remote turn on Output (+ 12 V DC) for activating aftermarket Audio equipment.
• JLid port allows connection of the included DRC-200 Digital remote controller to add dual configurable level controls, preset selection and LED status reporting from the driver's seat.
