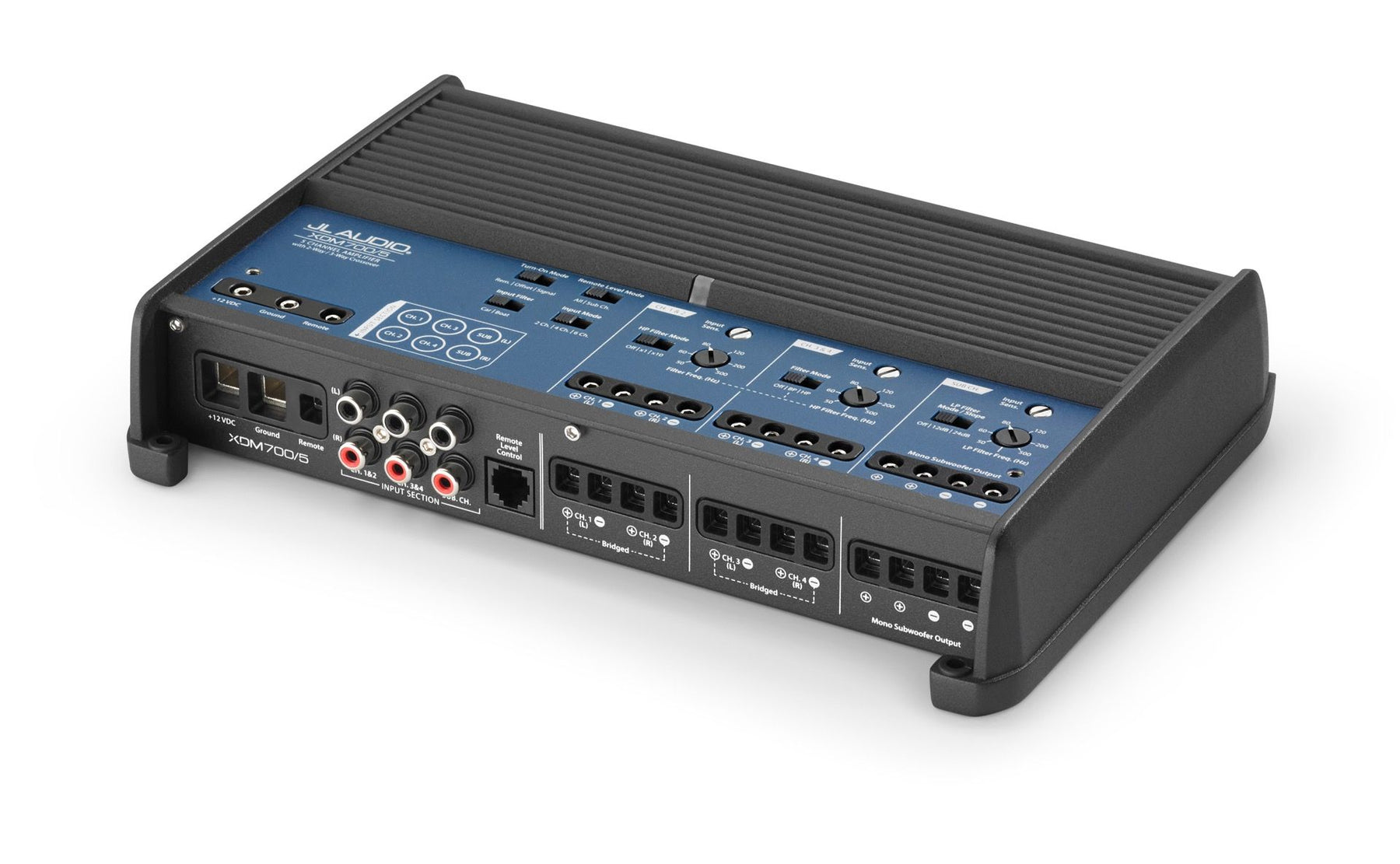

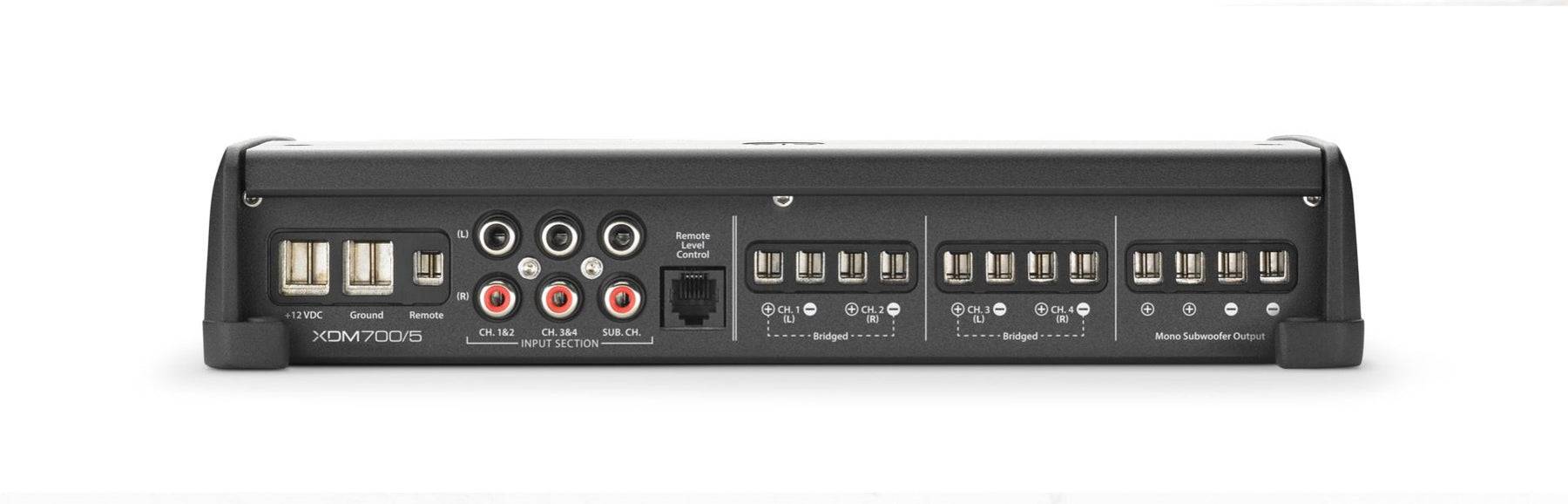

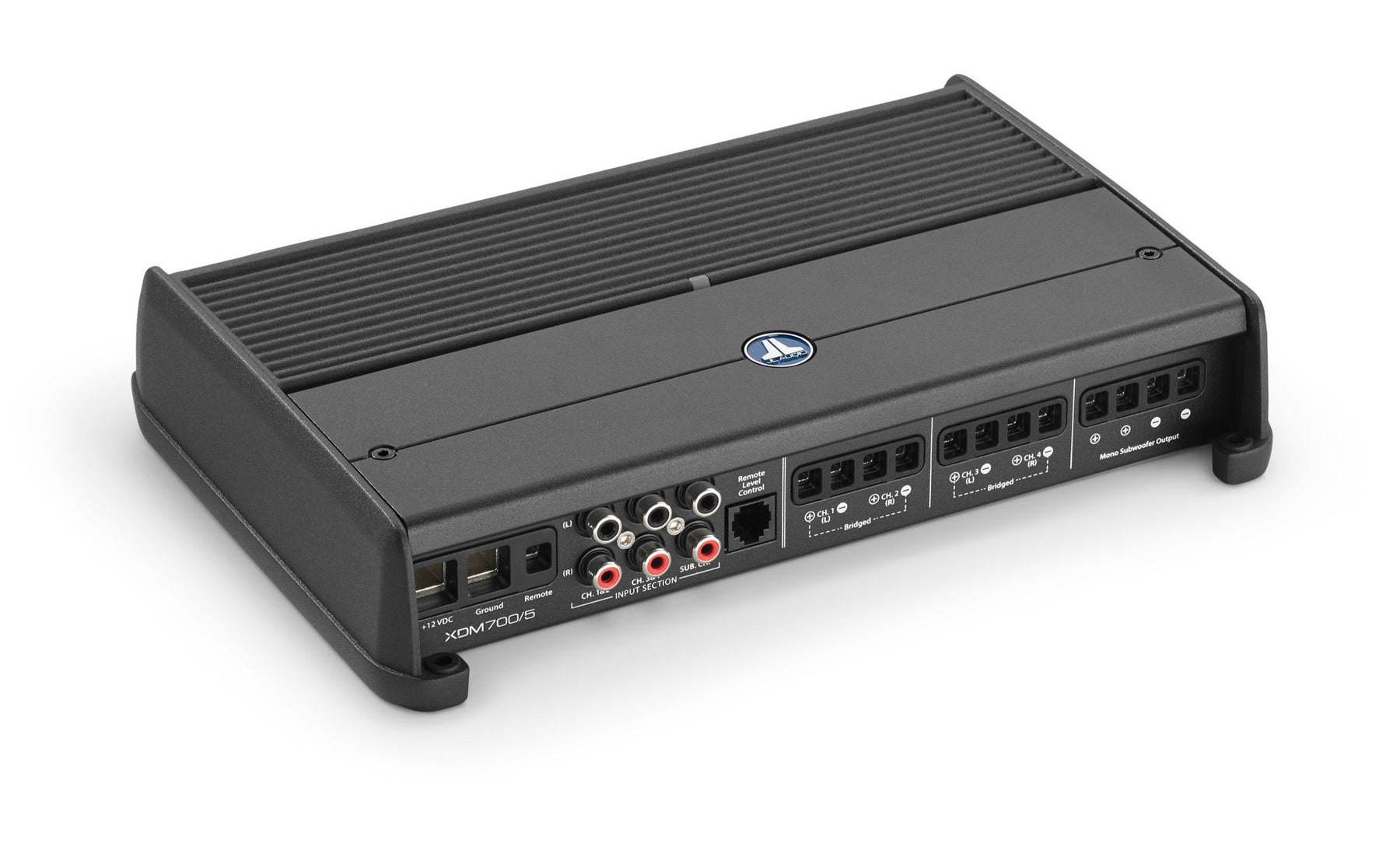

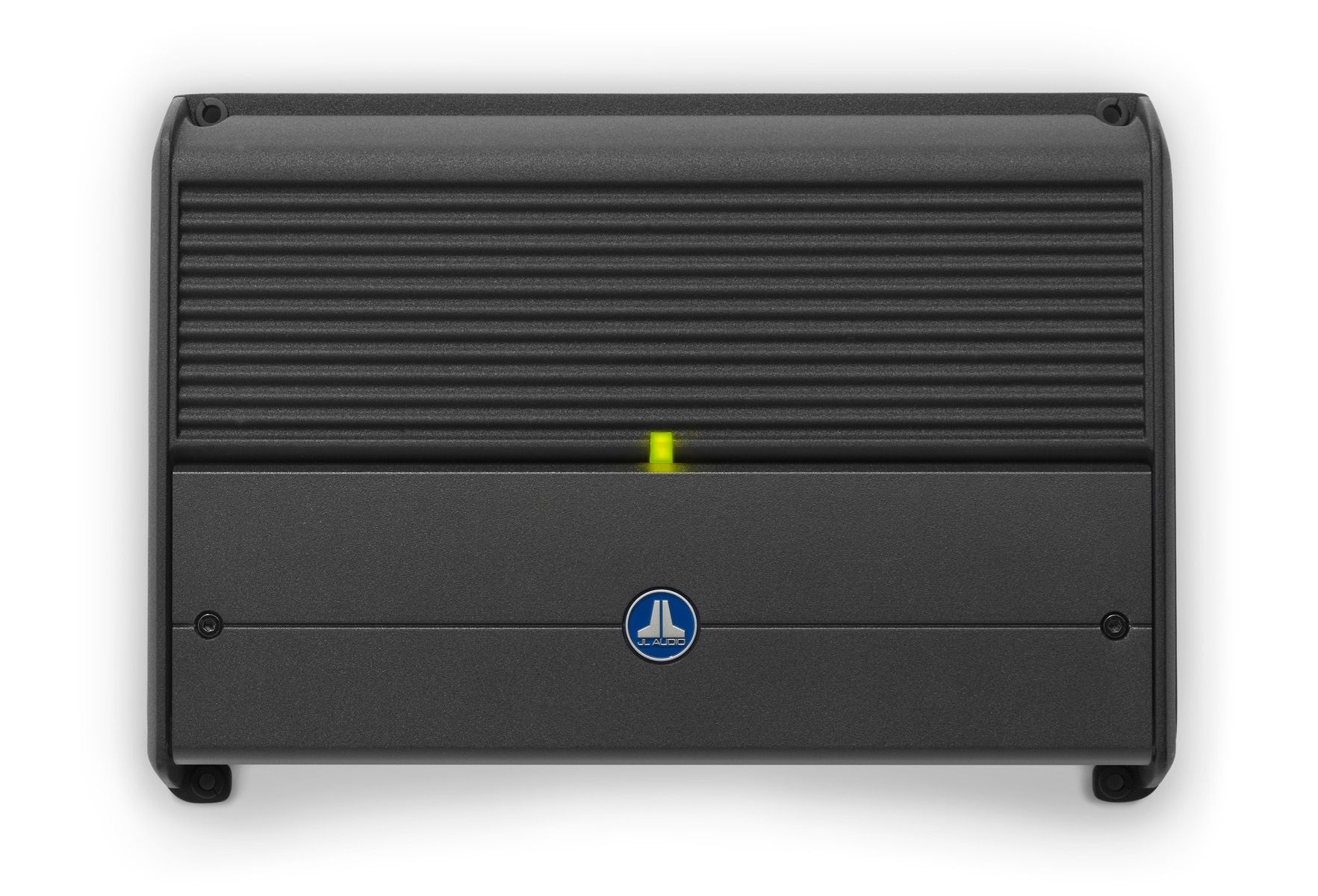

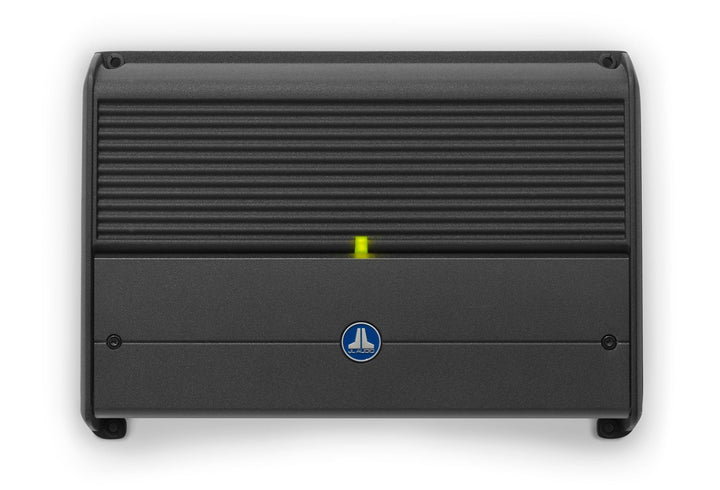

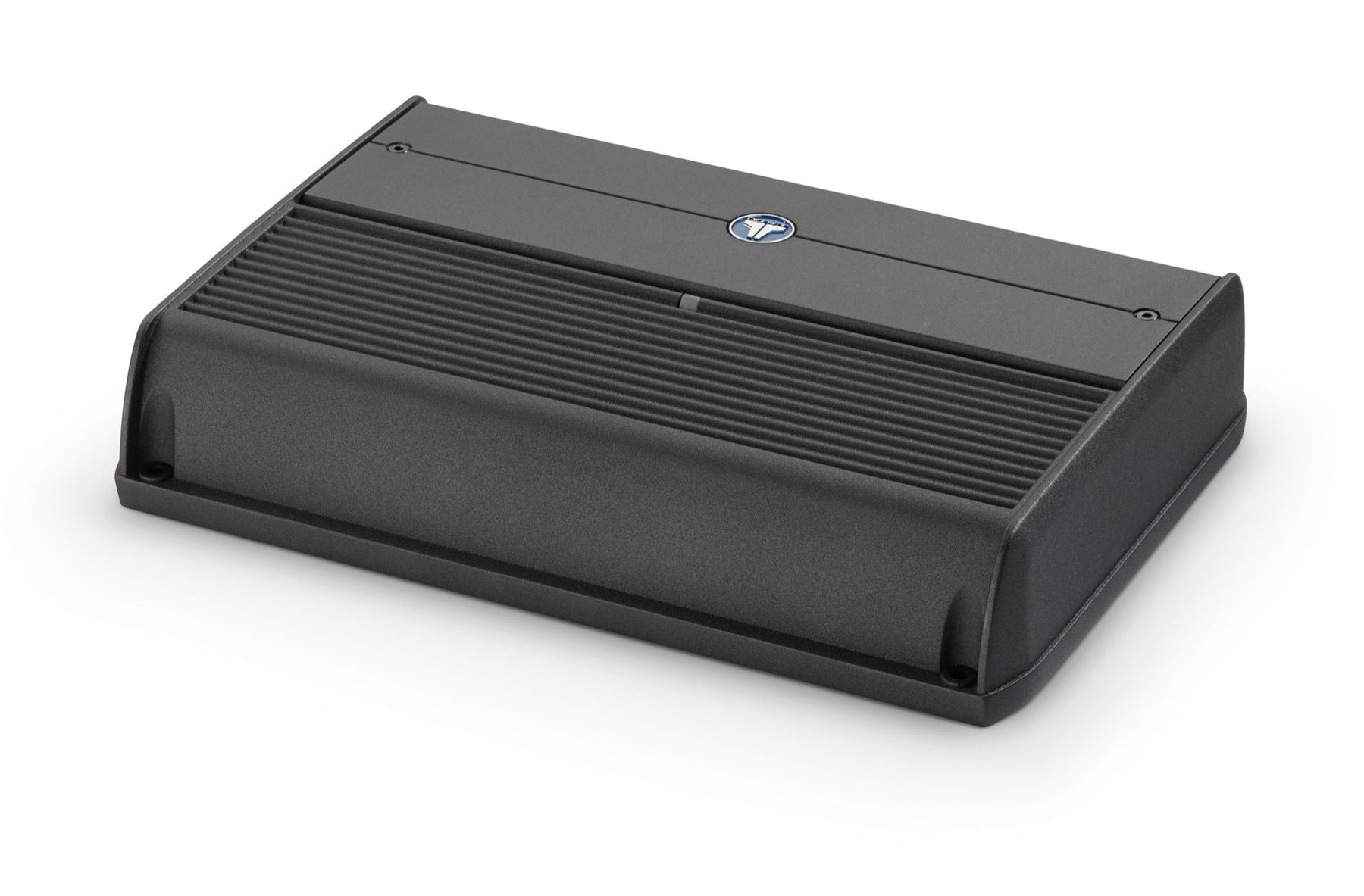

JL Audio JLAMPXDM700-5: 700 W 5-Channel Class-D XDM-Series Mobile / Marine System Amplifier

5-Channel Class-D car / Marine System Amplifier, 75 W x 4 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4 V

The JLAMPXDM700 / 5 is ideal for a complete Audiophile grade, subwoofer + 4 satellite System, and fits comfortably in just about any vehicle or vessel.  Through this incredible little Amplifier, you can drive 2 pairs of quality component speaker Systems through plenty of clean power (75 W x 4 @ 4 Ω), while also generating a solid 300 W of power for a subwoofer system.  The technology that makes this much power possible in such a small chassis is our high speed NEXD switching Amplifier design.

Suitable for car or boat installations, the JLAMPXDM700 / 5 is built through Marine grade materials and features an exclusive, dual mode input filter for noise free performance in boats or cars.  Automatic turn on capability (via signal or DC offset sensing) is also onboard for easy factory System upgrades.

The JLAMPXDM700 / 5 includes a 12 dB / octave high pass filter for 1 main-Channel pair, a 12 dB octave high or band pass filter for the other main-Channel pair, plus a variable slope low pass filter for its subwoofer-Channel.  All 3 filters offer continuously variable cutoff frequency selection from 50 - 500 hz.  This Amplifier's filters can also be configured as a true 3 way crossover, through a low and high and band pass filter for the subwoofer and on 3- and 1- & 2 and 4-Channel.  An "X 10" multiplier switch on the 1- & 2-Channel high pass filter allows its cutoff frequency to be adjusted from 50 and 500 / - 5000 hz.  Through the addition of an optional JLAMPM / HDRLC (water resistant) remote level controller (each sold separately), you have the ability to adjust the level of all Amplifier or just the subwoofer-Channels directly from the driver's seat or helm.

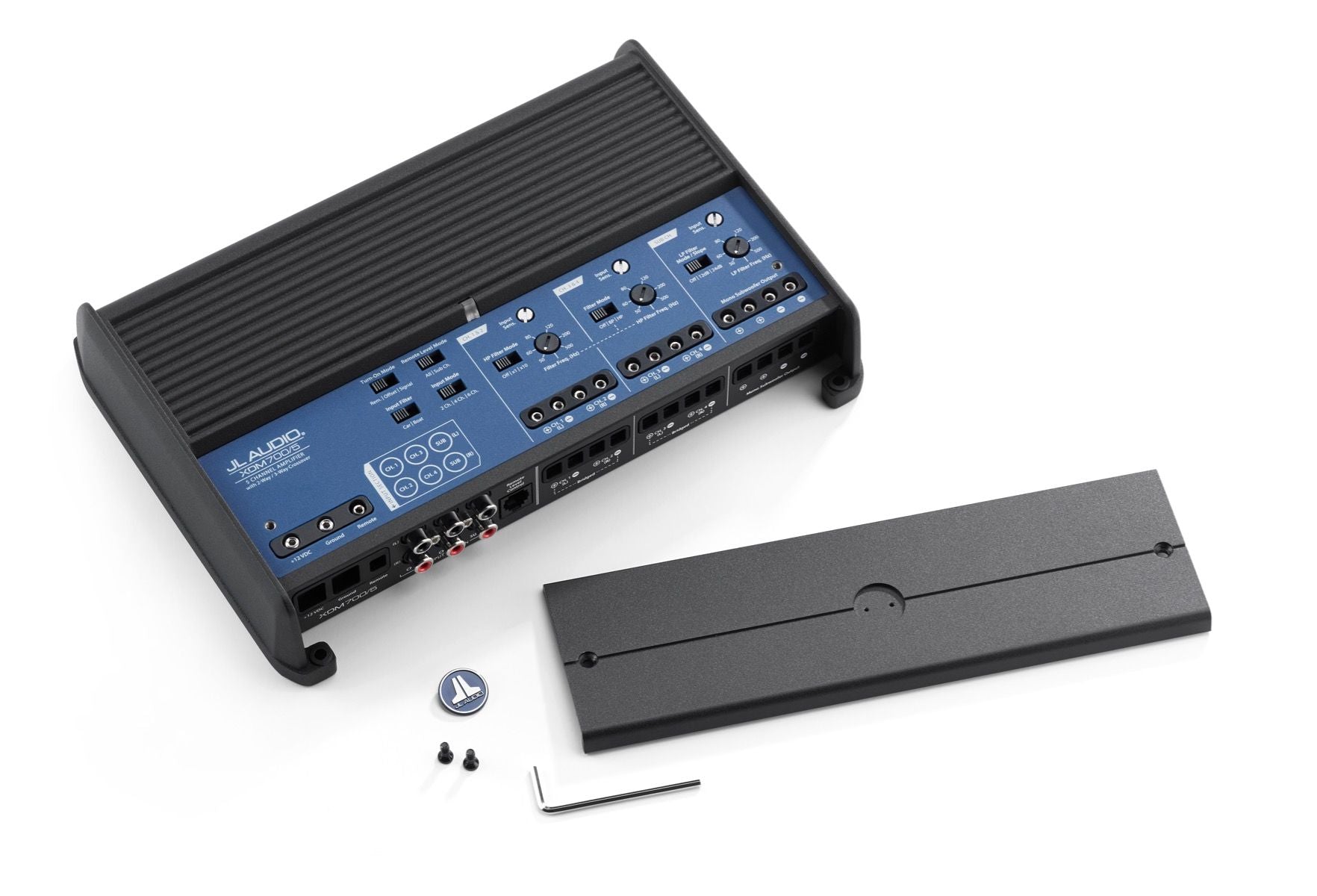

Finished in a sleek, black powder coat, all controls are protected beneath a gasketed, removable top cover for easy access.
