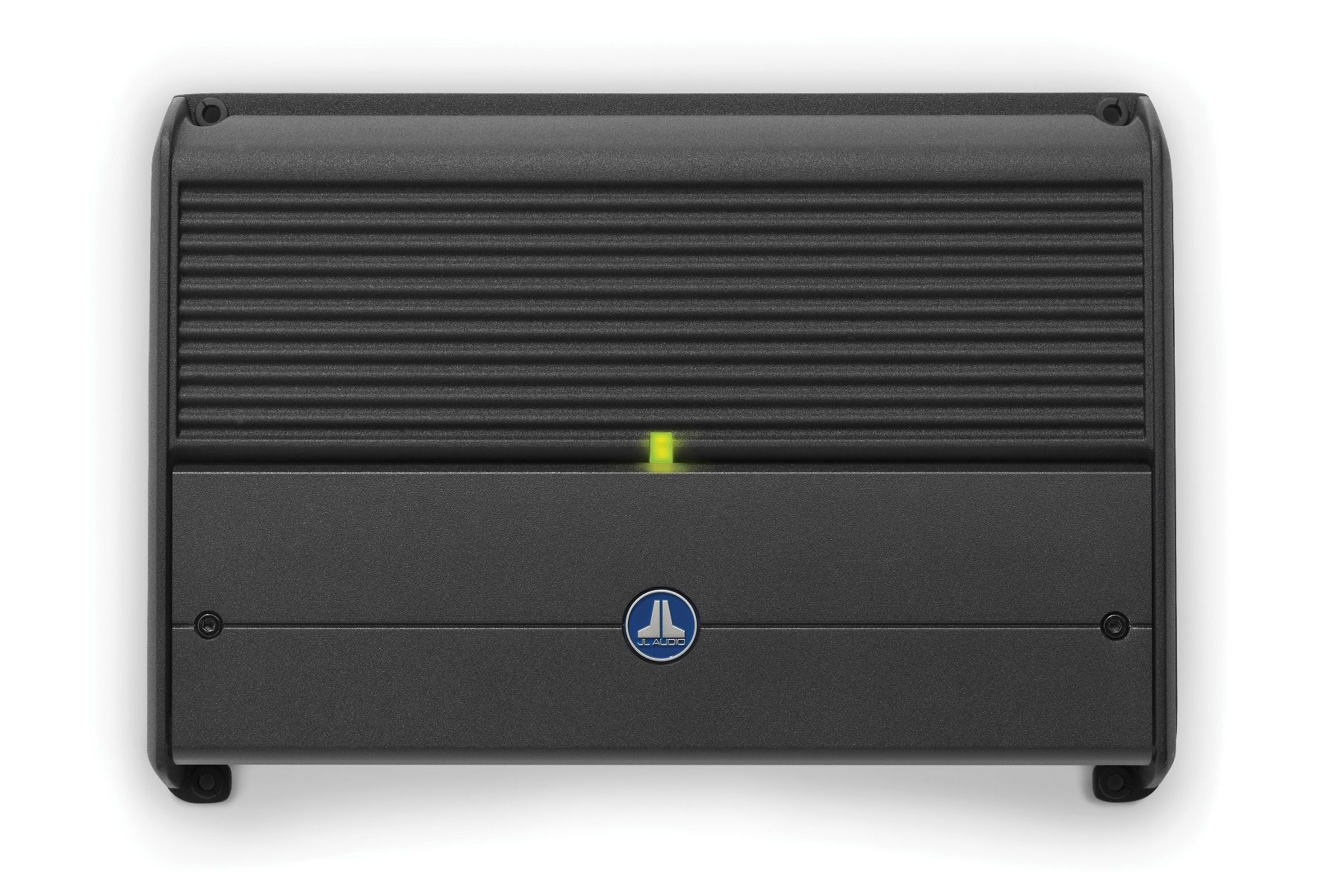

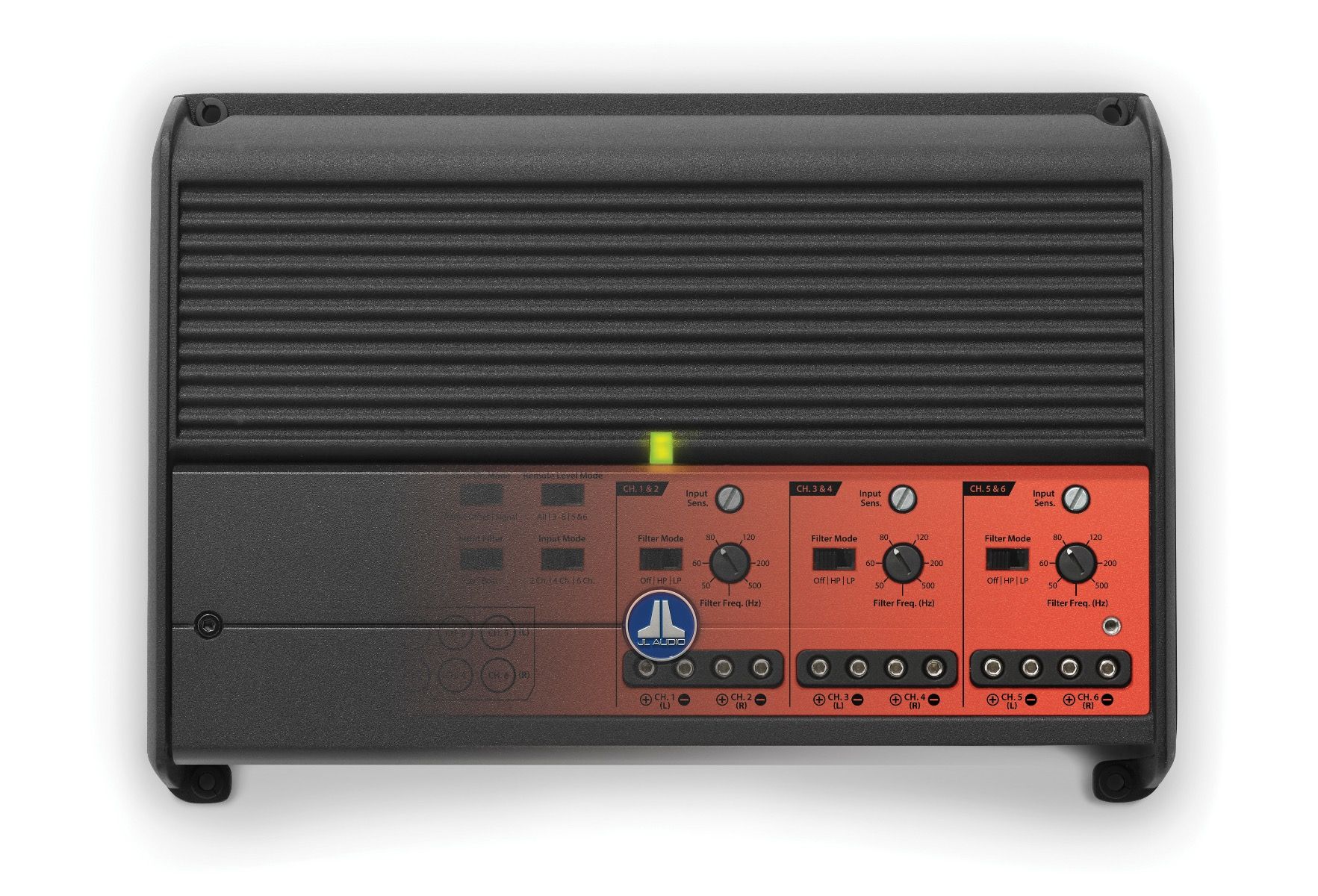

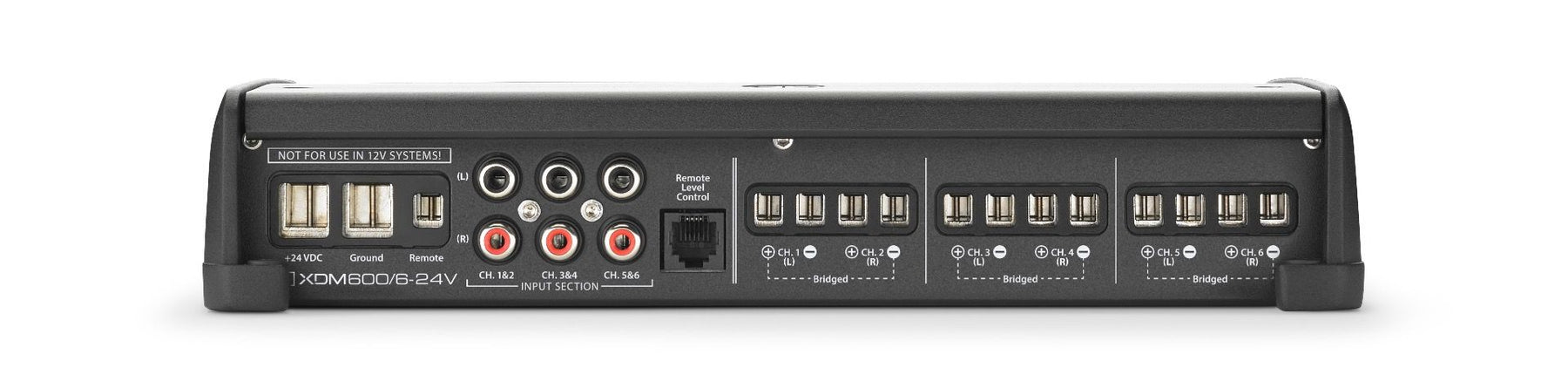

JL Audio JLAMPXDM600-6-24V: 600 W 24 V 6-Channel Class-D XDM-Series Mobile / Marine Full-Range Amplifier

For 24 V systems only: 6-Channel Class-D Marine Full-Range Amplifier, 100 W x 6- @ 2 Ω / 75 W x 6- @ 4 Ω - 28.8 V

This incredibly flexible Amplifier packs a serious Full-Range punch, and delivers a staggering 100 W to each of its 6-Channels into 2 Ω (28.8 V, 1 % THD).  The breakthrough that makes this much power possible in such a small chassis is our NEXD ultra high speed switching design, which allows for full band width Class-D operation through extremely low distortion and outstanding efficiency.

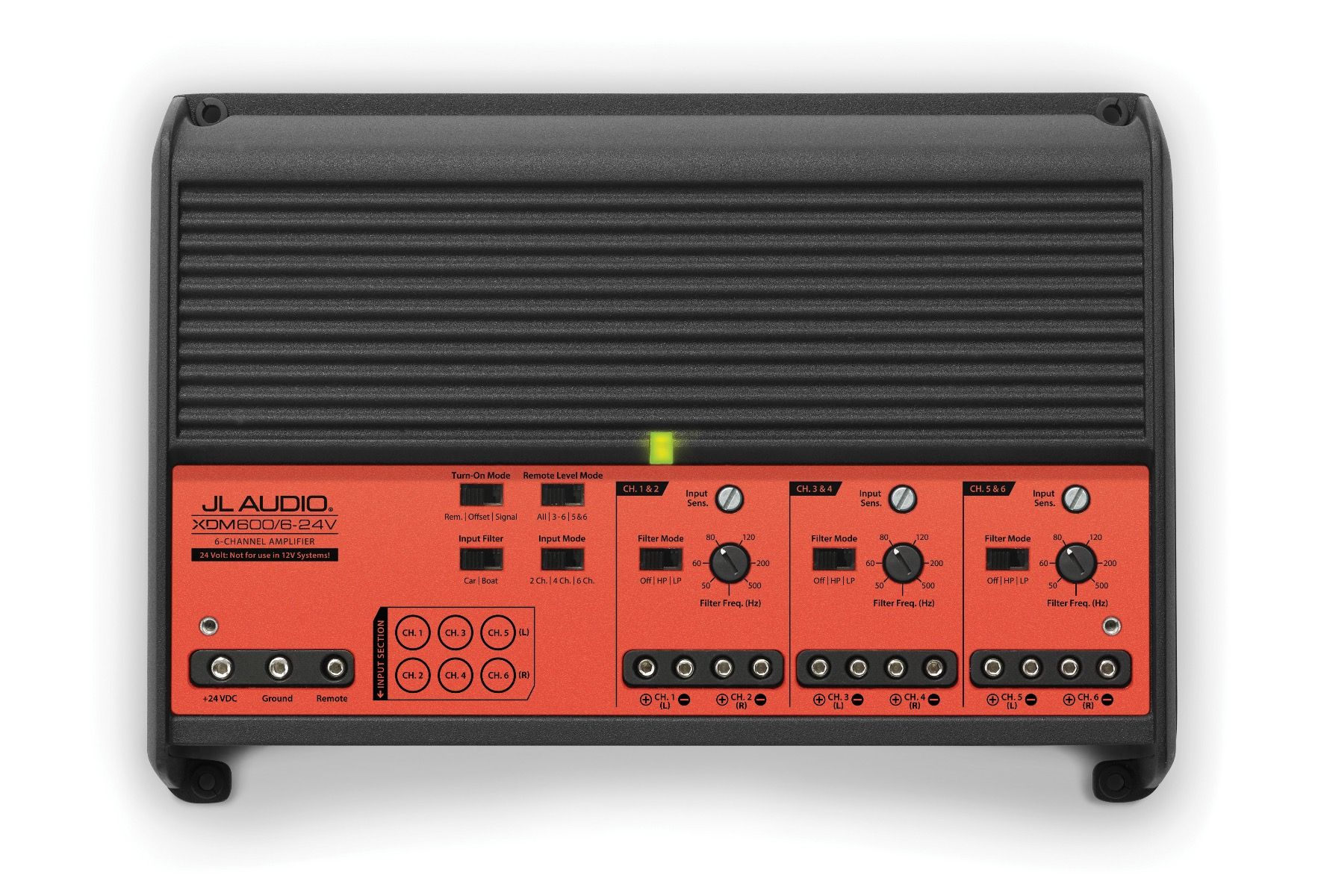

Through the JLAMPXDM600 / 6-24V, you have lots of great options.  Use it as a 6-Channel satellite Amplifier through 75 W x 6- @ 4 Ω, or bridge 4 of its-Channels to create a staggered power 4-Channel Amplifier through 200 and 75 W x 2 @ 4 Ω to 1 and a secondary pair of satellites.  You can also drive 2 subwoofers through 200 W each, plus a pair of satellites through 75 W x 2.  The JLAMPXDM600 / 6-24V includes a 12 dB / octave filter for each-Channel bank, which can be configured as a low or high pass filter and offers continuously variable cutoff frequency selection from 50 - 500 hz.  Through the addition of an JLAMPHDRLC remote level control (sold separately), you have the ability to control the level of 2, 4 or all 6-of the Amplifier's-Channel levels from a remote location.

This Marine Amplifier features a black powder coat finish, a gasketed cover for the controls and stainless steel hardware for durability in the Marine environment.

This Amplifier is designed for operation in vessels through 24 V, negative ground electrical systems.  Use of this product in vessels through positive ground and / or voltages other than 24 V may result in damage to the product and will void the warranty.
