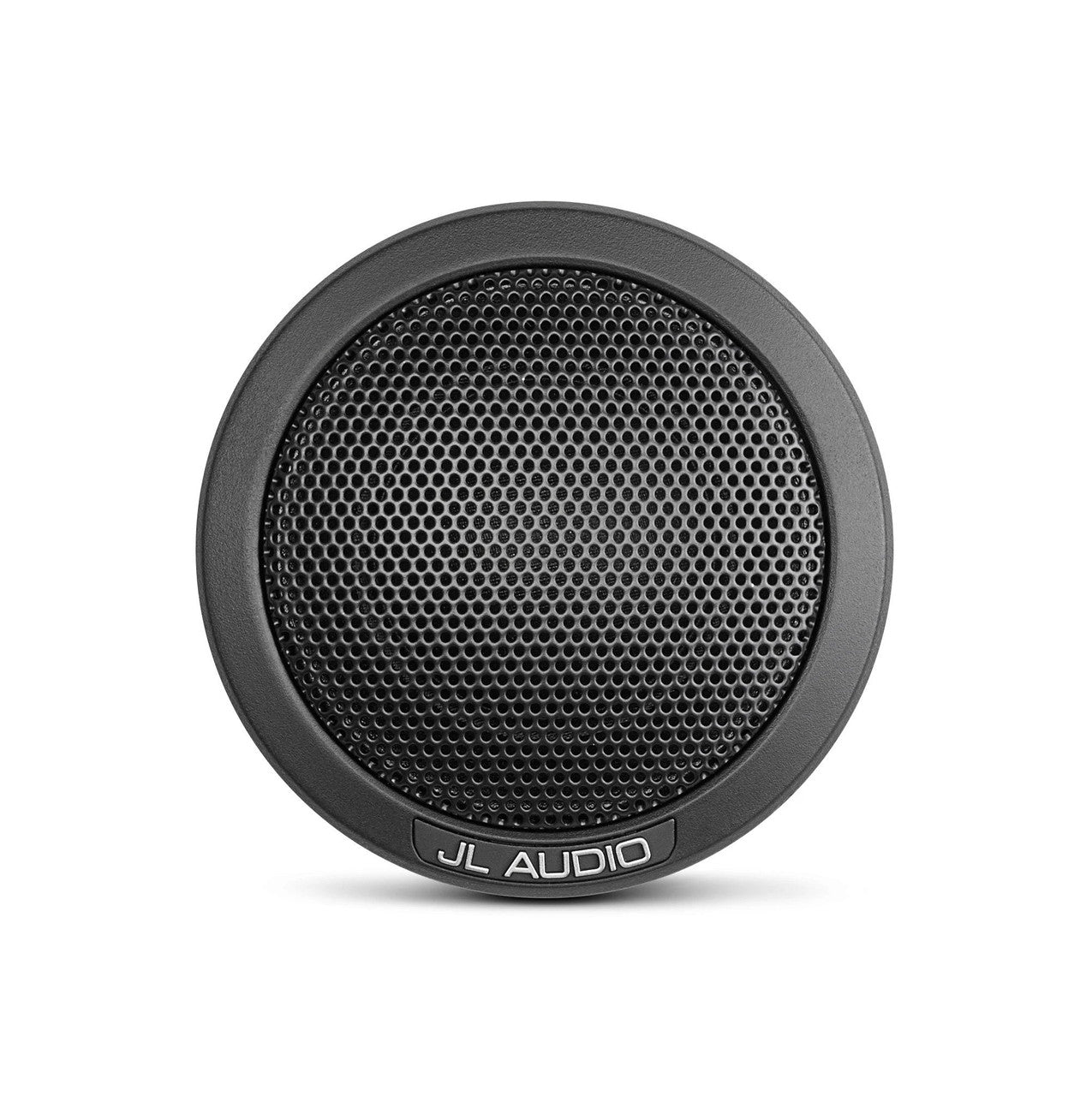

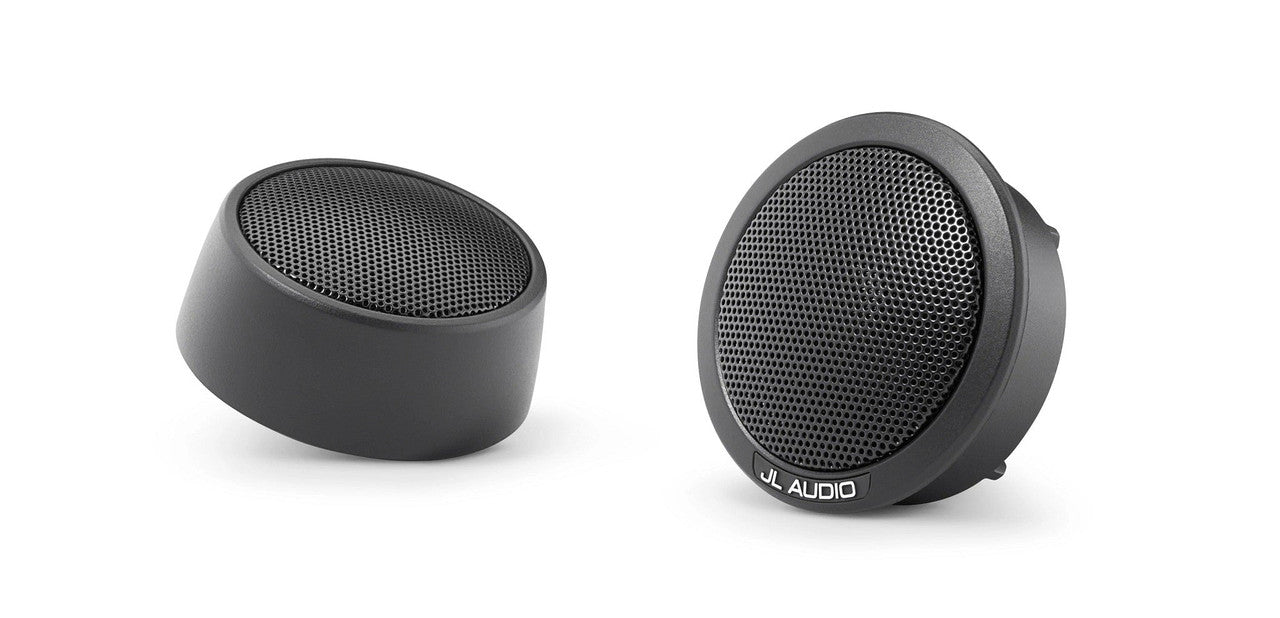

JL Audio JLC6-100CT: 1" 25 MM C6-Series Silk Dome Component Tweeter

Born from shared technologies used in our flagship C7-Series speakers, the JLC6-100CT Component Tweeter benefits from vast speaker design experience and advanced modelling systems of JL Audio.

Ideal for active systems, the JLC6-100CT Component Tweeter features an edge driven, pure Silk Dome diaphragm for smooth, high frequency performance through remarkable off axis response and damping.  A neodymium motor and ferrofluid cooling provide high magnetic flux and improved reliability through extended response from a very compact motor system.  Surface and flush mount fixtures are included to fit a wide variety of installation applications.

Passive crossover networks are not included through C6-Series drivers, as they are designed for active systems.  Instead, we recommend a high quality tuning digital signal processor (DSP), such as the JL Audio TWK-, DSP- / a VXI-Series amplifier through built in DSP, and a dedicated amplifier channel for each C6-Series loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in vehicle performance.

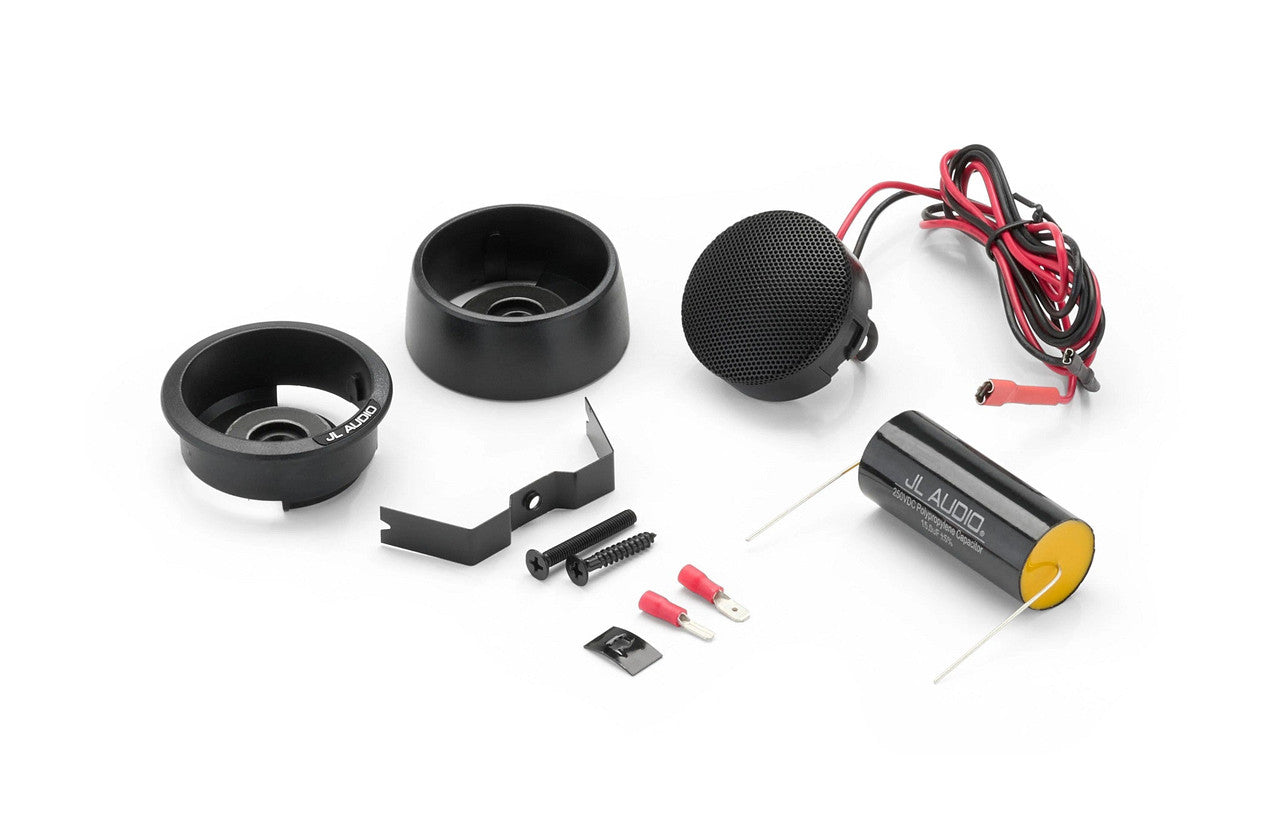

Component Tweeters are sold individually and include surface and flush mount fixtures and hardware.  One 15 μF Tweeter protection capacitor is also included.

Component Tweeter features:

• Edge driven pure Silk Dome design delivers smooth high frequency performance, through excellent off axis response and damping

• Neodymium motor delivers high magnetic flux from a compact motor design

• Ferrofluid cooling and damping improves reliability and response smoothness
• Includes surface and flush mount fixtures

Design bandwidth:

• Through 48 and 24 and 12 dB / octave filters: 3 and 4 and 5 - 21 kHz
