JL Audio C3-525: 5 - 1 / 4" 65 W RMS C3-Series Evolution Convertible Component Speaker System
About the JL Audio C3-525: 5 - 1 / 4" 65 W RMS C3-Series Evolution Convertible Component Speaker System
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. Through the Evolution C3-Series Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding Audio power and quality in each application.

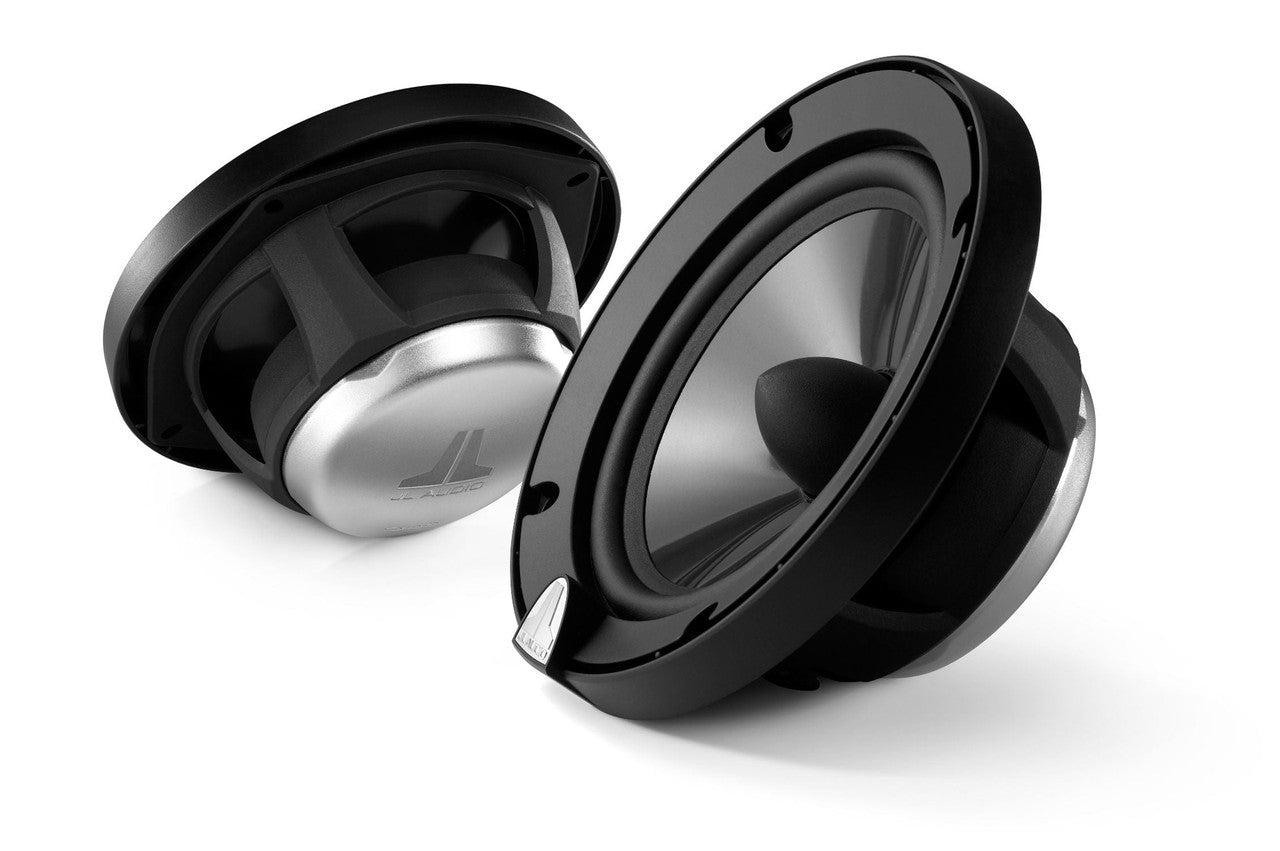

The C3-525 system features 5.3" (130 mm) Component woofers through oversized 1.2" (30.5 mm) voice coils, mineral filled polypropylene cones and injection molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modelling systems.

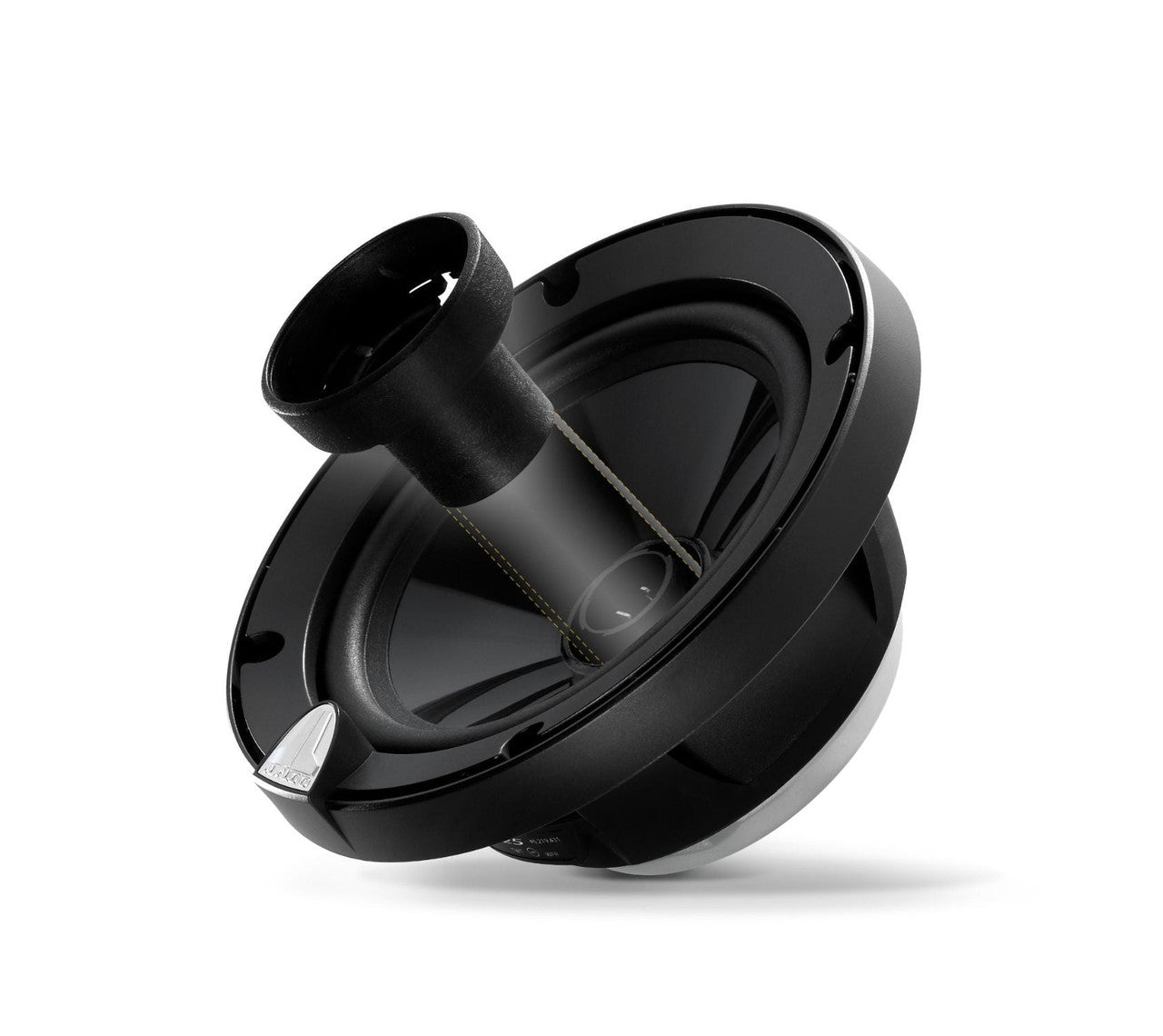

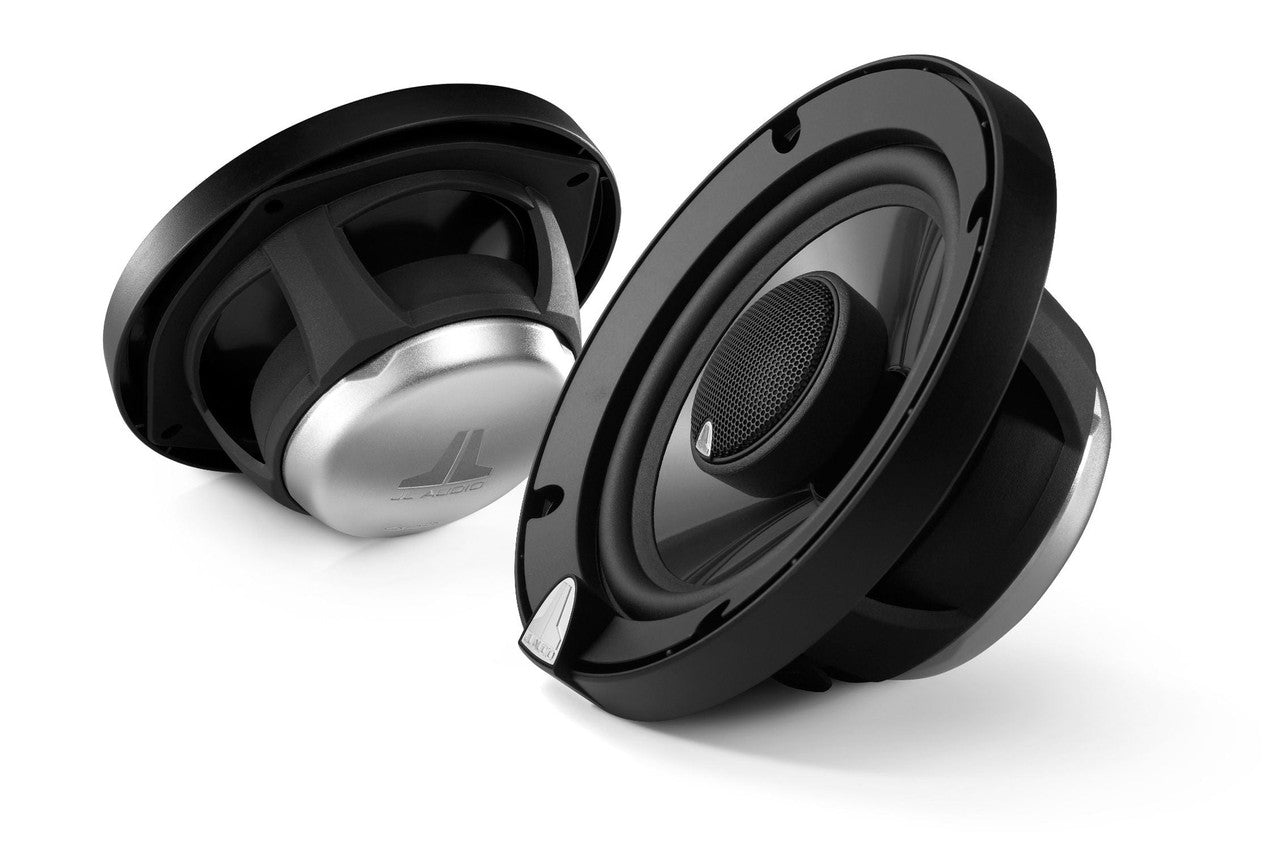

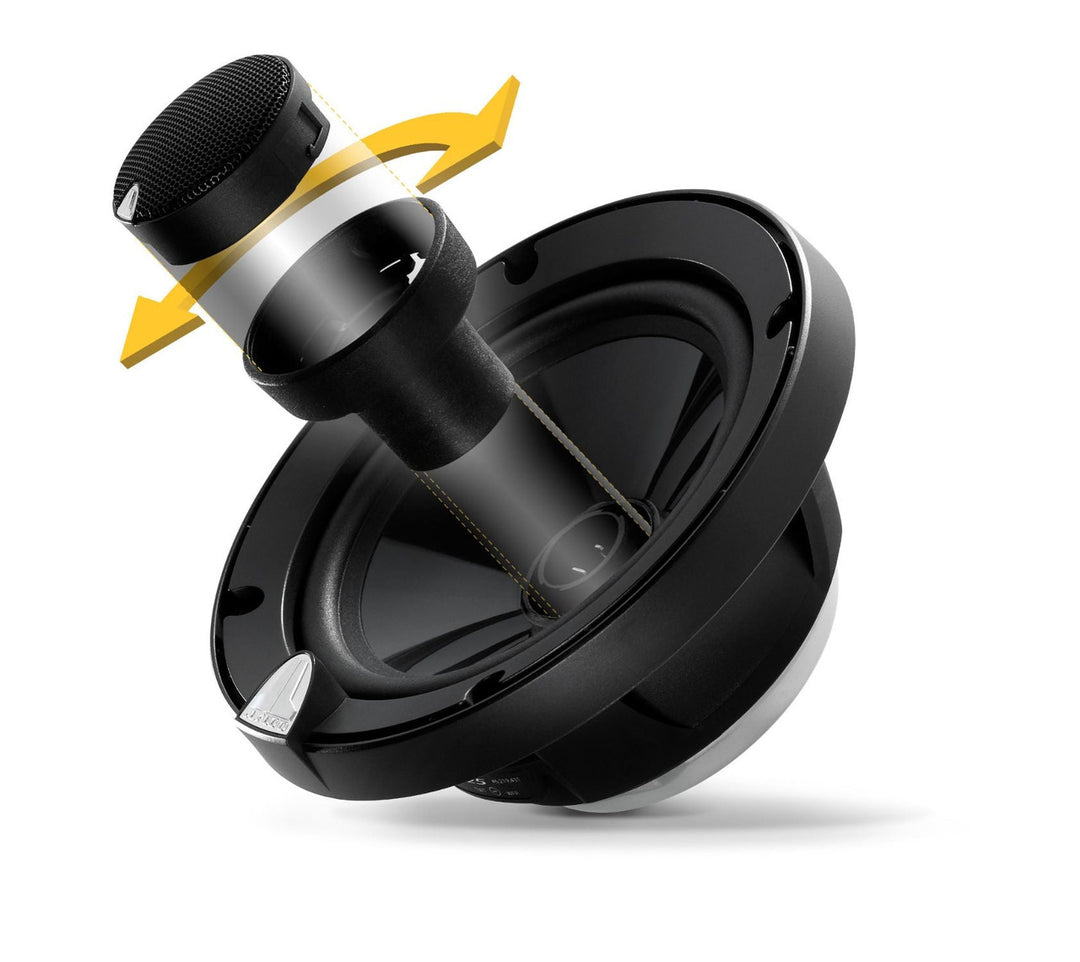

The C3-Series tweeters are built through 1" silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush and surface mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3-Series crossover networks are compact and built through premium component parts, including Mylar capacitors and segmented air core inductors. 4 levels of tweeter attenuation are provided, as well as 3 levels of mid range presence adjustment, for 12 possible voicing combinations!
Woofer grilles are included, each consisting of a black grille tray and a steel mesh grille through an electroformed JL Audio logo. Sonic character: clean and powerful. Sold as a pair.
General specifications:
- Continuous power handling (RMS): 75 W
- Recommended amplifier power (RMS): 25 - 150 W / channel
- System efficiency: 90 dB @ 1 W / 1 m
- System nominal impedance: 4 Ω
- System frequency response: 48 hz - 25 kHz ± 3 dB
Coaxial physical specifications:
- Frame outer diameter: 5.8" / 147 mm
- Grille tray outer diameter: 6" / 152 mm
- Motor outer diameter: 3.4 in / 86 mm
- Frontal coaxial tweeter protrusion: 0.7" / 18 mm
- Frontal grille protrusion: 1" / 25 mm
- Mounting hole diameter: 4.6" / 116 mm
- Mounting depth: 2.3" / 58 mm
- Does not take into account mounting tabs and include decorative cover
- Does not include decorative cover
- Frontal coaxial tweeter and grille protrusion measured from mounting surface
Tweeter physical specifications:
- Flush mount fixture diameter: 2.1" / 54 mm
- Surface mount fixture diameter: 1.9" / 49 mm
- Flush mount mounting hole diameter: 1.9" / 48 mm
- Flush mount fixture mounting depth: 0.7" / 18 mm
- Flush mount tweeter frontal protrusion: 0.3" / 8 mm
- Surface mount tweeter frontal protrusion: 1" / 24 mm
Crossover physical specifications:
- Width (W): 3.4" / 85 mm
- Height (H): 1.4" / 37 mm
- Depth (D): 4.7" / 120 mm
Features:

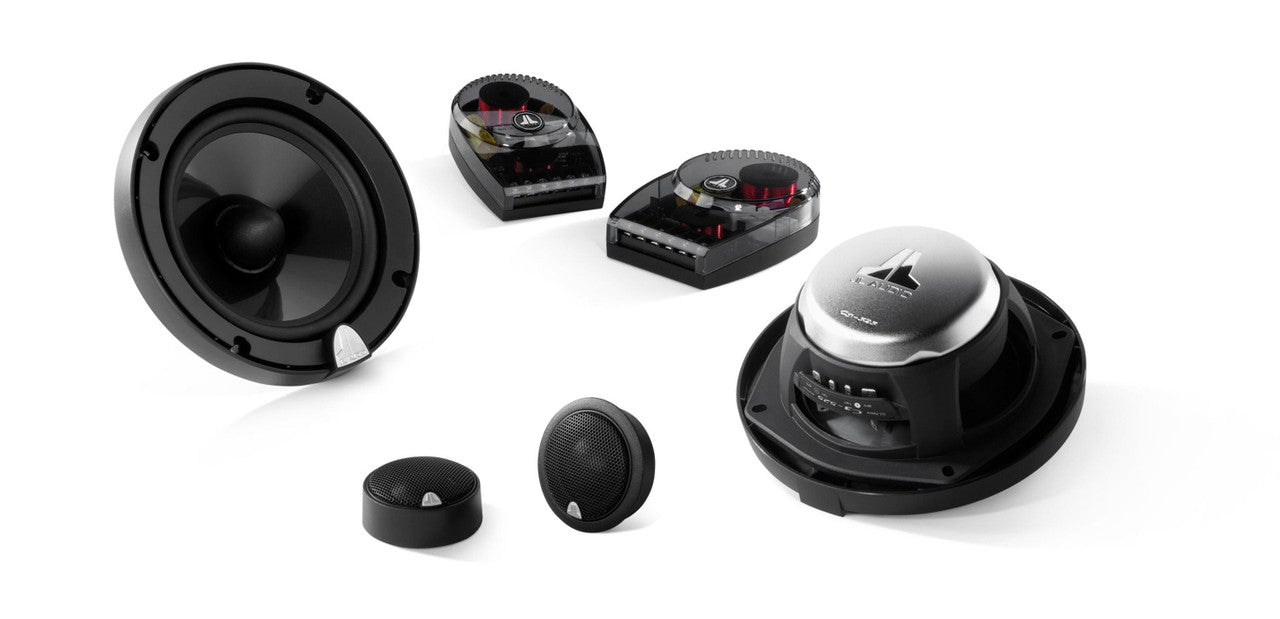

- Component Speaker System includes two 5 - 1 / 4" woofers and grilles, tweeters, external crossovers
- Mica filled polypropylene woofer and butyl rubber surround
- Glass filled polymer frame and Elevated Frame Cooling
- 1" silk dome tweeter
- 2 way external crossover through adjustments for coaxial or separate tweeter placement, and 4 positions tweeter level
- Tweeter mounts for separate or coaxial installations included

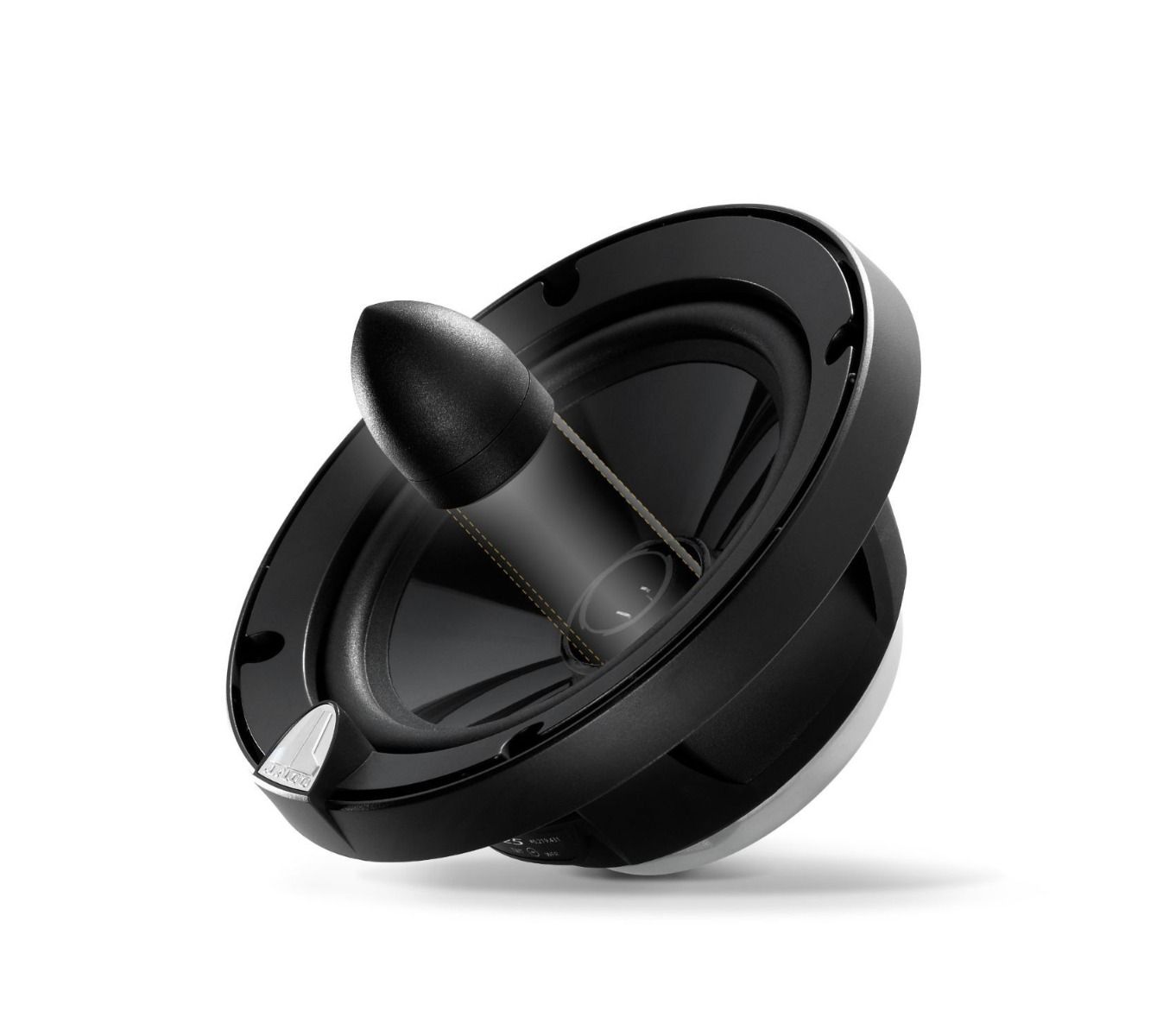

- Phase plug provided when tweeter mounted separately
- Handles up to 65 W RMS (225 W peak power)
- Frequency response: 48 - 25,000 hz
- Sensitivity: 90 dB
- Depth: 2.2"
- Grilles included
What's in the box:
- 2 C3-525CW woofers and 100CT tweeters and 525-XO crossovers and woofer grilles and flush and surface and coaxial mount tweeter housings and fixtures and metal spring clips for tweeter fixtures and M 4 x 30 mm pan head machine and four and twelve 1 and 1 - 1 / 8" flat and pan head self tapping screws and crimp on 0.2 and 0.1" male and 4 female quick slides and 12 spade connectors
- 8 speed clips
- Owner's manual
- Woofer cutout template
