JL Audio C2-600: 6" 60 W RMS C2-Series Evolution Component Speaker System
About the JL Audio C2-600: 6" 60 W RMS C2-Series Evolution Component Speaker System
C2-Series systems deliver sparkling high frequency detail, smooth and powerful mid range bass, thanks to real silk dome tweeters and long linear excursion woofer designs.

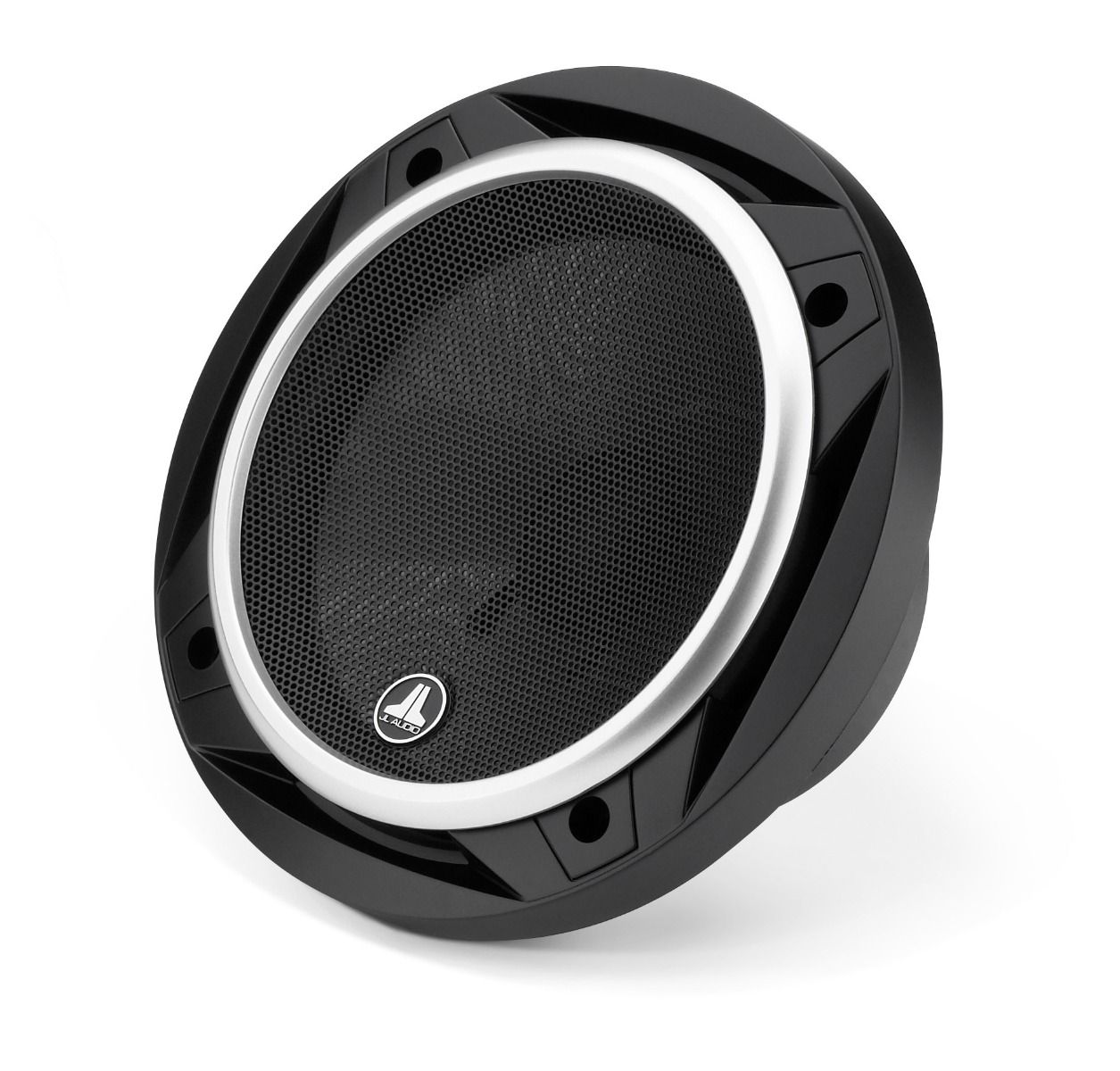

The C2-600 System features 6" (150 mm) component woofers and mineral filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modelling systems.
The 6" (150 mm) format is a direct fit in many Japanese vehicles where a full size 6.5" Speaker (165 mm) will not fit without modification. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6" (150 mm) Speaker.
The C2-Series Component tweeters are built through 0.8" silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush and surface mounting fixtures are included to fit a wide variety of installation needs.

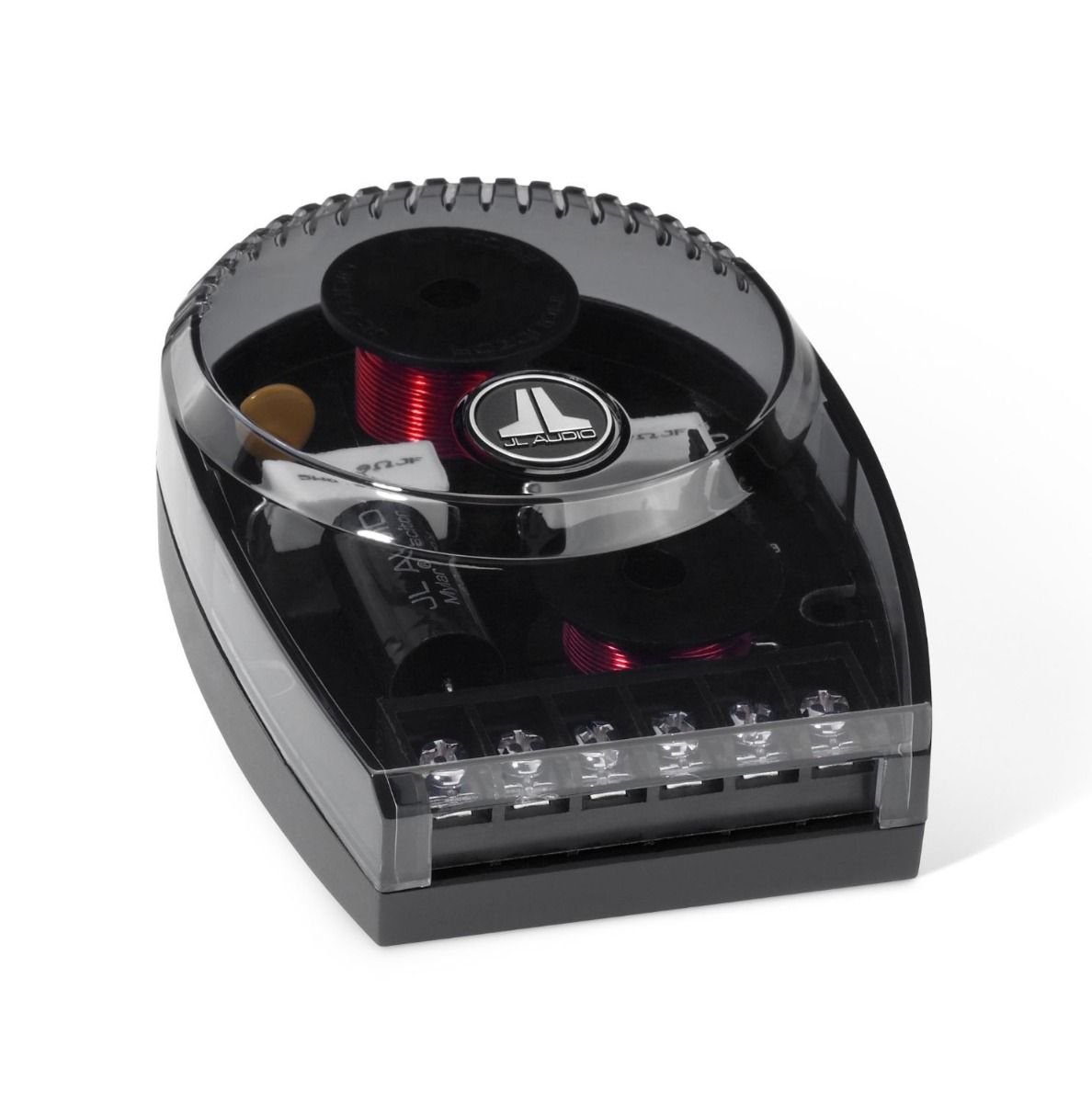

C2-Series crossover networks are compact and built through premium Component parts, including Mylar capacitors and segmented air core inductors. 3 levels of tweeter attenuation are provided, as well as a tweeter protector.

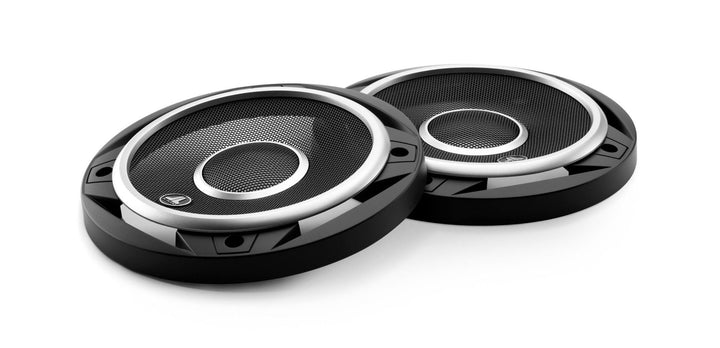

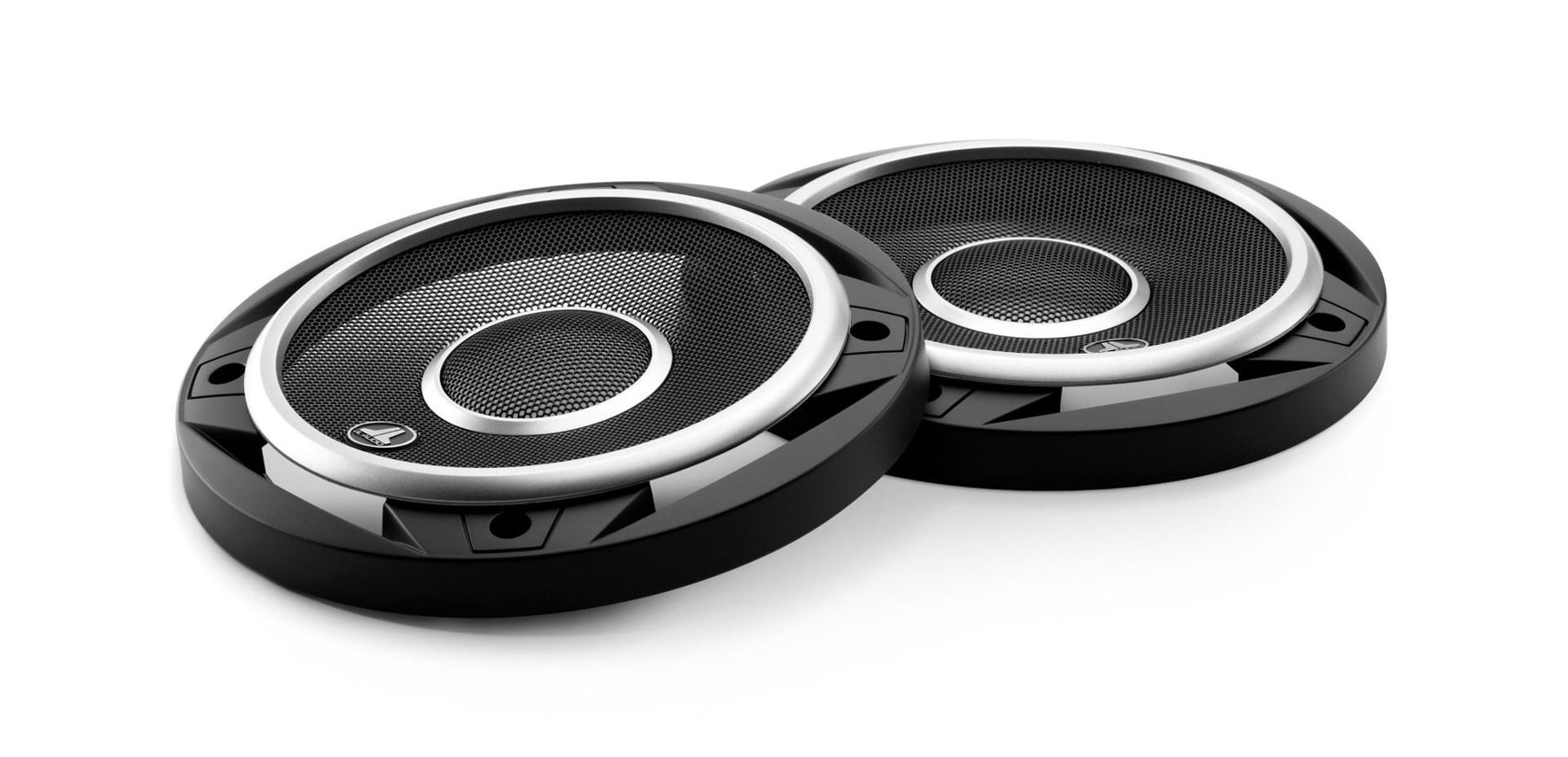

Woofer grilles are included, each consisting of a black grille tray through satin silver accents and a black steel mesh grille through an electroformed JL Audio logo. Sonic character: clean and dynamic. Sold as a pair.
General specifications:
- Continuous power handling (RMS): 60 W
- Recommended amplifier power (RMS): 15 - 100 W / channel
- System efficiency: 90.5 dB @ 1 W / 1 m
- System nominal impedance: 4 Ω
- System frequency response: 59 hz - 22 kHz ± 3 dB
Woofer physical specifications:
- Frame outer diameter: 6.2" / 158 mm
- Grille tray outer diameter: 6.5" / 163 mm
- Motor outer diameter: 3.2" / 80 mm
- Frontal coaxial tweeter protrusion: N / A
- Frontal grille protrusion: 0.9" / 23 mm
- Mounting hole diameter: 5" / 127 mm
- Mounting depth: 2.4" / 60 mm
- Does not take into account mounting tabs
- Frontal grille protrusion measured from mounting surface
Tweeter physical specifications:
- Flush mount fixture diameter: 1.9" / 48 mm
- Surface mount fixture diameter: 1.7" / 43 mm
- Flush mount mounting hole diameter: 1.6" / 41 mm
- Flush mount mounting depth: 0.8" / 19 mm
- Flush mount tweeter frontal protrusion: 0.3" / 7 mm
- Surface mount tweeter frontal protrusion: 0.9" / 23 mm
Crossover physical specifications:
- Width (W): 3.4" / 85 mm
- Height (H): 1.4" / 37 mm
- Depth (D): 4.7" / 120 mm
Features:

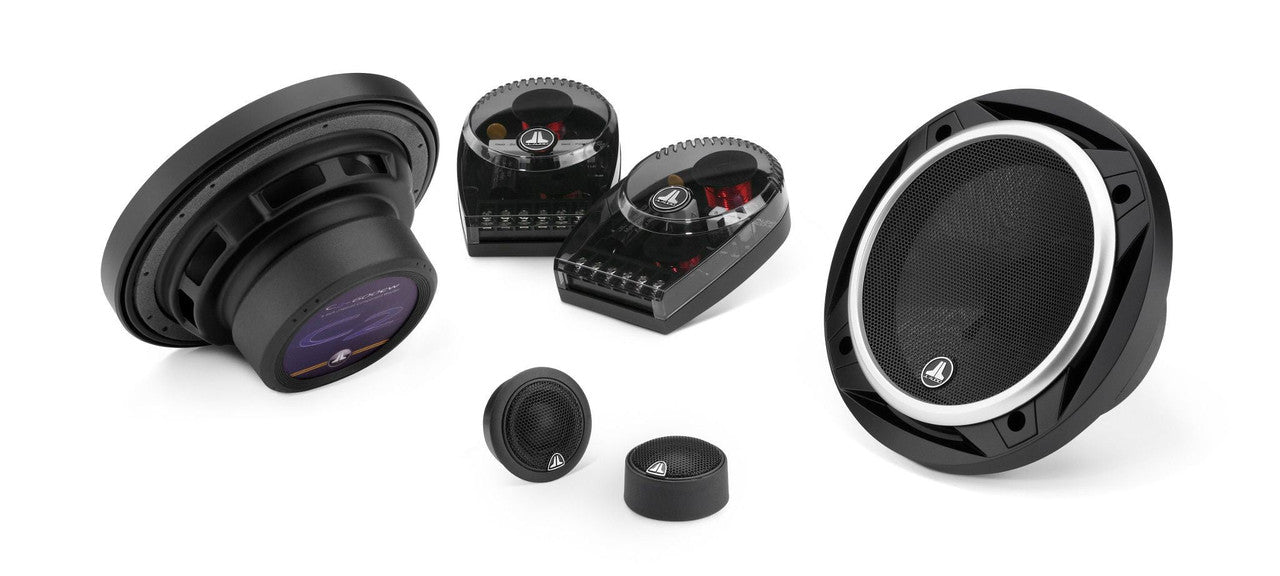

- Component Speaker System includes two 6" woofers, tweeters, external crossovers, and woofer grilles
- Mineral filled polypropylene woofer and butyl rubber surround
- 2 way external crossover through 3 position tweeter level
- 3 / 4" silk dome tweeter
- Tweeter mounting gear included
- Frequency response: 59 - 22,000 hz
- Handles up to 60 W RMS (225 W peak power)
- Sensitivity: 90.5 dB
- Woofer mounting depth: 2 - 7 / 16"
- Grilles included
What's in the box:
- Two C2-600cw woofers and C2-075CT tweeters (including 6" wires attached) and C2-600XO crossovers and woofer grilles and self adhesive JL Audio badges and flush and surface mount tweeter housings and metal spring clips for tweeter fixtures and M 4 x 30 mm pan head machine screws and crimp on 0.2 and 0.1" male and female quick slides
- Four 7 / 8" flat head self tapping screws
- Twelve 1 - 1 / 8" Pan head self-tapping screws and crimp on spade connectors
- 8 speed clips
- Owner's manual
- Woofer cutout template
