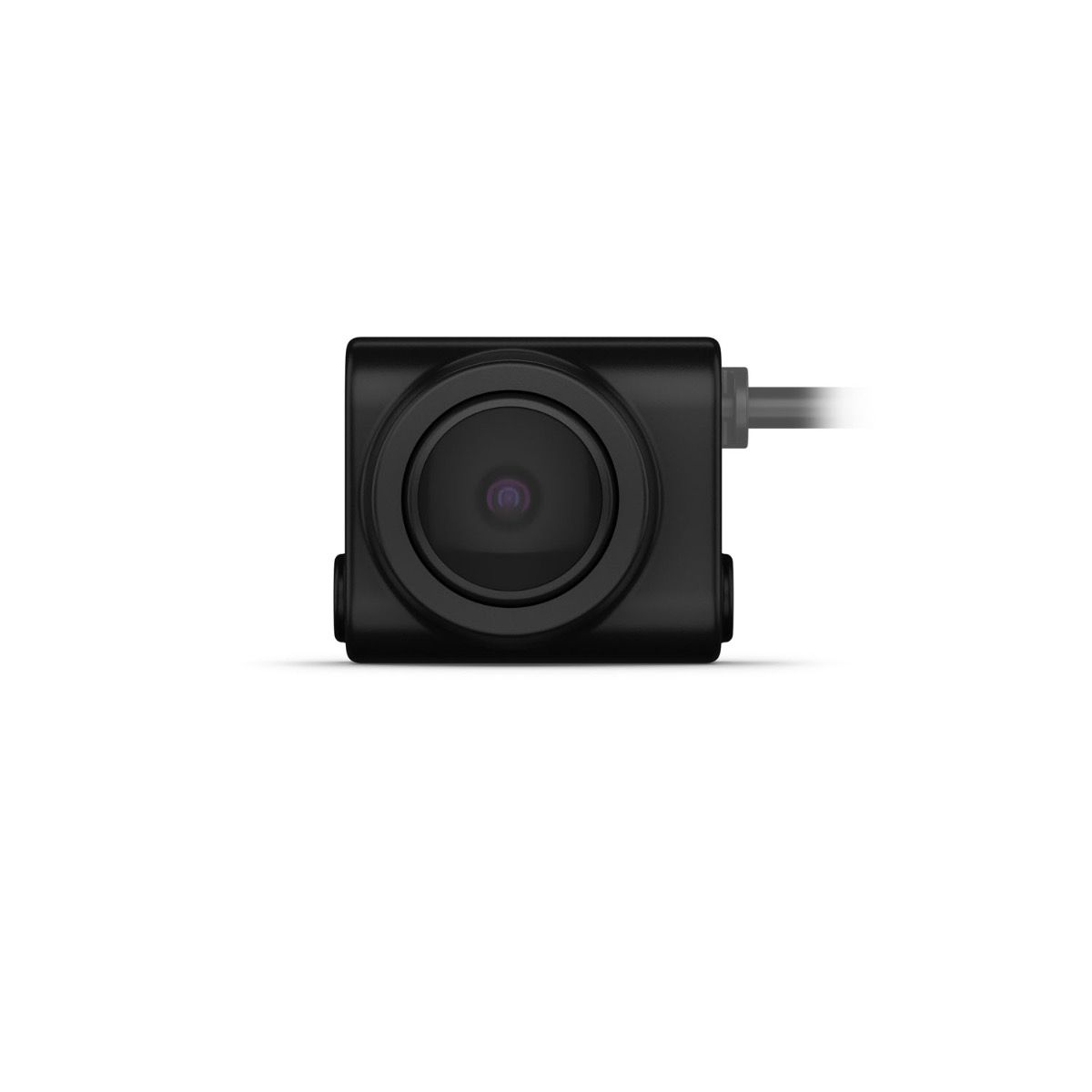

Garmin GABC50BACKUPCAM: Wireless Rear-View Camera

Product highlights:

• Wireless BACKUP Camera system delivering a clear Rear-View on compatible Garmin navigators whenever your vehicle is in reverse
• Up to 50 FT Wireless transmission range via 2.4 gHz protocol, ideal for longer vehicles including RV's, trucks, and trailers
• 160 ° wide angle field of-View through up to 720 P HD resolution at up to 30 FPS when paired through a compatible Garmin navigator

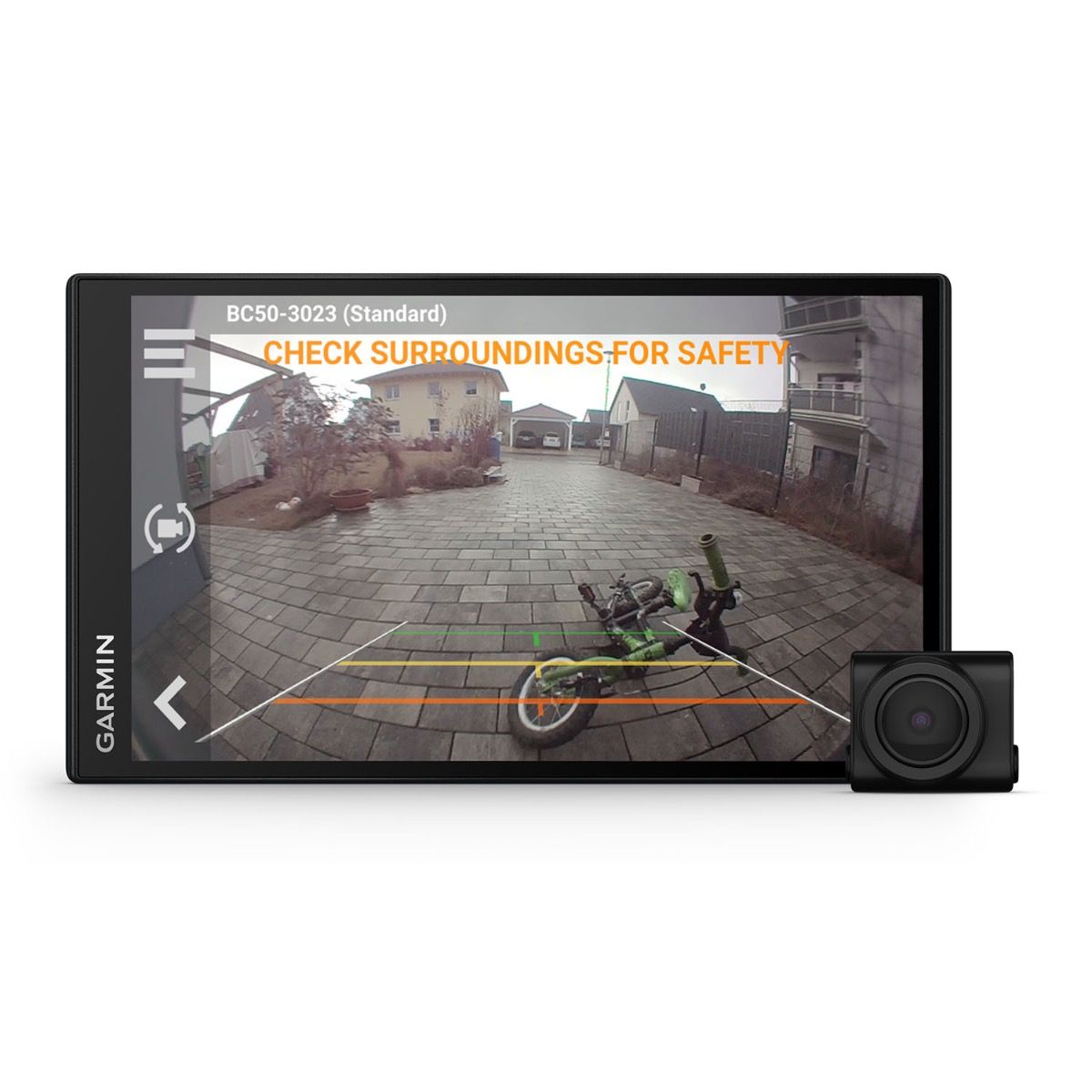

• On screen adjustable guidance lines help gauge distance to obstacles, lines can be repositioned to match the exact width of your vehicle
• Pair up to 4 compatible Garmin Wireless Cameras to a single navigator and cycle through each-View on screen
• IP67 waterproof rated housing, withstands immersion in up to 1 m of water for up to 30 minutes; rated for operating temperatures from - 4 - 140 ° F (-20 - + 60 ° C)

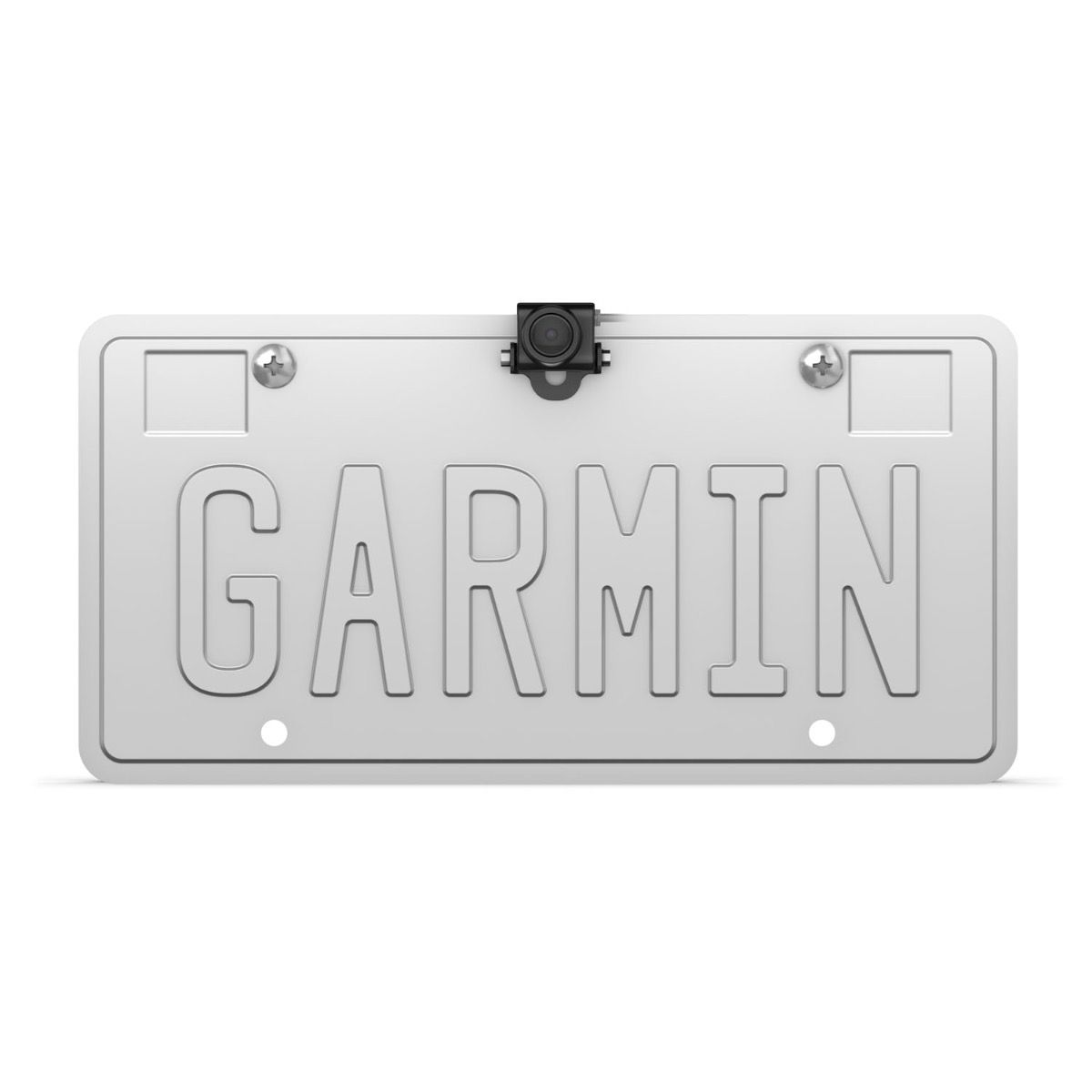

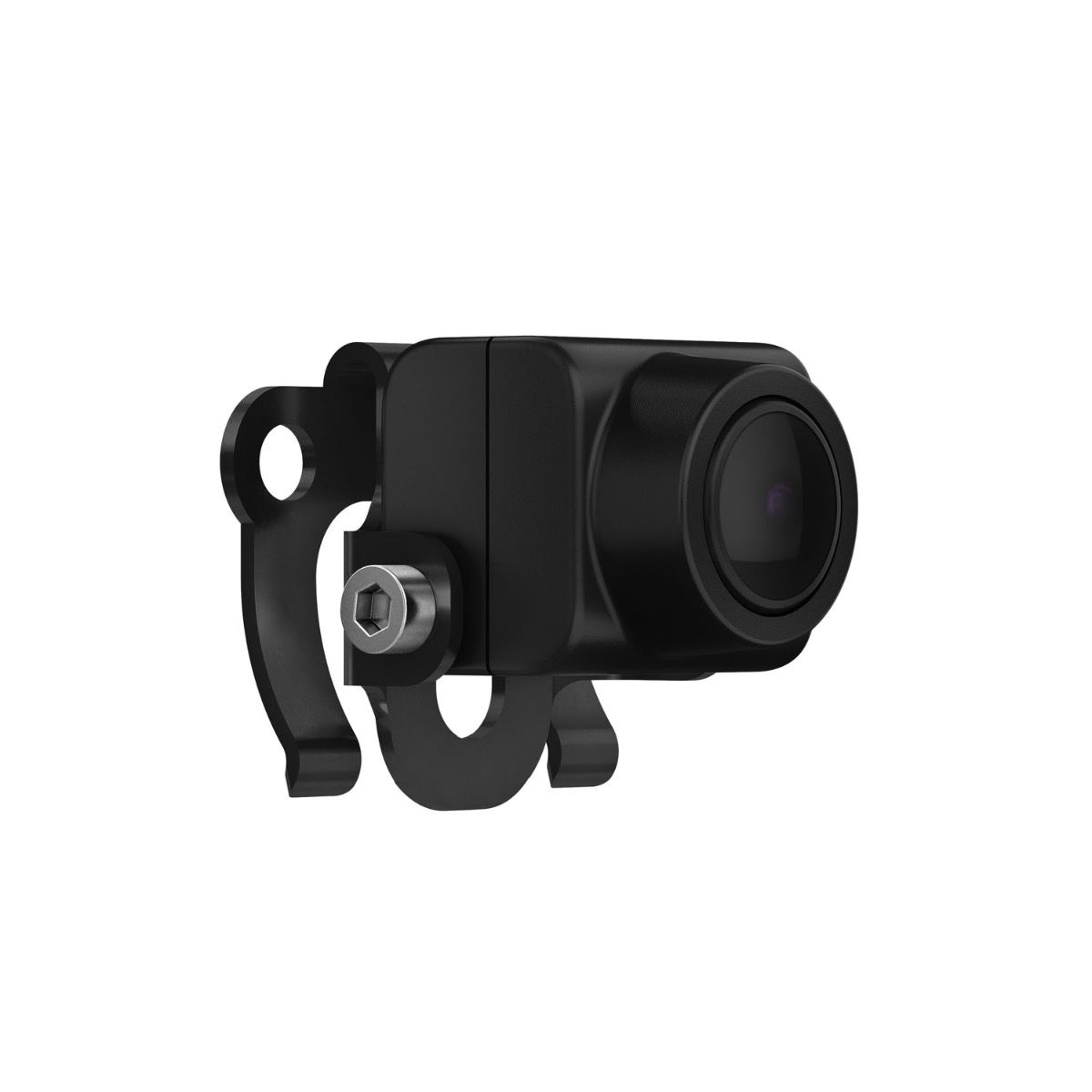

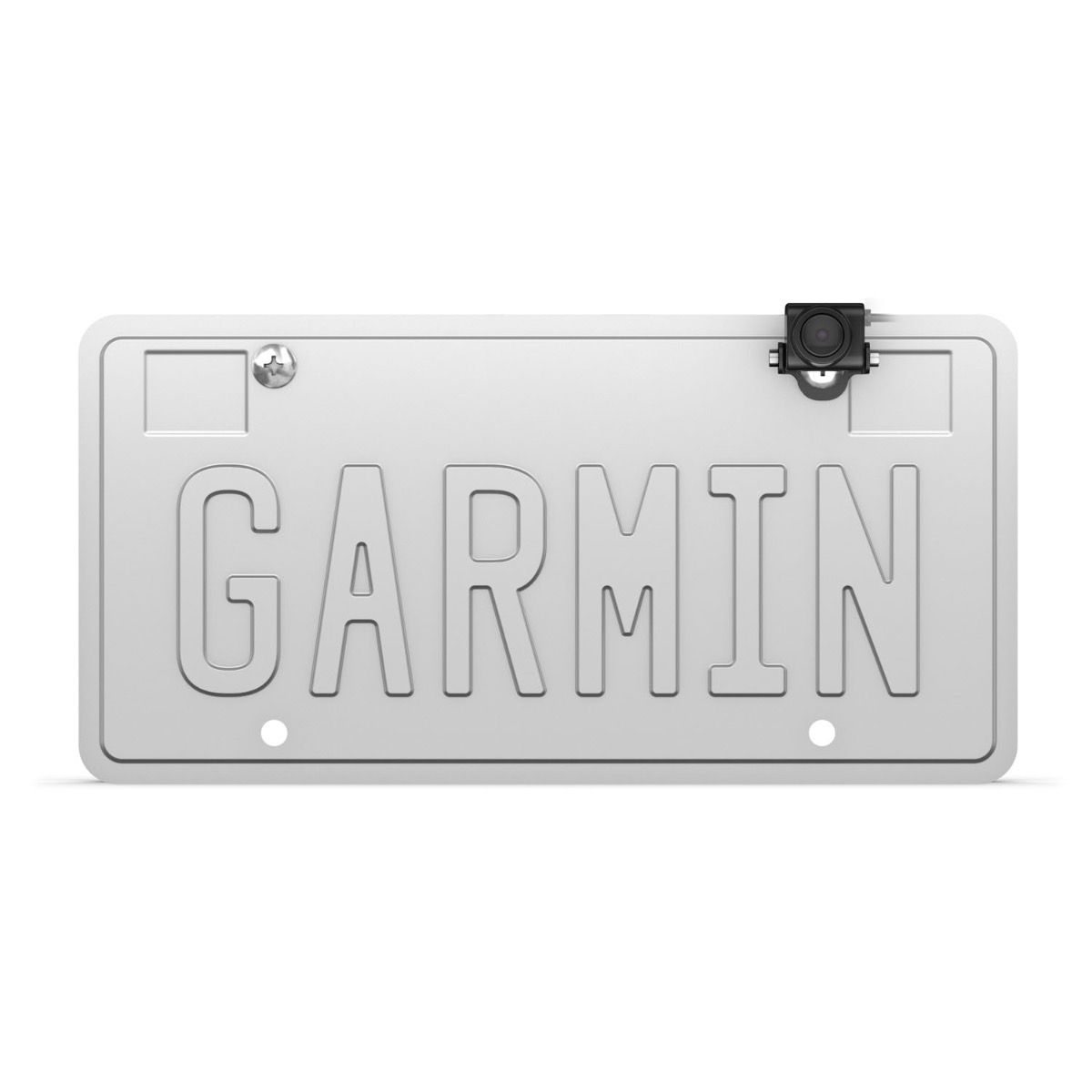

• Mounts to a clip on license plate bracket through adjustable Camera angle via hex screws; no permanent modifications required
• Camera software updates delivered automatically through the paired Garmin navigation device
• Part number: 010-02609-00

Installation:

• Connects to your vehicle's 12 / 24 V reverse light circuit for automatic activation when shifting into reverse (professional installation recommended); can also connect to any switched 12 - 24 V DC power source
• 2 solderless wire splice connectors included for reverse light circuit connection, no soldering required

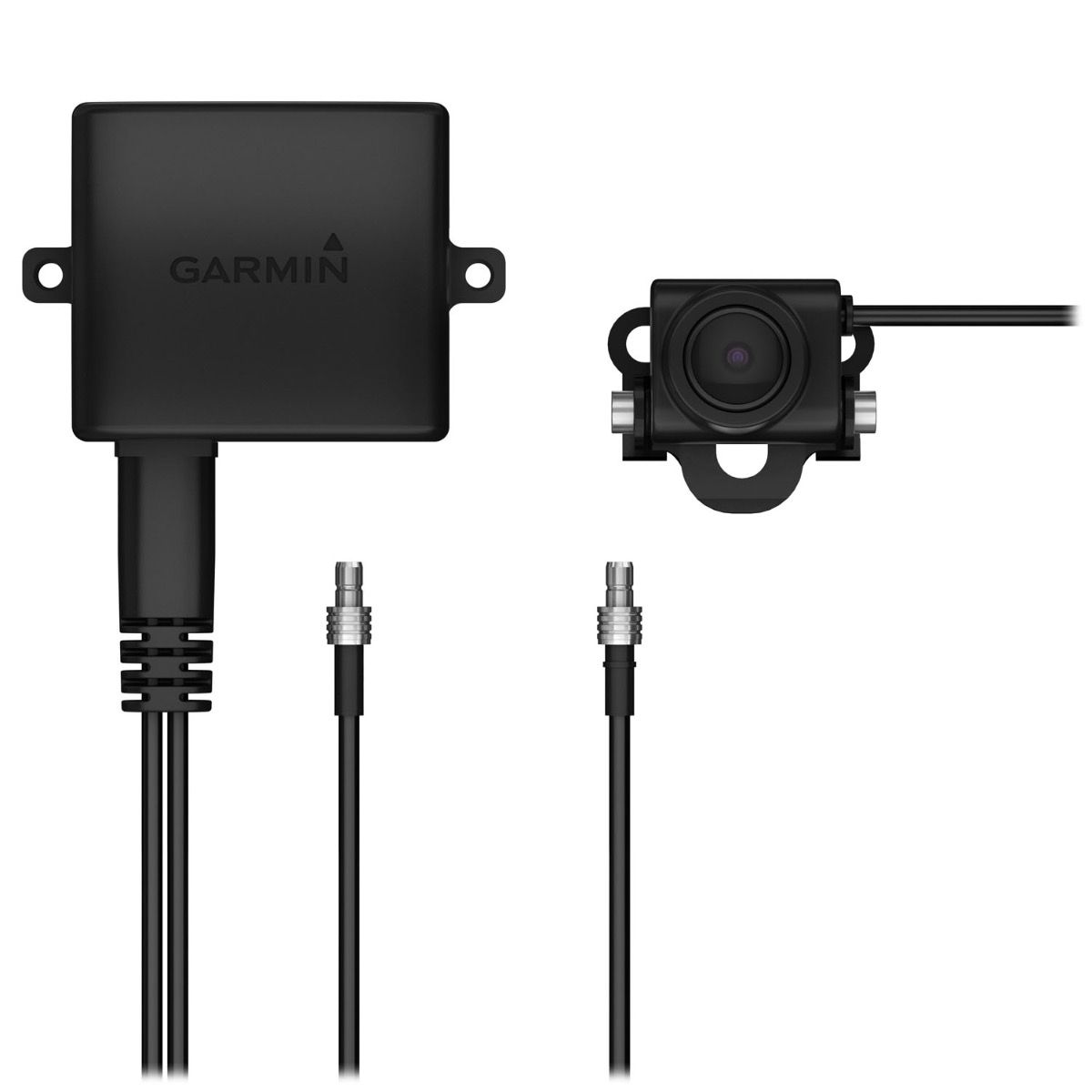

• Transmitter mounts via included 3 m VHB adhesive pad or 2 self tapping screws (not included); should be mounted away from dense metal objects to maximize transmission range
• Camera cable supports transmitter placement up to 9.8 FT from the Camera and it can be routed inside the vehicle through a small 6.5 - 7 mm diameter hole
• Optional 50 FT extension cable (sold separately) extends total transmission range up to 100 FT, ideal for extended rigs and vehicle trailer configurations
• Video orientation (horizontal flip or vertical rotation) adjustable directly in the navigator's menu

Compatibility features:

• Wirelessly pairs automatically through compatible Garmin navigators when powered on
• Compatible alongside the following Garmin devices (ensure latest software is installed prior to pairing): drive smart 66, 76, and 86, DEZL OTR610 and 710 and 810 and 1010, tread and base and overland and SXS and L edition

Other features & specifications:

• Wireless protocol: 2.4 gHz
• Transmission range: up to 50 FT (up to 100 FT through optional extension cable)
• Resolution: up to 720 P HD at up to 30 FPS
• Field of view: 160 °
• Power input: 12 / 24 V DC
• Water resistance: IP67 (IEC 60529)
• Operating temperature: - 4 - 140 ° F (- 20 - + 60 ° C)
• Camera dimensions (without bracket): 1" W x 0.9" H x 1" D
