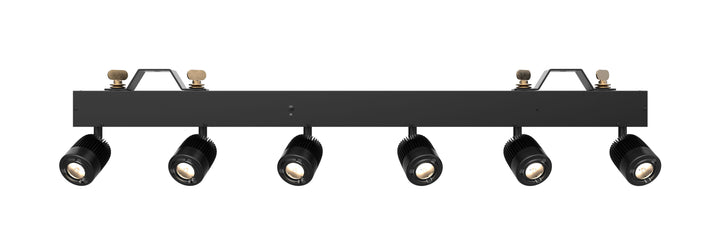

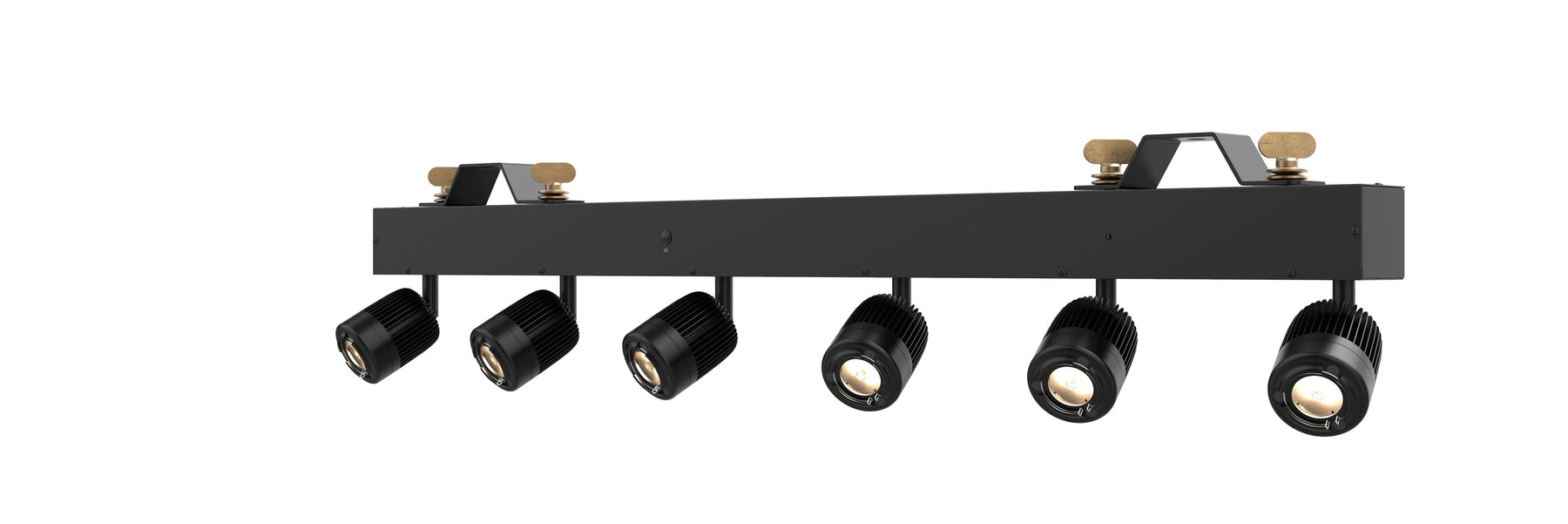

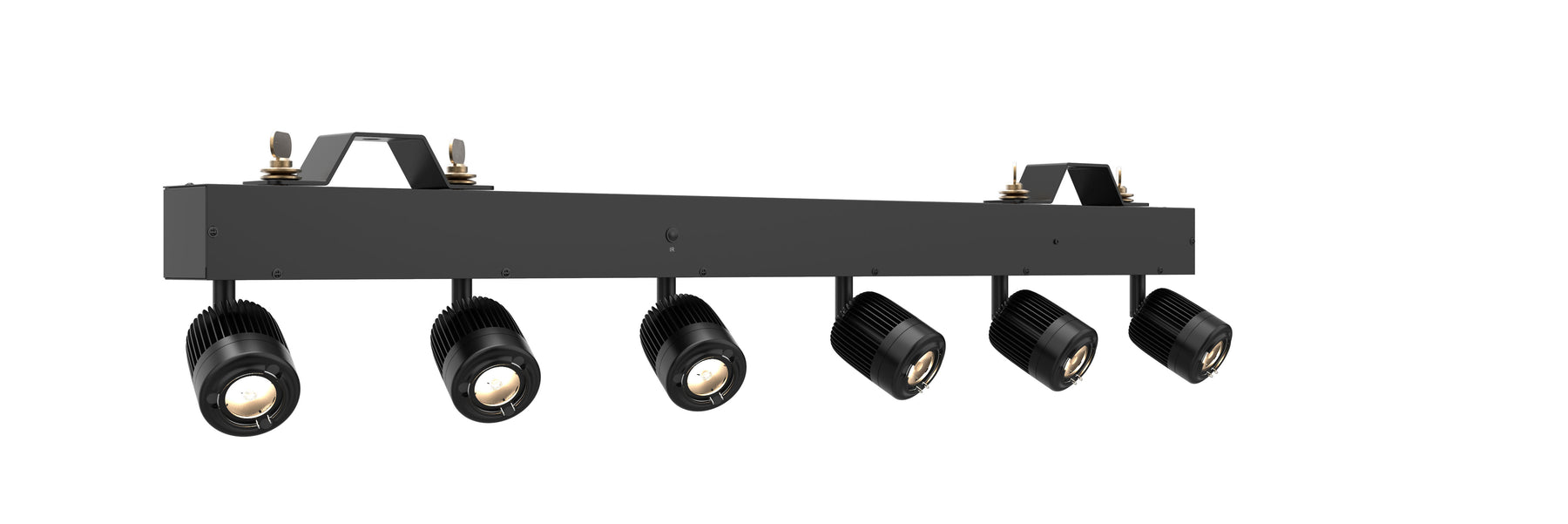

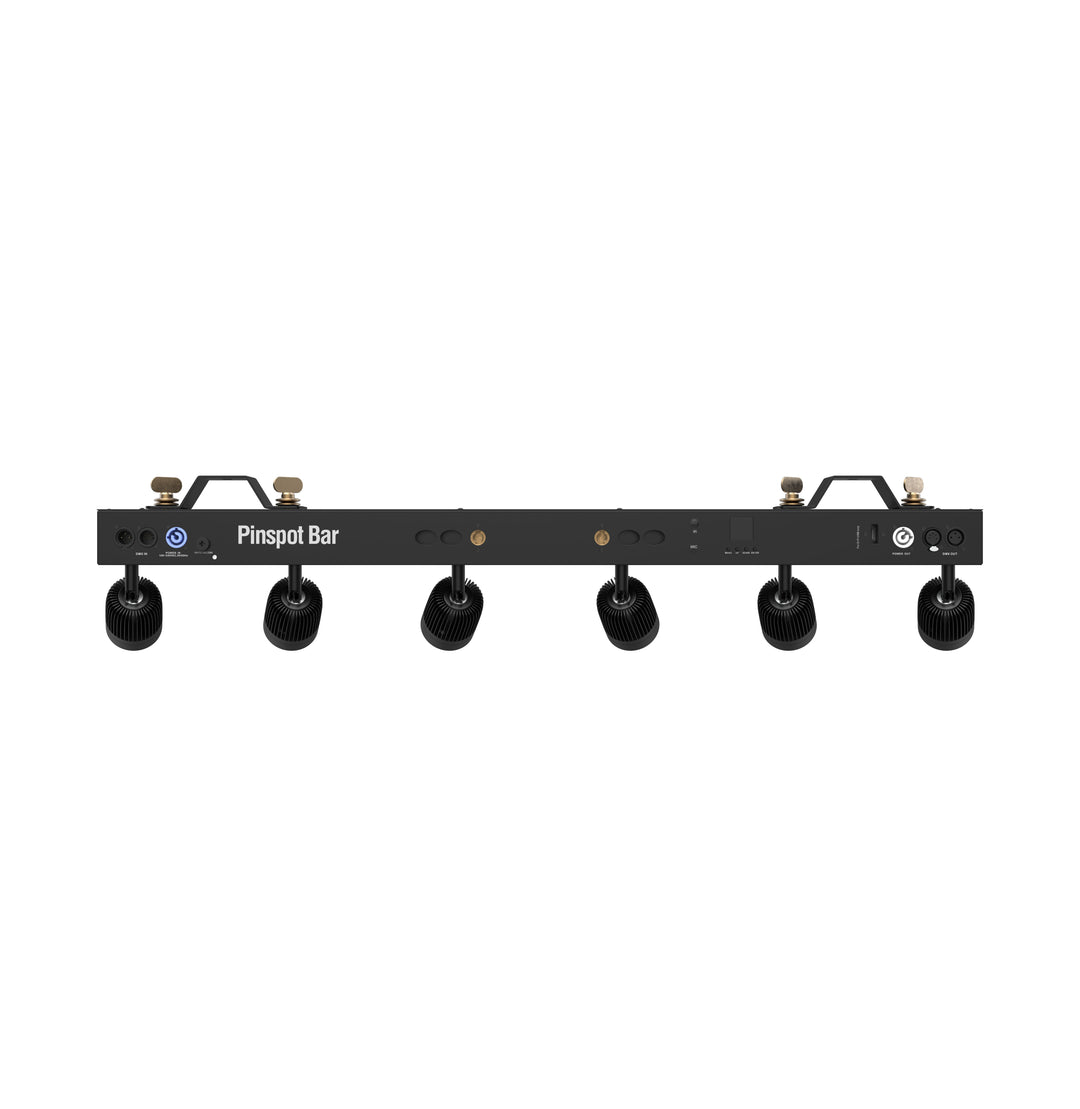

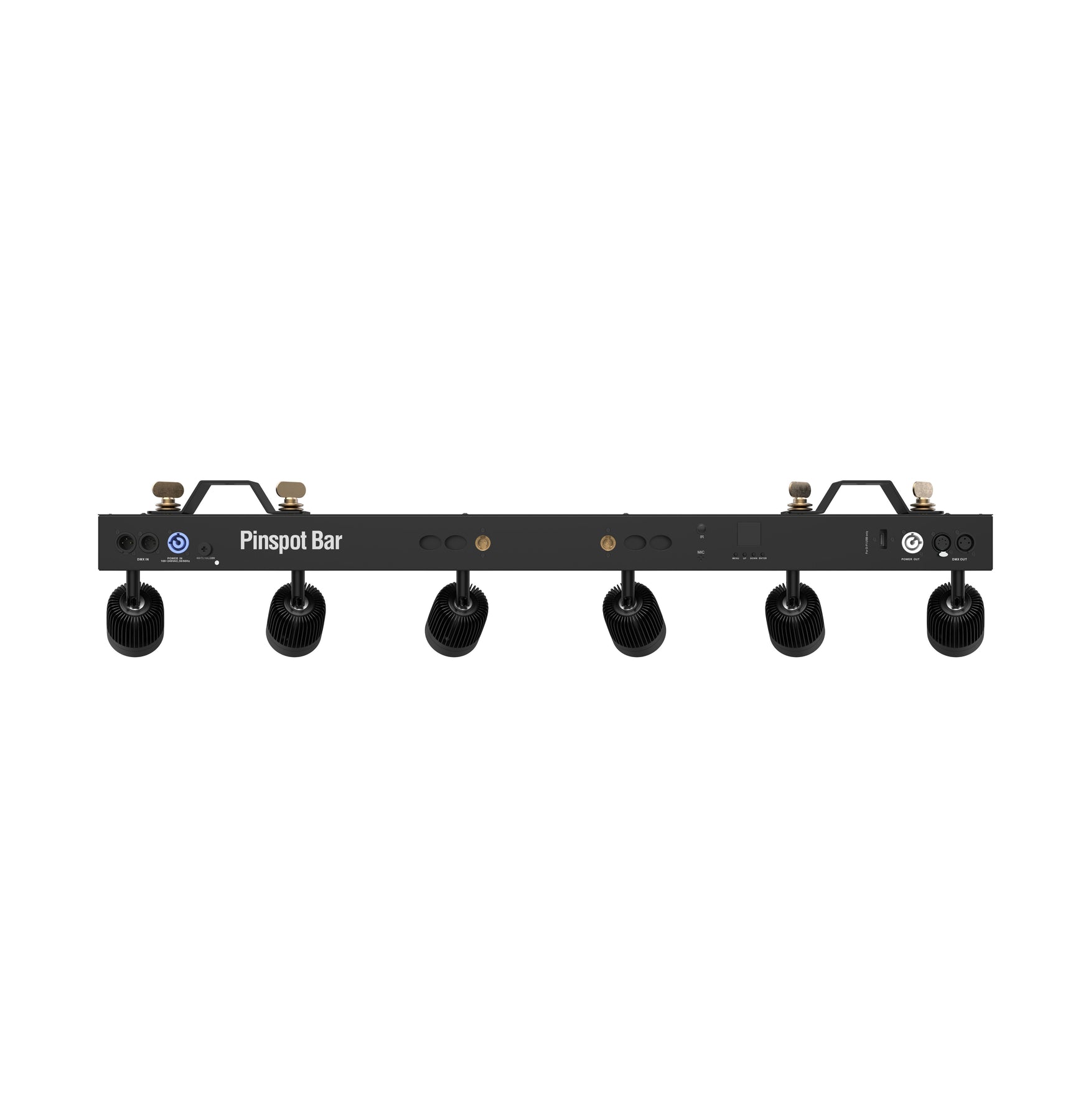

Chauvet DJ PINSPOT-BAR: LED Compact Spotlight

About the Chauvet DJ PINSPOT-BAR: LED Compact Spotlight

From creating subtle glows for appetizing buffets to lighting inspiring exhibits and highlighting special event elements, harness PINSPOTTING power through the PINSPOT-BAR.  The PINSPOT-BAR is a high output BAR that includes 6 independent PINSPOTS designed to replicate traditional incandescent lamps.  Independent control of each head offers true flexibility and programming capabilities.  Achieve a clean and elegant look for any upscale event through only a single Powercon compatible power input, no messy cables, alongside power linking capabilities that save time running cables to other fixtures. The PINSPOT-BAR includes various beam diffusers and CTO filters to help achieve your desired look.  A pair of included omega brackets allow for multiple mounting options including pipe and drape.  Control the PINSPOT-BAR via the onboard digital display, DMX, wireless IRC-6 remote, or DFi USB dongle.

Features:

• High output BAR that includes 6 independent PINSPOTS designed to replicate traditional incandescent lamps
• No messy cables ensure a clean and elegant look for any upscale event
• Independent control of each head offers true flexibility and programming capabilities
• Includes various beam diffusers and 2700 K filters to help achieve the desired look
• Control via the onboard digital display, DMX, a wireless IRC-6 remote or DFi USB dongle
• A pair of included omega brackets allow for multiple mounting options including pipe and drape
• Powercon compatible power input and linking saves time running cables

Specifications:

• DMX channels: 1, 6 and 11
• DMX connectors: 3 and 5 pins XLR
• Light source: 6 LED's (warm white) 15 W, (3.6 A), 50,000 hours life expectancy
• PWM frequency: 1000 hz
• Beam angle: 5 °
• Field angle: 11 °
• Illuminance: 7707 LUX @ 2 m (per pod)
• Power linking: 8 units @ 120 V; 13 units @ 230 V
• Input voltage: 100 - 240 VAC, 50 / 60 hz (auto ranging)
• Power and current: 171 W, 1.4 A @ 120 V, 60 hz; 191 W, 0.8 A @ 230 V, 50 hz
• Weight: 9.4 lbs (4.3 kg)
• Size: 39 x 4.6 x 5" (1000 x 119 x 131 mm)
• Approvals: CE, ROHS
• Color temperature: 4000 K
• CRI: 81
• Bracket mounting hole: 13 mm
• Optional controllers: IRC-6, DFi USB

What's included:

• PINSPOT-BAR
• Power cord
• 2 omega brackets
• 6 10 and 20 ° diffusers and 2700 K CTO filters
• Quick reference guide
