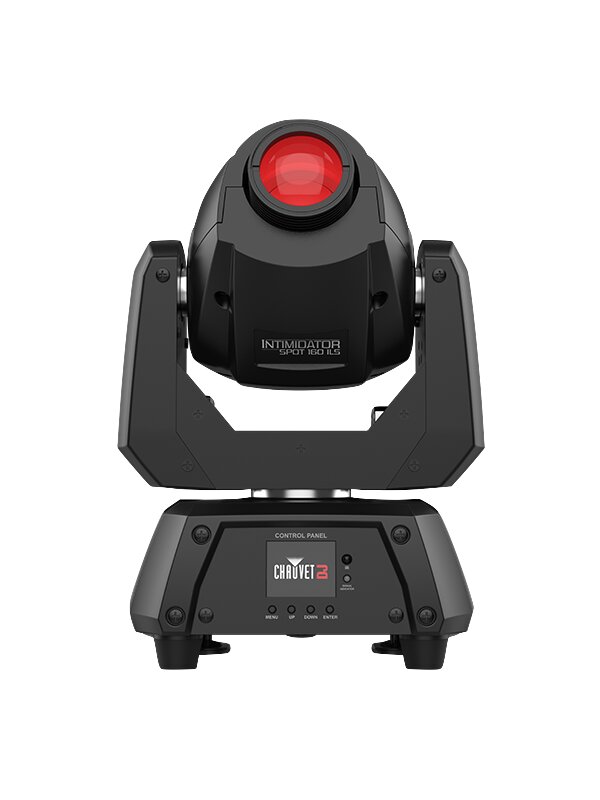

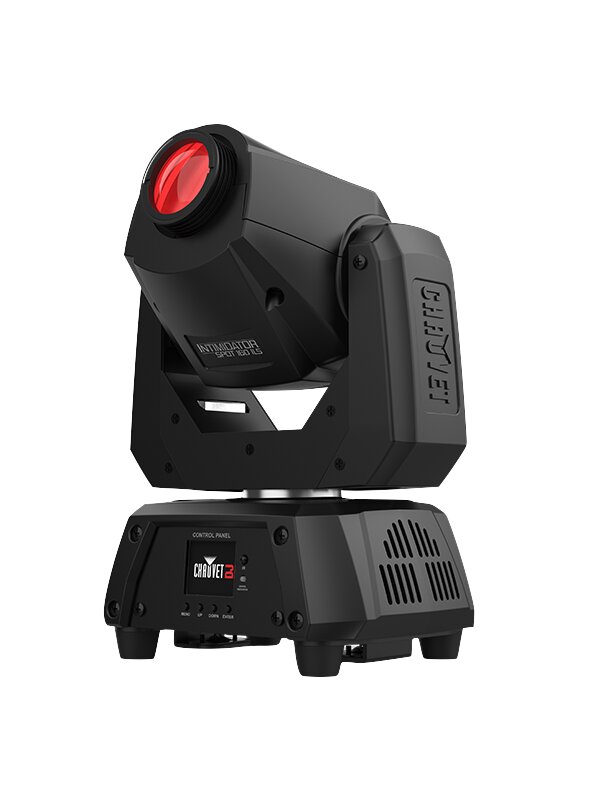

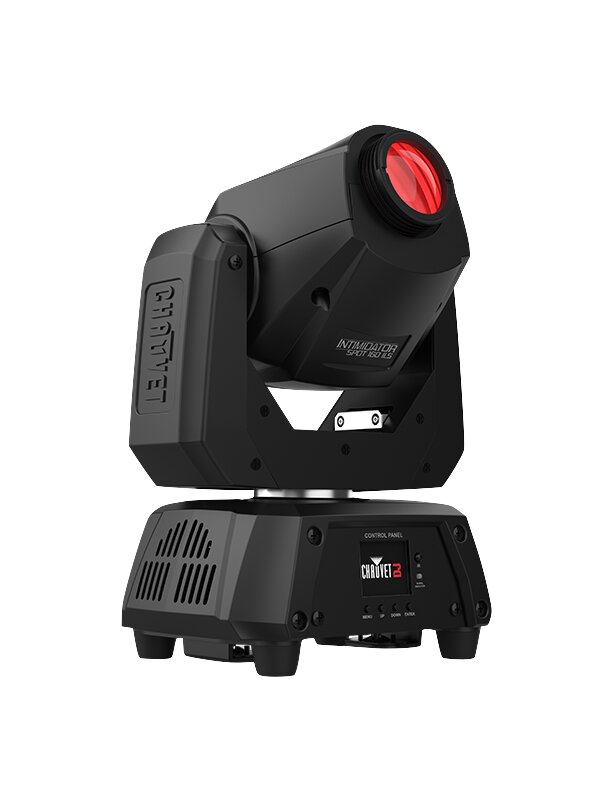

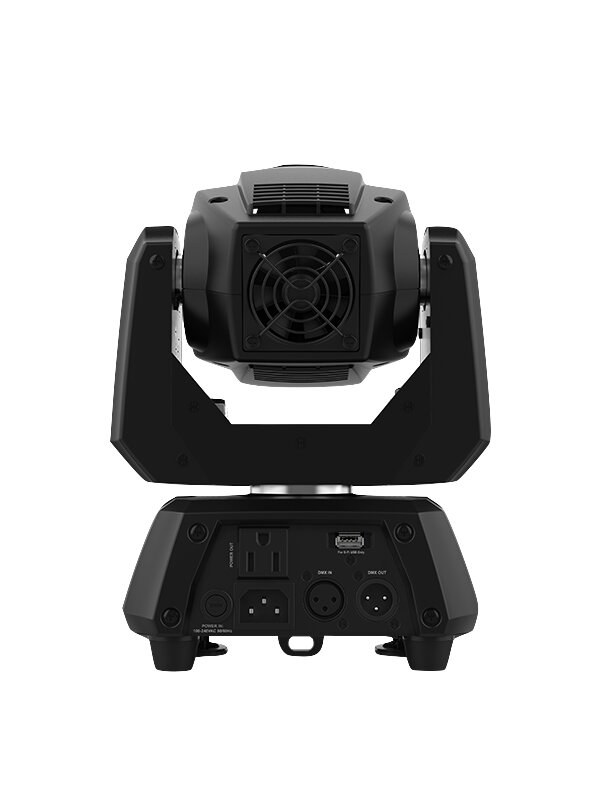

Chauvet DJ INTIMSPOT160-ILS: Moving Head Light

About the Chauvet DJ INTIMSPOT160-ILS: Moving Head Light

Moving Lights, and people is what INTIMIDATOR Moving Head Lights are all about and INTIMSPOT160-ILS is sure to get your event guests Moving!  This compact Moving Head is ideal for mobile entertainment applications and features compatibility alongside the cutting edge integrated Lighting system (ILS) that makes creating coordinated Light shows across different fixture types easy.  The INTIMSPOT160-ILS also has DFi USB compatibility for wireless master / slave or DMX control.  Built in totem mode means beams always remain on the dance floor and you can set, save, and recall 1 scene manually, directly from the full color LCD display.  Link up to 4 fixtures to create eye catching, synchronized shows in automated or sound mode.  A 1 / 4" turn hanging bracket allows for quick removal when needed and convenient, wireless non DMX control is at hand using the optional IRC-6 remote.

Highlights:

• Feature packed Moving Head designed for mobile performances
• DFi USB compatibility for wireless master / slave or DMX control
• 1 / 4" turn hanging bracket allows for quick removal when needed
• Beams always remain on the dance floor using the built in, innovative totem mode
• Set, save, and recall 1 scene manually, directly from the full color LCD display
• Link up to 4 fixtures to create eye catching, synchronized shows in automated or sound mode
• Convenient, wireless non DMX control using the optional IRC-6 remote
• Fits best in the CHS-1XX VIP gear bag

Specifications:

• DMX channels: 5 / 11
• DMX connectors: 3 pin XLR
• Pan and tilt: 540 / 229 °
• Pan and tilt ranges: 180, 360, 540 ° pan / 90 °, 180, 229 ° tilt
• Colors: 9 + open, split colors, continuous scroll at variable speeds
• Gobos: 9 + open (9 aluminum), continuous scroll at variable speeds
• Light source: 1 LED (11,000 K) 32 W, (2.3 A), 50,000 hours life expectancy
• Strobe rate: 0 - 20 hz
• Beam angle: 15 °
• Illuminance: 5000 LUX @ 2 m
• Power linking: 7 units @ 120 V; 12 units @ 230 V
• Input voltage: 100 - 240 VAC, 50 / 60 hz (auto ranging)
• Power and current: 83 W, 1.1 A @ 120 V, 60 hz; 77 W, 0.6 A @ 230 V, 50 hz
• Weight: 8.2 lbs (3.8 kg)
• Size: 8.2 x 5.9 x 12" (207 x 149 x 308 mm)
• Bracket mounting hole: M12
• Optional controllers: IRC-6
• Approvals: CE

What's included:

• INTIMSPOT160-ILS
• Power cord
• Hanging bracket
• Quick reference guide
