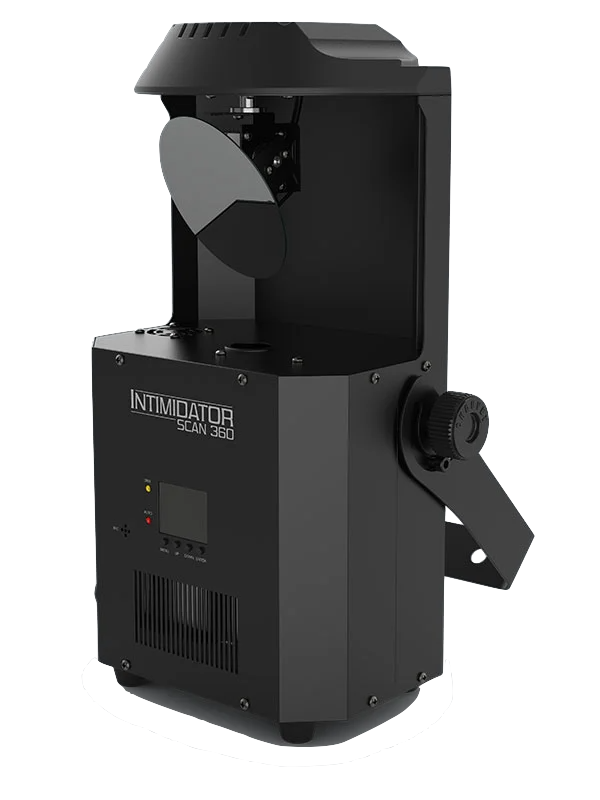

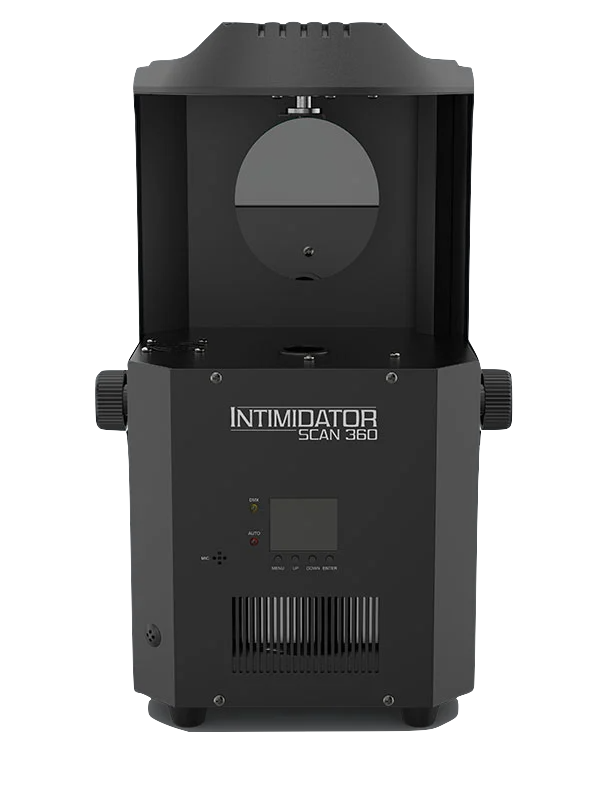

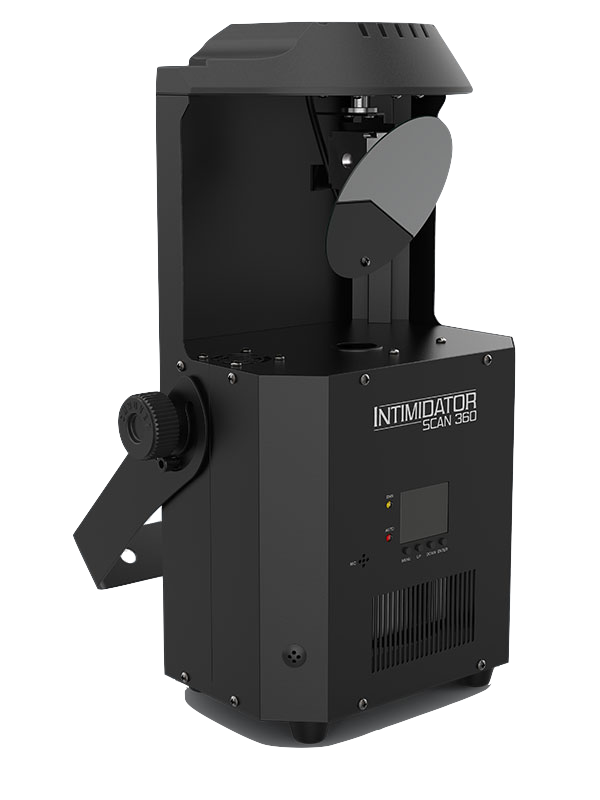

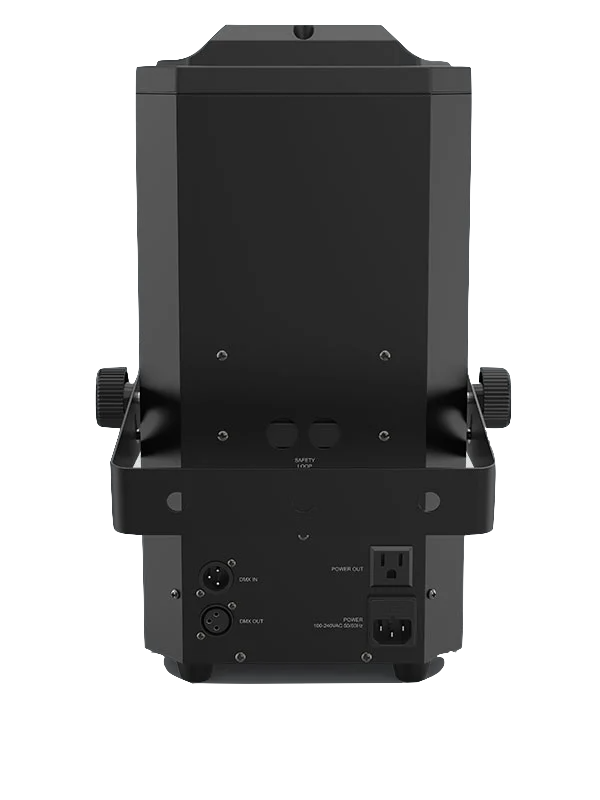

Chauvet DJ INTIMSCAN360: LED Effect Light Scanner

About the Chauvet DJ INTIMSCAN360: LED Effect Light Scanner

Razor sharp and whip fast beams to dazzle dance floors are at hand through the INTIMSCAN360, a feature packed Scanner fitted through a 100 W LED designed for mobile performances.  The INTIMSCAN360 packs a crisp, 3 facets rotating prism to split the beam and cover large areas.  Motorized focus lets you project crisp gobos from nearly any distance.  It is great for camera work featuring high frequency LED dimming for flicker free video operation.  Set, save, and recall 1 scene manually directly from the full color LCD display.  Convenient, wireless, non DMX control is available using the optional IRC-6 remote.

Highlights:

• Feature packed Scanner fitted through a 100 W LED designed for mobile performances
• Project crisp gobos from nearly any distance through the motorized focus
• Split the beam and cover larger areas through the crisp, 3 facets rotating prism
• Convenient, wireless non DMX control using the optional IRC-6 remote
• Set, save, and recall 1 scene manually, directly from the full color LCD display
• Achieve flicker free video operation through high frequency LED dimming
• Save time running cables and extension cords by power linking multiple units

Specifications:

• DMX channels: 8 / 14
• DMX connectors: 3 pin XLR
• Pan and tilt: 172 / 39 °
• Colors: 8 + white, split colors, continuous scroll at variable speeds
• Gobos: 7 + open (6 metal, 1 glass), rotating, interchangeable, indexing, slot in lock, continuous scroll at variable speeds
• Light source: 1 LED (white) 100 W, (4.2 A), 50,000 hours life expectancy
• Strobe rate: 0 - 20 hz
• Beam angle: 21 °
• Illuminance: 4050 LUX @ 2 m
• Power linking: 4 units @ 120 V; 7 units @ 230 V
• Input voltage: 100 - 240 VAC, 50 / 60 hz (auto ranging)
• Power and current: 147 W, 1.9 A @ 120 V, 60 hz; 143 W, 1.1 A @ 230 V, 50 hz
• Gobo size: 19 mm outside, 14 mm image, 1 mm maximum thickness
• Weight: 12.6 lbs (5.7 kg)
• Size: 10 x 6.1 x 16.3" (255 x 155 x 415 mm)
• Approvals: CE
• Prism: 3 facets round, rotation at variable speeds

• Optional controllers: IRC

What's included:

• Power cord
• Quick reference guide
