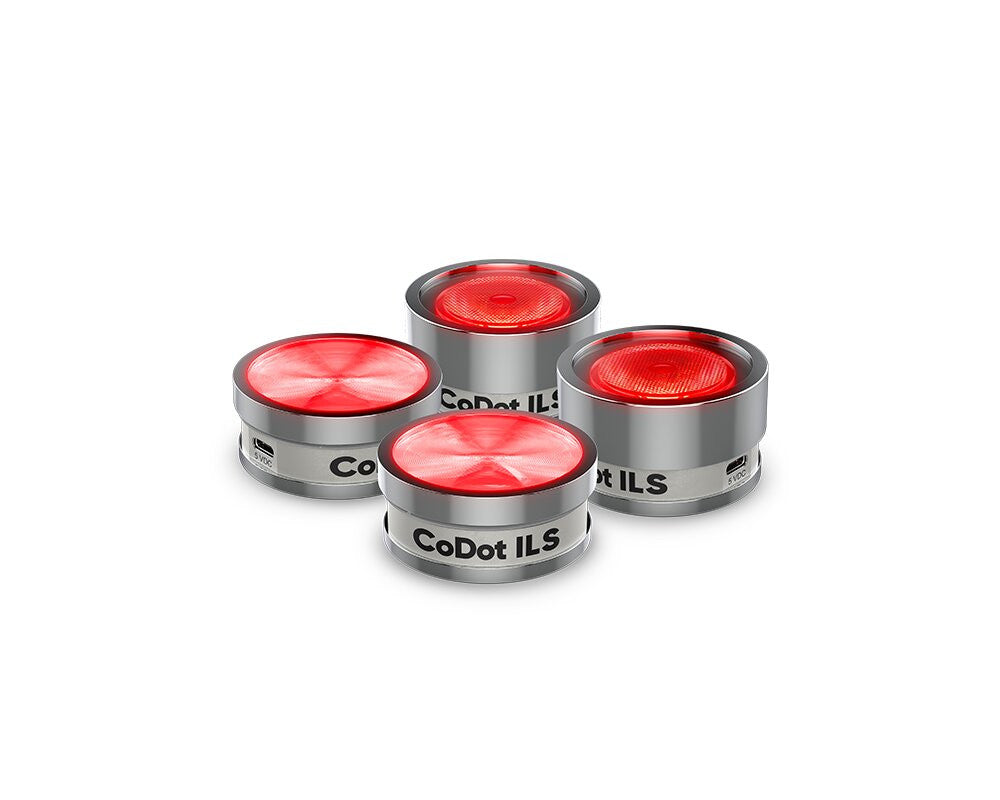

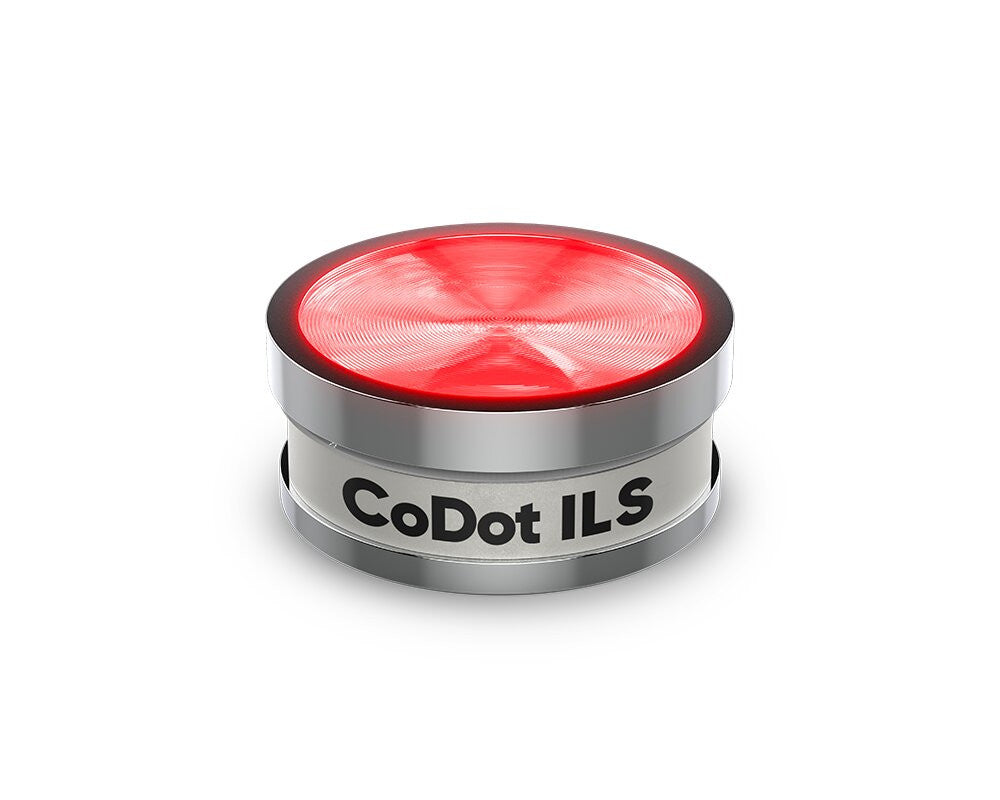

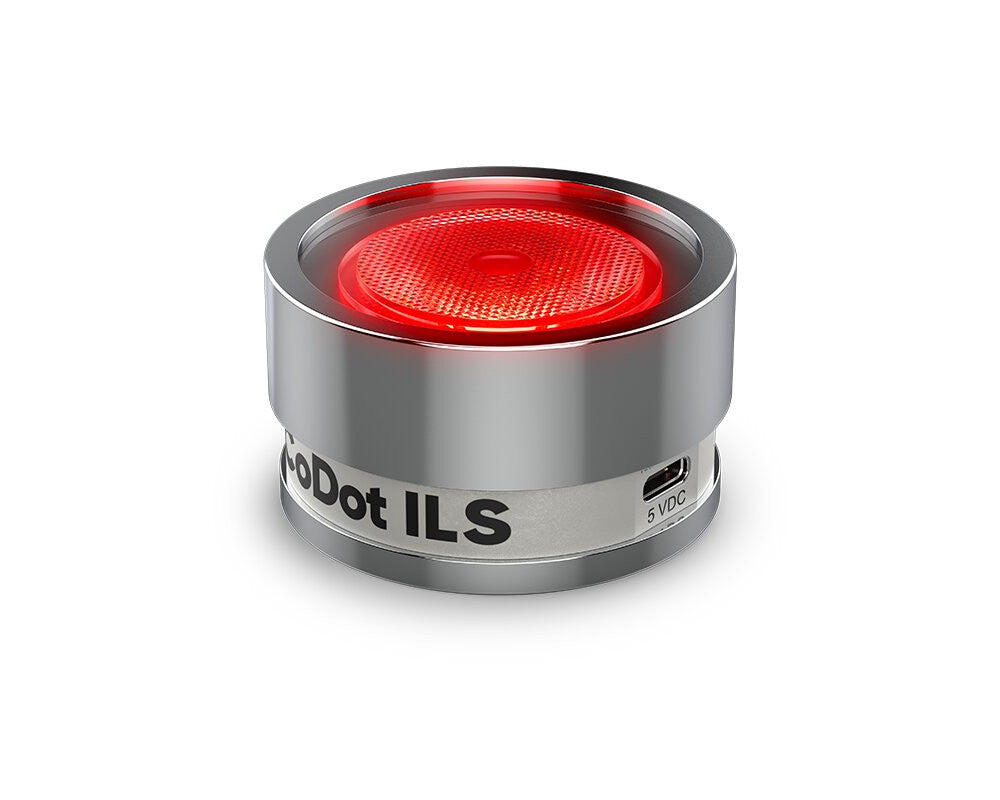

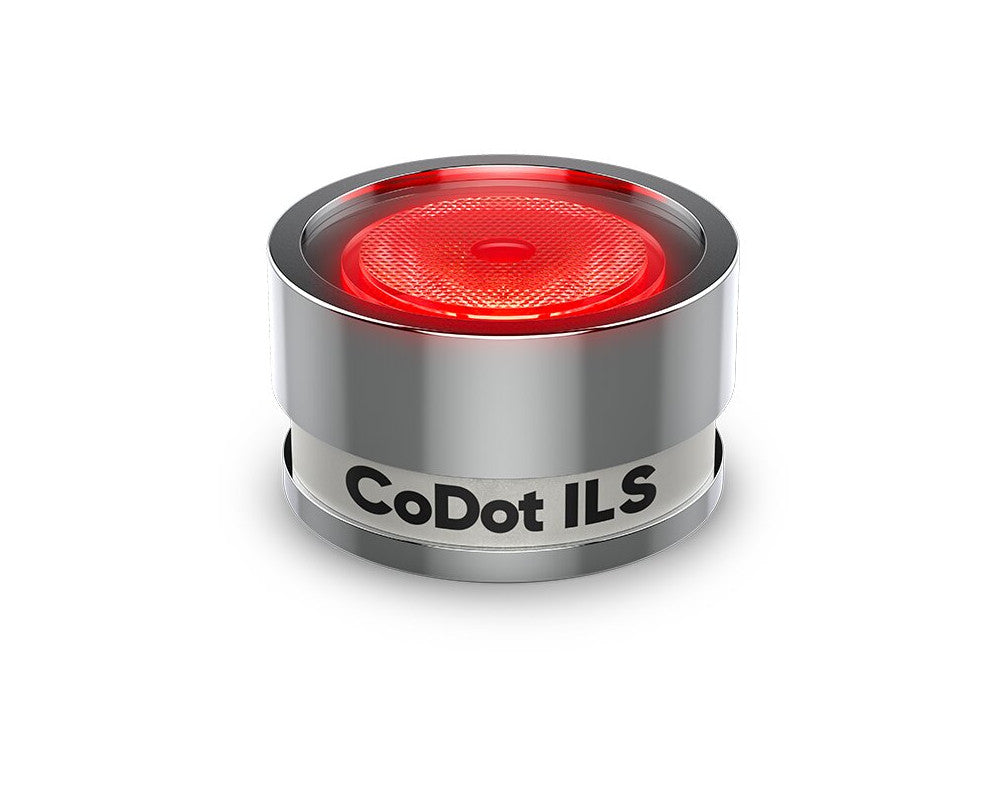

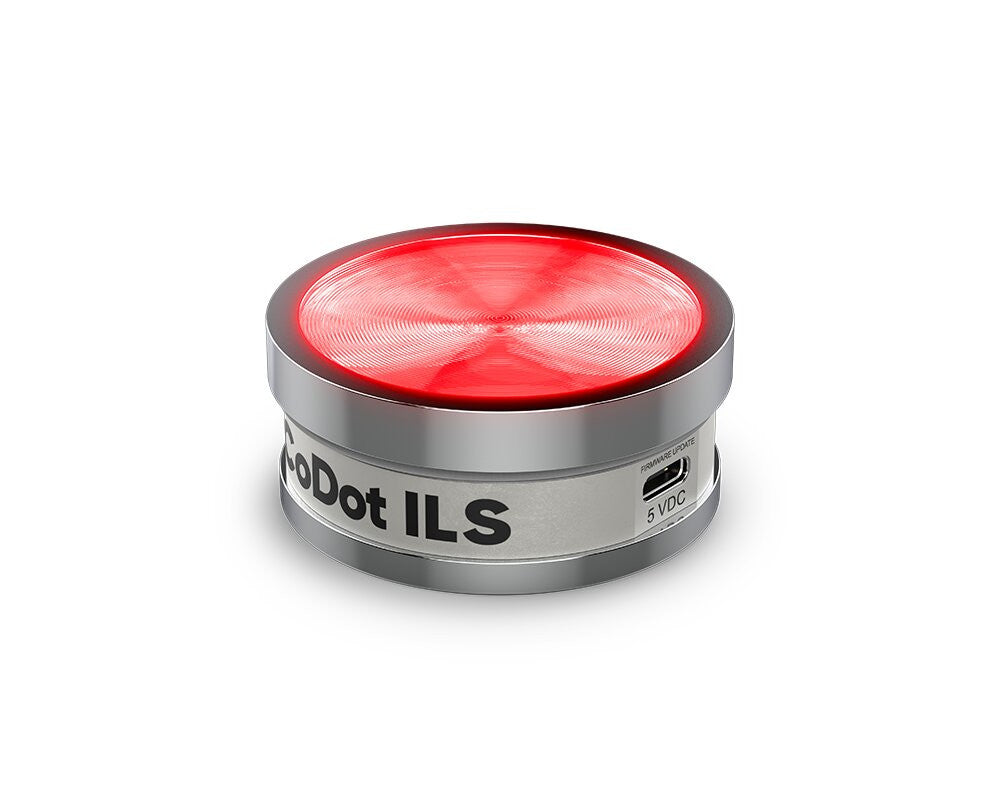

Chauvet DJ CODOT-ILS: LED Illuminator

About the Chauvet DJ CODOT-ILS: LED Illuminator

Party lighting fits in the palm of your hand through CODOT-ILS.  This puck sized LED Illuminator is the perfect solution for small spaces where conventional fixtures can't fit.  Each CODOT-ILS has 1 quad color (RGBW) LED to suit a range of applications.  Through DFi, ILS, and RF compatibility, this fixture works alongside the lighting control that best suits your needs.  Make any area of your venue shine through CODOT-ILS.

Features:

• Coin sized LED Illuminator designed for small applications where conventional fixtures won't fit
• Includes two lens options to meet different application criteria
• Magnetic base easily mounts to metal surfaces
• Threaded insert is compatible through camera tripods and accessories
• ILS compatibility for use in the ILS ecosystem
• Built in DFI transceiver communicates DMX or ILS signals wirelessly
• Built in RF receiver for wireless control using the RFC or RFC-XL optional remotes
• Easy navigation and access all functions directly from the LED display
• Power linking multiple units from the USB type-C in and out

Specifications:

• DMX channels: 4 / 6
• Maximum unobstructed distance: 600 FT (183 m)
• Light source: 1 LED (quad color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
• Strobe rate: 0 / 20 hz
• Operating frequency: 2.4 GHz
• Power linking: 4 units @ 120 V; 4 units @ 230 V
• Input voltage: 100 - 240 VAC, 50 / 60 hz (auto ranging)
• Beam angle (installed lens): 19 °
• Beam angle (included lens): 14 °
• Illuminance (installed lens): 256 LUX @ 2 m
• Illuminance (included lens): 442 LUX @ 2 m
• Operating frequency: 2.4 GHz
• Power and current; 7 W, 0.1 A @ 120 V, 60 hz; 7 W, 0.1 A @ 230 V, 50 hz
• Optional controllers: ILS command, RFC, RFC-XL
• Weight: 0.2 lbs (0.1 kg)
• Size: 2.2 x 2.1 x 0.9" (57 x 54 x 24 mm)
• Approvals: CE, ROHS, UKCA, FCC

What's included:

• 4 CODOT-ILS's
• 8 lenses
• 3 short and long USB cables (0.5 and 2 m)

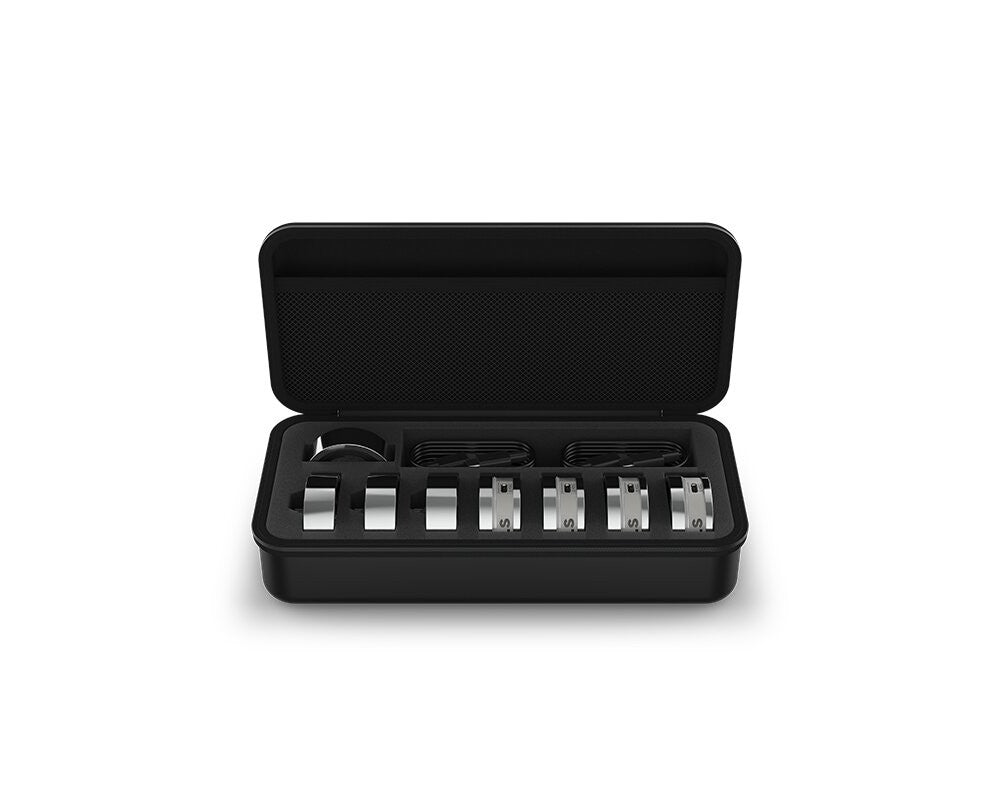

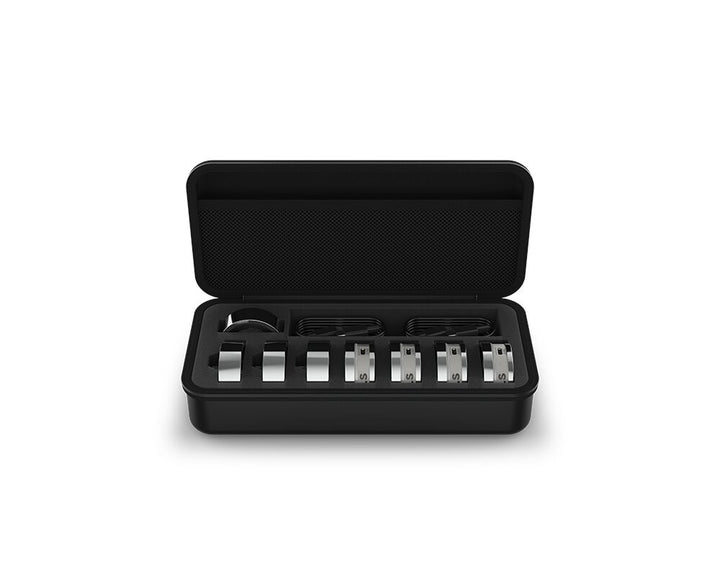

• 1 carry case
• 1 external power supply
• Quick reference guide
