BlackVue DR970X-2CHPLUS-64: 2-Channel / Dual Dash Camera

About the BlackVue DR970X-2CHPLUS-64: 2-Channel / Dual Dash Camera

Seamless pairing:

Simply connect to your Dash Camera without leaving the BlackVue app.  Through seamless pairing, setting up your Dash Camera is a breeze.  Just power the Dash Camera, then easily connect from the BlackVue app and follow the simple instructions.  Whether you want to browse your Dash Camera's files and settings or connect your Dash Camera to the cloud, seamless pairing makes everything easy and intuitive.

Sleek interface:

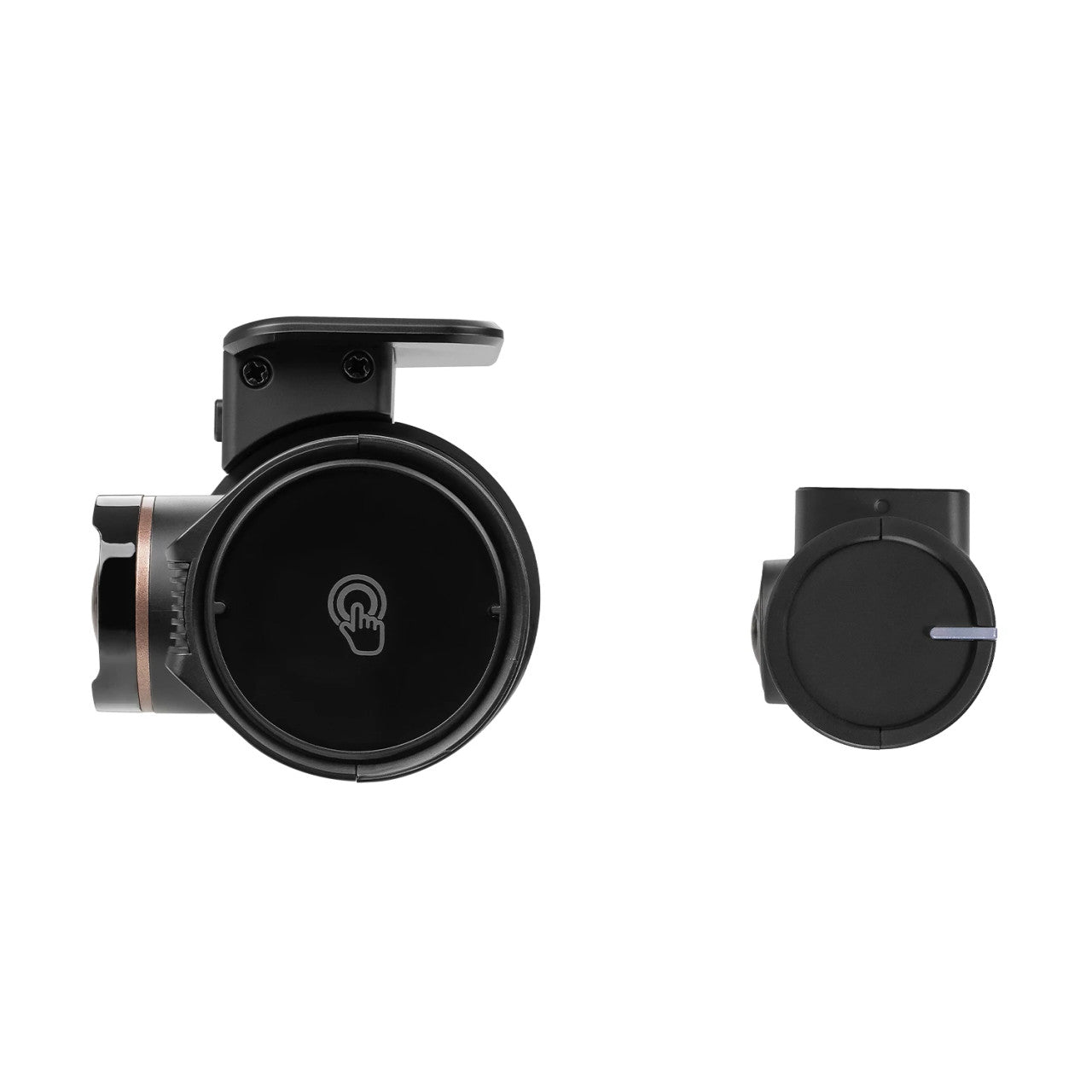

Touch sensor: tap it to trigger manual event videos.  Also used for seamless pairing through the BlackVue app.  Format button: hold to format the micro SD card.  Secure micro SD card access: unplug the DC in power connector and pop the cover open to reveal the micro SD card slot.

Your videos are safe:

Event files overwrite protection: Dash Cameras record in a loop, overwriting older files when the memory is full.  BlackVue can prevent event files (triggered manually or by impacts) overwriting.  Up to 50 files can be protected this way.  You can choose to allow new event files to overwrite past event files, thus keeping the latest 50.

Adaptive format free file management: this BlackVue developed file system improves recording stability and requires less micro SD card formatting.

SD card failure alert: your BlackVue detects as soon as the micro SD card fails and warns you via a "please check SD card" voice alert.

Built in speaker, impact sensor and motion detection:

Speaker: your Dash Camera tells you when it turns on, shuts down or detects errors.  Accelerometer: detects impacts to trigger event recording.  Enables parking mode when stationary for 5 minutes.

Automatically tags video files: while driving, the built in accelerometer (G sensor) detects impacts and sudden changes in speed.  While parked, your BlackVue also detects visual movements around your vehicles (in motion + impact detection mode).

Use the filters in the BlackVue app and viewer: BlackVue tags all videos (normal, event, parking mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue viewer (windows, mac OS, web) or the BlackVue app (android, iOS).

BlackVue app (iOS, android) and viewer (windows / mac):

Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.  Through the BlackVue app, connect to your BlackVue to access files and check real time live view for easy setup of your Dash Camera.  Through the SD card viewer, connect your Dash Camera's micro SD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.

BlackVue cloud:

Connect to your BlackVue anytime, from anywhere in the world through BlackVue cloud. Receive push notifications on your phone whenever the Dash Camera detects an impact on your parked vehicle, and see for yourself through remote live view.  Even better, let BlackVue upload critical footage, such as break in or hit and run, in real time to the cloud through live event upload.  Play and download videos from your Dash Camera or the cloud from anywhere and back up important videos to the free cloud storage.  Enjoy 2 way voice communication through the driver from the app through the BlackVue's integrated speaker and microphone.  Check the BlackVue cloud page for more information.

Tamperproof case (optional):

The tamperproof case (reference: BTC-3A) is a security accessory that blocks physical access to the micro SD card slot, and prevents the unplugging of the power and coaxial cables, thus highly reducing risks of data tampering.

Hardwiring cable included: DR770X LTE-series can be hardwired to your vehicle's fuse panel for parking mode, without requiring optional accessories.  The Dash Camera will switch to parking mode automatically when vehicle ignition is turned off.  Voltage cutoff and timer can be set in the BlackVue app.

Native parking mode accessories support: DR770X LTE-series is also compatible alongside all BlackVue parking mode kits and batteries.

Specifications:

• Channel: 2CH
• Highlights: 4 K UHD (front) + full HD (rear), 2.4 - 5 GHz WiFi, cloud, external LTE module (optional)
• Product dimensions; front: black / 118.6 mm (L) x 47.4 mm (W) x 36 mm (H) / 108 g; rear: black / 67.3 mm (L) x 28 mm (W) x 25 mm (H) / 25 g
• Rear camera connection: coaxial cable
• Memory support: micro SD card up to 512 GB
• Recording modes: normal recording, event recording (when impact is detected in normal and parking mode), manual recording and parking recording (when motion is detected).
• When using hardwiring power cable, ACC+ will trigger parking mode.  When using other methods, G sensor will trigger parking mode.
• Parking mode: yes (hardwiring cable included)
• Parking mode event voice notifications: yes
• Imaging sensor; front: starvis 2 CMOS sensor (approximately 8.4 m pixels); rear: starvistm CMOS sensor (approximately 2.1 m pixels)
• Viewing angle; front: diagonal 146 °, horizontal 125 °, vertical 68 °; rear: diagonal 131 °, horizontal 107 °, vertical 55 °
• Resolution frame rate; front: 4 K (3840 x 2160) @ 30 FPS; rear: full HD (1920 x 1080) @ 30 FPS
• Frame rate may vary during WiFi streaming.
• Video codec: H.265 (HEVC) / H.264 (AVC)
• Image quality and bitrate front / rear; highest (extreme): 60 + 10 MBPS; highest: 25 + 10 MBPS; high: 12 + 8 MBPS; normal: 8 + 6 MBPS
• 60 MBPS bitrates only support in H.265 (HEVC).
• Format free: yes (adaptive)
• Event file overwrite protection: yes (up to 50)
• SD card failure alert: yes
• Scheduled reboot: yes
• Video file extension: MP4
• WiFi: built in (802.11 B.G.N)
• Cloud compatible: yes
• GPS: built in (802.11 A.B.G.N.AC)
• Microphone: built in
• Speaker: built in
• Impact sensor: 3 axis acceleration sensor
• LED indicators; front: recording LED, GPS LED, B / W / L (Bluetooth / WiFi / LTE) LED, front security LED; rear: security LED
• Button; format button: press and hold for 5 seconds, and after a beep, release the button.  Then, press again and hold for 5 seconds and release the button after a beep to format the micro SD card.  Touch sensor: pressing the touch sensor triggers manual recording depending on the firmware settings.
• Operation temperature: -20 ° C - 70 ° C (-4 ° F - 158 ° F)
• Storage temperature: -20 ° C - 80 ° C (-4 ° F - 176 ° F)
• High temperature cut off: Approx. 75 °C (167 °F)
• Backup battery: built in super capacitor
• Input power: DC 12 - 24 V (DC plug (Ø 3.5 x Ø 1.1)) to wires (black: GND / yellow: B + / red: ACC)
• Power consumption hour; normal mode (GPS on/ 2CH): average 480 mA / 12 V; parking mode (GPS off / 2CH): average 370 mA / 12 V
• Actual power consumption may vary depending on use conditions and environment.
• Certifications; front: FCC, ISED, CE, UKCA, RCM, TELEC, RoHS, WEEE, KC; rear: FCC, ISED, CE, UCKA, RCM, RoHS, WEEE, KC
• Software; BlackVue viewer: windows 7 / higher, mac sierra OS X (10.1) / higher; BlackVue Web viewer: chrome 71 / higher, safari 13.0 / higher; BlackVue application: android 8.0 / higher, iOS 13.0 / higher
• Others: adaptive format free file management system
• Bluetooth: built in (V2.1 + EDR / 4.2)
• LTE: external (optional)

Recording Time:

 What's in the box:

• Front Camera
• Rear Camera
• Quick start guide and user guide
• Cable clips (8 EA)
• Micro SD card
• Micro SD card reader
• Spare mount sticky pads
• Coaxial cable (6 m)
• Hardwiring power cable
• Cigarette lighter power adapter
• Pry tool
