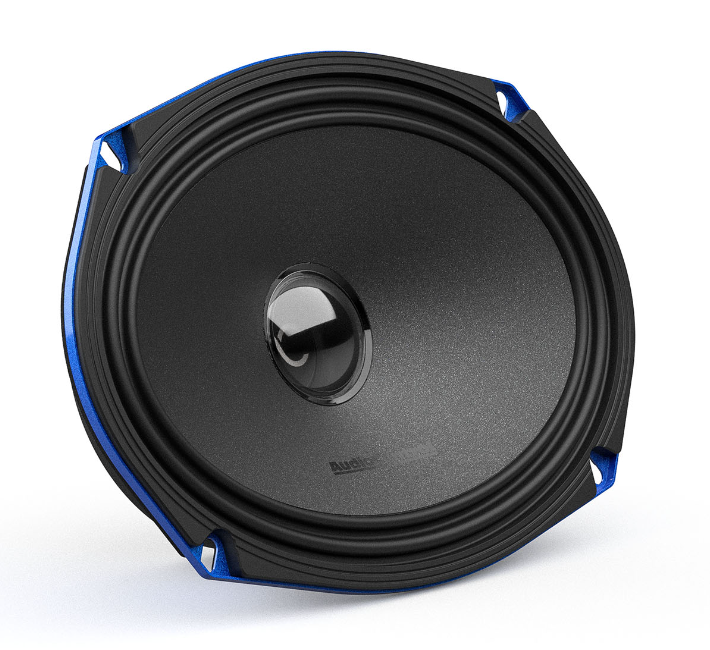

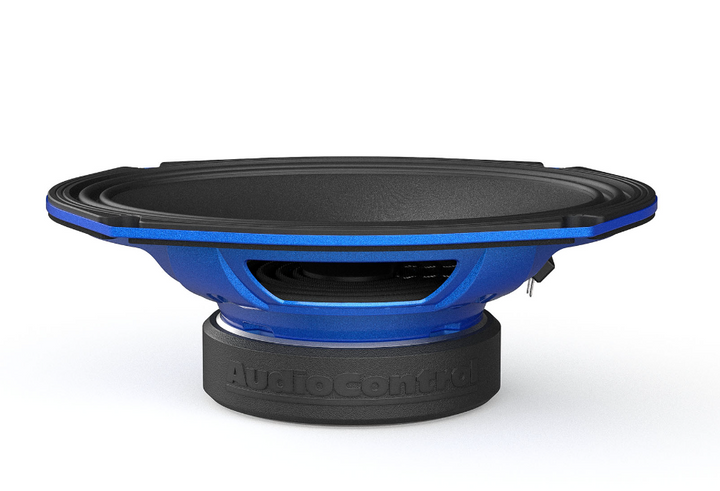

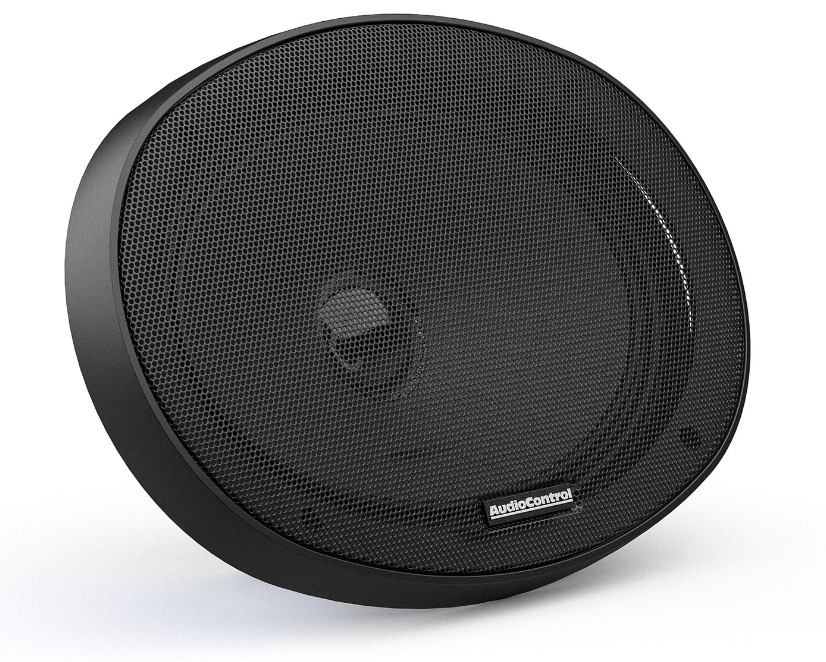

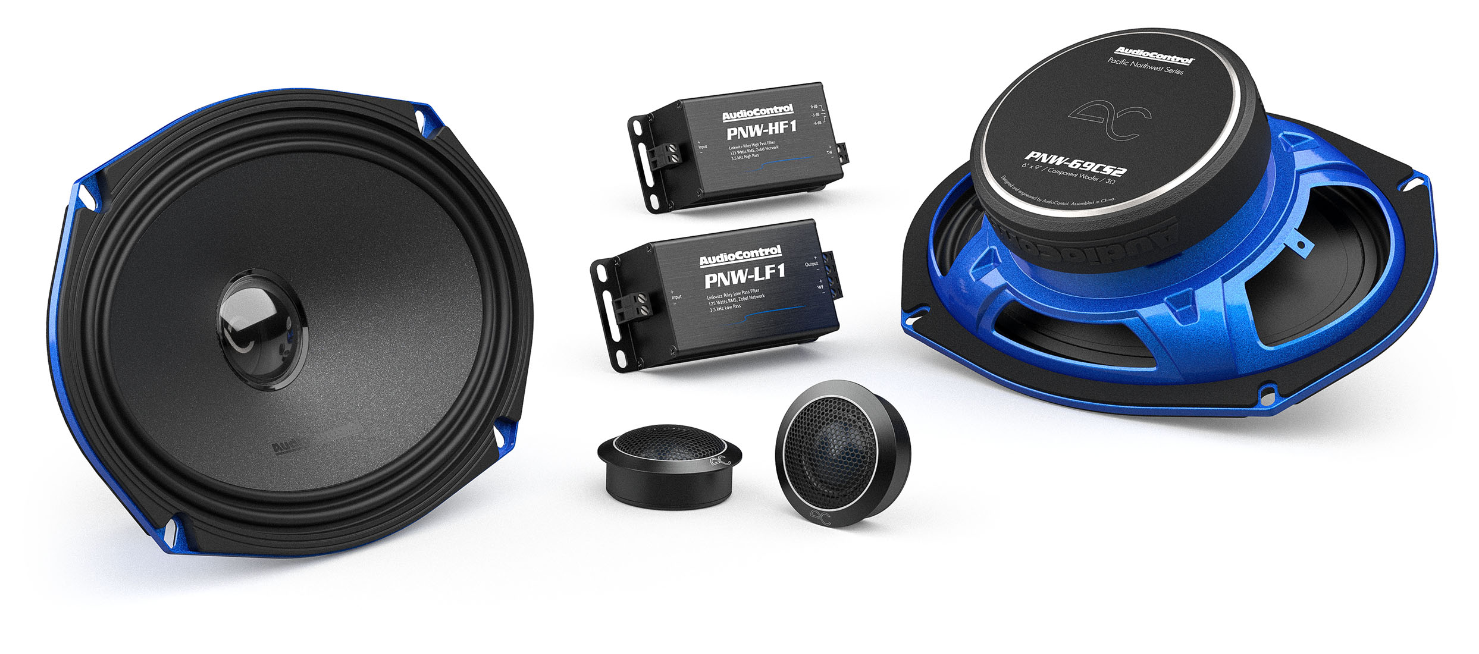

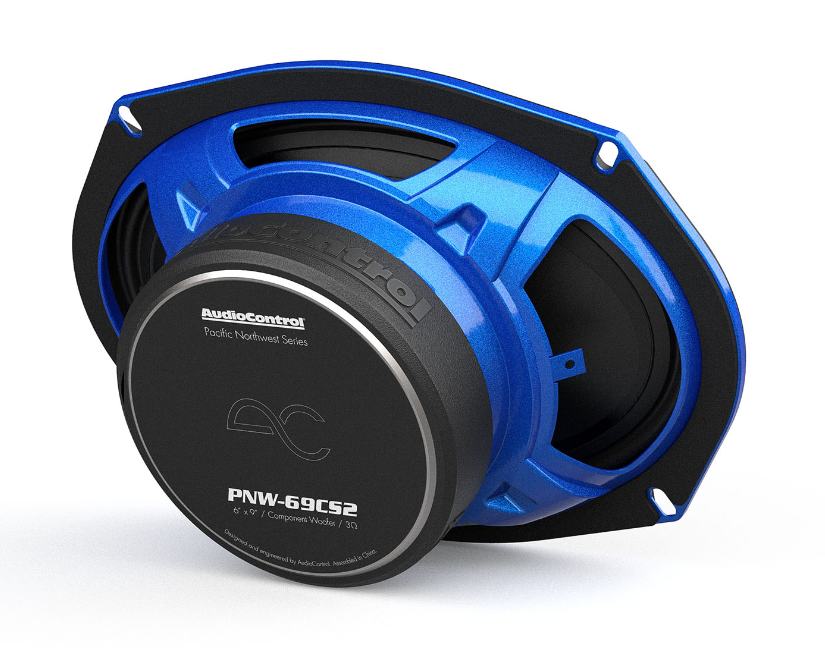

AudioControl PNW-69CS2: 6 x 9" PNW-Series Component Set
- In stock, ready to ship
Specifications:

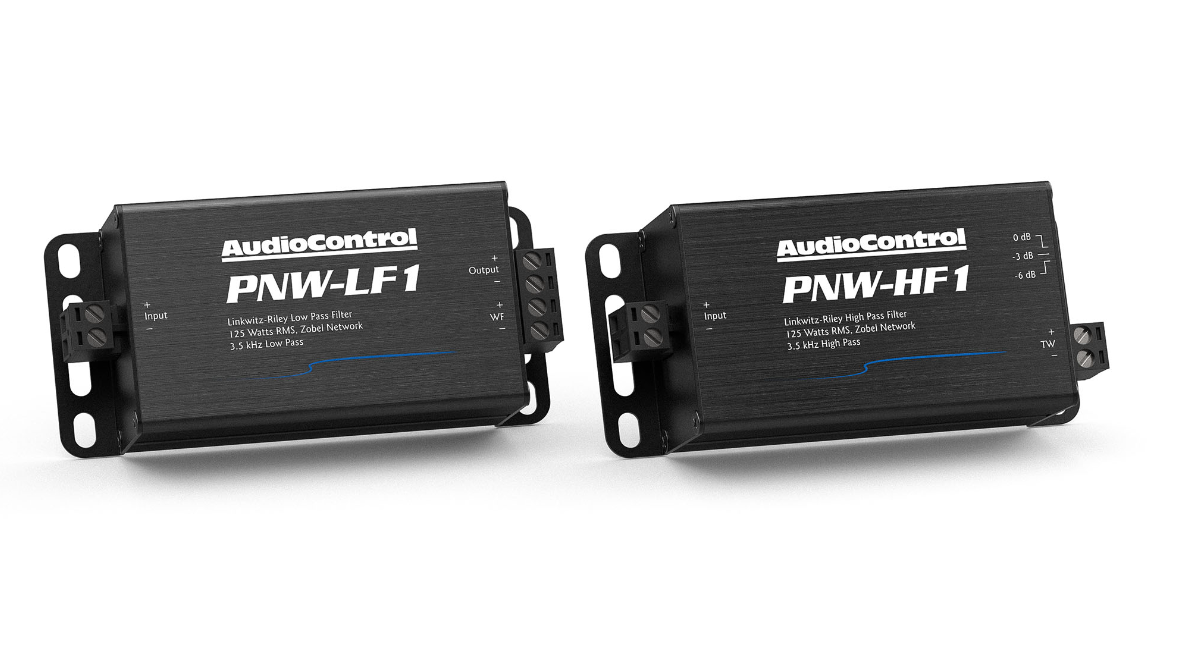

- Crossover type: 2nd order linkwitz riley
- DC resistance (RE): 2.6 ohms
- Filter type: HP / LP
- System Frequency response (FS): 50 - 20 K hz
- XO frequency: 3.5 kHz HP / LP
- Slope (octave): -12 dB
- Tweeter voice coil diameter: 20 mm
- Midrange voice coil diameter: 35 mm
In the box:
- PNW-69cs2
- Manual
- Warranty
Dimensions:
- Overall dimensions: 6 x 9" / 167 x 235 mm
- Overall diameter (without metal bracket): 7.2 x 10.4" / 183 x 265 mm
- Cut out diameter: 5.8 x 8.3" / 146 x 212 mm
- Mounting depth: 3" / 75 mm
- Mounting height (without grille): 1" / 6.3 and 25 mm
- Motor diameter (without cover): 4.6" / 117 mm
Dimensions for tweeter
- Overall diameter (G): 2.1" / 54 mm
- Cut out diameter (H): 1.9" / 47 mm
- Mounting depth: 0.6" / 16 mm
