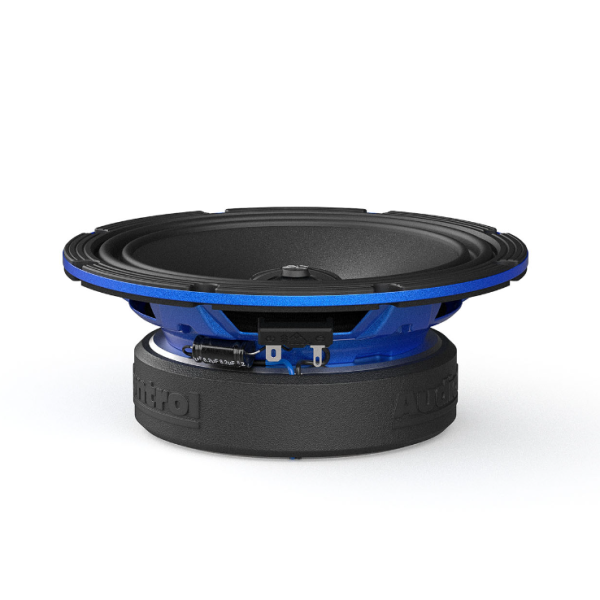

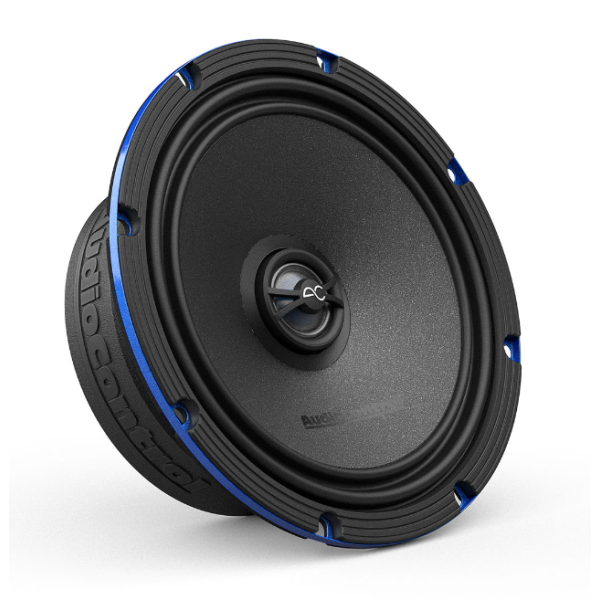

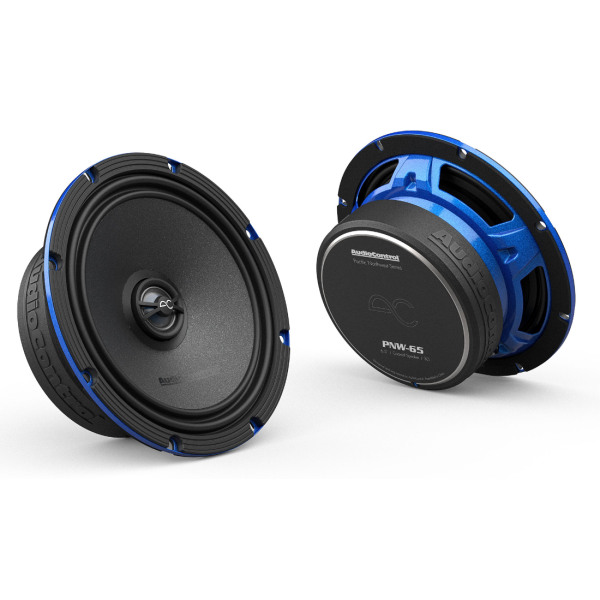

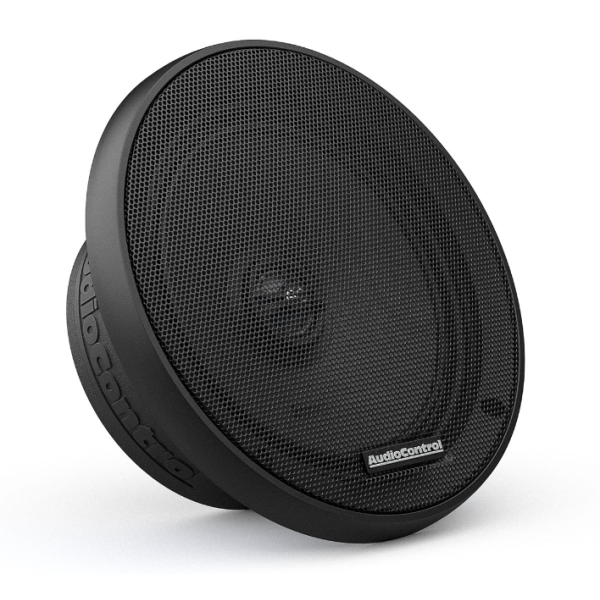

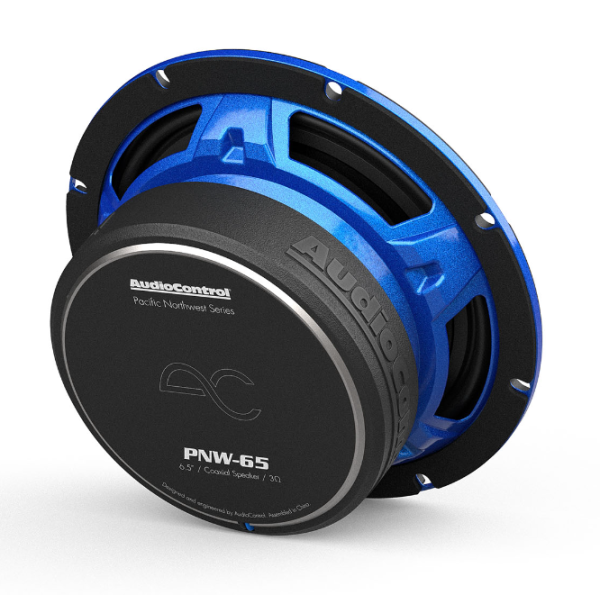

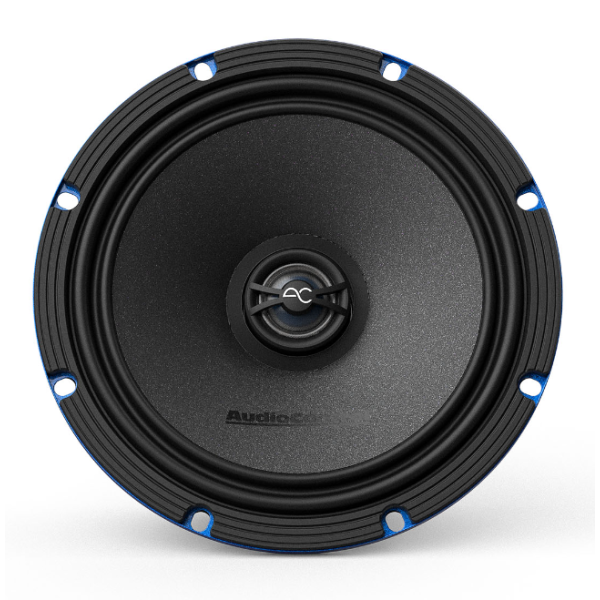

AudioControl PNW-65: 6.5" PNW-Series Coaxial Speaker
- In stock, ready to ship
Specifications:
- Crossover type: Butterworth
- DC resistance (RE): 2.3 ohms
- Filter type: HP
- System frequency response (FS): 60 - 20 K hz
- XO frequency: 5250 hz
- Slope (octave): -6 dB
- Tweeter voice coil diameter: 20 mm
- Midrange voice coil diameter: 35 mm
In the box:
- PNW-65
- Manual
- Warranty
Dimensions:
- Overall diameter (without grille): 6.5" / 166 mm
- Cutout diameter: 5.6" / 142 mm
- Mounting depth: 2.4" / 60 mm
- Height (without and including grille): 0.2" / 5.2 mm, 0.9" / 22 mm
- Motor diameter (including cover): 4.6" / 117 mm
- Grille overall diameter: 7.1" / 179 mm
