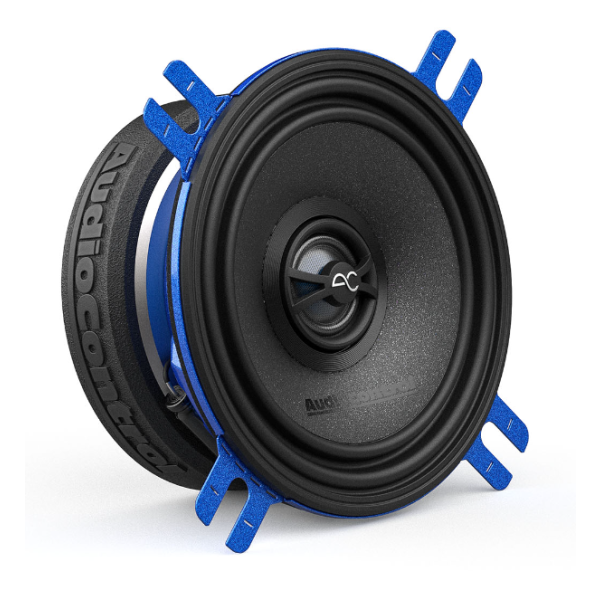

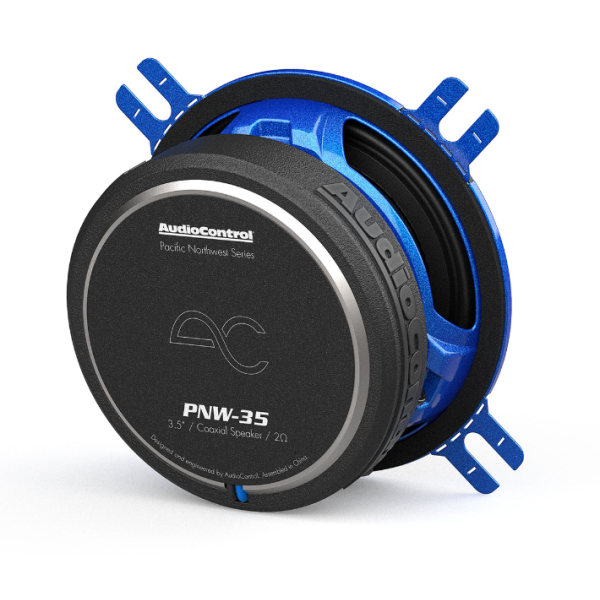

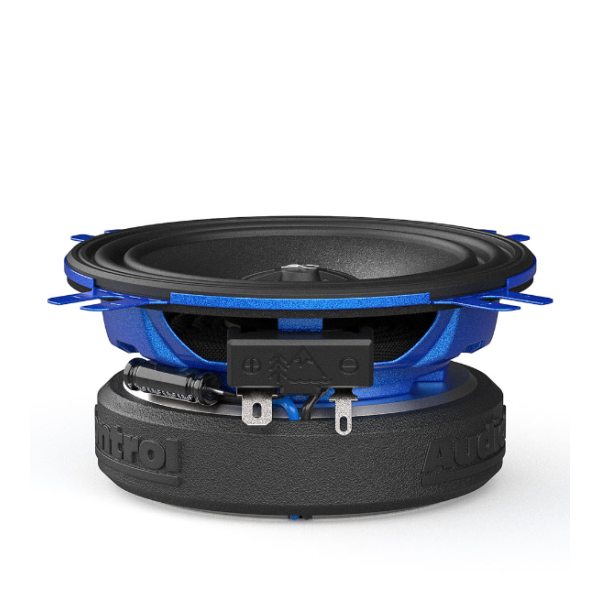

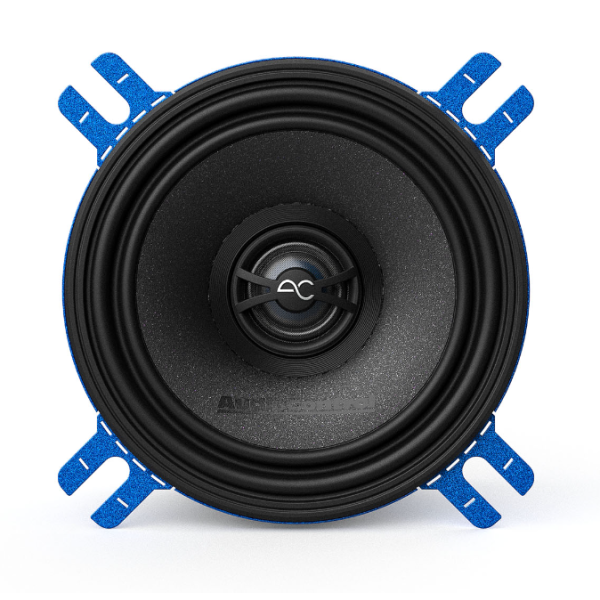

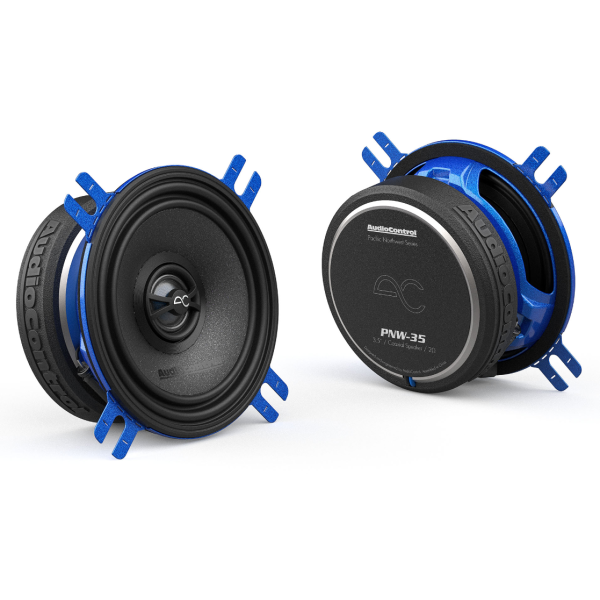

AudioControl PNW-35: 3.5" PNW-Series Coaxial Speaker
- In stock, ready to ship
Specifications:
- Crossover type: Butterworth
- DC resistance (RE): 1.75 ohms
- Filter type: HP
- System frequency response (FS): 90 - 20 K hz
- XO frequency: 5900 hz
- Slope (octave): -6 dB
- Tweeter voice coil diameter: 13 mm
- Midrange voice coil diameter: 25 mm
In the box:
- PNW-35
- Manual
- Warranty
Dimensions:
- Overall diameter (including metal bracket): 5.2" / 133 mm
- Cut out diameter: 3.6" / 91.5 mm
- Mounting depth: 1.7" / 42.2 mm
- Height (without and including grille): 0.2" / 4.1 mm, 0.6" / 16.5 mm
- Motor diameter (including cover): 3" / 75.4 mm
- Grille overall diameter: 5.4" / 137 mm
Orders are typically processed and Shipped within 1 - 2 business days. Delivery usually takes 7 - 15 business days via Canada post, FedEx, or UPS.
