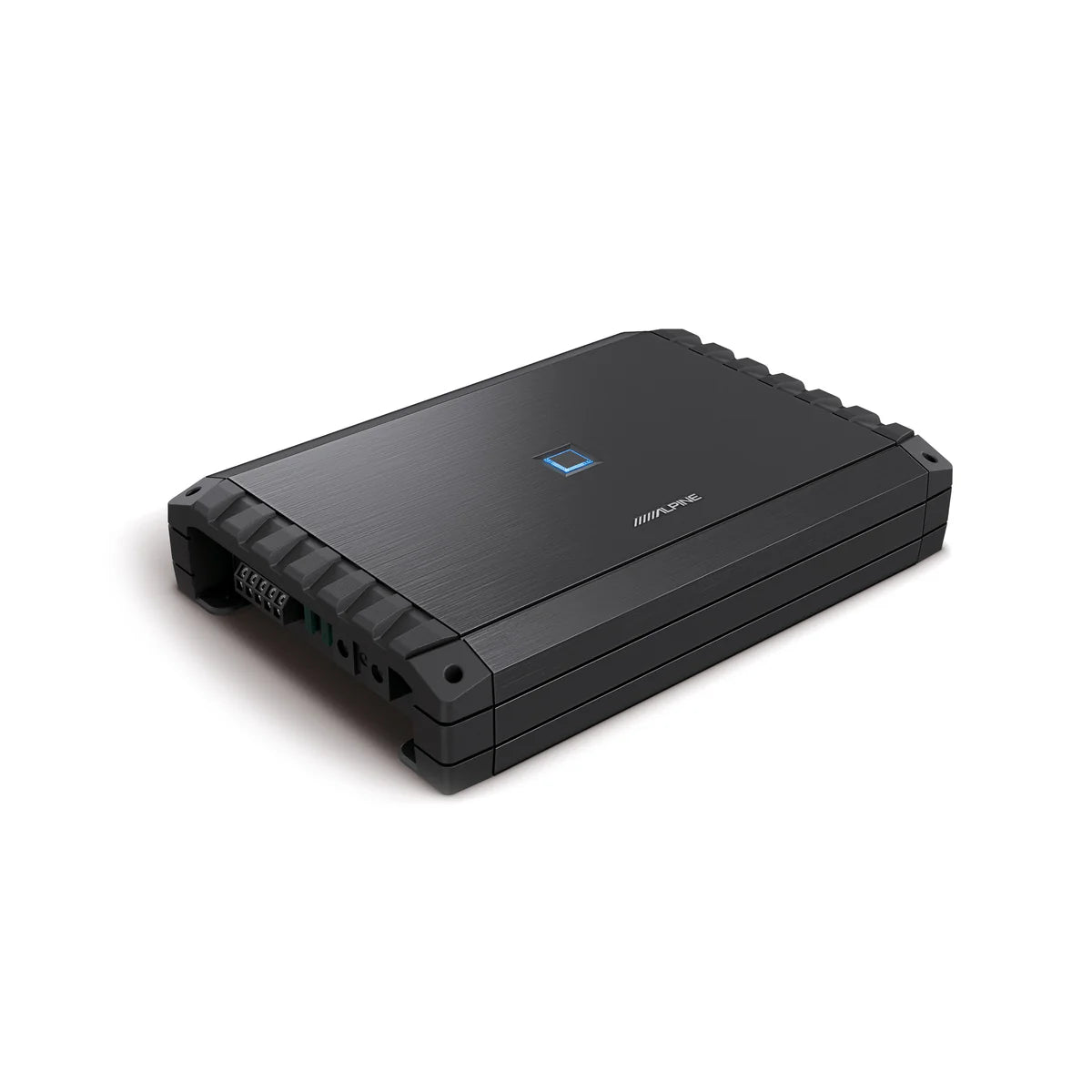

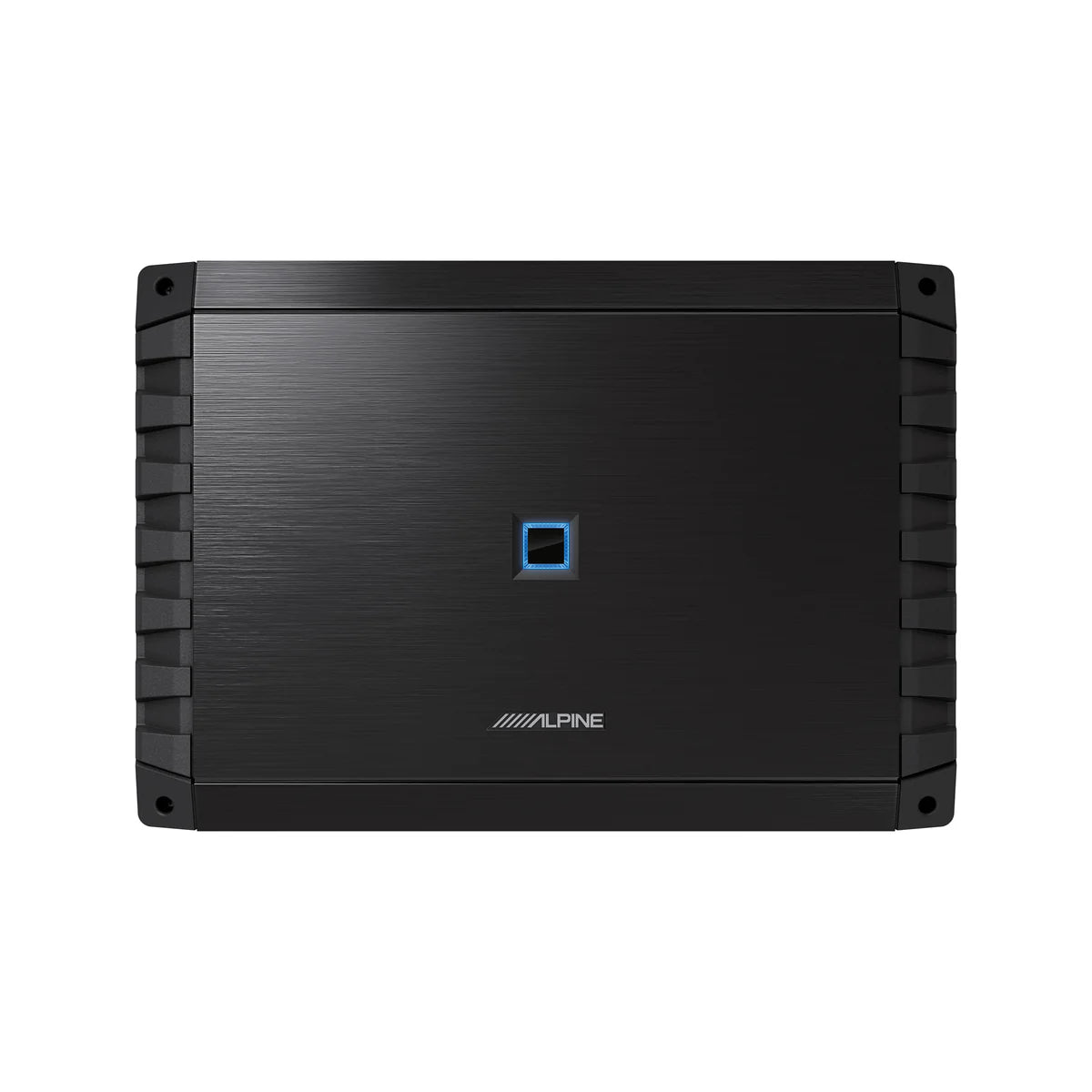

Alpine S2-A55V: S-Series Next-Generation 5-Channel Amplifier
- In stock, ready to ship
About the Alpine S2-A55V: S-Series Next-Generation 5-Channel Amplifier
Entry level sound just got elevated through the S2-A55V 5-Channel Amplifier. Its sleek redesign houses an Alpine class-D Amplifier circuit and is now certified for high resolution audio.
High resolution audio:
The Next-Generation Alpine S-Series S2-A55V 5-Channel Amplifier is high resolution audio certified and able to reproduce up to 40 kHz frequency response. This ultra wide bandwidth coupled through the elevated S-Series design brings out a new benchmark for entry level performance and price.
Flexible application:
The Next-Generation S-Series Amplifiers now feature a new selectable remote turn on circuit, a three position switch that ensures the Amplifier turns on and off at the proper times. This design is crucial through newer, in vehicle technology and allows for proper integration through any factory or aftermarket system.
Easy control access:

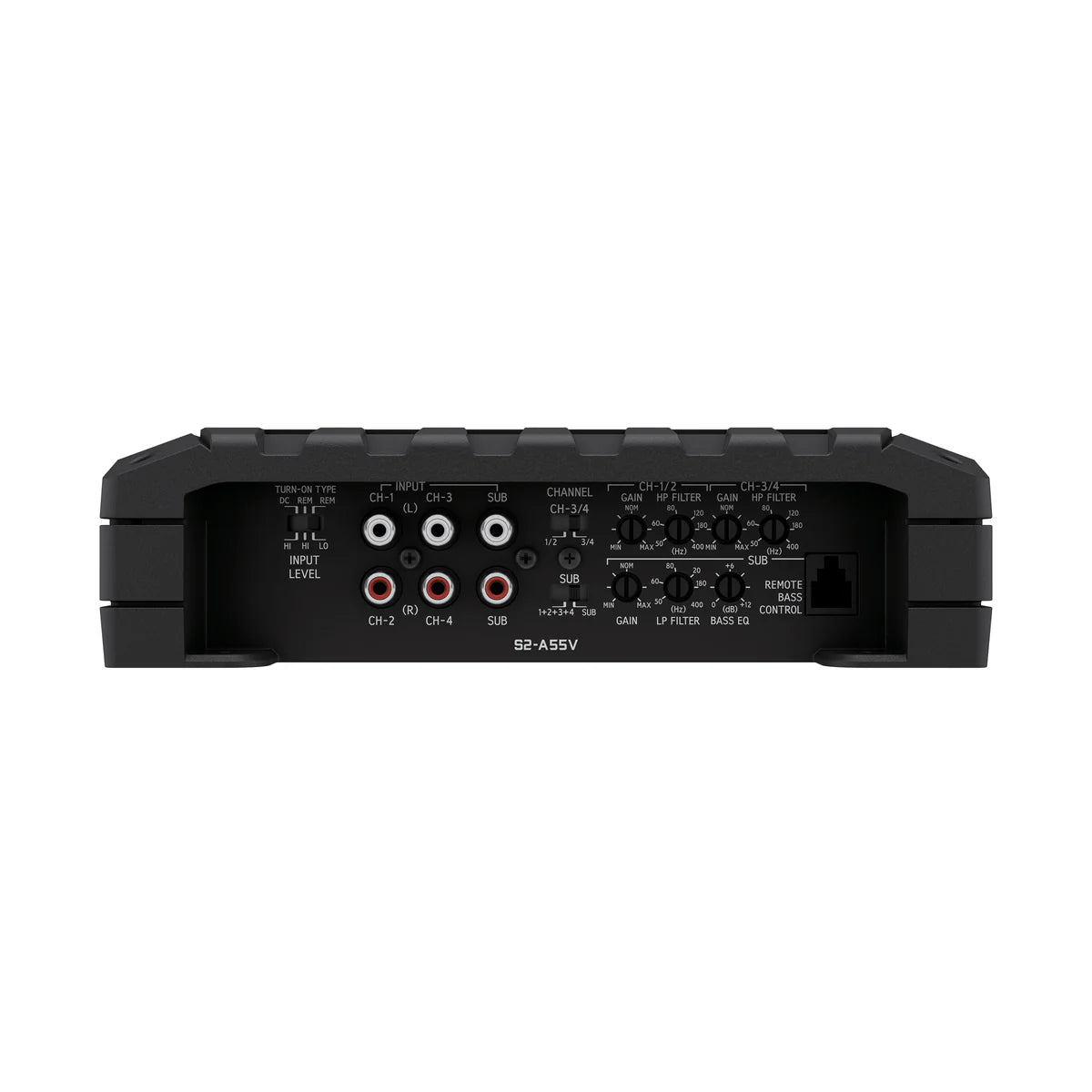

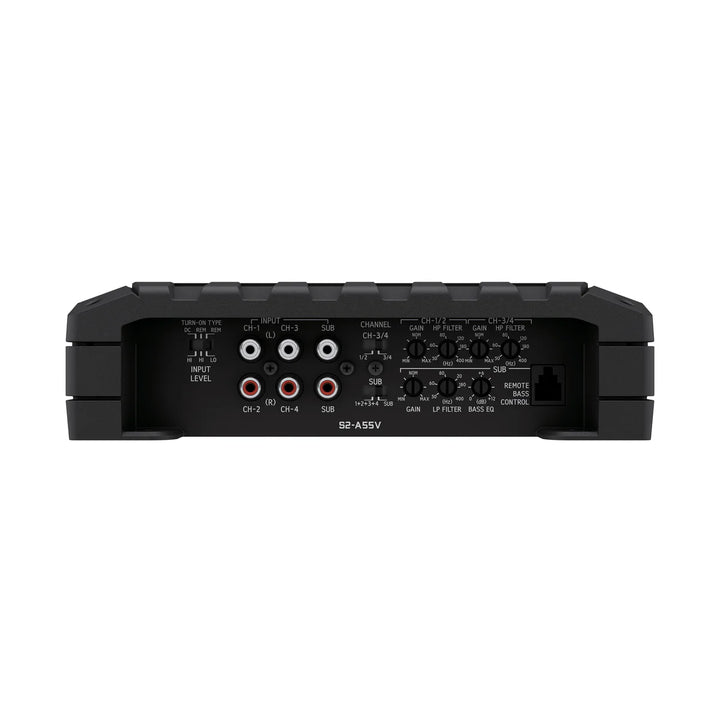

The Amplifier was intentionally designed through sound controls located on the side panels, instead of the top panels, making it easier to access gain and crossover controls when installed under vehicle seats or in shallow depth locations. Removable end caps were added to cover the side controls and connections, providing a clean, sleek finish to the Amplifier.
Features:
- 5-Channel car Amplifier
- 40 W RMS x 4 + 200 W RMS x 1 at 4 ohms
- 60 W RMS x 4 + 300 W RMS x 1 at 2 ohms
- 120 W RMS x 2 bridged at 4 ohms + 300 W RMS x 1 at 2 ohms
- Channels 1-4:
- High resolution audio certified (frequency response: 10 - 40 kHz)
- Variable high pass filters (50 - 400 hz, 12 dB / octave)
- Subwoofer Channel:
- Variable low pass filter (50 - 400 hz, 24 dB / octave)
- Variable bass boost (0 - 12 dB at 50 hz)
- Optional wired remote available
More info:

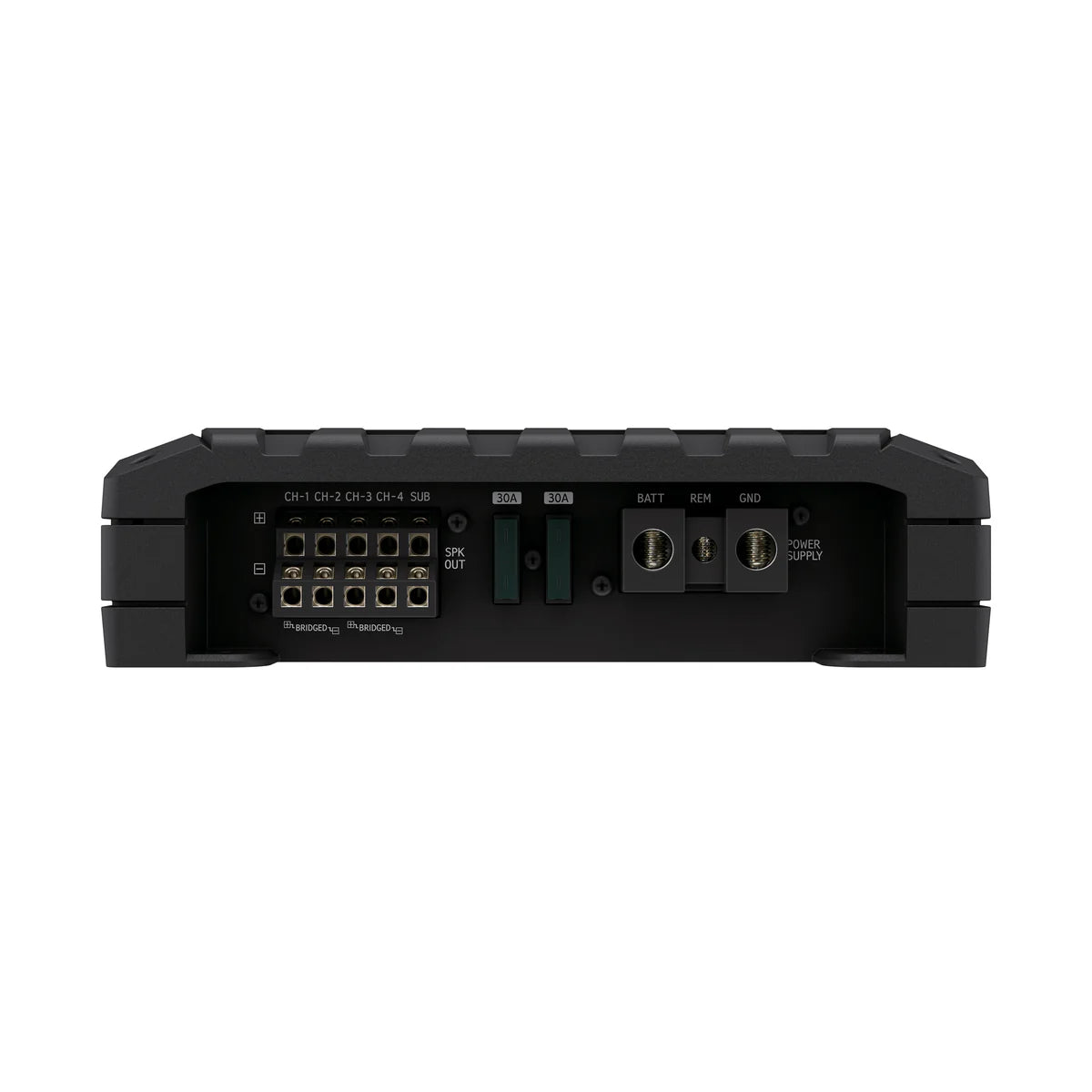

- Preamp and speaker level inputs
- Speaker level inputs handle up to 10 V
- RCA adapters required for speaker level input
- Signal sensing turn on and speaker level inputs
- Wiring and hardware not including Amplifier
- 4 gauge power and ground leads recommended
- Fuse rating: 30 A x 2
- Dimensions: 11.9" W x 2.2" H x 8.3" D
What's in the box:
- 5-Channel Amplifier
- Two 30 Amplifier ATO fuses (installed)
- 2 end caps
- Four 3 / 4" screws
- Four 1 / 4" screws
- 2 mm Allen key
- Owner's manual (English / Spanish / French / others)
- Alpine verification certificate
- Warranty information
- Power supply note
- On line product registration information
