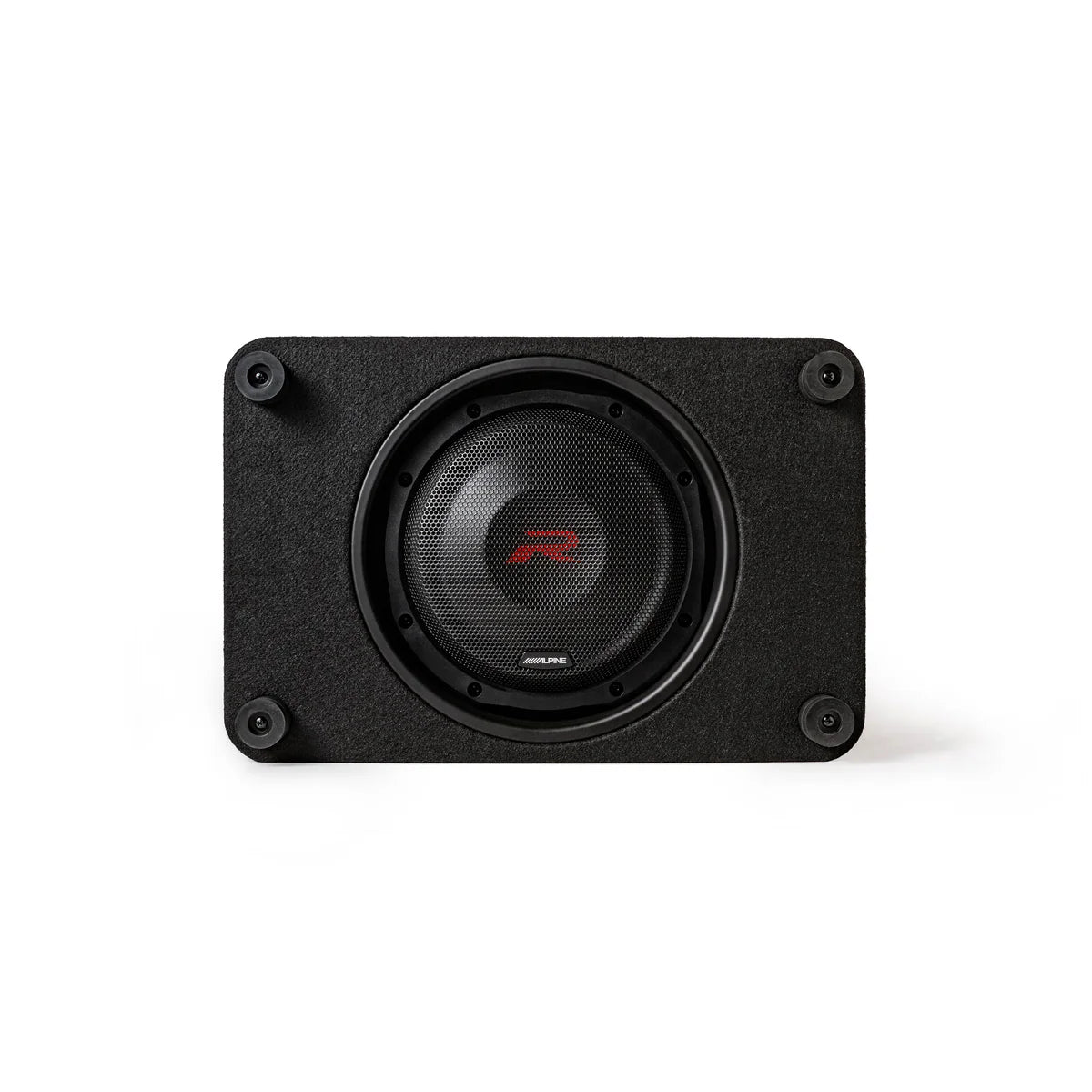

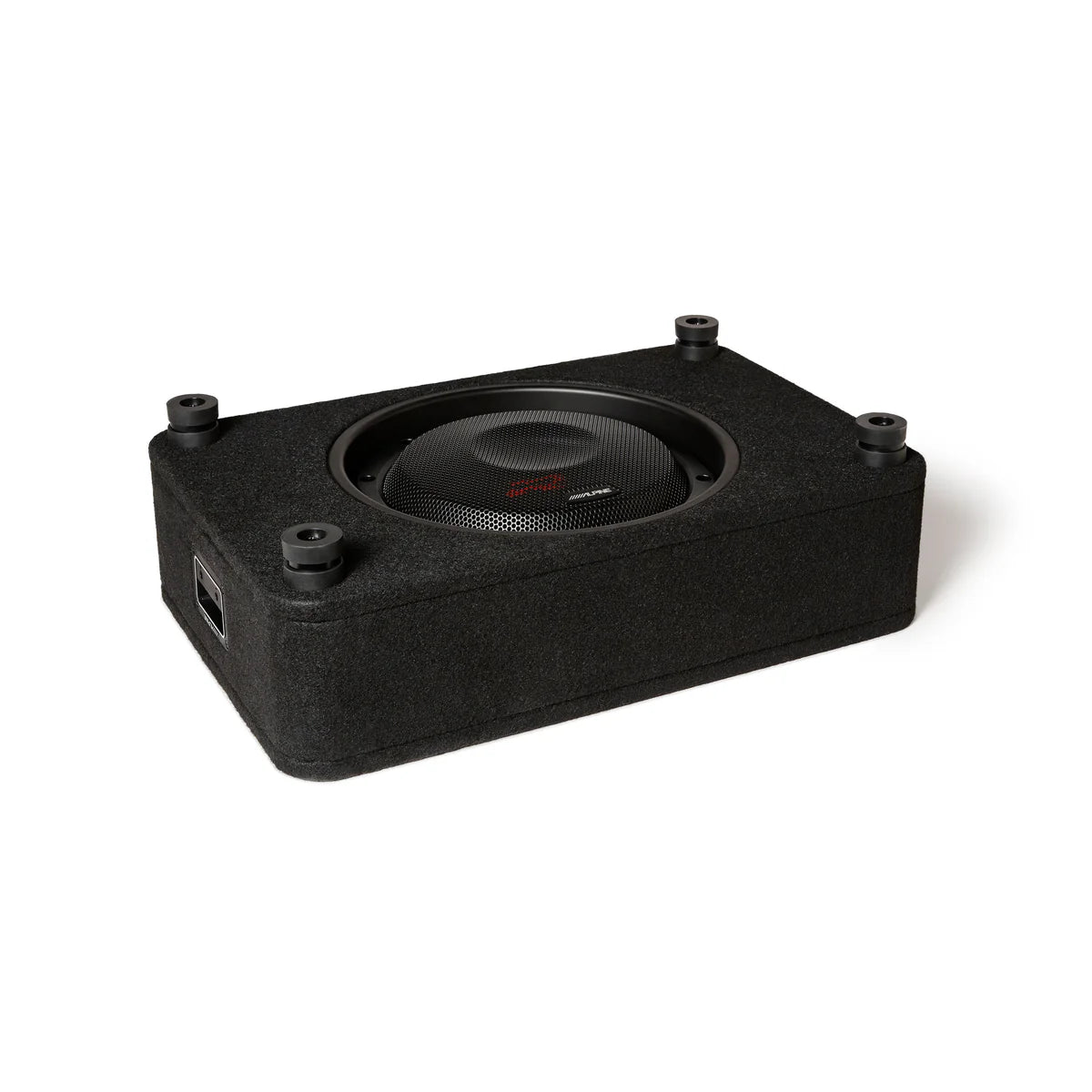

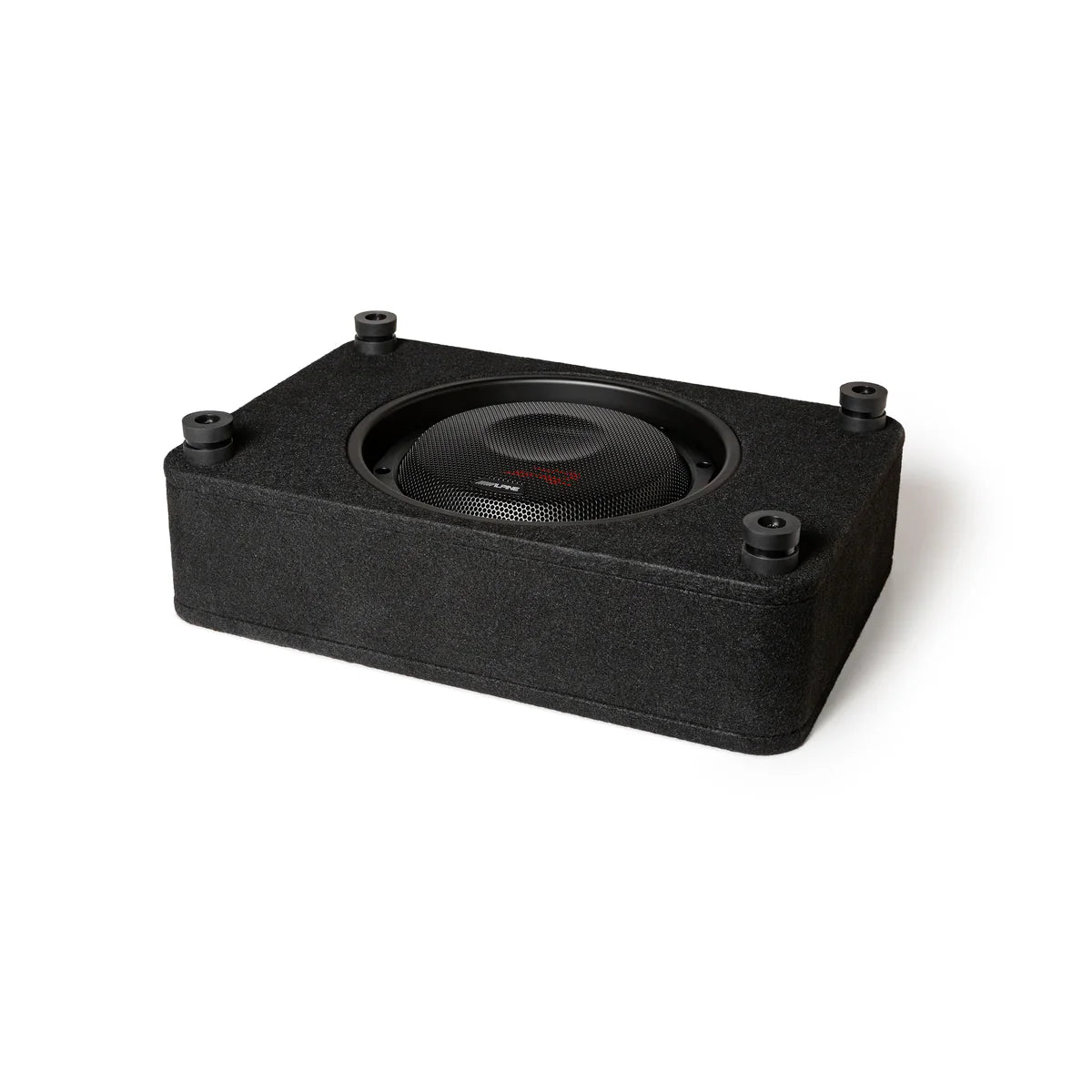

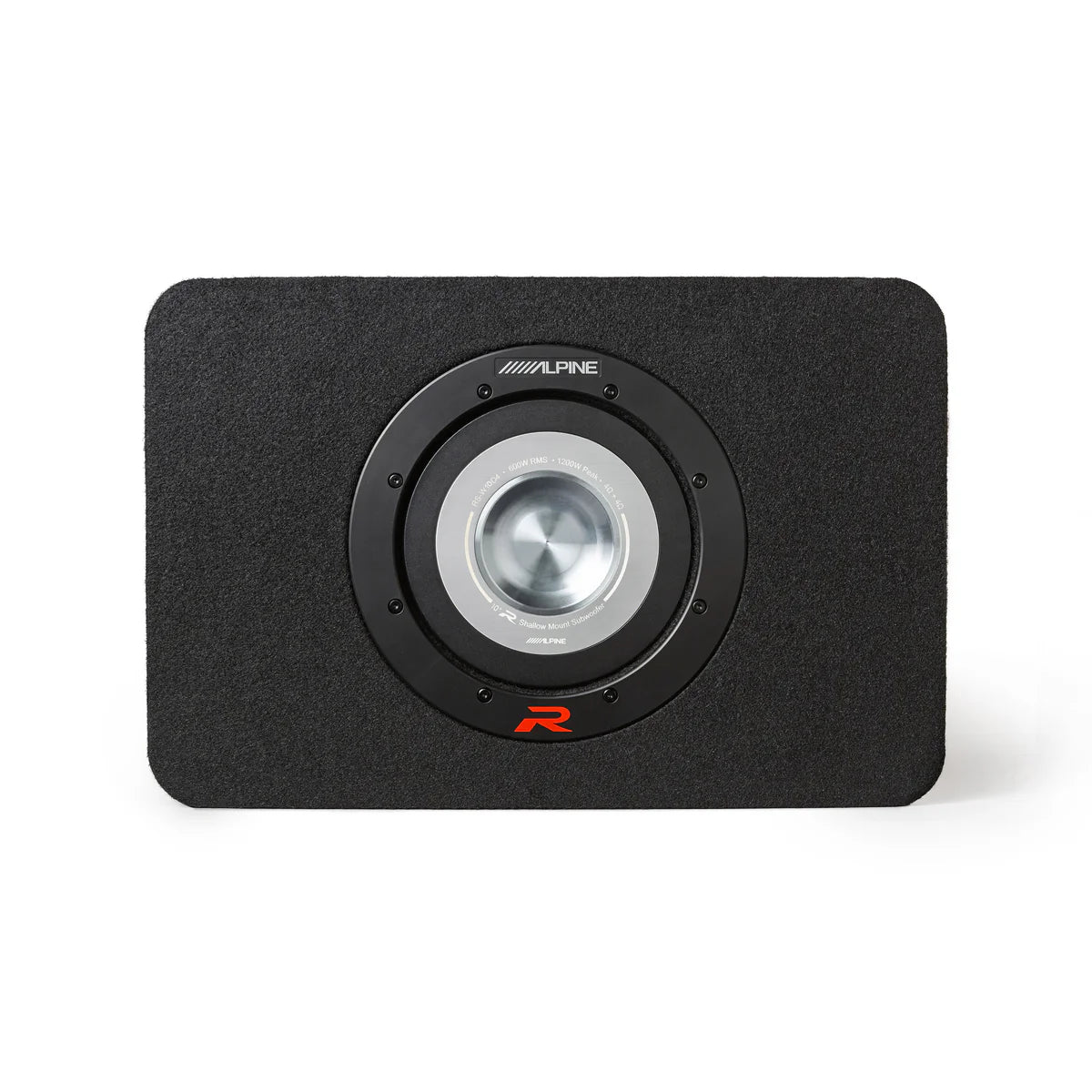

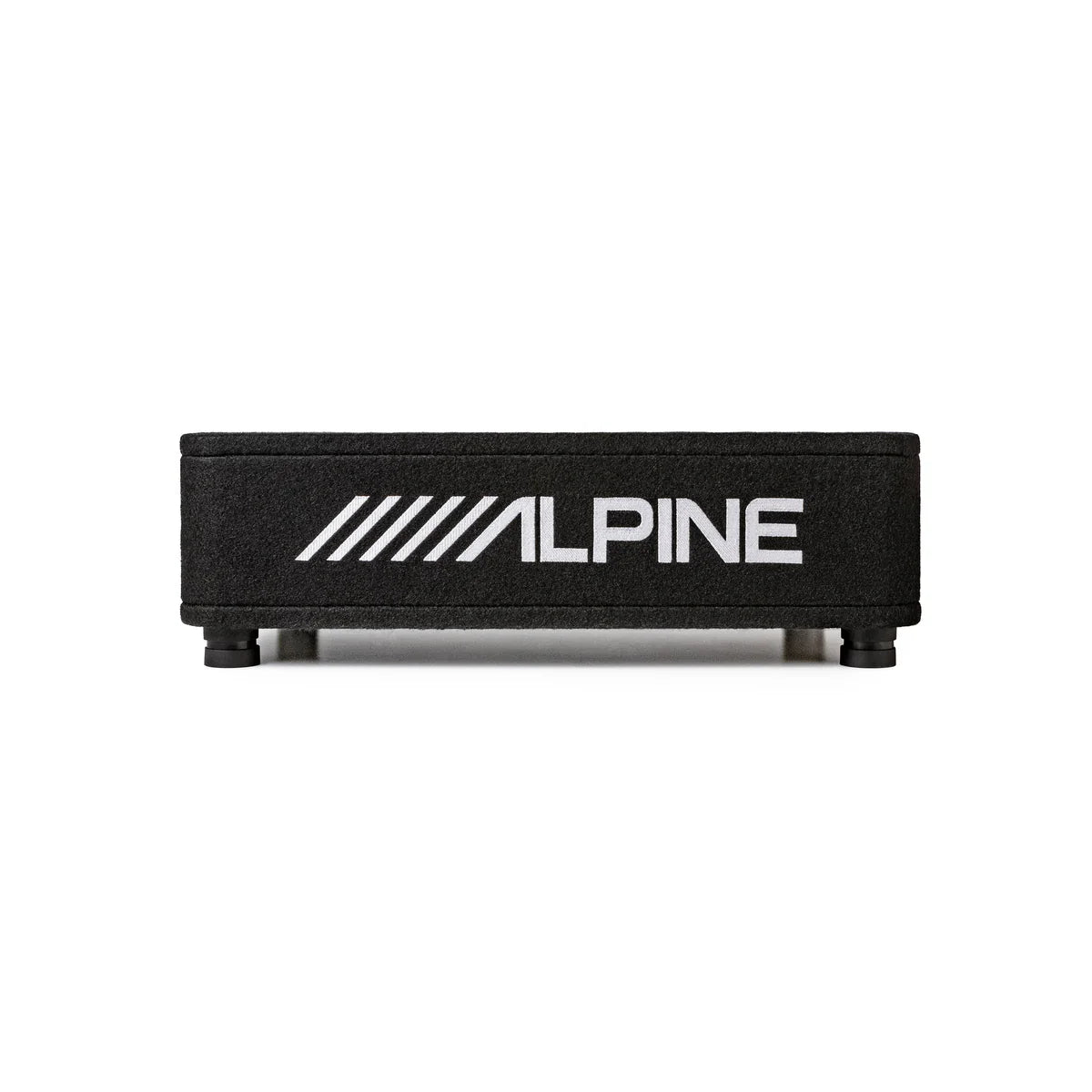

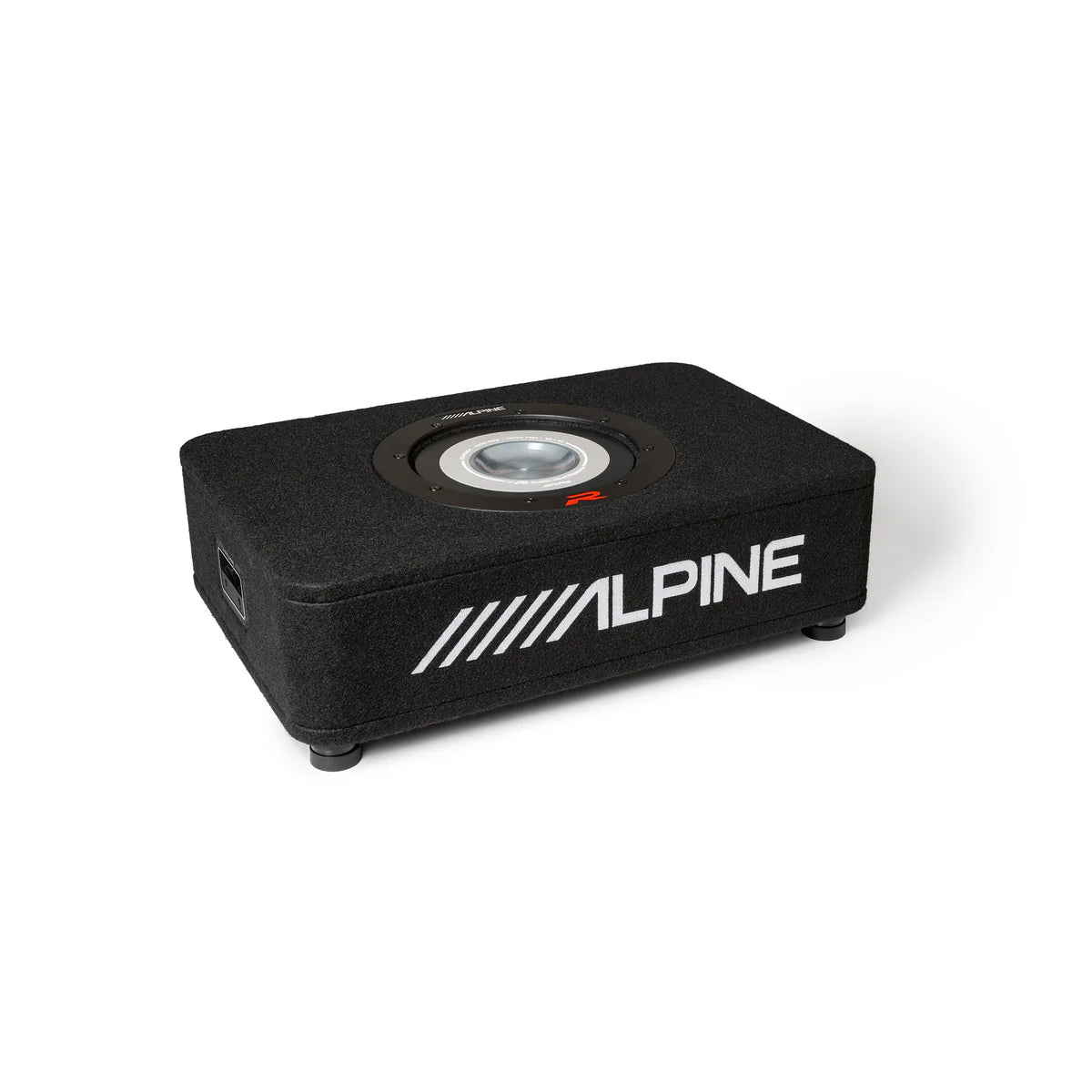

Alpine RS-SB10: 10" R-Series Halo Shallow Pre-Loaded Subwoofer Enclosure

Through an ultra Shallow Enclosure design and powerful sound output, the R-Series Shallow Pre-Loaded Subwoofer Enclosures give you the best of both worlds in size and sound.

Alpine's R-Series Halo Shallow Pre-Loaded Subwoofer Enclosure measures at a minimal 5.3" deep to deliver a loud and fun sound in most vehicle applications.  Rubber "feet" are adjustable in height to accommodate uneven vehicle floors.

The Enclosures feature the same motor movement (20 mm of excursion) as the full size R2-Series Subwoofers for extreme output in a Shallow woofer design.

At the heart of the R-Series Shallow Subwoofers is an oversized 4" voice coil that houses the lightweight and powerful neodymium magnet for 600 W RMS of power handling.

Integrated cooling fins located in the core of the Subwoofer help dissipate the heat generated by the rapid Subwoofer movement for enhanced cooling reliability and hours of uninterrupted playtime.

The unique cool mount dual panel mount Subwoofer motor enhances cooling.  Alpine's Generation 2 DD linear magnetic circuit technology, a compact and efficient dual gap voice coil structure, allows for better control over the motor, resulting in lower distortion and precise bass control.

The Pre-Loaded Enclosures use the Subwoofer frame as bracing for a more rigid design and better bass response.

A lightweight yet rigid aluminum dust cap allows the R-Series Shallow Subwoofer to transition sound quickly through minimal distortion and project the bass off the surface of the speaker for hard hitting yet smooth bass performance.

The included adjustable mounting brackets allow for down fire mount configuration.  The Enclosure pulls design cues from the Alpine Halo display through unique, curved edges.

The 3 / 4 MDF Enclosures are covered in a premium, Alpine embroidered black carpet and a protective grille is included to finish the look.

Through a preloaded R-Series 10" Shallow Subwoofer that's tuned to XX hz, the Enclosure is optimized to perform through Alpine's R-Series sound system line.

Dual voice coils are wired in parallel for a 2 Ω load that's compatible alongside Alpine’s S-A60M amplifier.

Features:

• Groundbreaking Shallow Alpine Halo design
• Optimal sealed cabinet quality
• Aluminum dust cap
• Unique cool mount dual panel mount
• Neodymium magnet
• Alpine Generation 2 DD linear magnetic circuit
• CARB compliant 3 / 4" MDF construction
• Premium Alpine embroidered black carpet
• Alpine branded terminal cup
• Pre installed steel mesh grille
• Includes a 10" R-Series Shallow Subwoofer
• Rubber, modular stackable foot design
• 600 W RMS power handling
• Frequency response: 29 - 200 hz
• Sensitivity:
• Dual 4 Ω voice coils wired in parallel for a 2 Ω load (compatible alongside S-A60M)
• Nominal impedance: 2 Ω
• Voice coil: 4" (101.6 mm)
• Dimensions: 21.2" W x 5.3" H x 16" L
• Sealed cabinet and one 10" R-Series Shallow Subwoofer
• Mounting brackets
• Owner's manual
• Warranty information
• Online product registration information
