Alpine I407-WRA-JL: 7" Multimedia Receiver

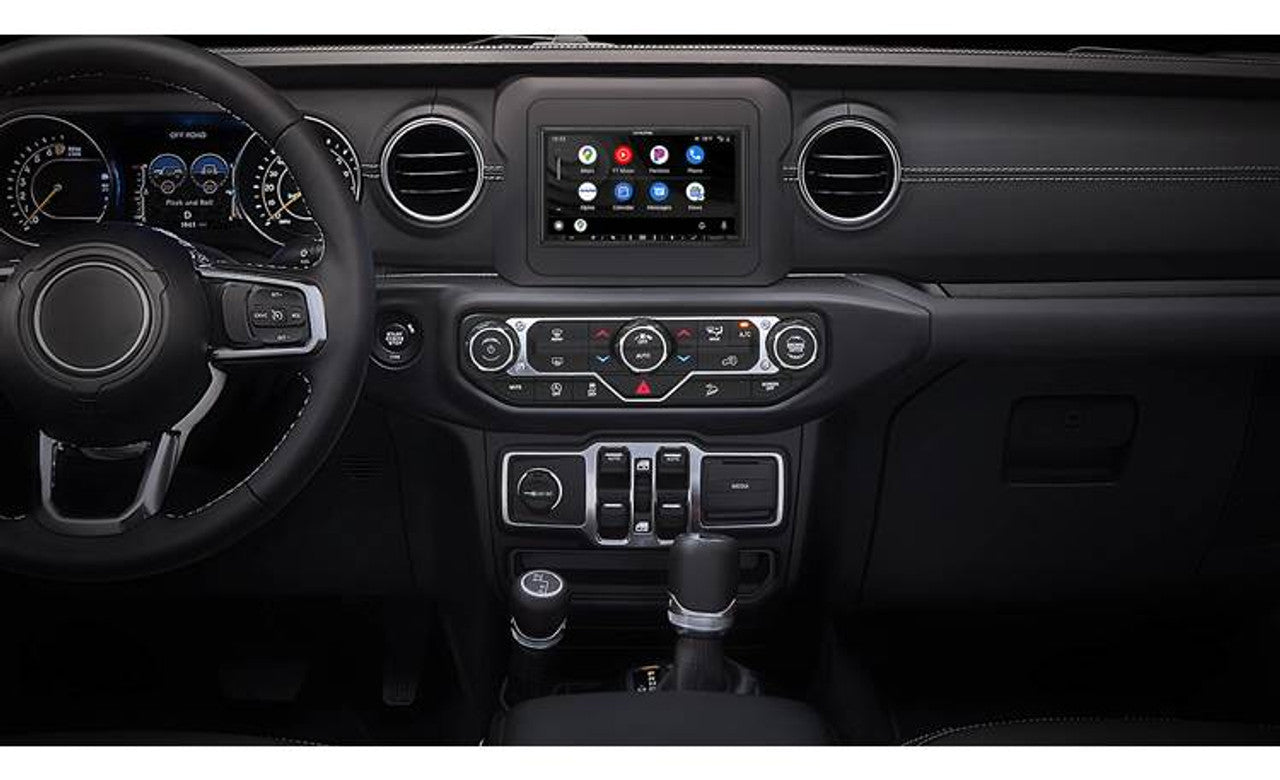

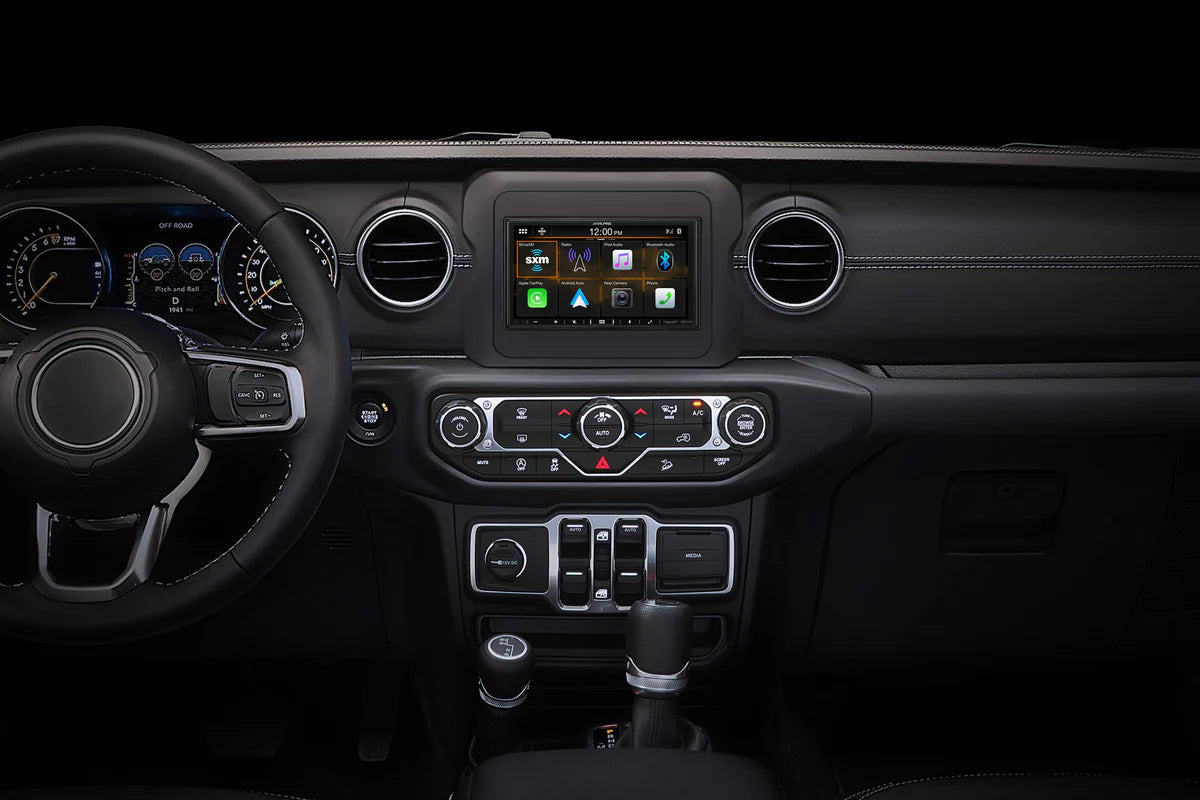

Enhance your adventures through this custom designed dash solution that gives you HD radio, HDMI, and maestro compatibility in your jeep wrangler or gladiator.

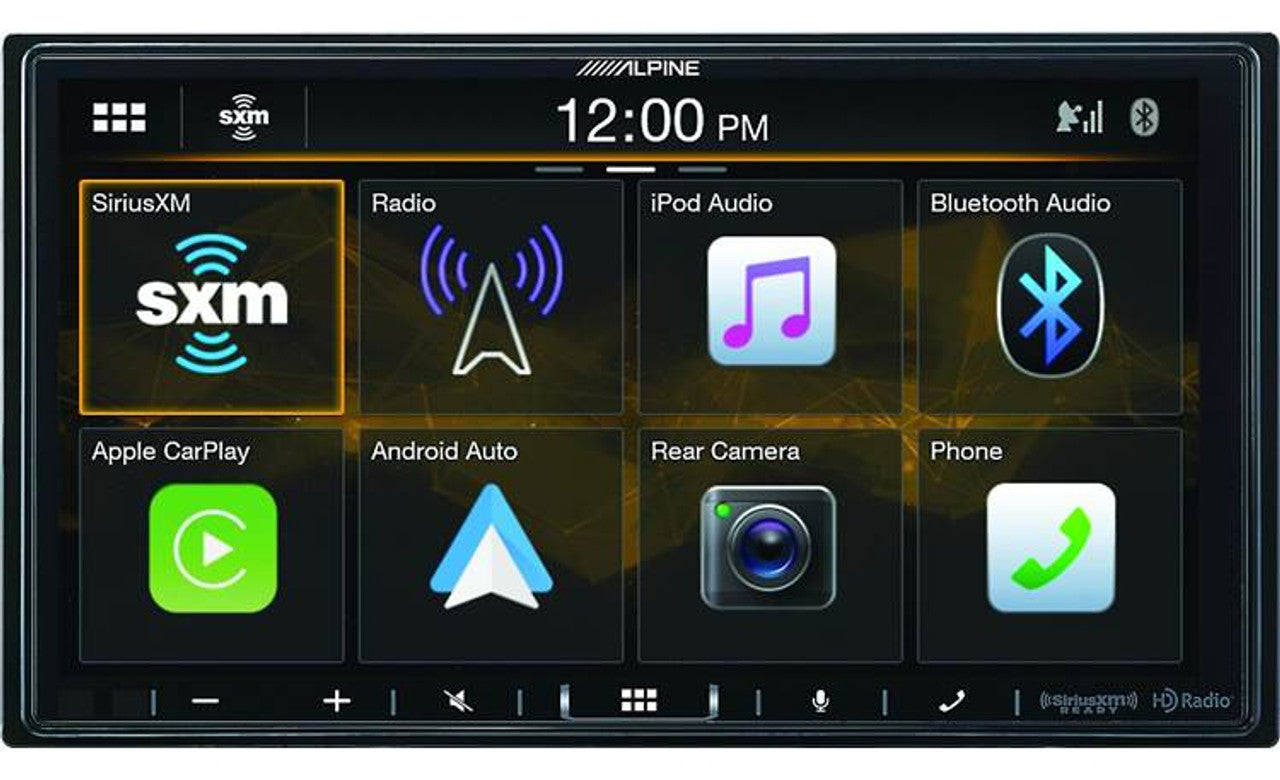

This custom designed dash solution gives you the latest smartphone and entertainment features, all on an intuitive, 7", capacitive touchscreen display.

An HDMI input is available to connect a CD / DVD player for an all digital audio and video connection through a single cable.

A rear USB port allows you to listen to your music via smartphone or USB.  Built in HD radio and Sirius XM (tuner and subscription required) give you all the entertainment options you need.

Jeep specific wiring adapters plug directly into your factory setup for plug and play installation.

Features include apple CarPlay, android auto, and built in Bluetooth hands free calling through audio streaming.  Use your smartphone for 3rd party navigation apps like google maps or waze.

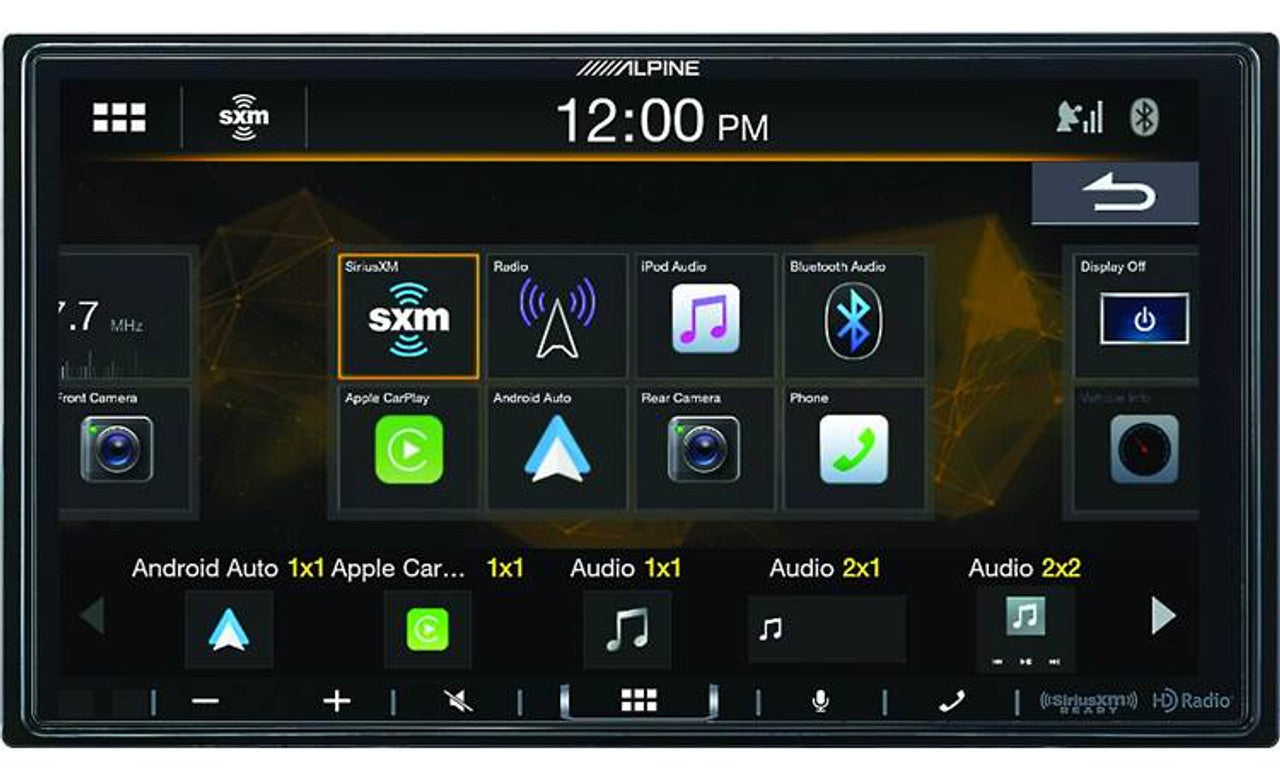

Customize the screen exactly the way you want it by using drag and drop motions using your finger to add, remove, or move over 29 available widgets.

Keep the factory controls you use the most, like voice activated media player, Bluetooth technology, steering wheel controls through the included IDataLink maestro module.

The IDatalink adapter can integrate through the jeep diagnostic port so select vehicle information like tire pressure, battery voltage, door status, engine codes, and user customizable gauges can be monitored on the touchscreen.  The I407-WRA-JL retains the factory backup camera through rear guideline display.

Retain the Alpine OEM premium amplified system through the KCX-F200INT premium audio system interface (sold separately).

Features:

• 7" anti glare double din touchscreen display
• Premium quality OEM fit dash system
• Plug and play installation
• Shallow mount design (2 - 6 / 16" depth)
• Customizable user interface (29 available widgets / apps)
• Customizable background / wallpaper
• Works through apple CarPlay
• The google assistant is available on android auto
• Bluetooth built in for hands free calling and audio streaming
• Sirius XM ready (SXV300 connect vehicle tuner kit sold separately; Sirius XM subscription required)
• Built in HD radio
• HDMI input
• IDatalink maestro connectivity (retains factory controls)
• 2 RCA camera inputs
• Rearview camera distance guide display
• Media Xpander
• Retain the Alpine OEM premium amplified system through the KCX-F200INT Premium audio system interface (sold separately)
• 7" touchscreen Receiver / monitor
• Jeep liberty dash kit / mounting bracket and compatible wiring harness
• IDatalink maestro module
• Preout / camera harness
• USB extension cable
• Microphone (including attached 12.5 FT cable)
• Quick reference guide
• Installation manual
• Online registration information
• Width: 7" (178 mm)
• Height: 4" (100 mm)
• Depth: 2 - 6 / 16" (60 mm)
• Screen size: 7"
• Screen resolution: WVGA 800 x 480 pixels
• HDMI and USB input: 1
• Camera input: 2 RCA

• 4V preouts: 3
• Built in amplifier: 16 and 50 W RMS / peak x 4
• EQ: 5 bands graphic
• DAC: 24 bits
• Subwoofer level control
• High / low pass crossover
• 6 channel time correction
• Audio and photo and video playback: A and FLAC, MP3 and 4 and G and OV, WMA and V, JPG, PNG, BMP, AVI
• CTA-2006 compliant
