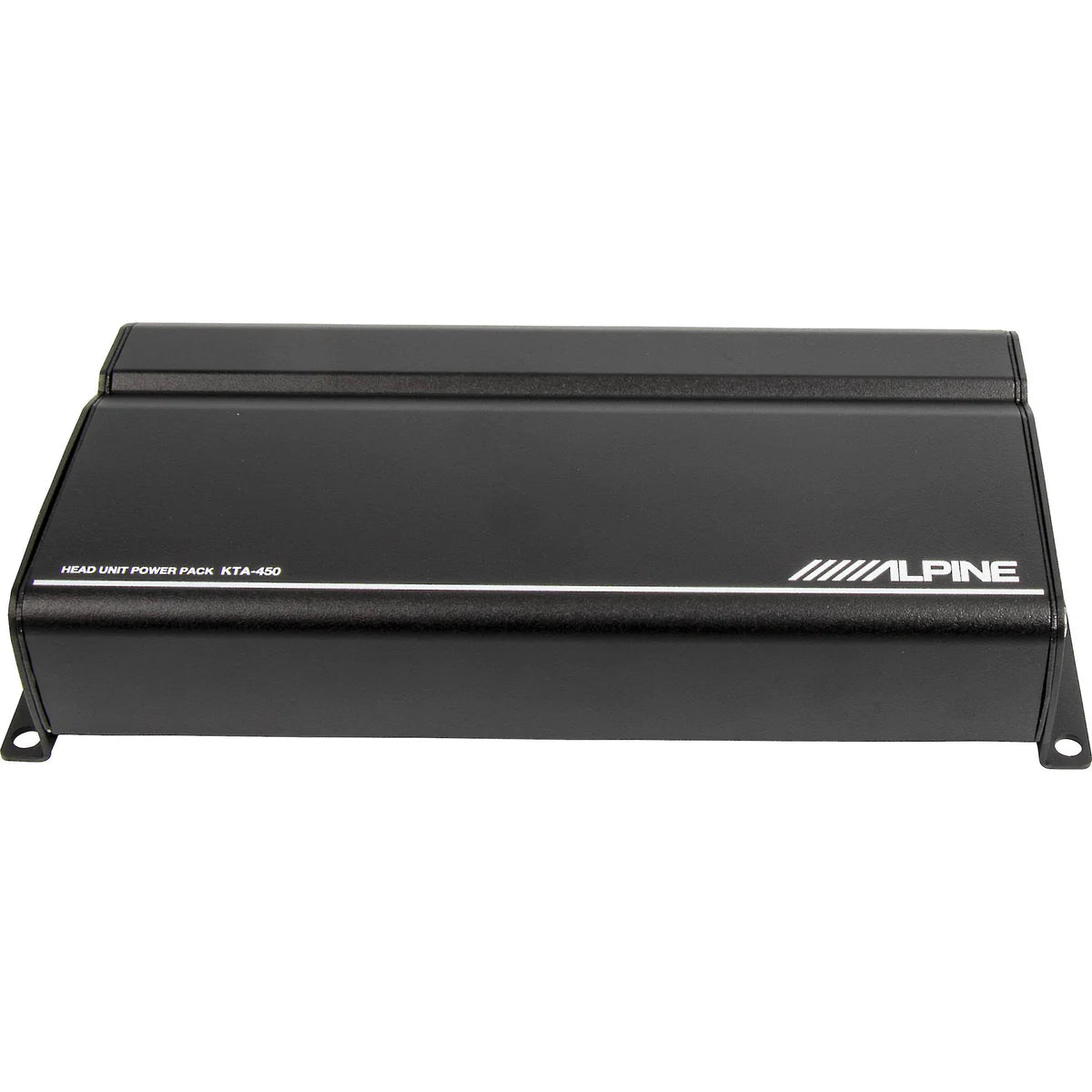

Alpine KTA-450: 4-Channel Power Pack Amplifier

The KTA-450 4-Channel Power Pack Amplifier produces 400 W of Alpine's exclusive dynamic peak for big subwoofer Power in a small space.

Through the highest performance value on the market, this mono Power Amplifier provides an easy update path to add more bass to a sound system in vehicles that don't normally have the room for a traditional Amplifier.

Utilizing Alpine's exclusive dynamic peak Power (DPP) technology, the 200 W KTA-450M delivers bursts of Power to meet the peak demands of music, effectively rising to 400 W and then rolling back to maintain efficiency.

Through the compact, Power Pack design, the Amplifier can fit in hidden areas, like a glove box, under a seat, or mounted behind a receiver to optimize power and space in the vehicle.

The KTA-450M mounts behind the ILX-W760 7" mechless audio / video receiver through Powerstack technology.

When mounted to the ILX-W650, the KTA-450 is a CES 2019 innovations awards winner.

Features:

• Alpine's exclusive dynamic peak Power (DPP) technology
• 100 and 50 W x 4 D.P.P. (2 / 4 Ω, 14.4 V, < 1 % THD + N)

• 100 W RMS x 2 (bridge mode into 4 Ω minimum), 200 W RMS x 2 D.P.P.
• S / N > 82 dB (reference 1 W into 4 Ω)
• THD + N ≤ 0.1 % (reference 10 W into 2 Ω)
• Single side 22 pins connector
• Speaker / RCA inputs (selectable, high range = 0.5 - 10 V, low range = 0.2 - 4 V
• Sound control; crossovers, off / 60 / 80 / 120 hz HP filter @ -12 dB / octave (selectable); input gain settings (variable); 2- / 4-Channel input (selectable)
• Remote bass knob ready through the RUX-KNOB.2 (sold separately)
• Powerstack capable through the Alpine ILX-W650 (sold separately)
• Alpine's class-D Amplifier circuit including dynamic peak power (DPP)
• CTA-2006
• 20 - 20 kHz frequency response (+ / - 1dB)
• ILX-W650 used through the KTA-450 is a CES 2019 innovations awards winner
