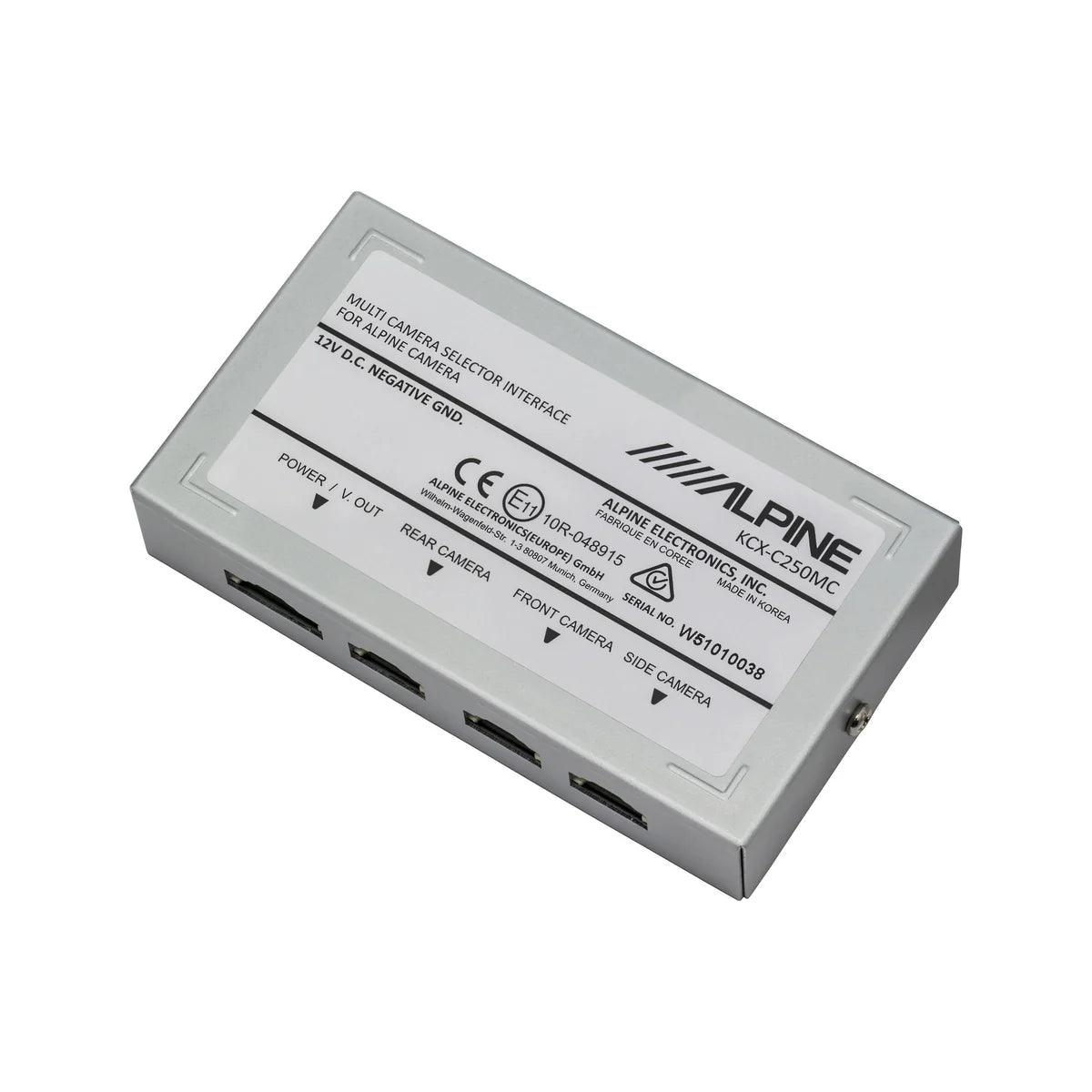

Alpine KCX-C250MC: Multi-Camera Selector Interface

The Alpine KCX-C250MC Multi-Camera Selector Interface allows as many as 3 Alpine-Camera systems (front, rear & side) to be connected to and controlled from select Alpine in dash navigation receivers.

Features:

• Compatibility and head units: the KCX-C250MC Multi-Camera Selector Interface is compatible alongside select Alpine navigation receivers and-Cameras and 2016 + Alpine 10 restyle navigation receivers (X110-SLV for 2014 + Chevrolet Silverado / X110-SRA and GMC Sierra) 9 and 8 and 7 restyle navigation receivers (X109-WRA for 2011 + jeep wrangler / X109 and 108 D and U for various trucks and SUV's) (INE-W967HD for universal applications) .
• -Cameras: the KCX-C250MC is only compatible alongside select Alpine-Cameras which feature a proprietary multi-pin-Camera connector (not composite video).  You can connect up to 3 proprietary Alpine-Cameras (rear, front & side) and select Alpine navigation receivers and proprietary Alpine-Camera systems.
• Touchscreen control: The KCX-C250MC Multi-Camera Selector allows you to control your Alpine Multi-Camera system from your compatible Alpine navigation receivers touchscreen.  The names of the connected-Camera systems (front, side & rear) appear on the touchscreen so you can simply select the-Camera system you want to use.  You can then choose the viewing option from that-Camera to be displayed on the receivers LCD touchscreen.
• When your vehicles reverse gear is selected the image from the rearview-Camera is displayed first.  You can then select to view front or side-Cameras.

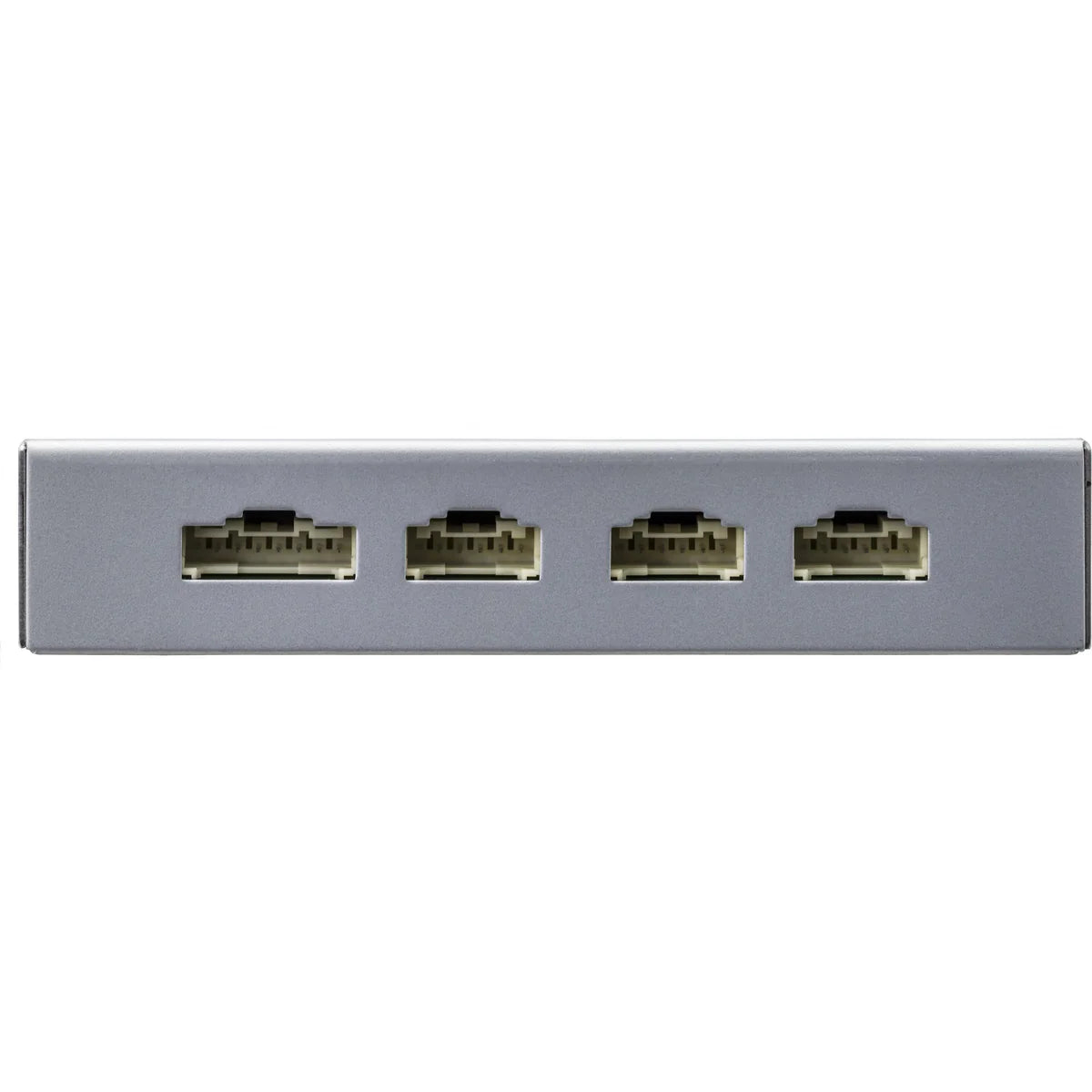

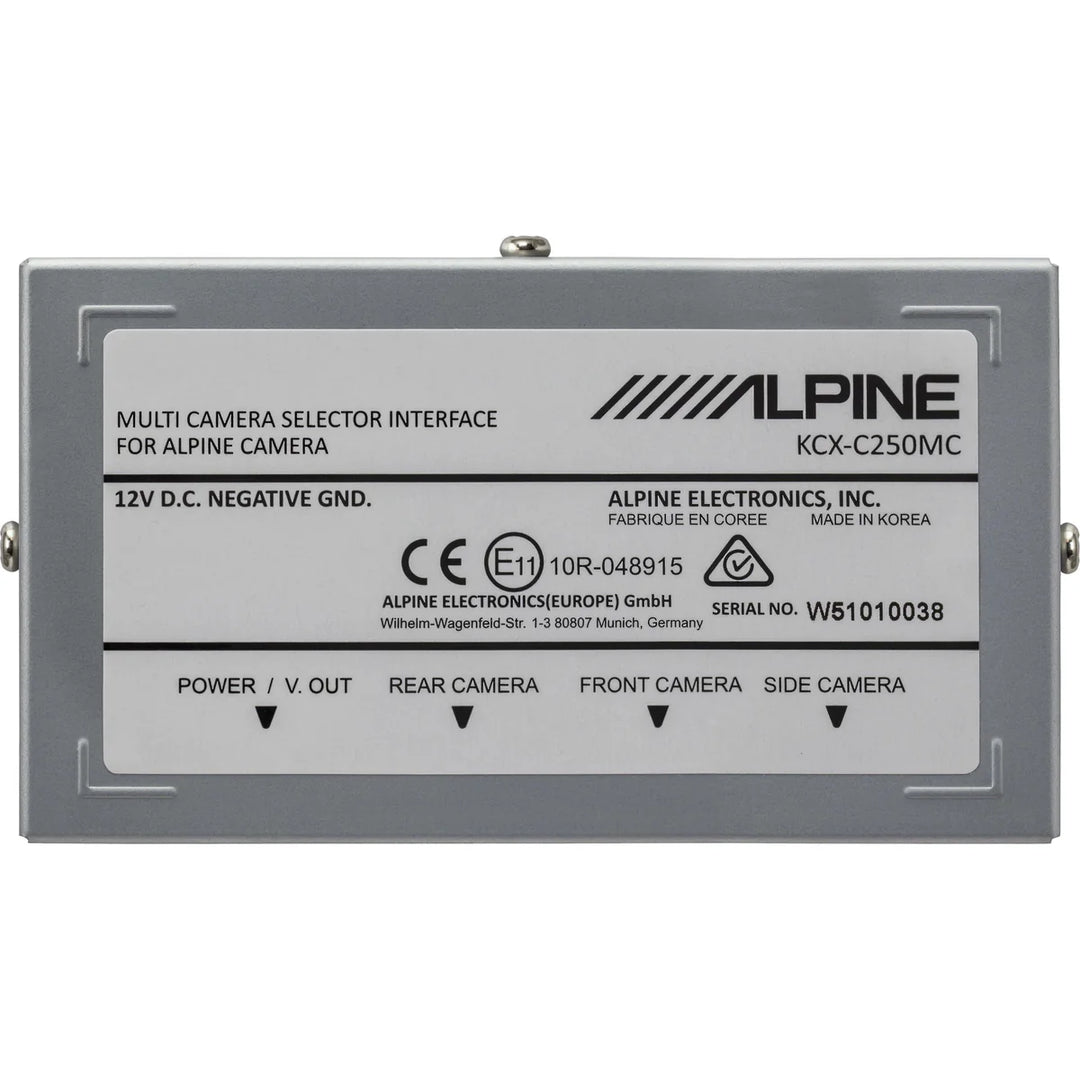

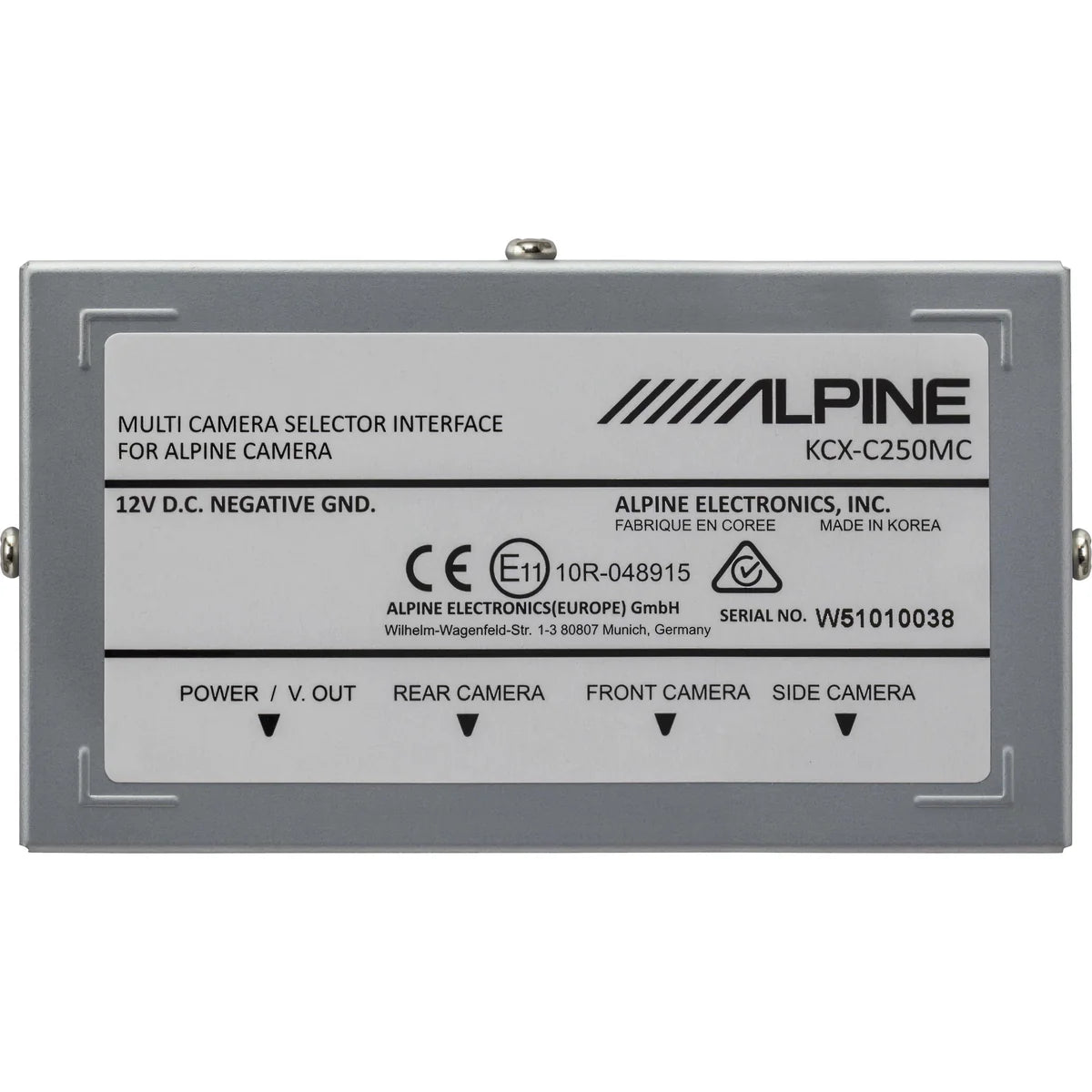

• Proprietary connectors: The KCX-C250MC is fitted through 3 proprietary-Camera inputs (labeled rear, front, and side-Camera) which will be used to plug in your compatible Alpine-Camera systems proprietary harness and a proprietary video output connectors (labeled power / volume output) which is used to connect the Multi-Camera Selector Interface to your compatible Alpine navigation receivers proprietary-Camera input using the included wiring harness.
• Power & ground: the Alpine KCX-C250MC Multi-Camera Selector Interface will require a separate + 12 V switched and ground hardwired connection inside the vehicle.
