Alpine ILX-W770-M: 7" Digital Multimedia Receiver

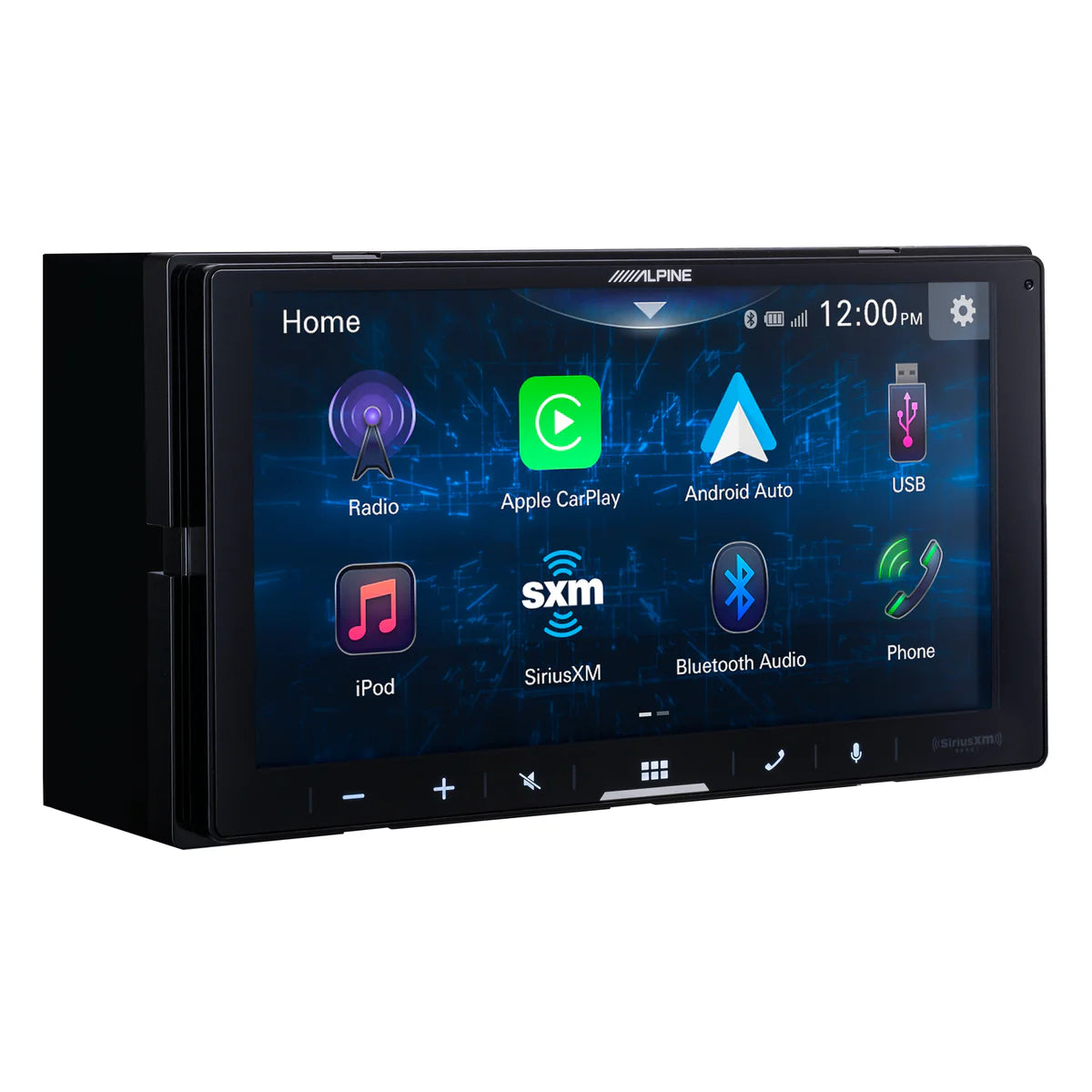

The ILX-W770-M boasts a vibrant 7" double din touchscreen display through an easy to use interface to ensure seamless integration into your vehicle's dashboard.  Whether you're navigating, selecting your favorite tunes, or engaging apps, the intuitive interface makes every interaction simple and quick.

Advanced features:

• Elevated OEM experience: get an enhanced, integrated experience through the new IDatalink maestro connection point on the ILX-W770-M.  Coupled through the ultra shallow chassis for expanded fitment options and the sleek, responsive 6.8" touchscreen, get added customization and data visualization in a screen that feels like an elevated factory screen.
• Enhanced audio & ambiance: access the sound boost menu for tuning options like expanded bass boost, mid controls, and dedicated subwoofer settings.  Dial in your ideal audio experience through 13 bands graphic EQ, 6 channel time correction, and independent crossovers for the front, rear, and sub channels.  Plus, create a light show that's sure to dazzle through the built in lighting link feature, compatible alongside Alpine's prisma link subwoofer enclosure line!

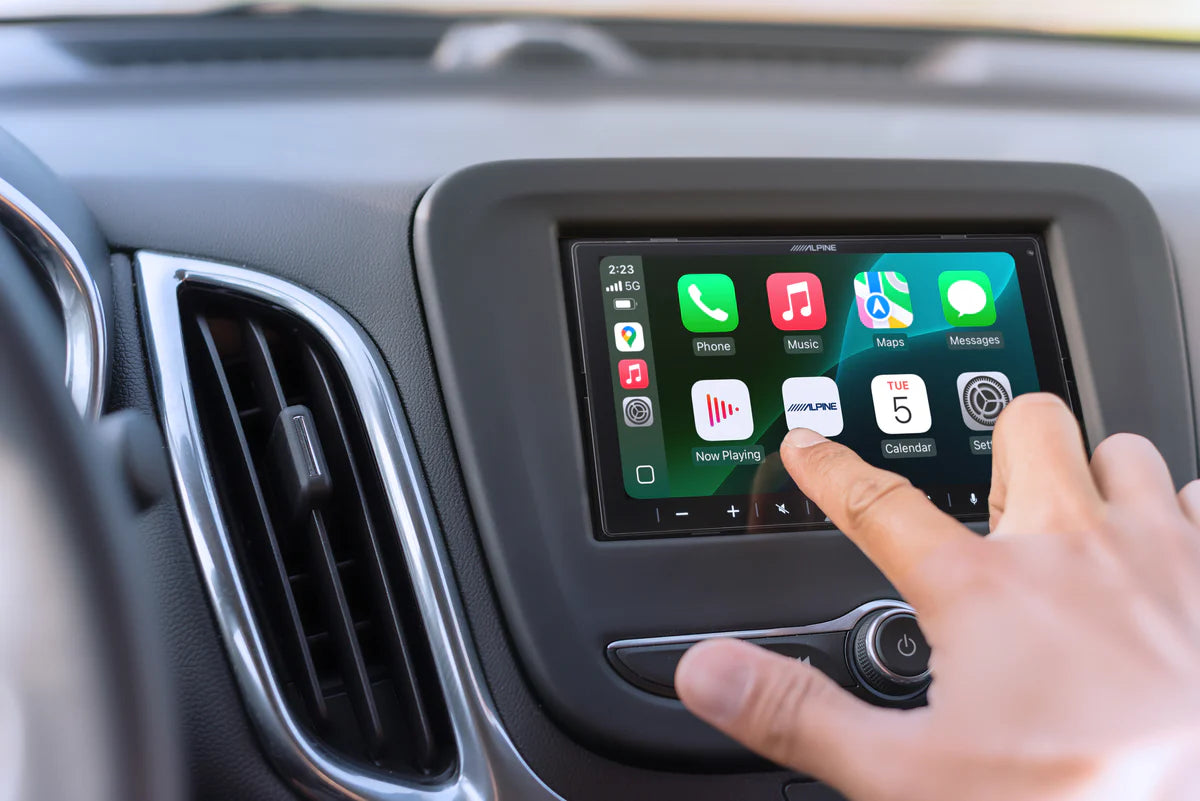

• Seamless smartphone integration: keep your favorite apps and features right at your fingertips through the added convenience of both wired and less apple CarPlay and android auto compatibility.  Whether you're navigating, jamming out to music, or staying in touch, the ILX-W770-M brings the convenience of your smartphone to your dash, all while keeping you focused on the road.

Overview features:

• 6.8" capacitive touchscreen display including AM / FM tuner
• Mechless (does not play discs)
• Standard double din fitment (4" tall dash openings)
• 5 colors key illumination (red, green, blue, amber, white)
• Customizable home screen (add your own background image)

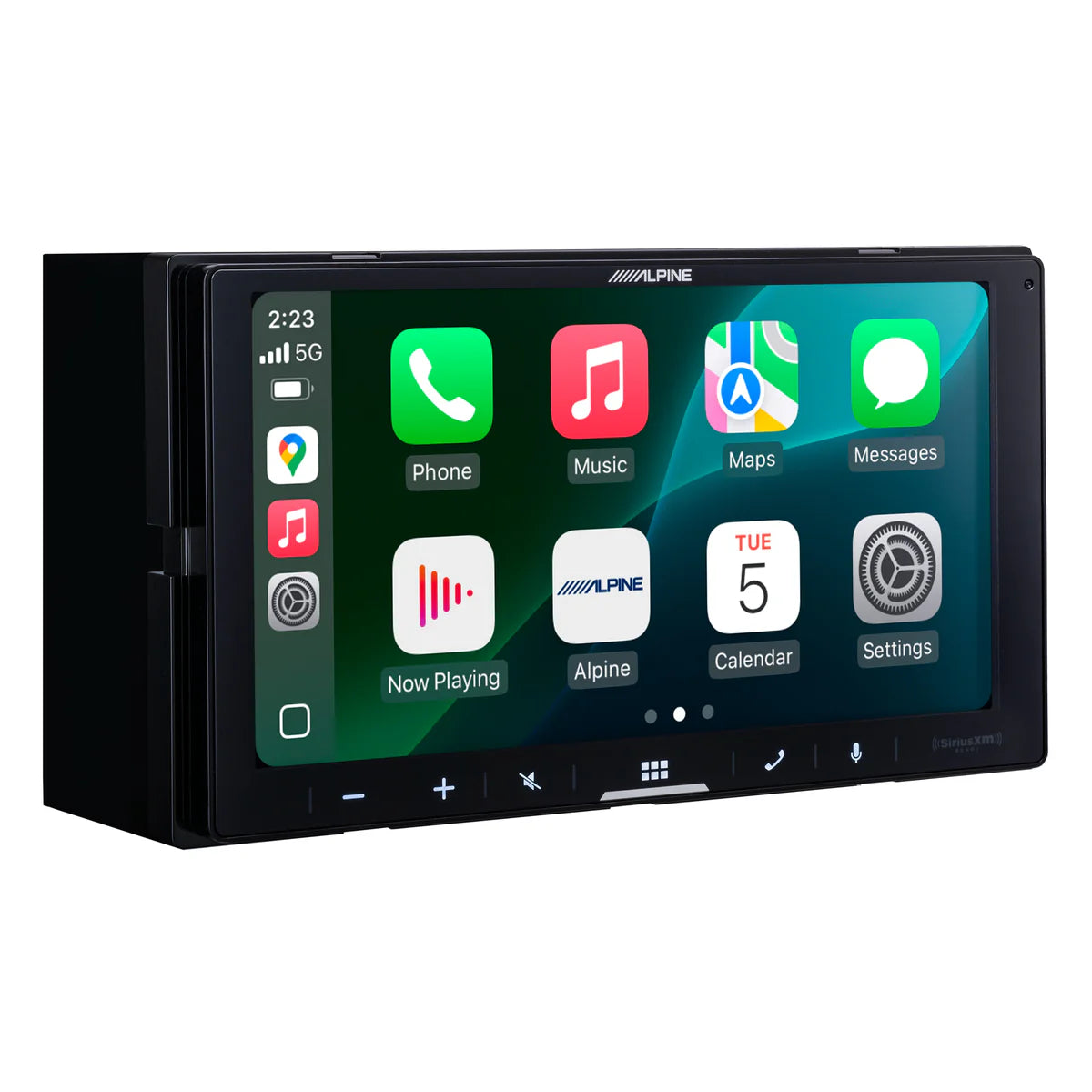

• Apple CarPlay and android auto (wired and less)

• Bluetooth hands free (calling and audio streaming)
• Sirius XM ready (requires SXV300 tuner; sold separately)

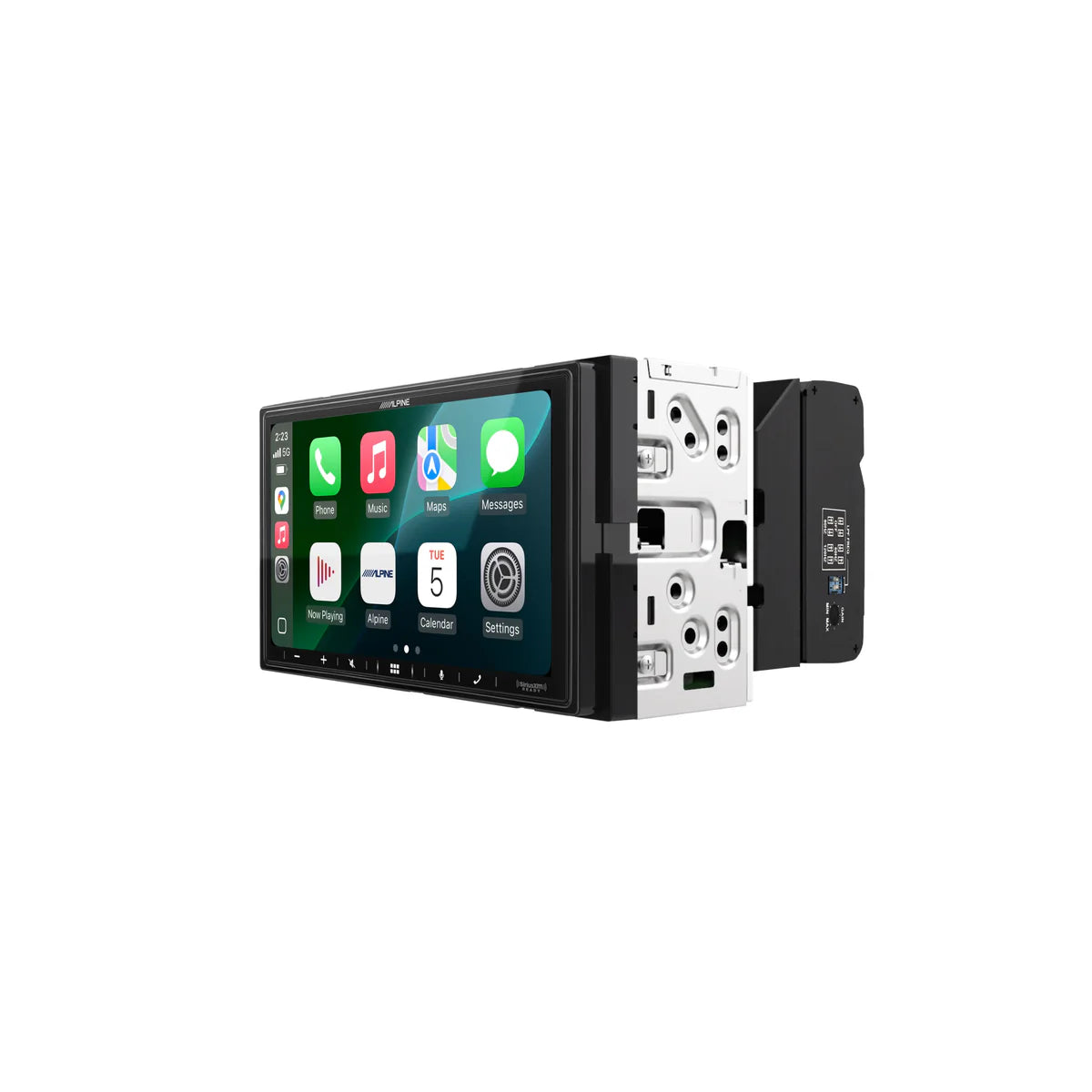

• Powerstack capable (mount the Alpine KTA-200M or 450 amplifiers directly to the back)
• Lighting link control (compatible alongside Alpine prisma link subwoofer enclosures (S2-SB8 and 10, & 12)

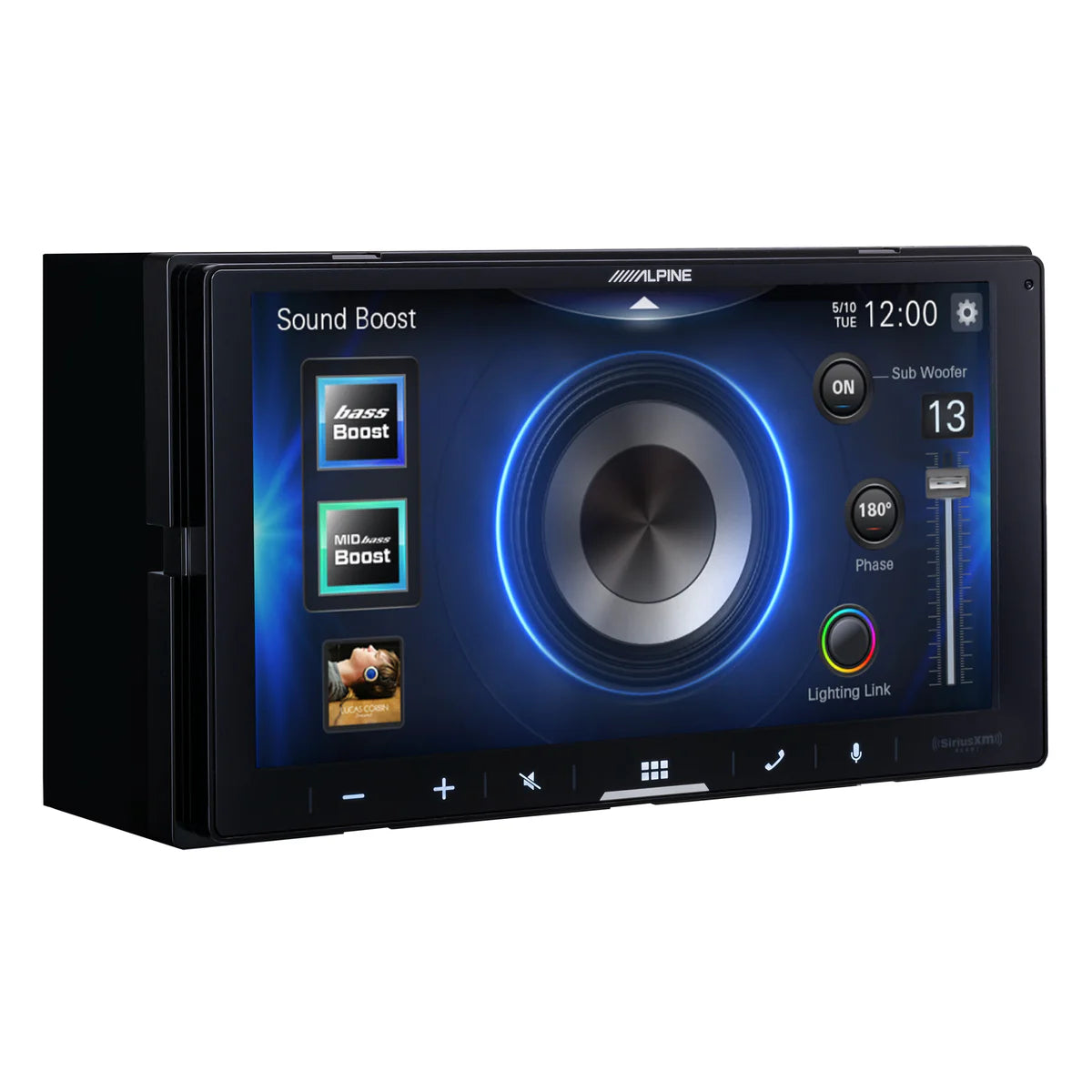

• Sound boost menu (bass and mid Boost, & subwoofer controls)
• New!  IDatalink maestro compatibility (module sold separately)

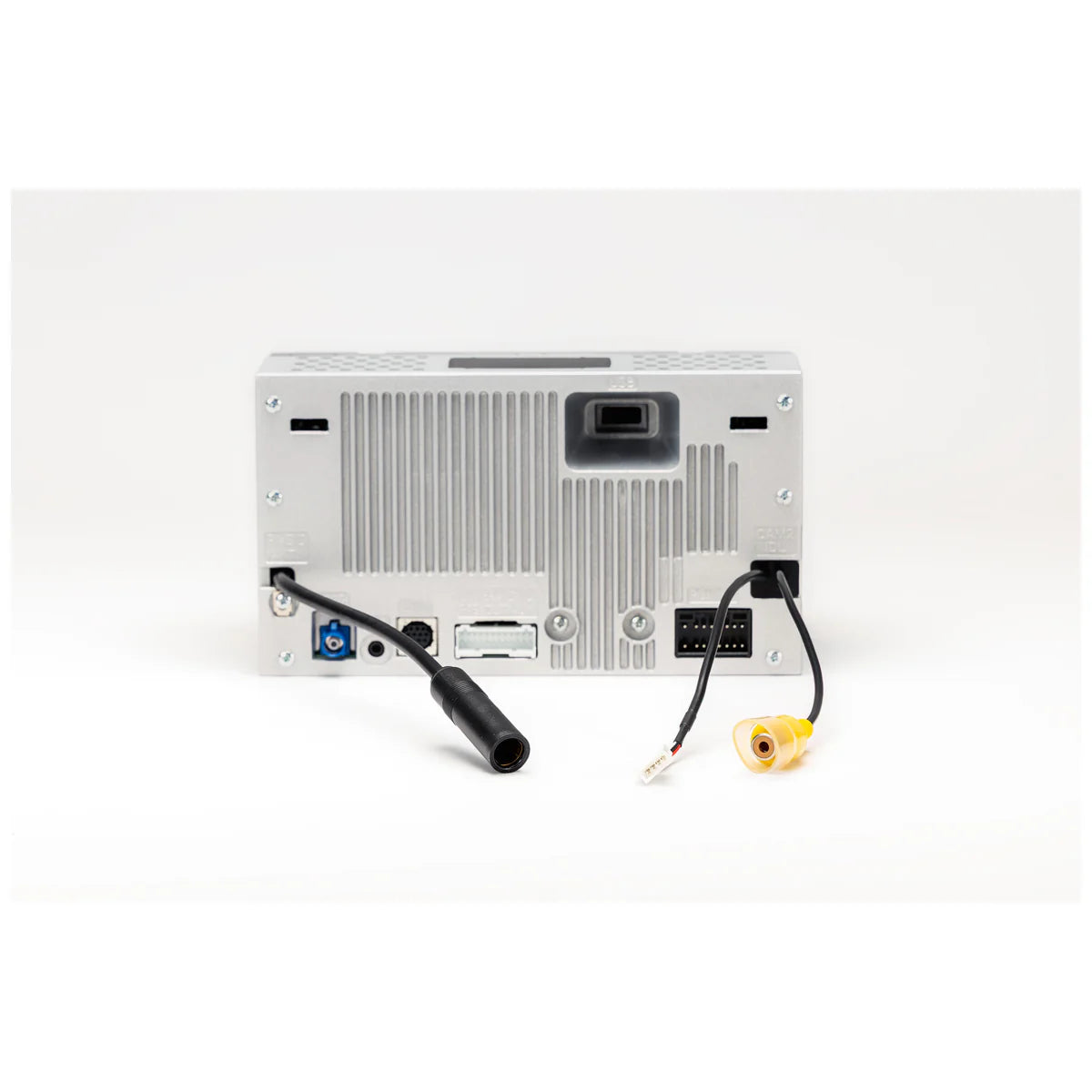

System technology specifications:

• Screen size: 6.8"
• Screen resolution: 800 x 480 PX
• AUX input: 1

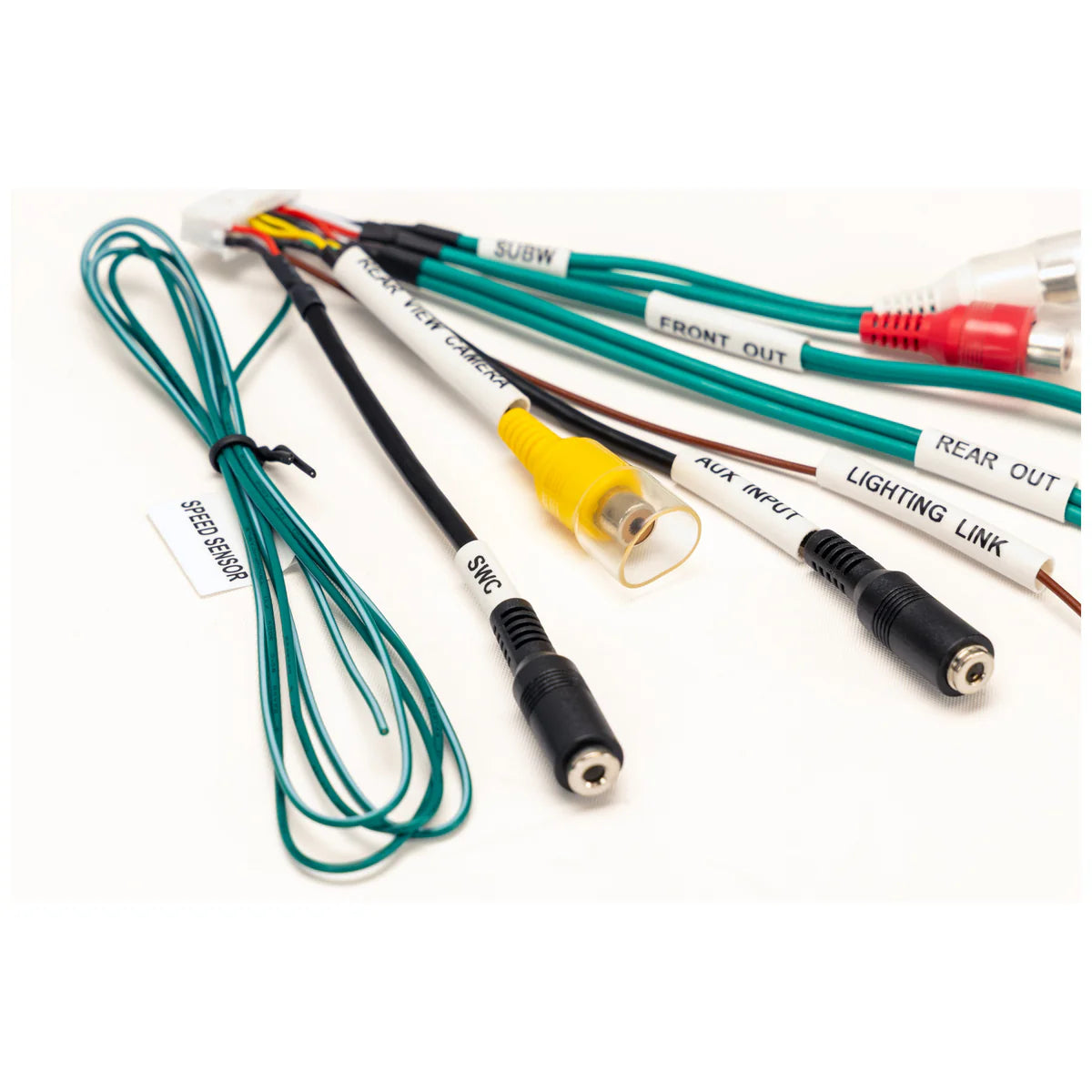

• New!  Updated SWC adapter (uses 3.5 mm mini jack)

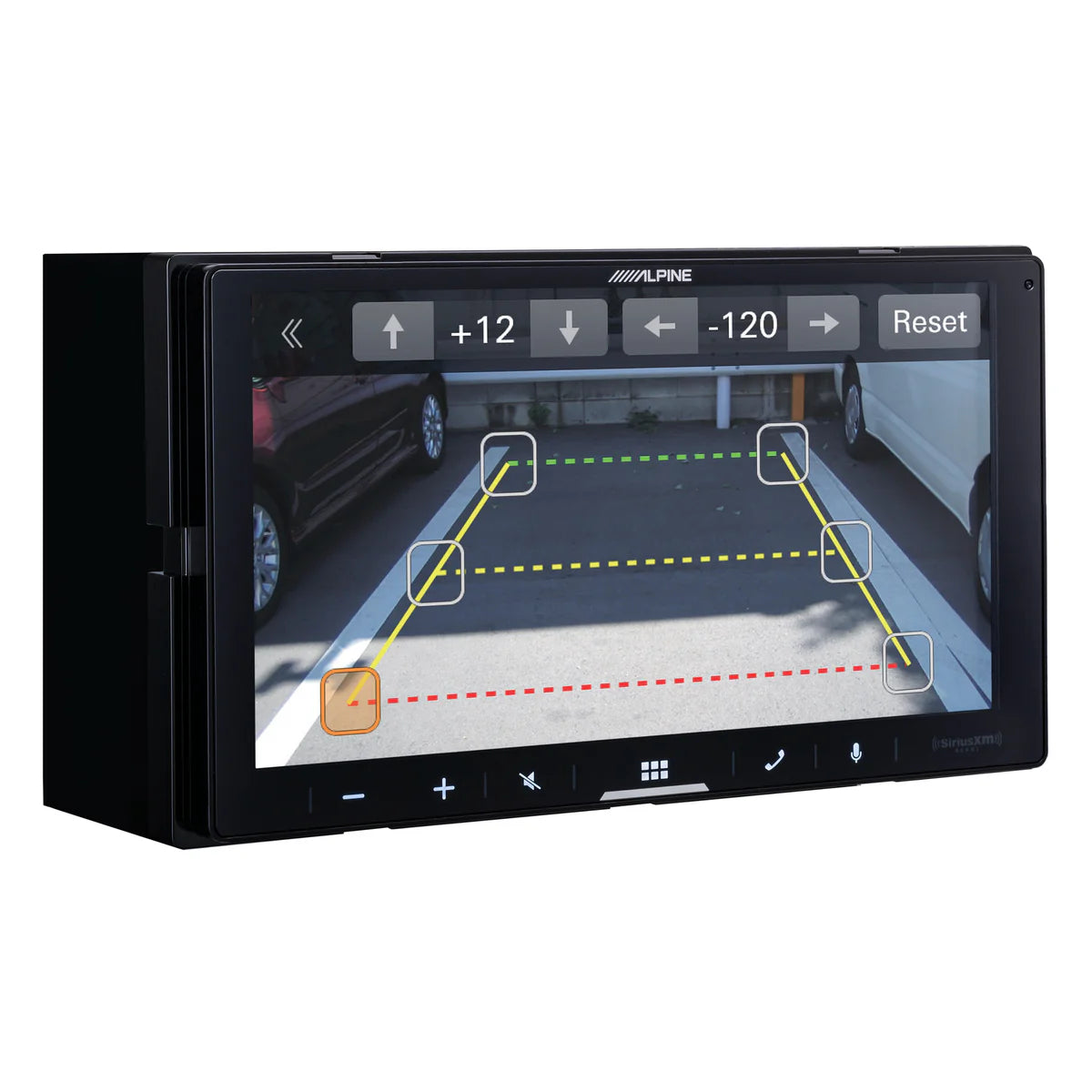

• Camera input: 2
• USB input: 1
• 4 V Preouts: 3 (front, rear, and sub)
• Built in amplifier: 16 W RMS / 50 W peak x 4 EQ: 13 bands graphic
• Time correction: 6 channel
• Crossovers: front, rear, and sub
• Audio playback: AAC, FLAC, MP3, WMA
• Video playback: AVC, FLV, H.264, MP4, MPEG-4, MKV, MOV
