Alpine HDS-990: Status-Series High-Resolution Digital Media Player

Highest in class audio performance at an accessible price point makes Alpine Status-Series the ultimate sound upgrade.

The HDS-990 Digital Media Player features High-Resolution Playback of 192 kHz / 24 bits for recording studio level quality in the challenging interior environment of the vehicle.

When paired alongside the High-Resolution processing power of the HDP-D90 DSP, you receive an infallible listening experience and the ability to build and tune your ideal sound system.

Using engineering and design from the ultra High-Resolution Alpine F1 Status-Series system, the HDS-990 features exceptional tooling and rich build quality for the best possible sound reproduction.

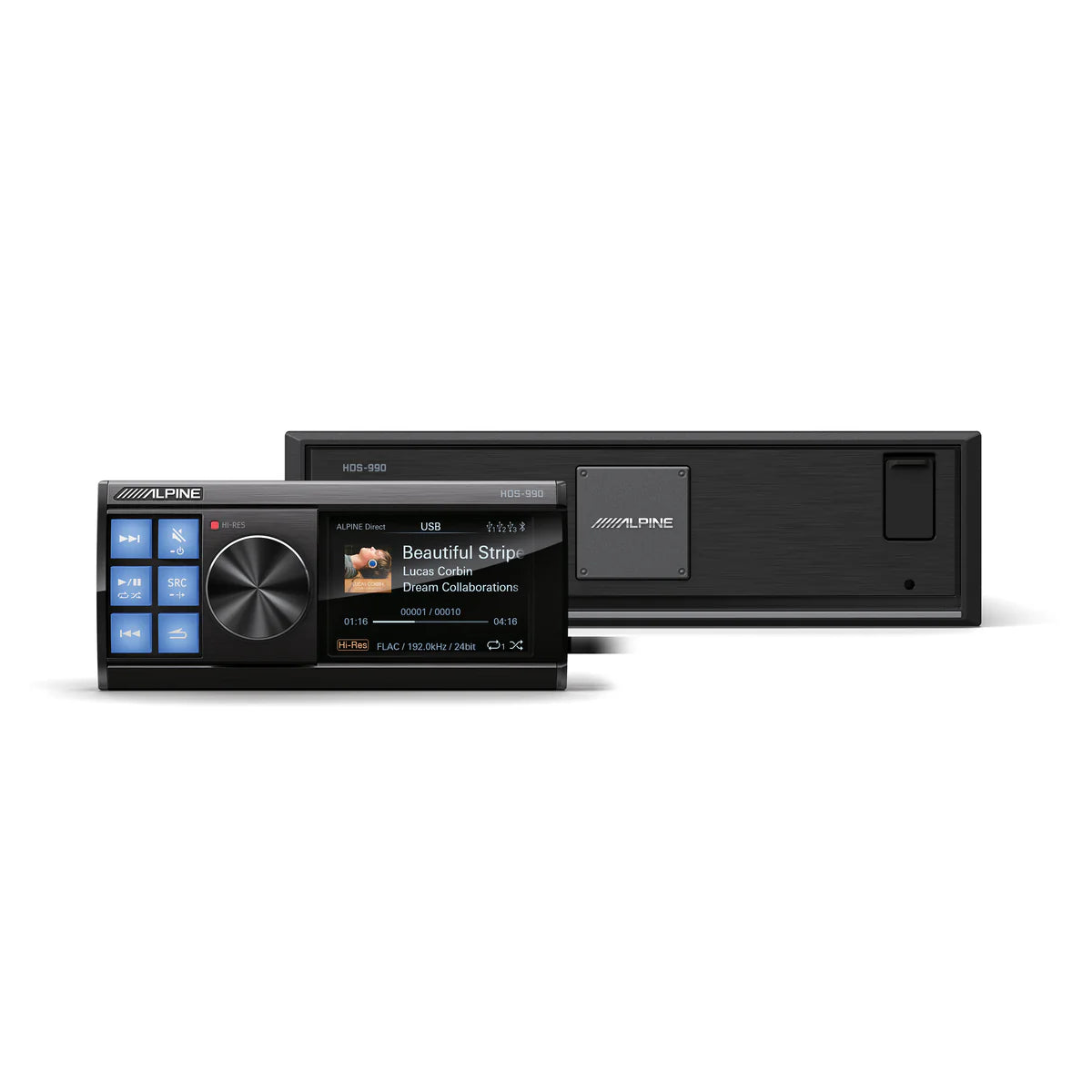

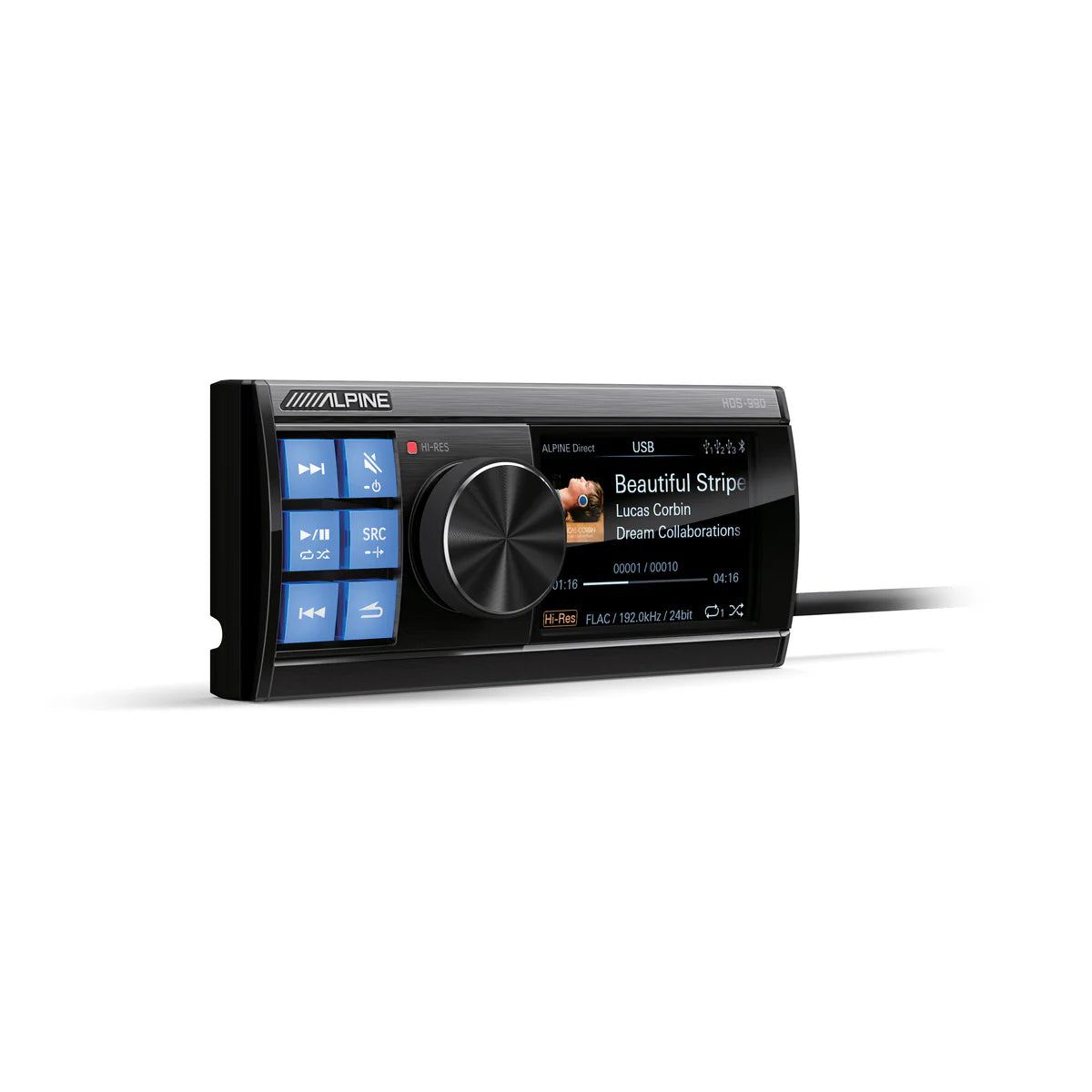

The HDS-990 features a commander unit through 6 chiclets that access various sound and music controls and a High-definition display that features song information.

The unit can be conveniently mounted to the dash and used as a standalone music source or integrated through the factory or aftermarket head unit via the RCA or 4 channel High-level inputs to easily switch between Digital music sources.

The HDS-990 has multiple Digital source inputs that can play a wide range of music file formats from MP3 to High-Resolution for flexible Playback options.

Either connect a smartphone or mass storage device via a wired USB connection or input or wirelessly via Bluetooth and LDAC connection.

High-Resolution music can be accessed on popular streaming services like apple and amazon music HD, tidal, and more or purchased and downloaded from platforms like HD tracks.

The Alpine Status-Series system is sold separately and can be used to build a custom sound system.

3 sets of true 4 V preamp outputs are included to add additional amplifiers if more power is needed.

For best results, install the complete Alpine Status-Series system together as a full system to achieve the highest in class audio performance only 2nd to the ultra High-Resolution Alpine F1 System.

Features:

• High-performance source music Player
• Sleek, premium black commander
• Alpine classic 6 chiclet controls
• High-Resolution audio Playback (192 kHz / 24 bits)

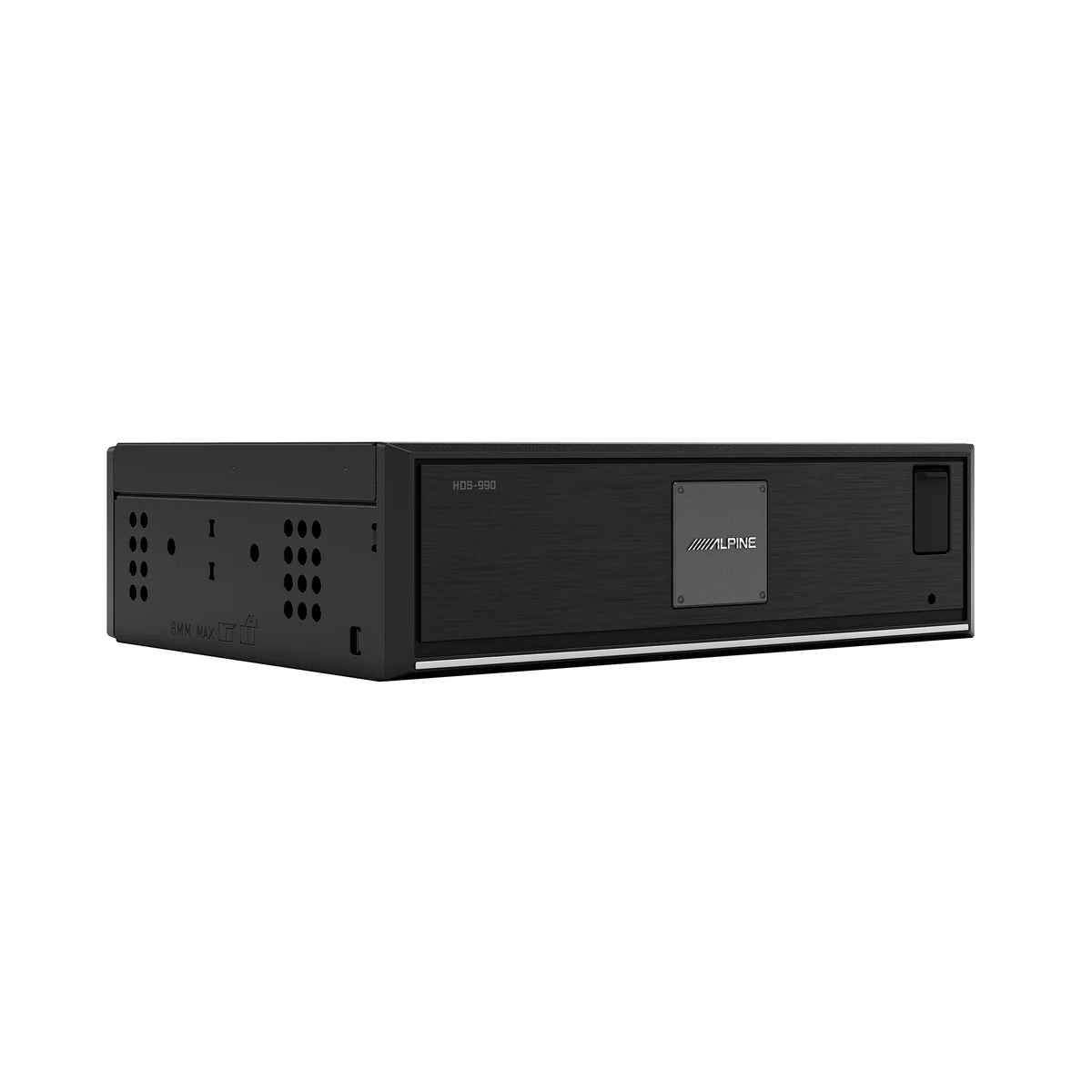

• Includes a separate black box for flexible installation

• 4 V preouts: 3
• Built in amplifier: 25 W RMS x 4
• USB inputs: 3
• Analog inputs: 2 and 4 channel AUX and High-level
• Digital inputs: USB and Bluetooth audio
• Analog outputs: 4 and 6 channel High-level and RCA
• Digital outputs: optical / coaxial
• Wired and wireless audio Playback: A and F and LD and AC, AIFF, APE, DSD, MP3 and 4A, WMA and AV, APTX and HD, SBC

• Black box and commander unit through wire harness and built in display
