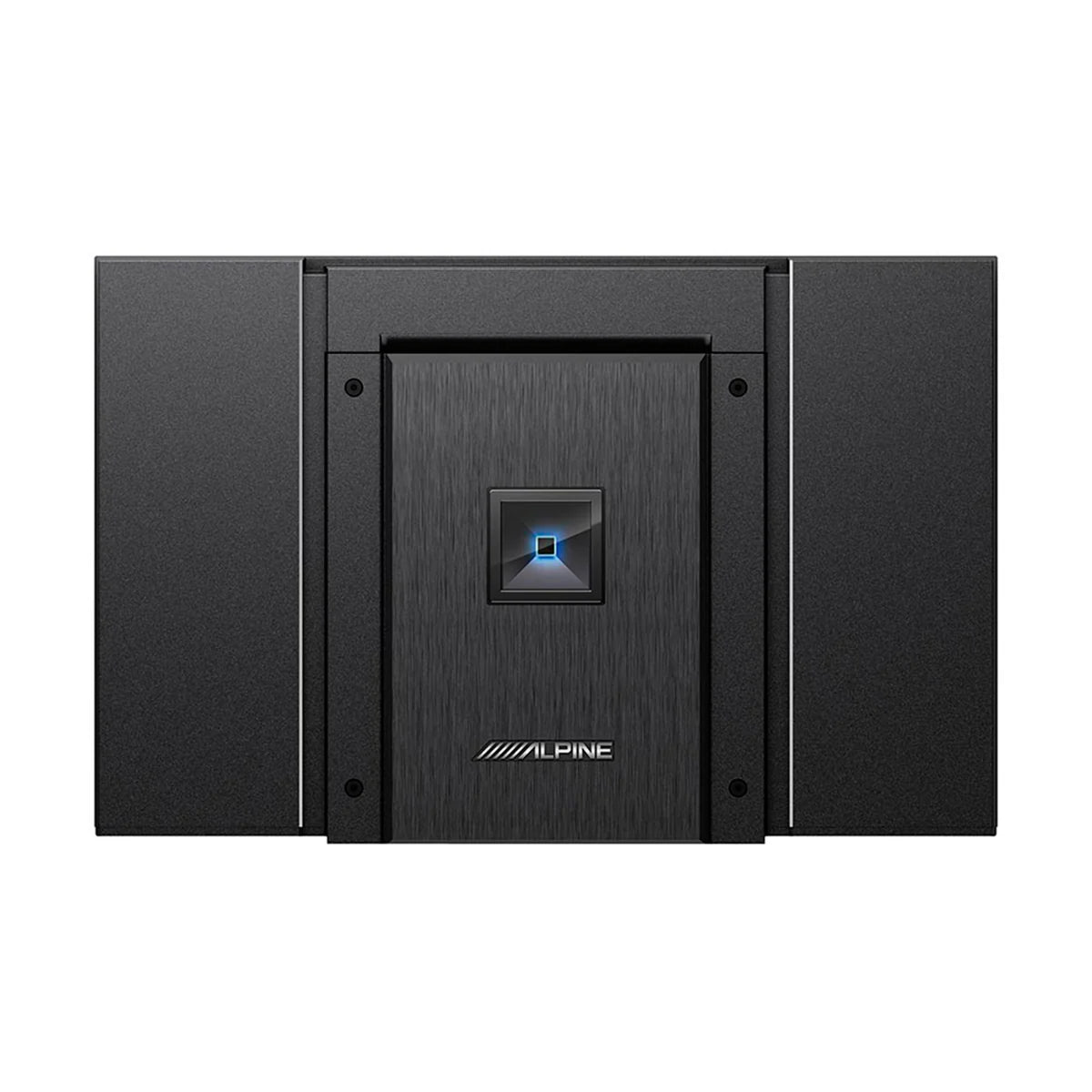

Alpine HDA-V90: 5-Channel Status-Series High-Resolution Amplifier

The Highest in class audio performance at an accessible price point makes Alpine Status-Series the ultimate sound upgrade.

Using engineering and design from the ultra High-Resolution Alpine F1 Status-Series system, the HDA-V90 features exceptional tooling and rich build quality for the best possible sound reproduction.

The HDA-V90 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance.

The Amplifier's wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.

The HDA-V90 features a High-efficiency digital circuit design that ensures ultra low distortion levels for precise sound reproduction and superb sound quality.

Intentional designs, like a copper-plated chassis and black circuit board, bring the signal to noise ratio up to 87dB and minimize noise and distortion during playback for complete music fidelity that's true to the original source.

The Amplifier features Alpine's dual negative feedback control circuit to improve linearity for the most accurate sound amplification.  This technology also stabilizes the Amplifier output while driving the speakers for ultimate reliability.

The HDA-V90 features Alpine's quick connect power and speaker connectors for quick and safe installation.  The 1 sided terminal layout and top panel sound controls give the user quick access to controls on the Amplifier.

The Alpine Status-Series system is sold separately and can be used to build a custom sound system.

3 sets of true 4 V preamp outputs are included to add additional Amplifiers if more power is needed.

For best results, install the complete Alpine Status-Series system together as a full system to achieve the Highest in class audio performance only second to the ultra High-Resolution Alpine F1 system.

Features:

• High-Resolution audio playback (192 kHz / 24 bits)
• 5-Channel Amplifier
• High-efficiency digital circuit design
• Alpine's dual negative feedback control circuit
• High-band width Amplifier
• Alpine's premium class-D circuit design
• Copper plated chassis
• Black circuit board
• 1 sided terminal layout
• Top panel sound controls
• Quick connect power and speaker terminals
• Optional remote bass knob compatible (requires RUX-KNOB.2 / H01, sold separately)
• HDA-V90 5-Channel Amplifier
• Owner's manual
• "Birth sheet" that certifies by measurement the actual power of the Amplifier in the box
• 4 screws for Amplifier mounting to the vehicle
• 2 pieces mount bracket including 4 screws for attachment to the Amplifier
• 3 pieces Allen wrench for Amplifier connection & installation, sizes: 2 / 2.5 / 4 mm
• 1 and 3 pieces quick connector block for power / ground / remote and speaker wires

• Dimensions: 11.4 x 7.5 x 2.1"
• Power rating: (14.4 V, ≤ 1 % THD + N)
• 75 and 100 W x 4 + 300 and 500 W x 1 @ 4 and 2 Ω

• Bridged: 200 W x 2 @ 4 Ω (-Channel 1- and 3- / 2- and 4-only)
• THD + N: 0.0 % and S / N ratio: 87 dB (10 and 1 W into 4 ohms)

• Frequency response: 8 - 60 kHz (- 3 dB)
• Damping factor: 500 (-Channel 1- / 2- / 3- / 4-), 1000 (subwoofer)
• Selectable input level – High- / low
• Selectable 2- / 4- / 6-Channel input
• Variable High- / low pass crossover and subsonic filter (subwoofer)

• Bass EQ (0 - + 12 dB, variable)
• Auto turn on through remote sensing
