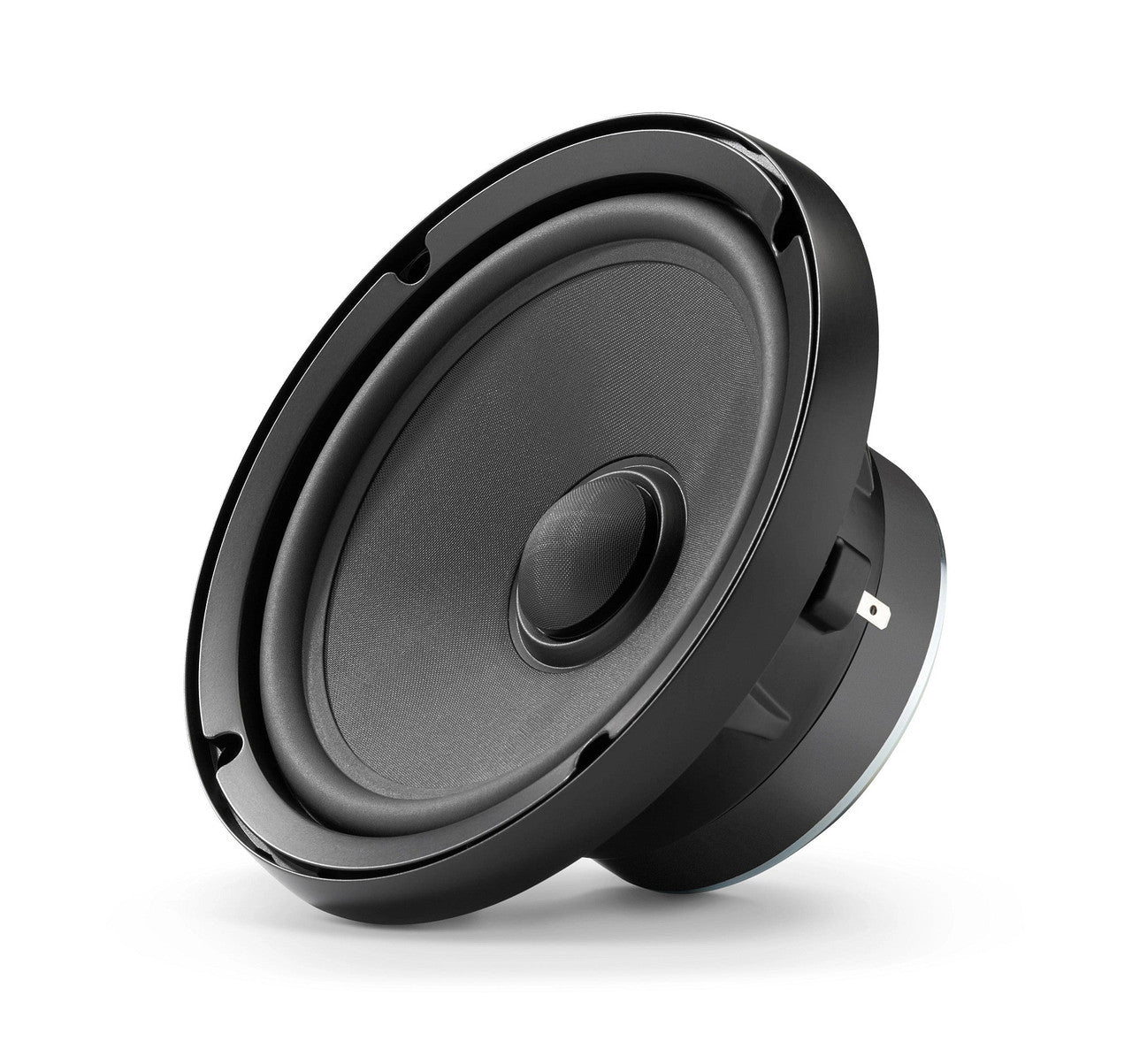

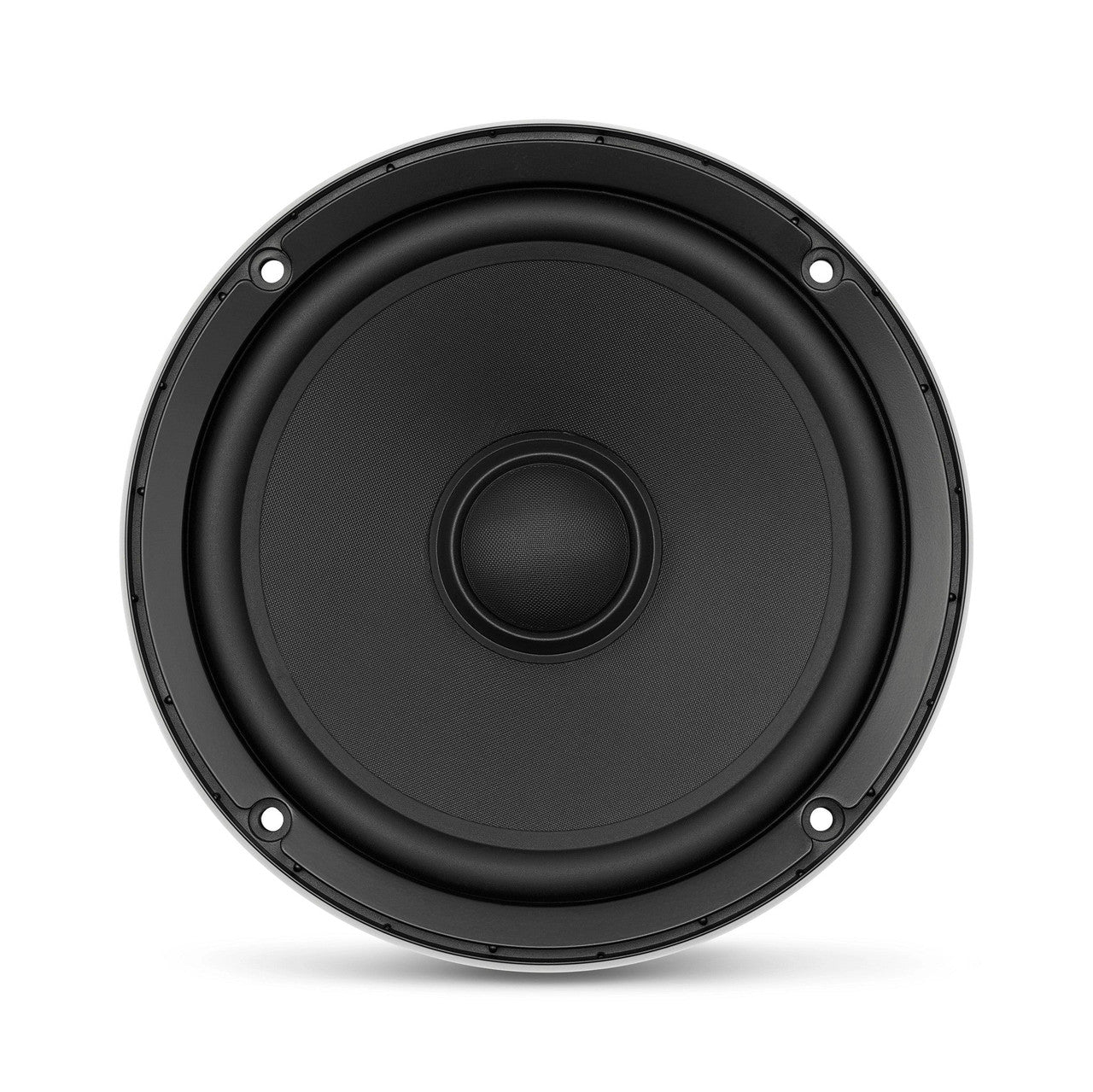

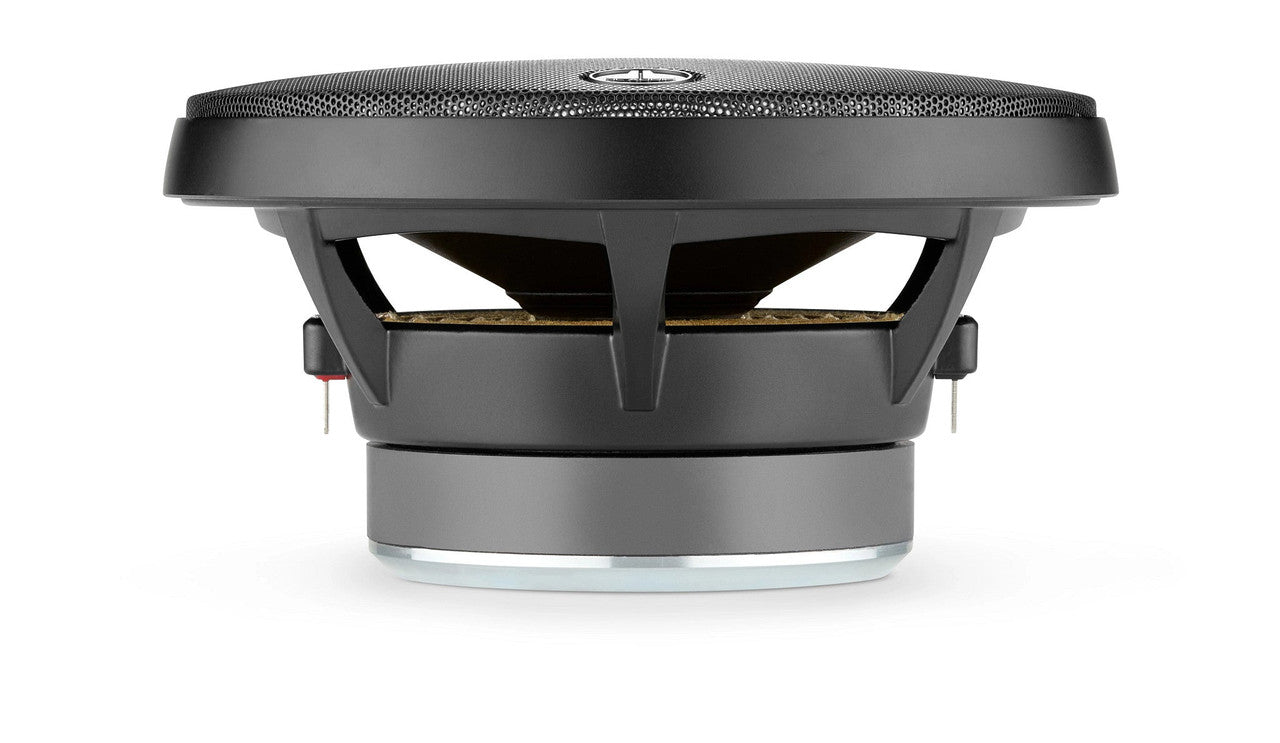

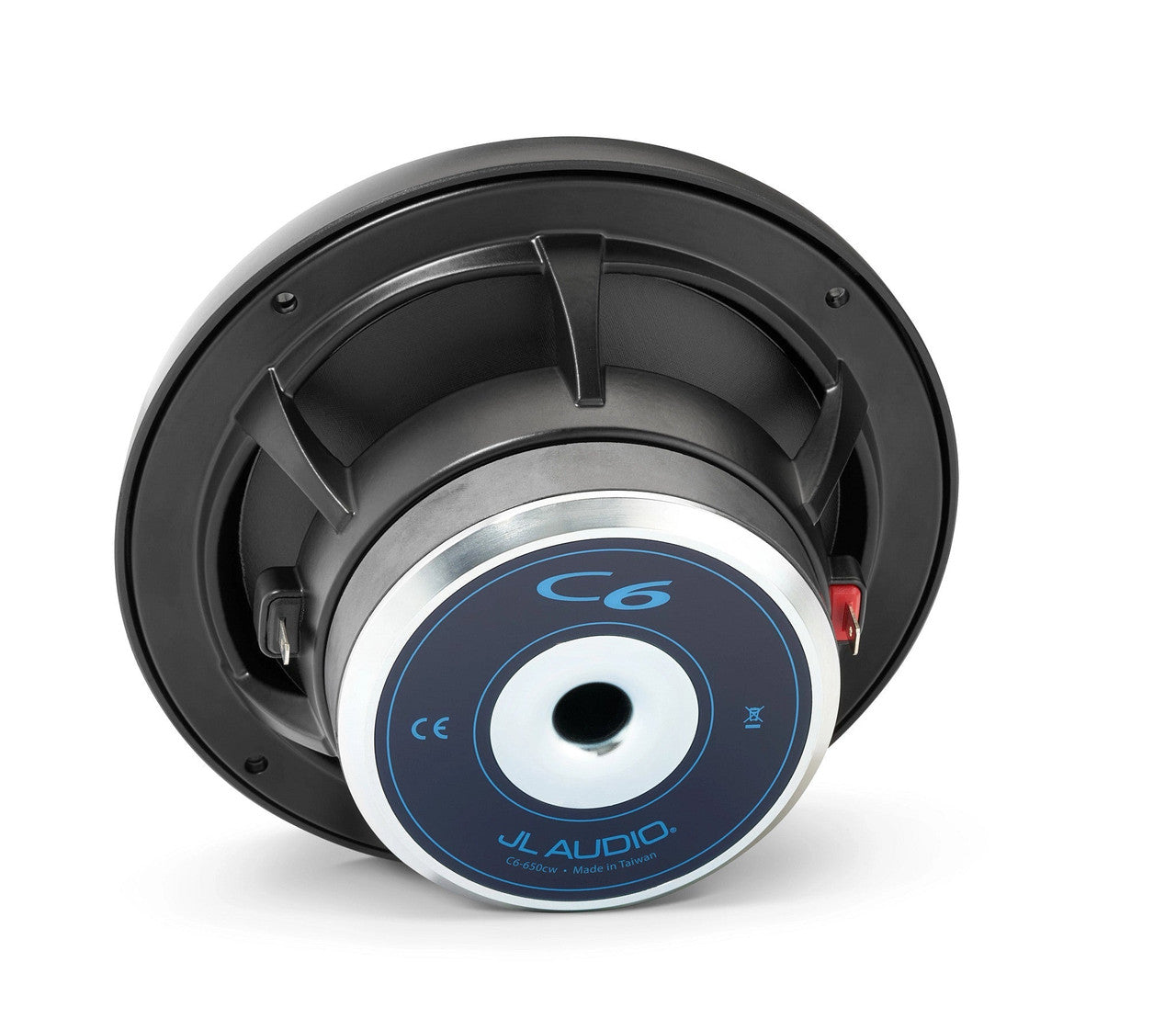

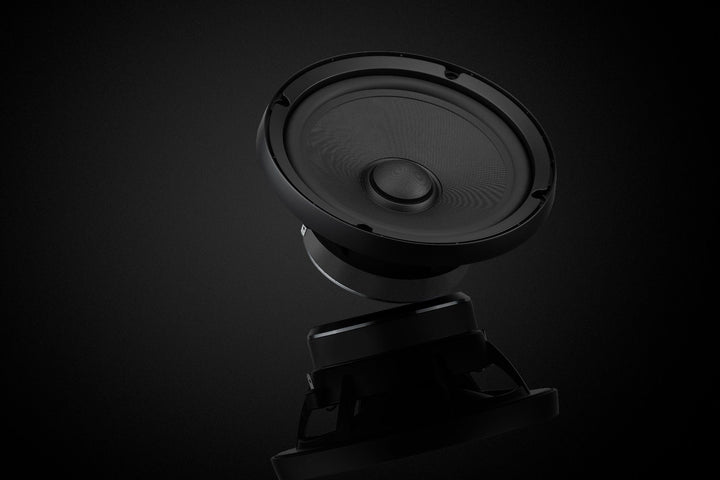

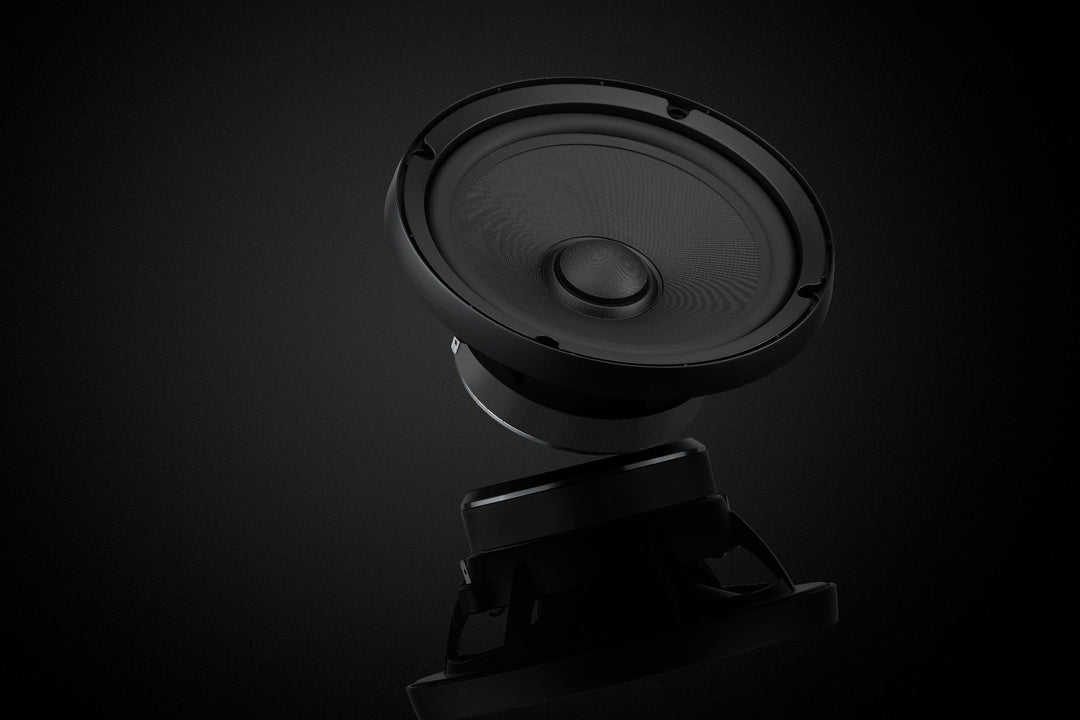

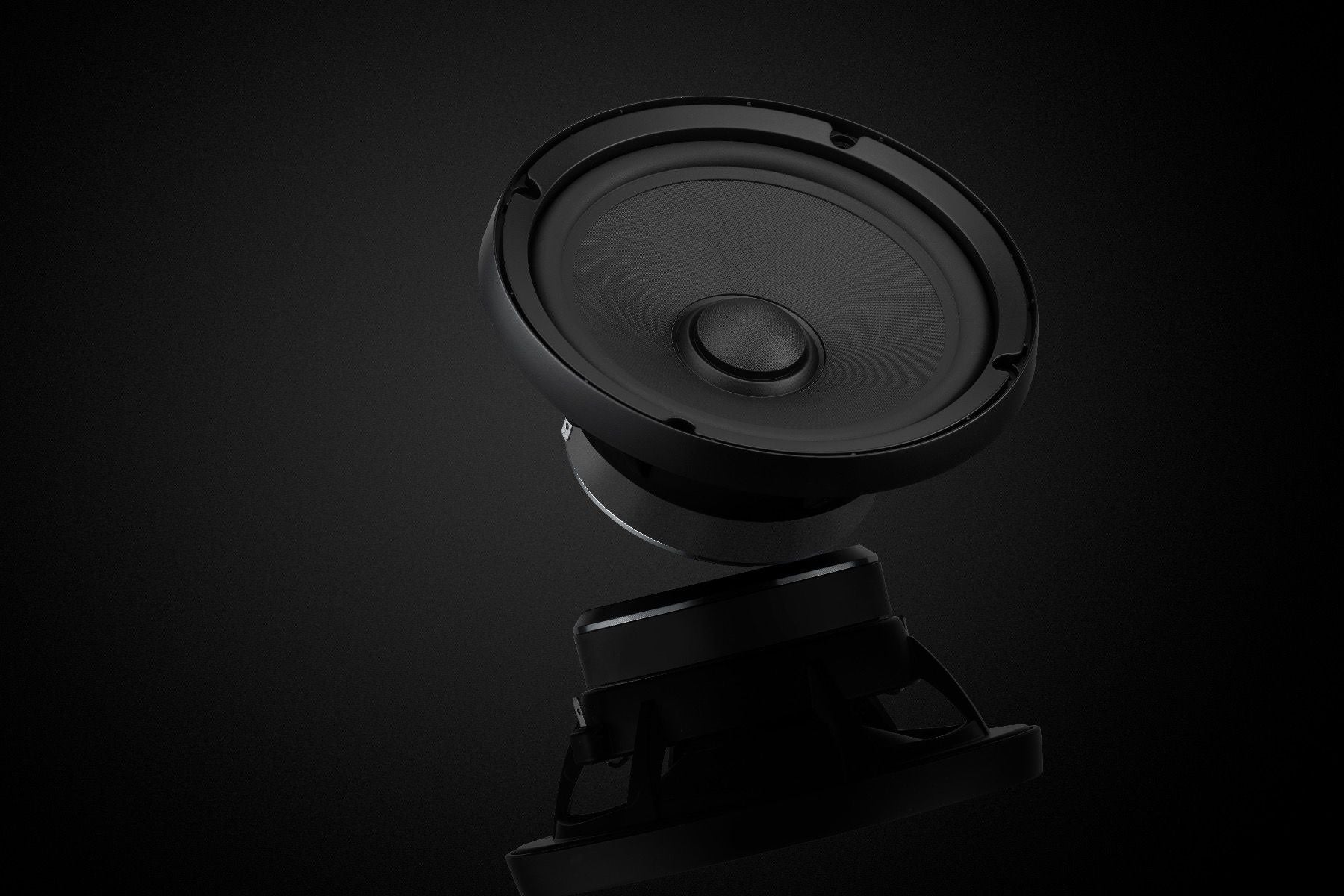

JL Audio JLC6-650CW: 6.5" C6-Series Component Woofer

Born from shared technologies used in our flagship C7-Series speakers, the JLC6-650CW Component Woofer benefits from vast Woofer design experience and advanced modelling systems of JL Audio.

Ideal for active systems, the JLC6-650CW Component Woofer features a proprietary cast alloy frame outfitted through our elevated frame cooling technology and a DMA optimized motor system to generate outstanding mid bass impact through ultra low distortion.

Passive crossover networks are not included through C6-Series drivers, as they are designed for active systems.  Instead, we recommend a high quality tuning digital signal processor, such as the JL Audio TWK-, DSP-, / a VXI-Series amplifier through built in DSP, through a dedicated amplifier channel for each C6-Series loudspeaker in the system.  Precise setup of equalization, delay and crossover filters will ensure optimal in vehicle performance.

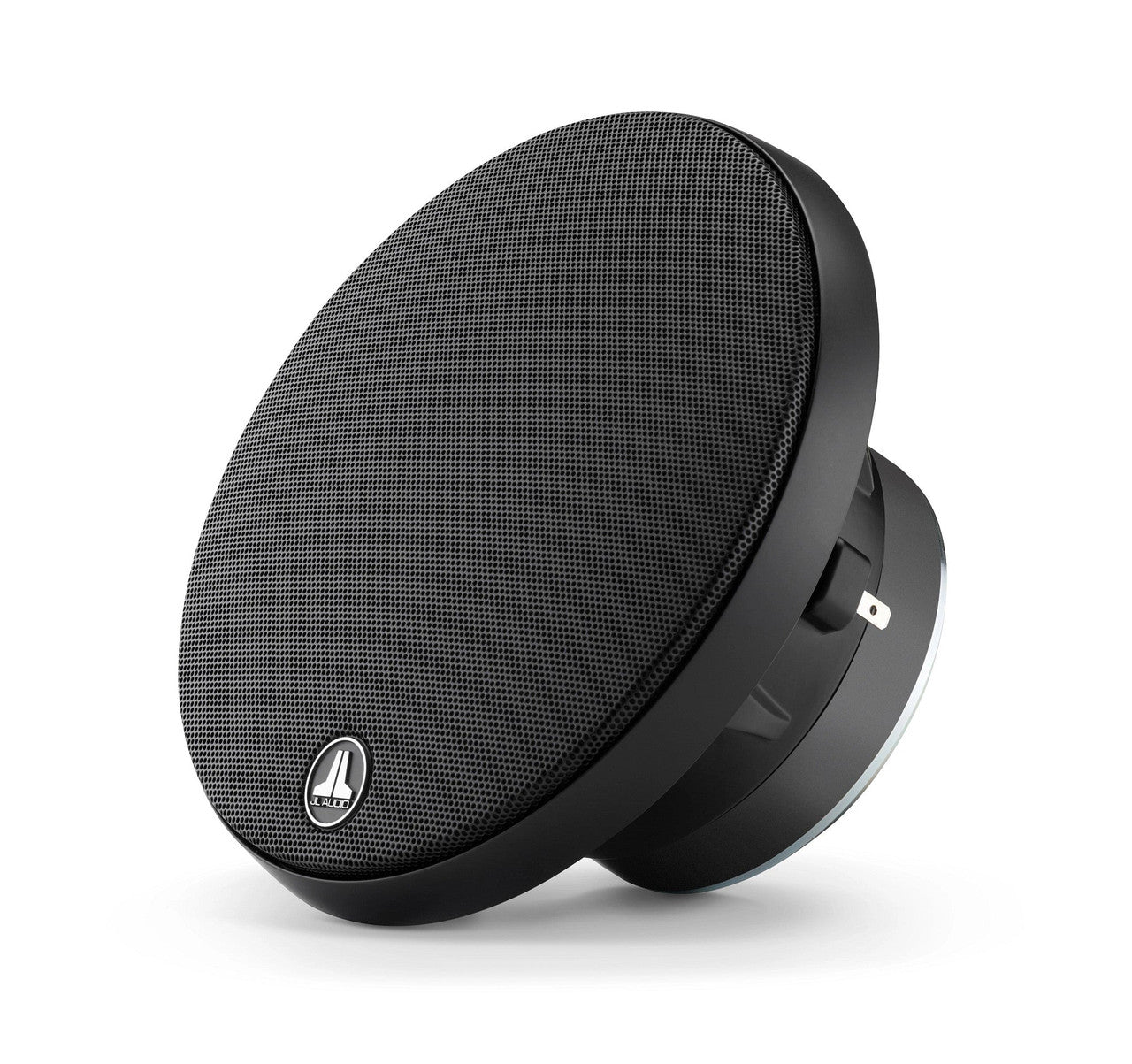

Component Woofers are sold individually and include a plastic grille tray, 1 fine steel mesh grille and an electroformed JL Audio badge logo.

Component Woofer features:

• Forged and machined motor plates through DMA optimized geometries to create linear motor force under power, leading to outstanding mid bass impact, linearity and low distortion

• Large diameter, linear profile, flat spider for compliance and outstanding excursion capability

• Center cap designed to optimize the high- frequency response of the Woofer for seamless transition to a tweeter's response

• Oversized voice coil for extended power handling capability, minimizing thermal compression and distortion at higher listening levels

• Cast alloy frame through our elevated frame cooling feature
• Includes fine mesh grille

Design bandwidth:

• Through 48 and 24 and 12 dB / octave filters: 55 and 65 and 80 hz - 6 kHz
