JL Audio C3-600CW: 6" 75 W RMS Convertible Component Woofer
About the JL Audio C3-600CW: 6" 75 W RMS Convertible Component Woofer
There are times when an installation calls for a separate Woofer and tweeter and other times when a coaxial is the better approach. Through the evolution C3-Series Convertible Component systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The new C3-600CW expands the C3-Series lineup through a direct fit product for many Japanese vehicles that will not accept a full size 6.5" speaker.

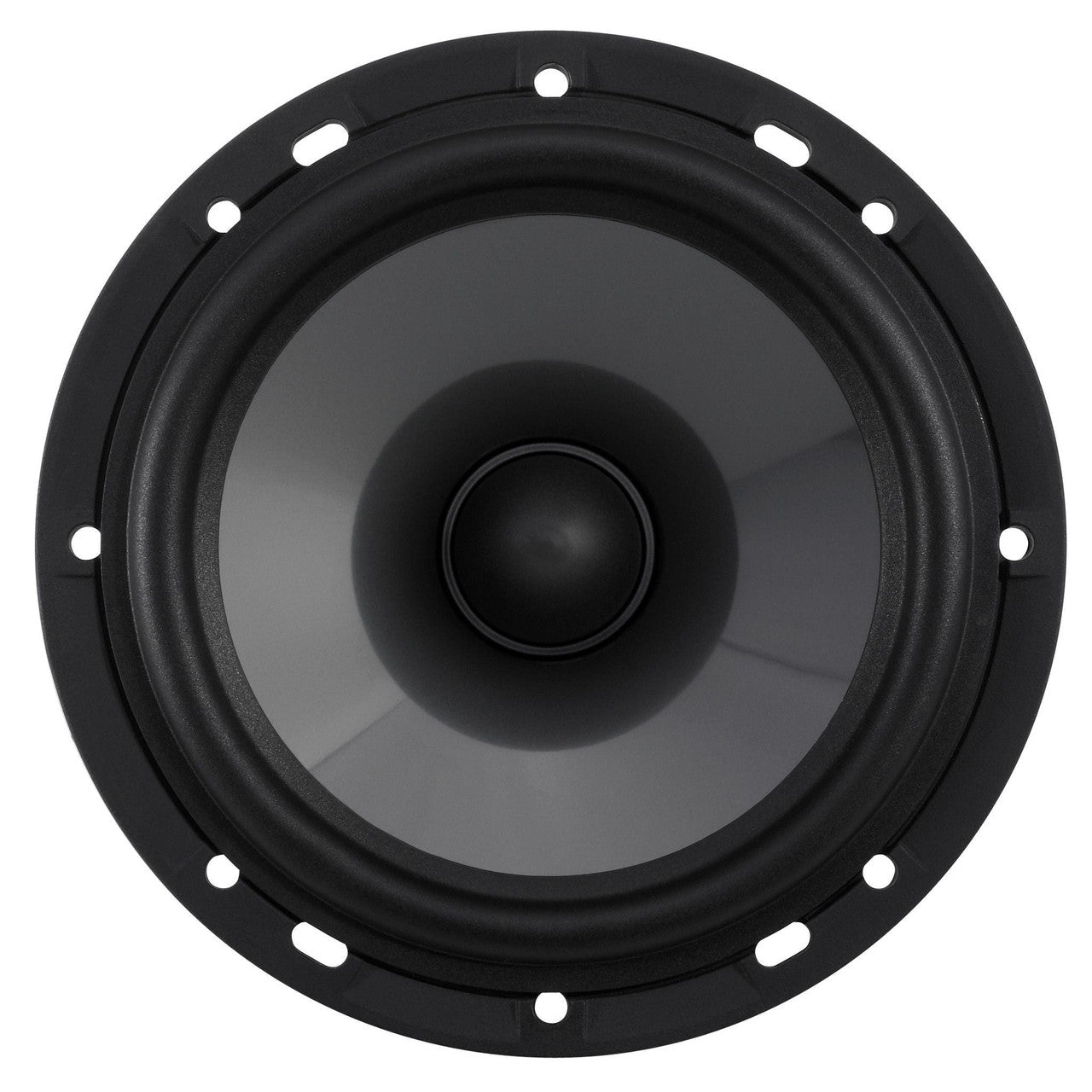

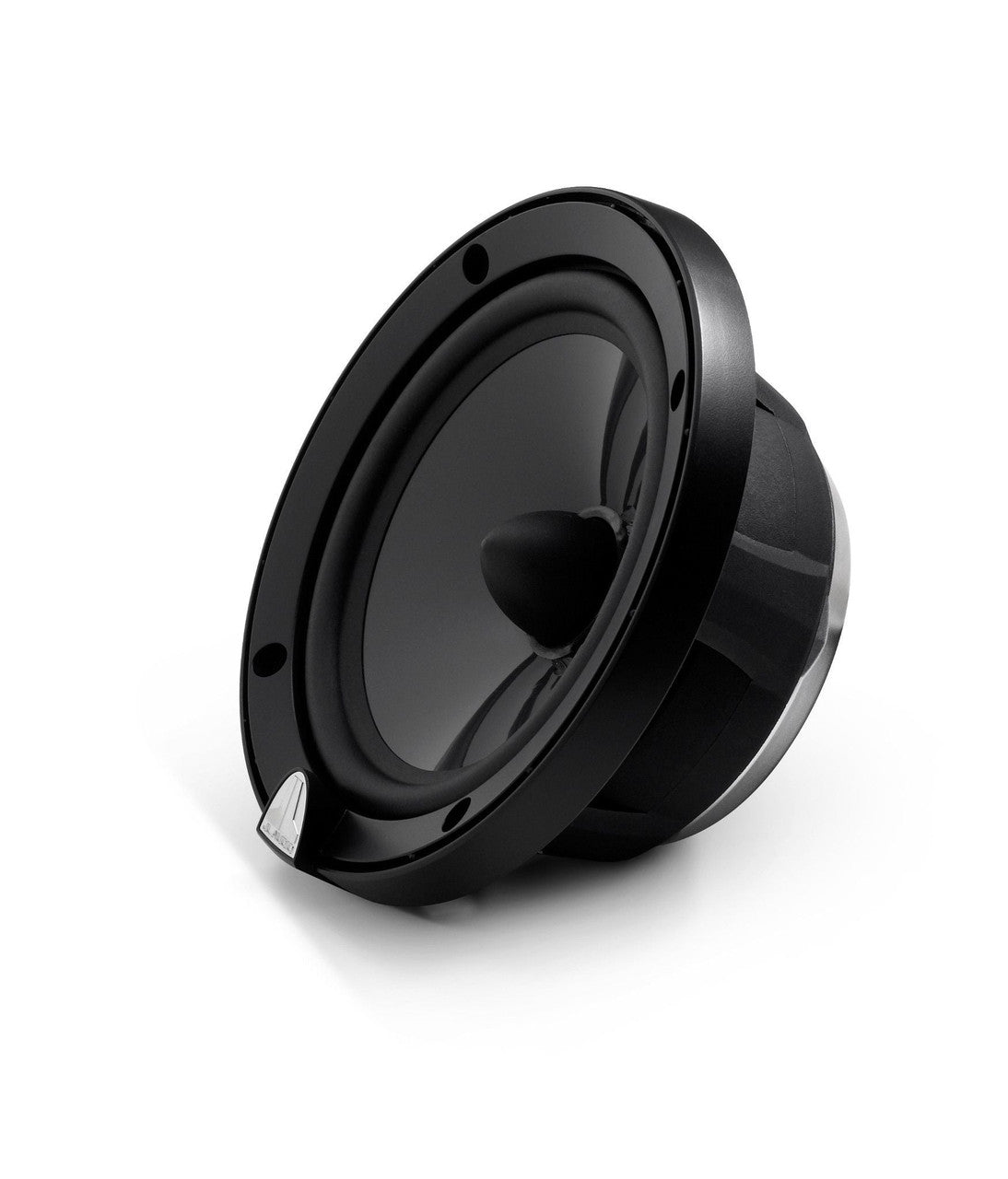

The C3-600CW is a 6" (150 mm) Component Woofer through oversized 1.2" (30.5 mm) voice coils, mineral filled polypropylene cones and injection molded polymer basket. The Woofer design benefits from JL Audio's vast Woofer design experience and advanced modelling systems.
A woofer grille is included, consisting of a black steel mesh grille and tray through an electroformed JL Audio logo. Sonic character: clean and powerful. Sold individually. Includes Component phase plug and tweeter post (tweeter sold separately).
General specifications:
- Continuous power handling (RMS) 75 W
- Recommended amplifier power (RMS): 25 - 150 W / channel
- System efficiency: 89.5 dB @ 1 W / 1 m
- System nominal impedance: 4 Ω
- System frequency response: 50 hz - 25 kHz ± 3 dB
Woofer physical specifications:
- Frame outer diameter: 6.2" / 140 x 157.7 mm
- Grille tray outer diameter: 6.5" / 164.1 mm
- Motor outer diameter: 4.1" / 103.6 mm
- Frontal coaxial tweeter protrusion: 0.8" / 20.6 mm
- Frontal grille protrusion: 1" / 26.2 mm
- Mounting hole diameter: 5" / 127 mm
- Mounting depth: 2.5" / 63 mm
- Frontal coaxial tweeter and grille protrusion measured from mounting surface
