JL Audio SB-D-MGACABG4 / 10TW1: 10" 600 W RMS 2-Ohms TW1-Series Dual Stealthbox Subwoofers

About the JL Audio SB-D-MGACABG4 / 10TW1: 10" 600 W RMS 2-Ohms TW1-Series Dual Stealthbox Subwoofers

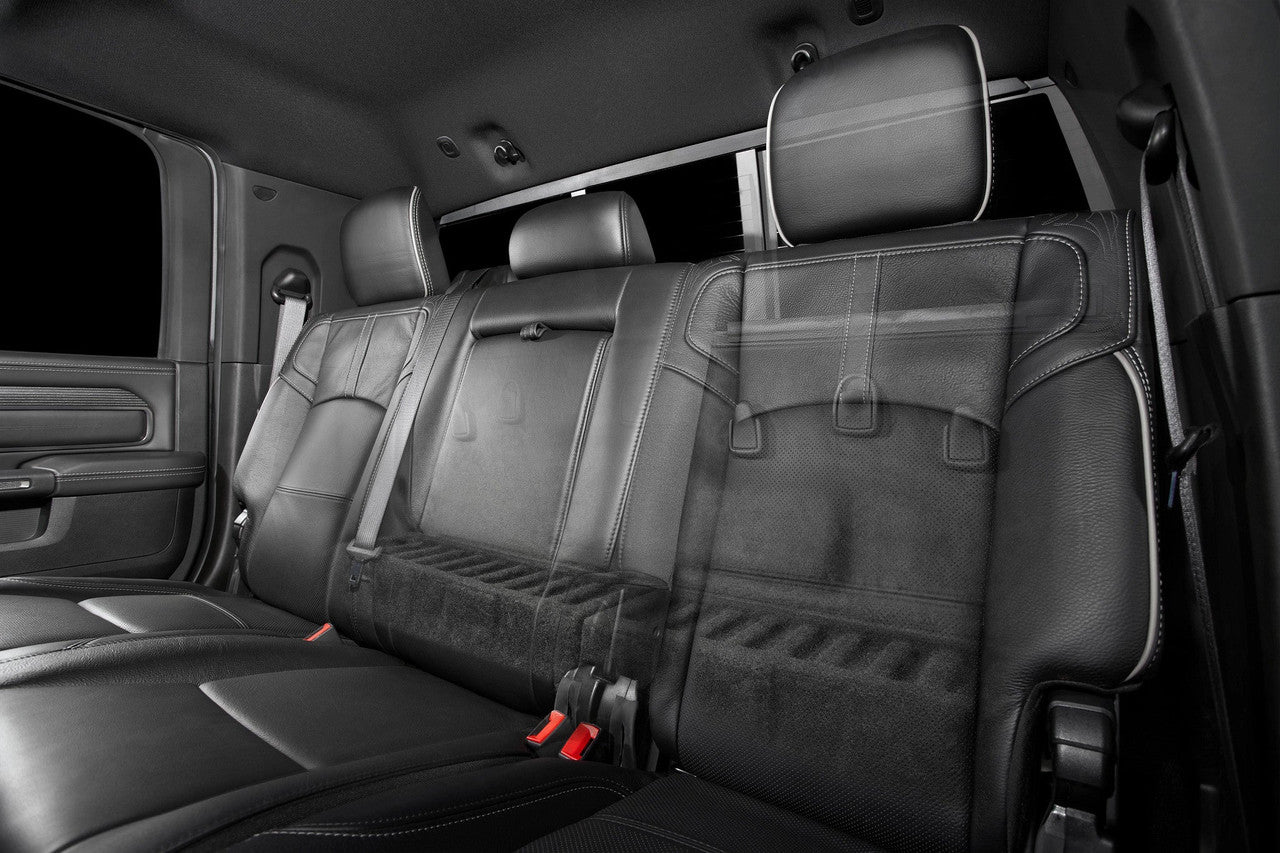

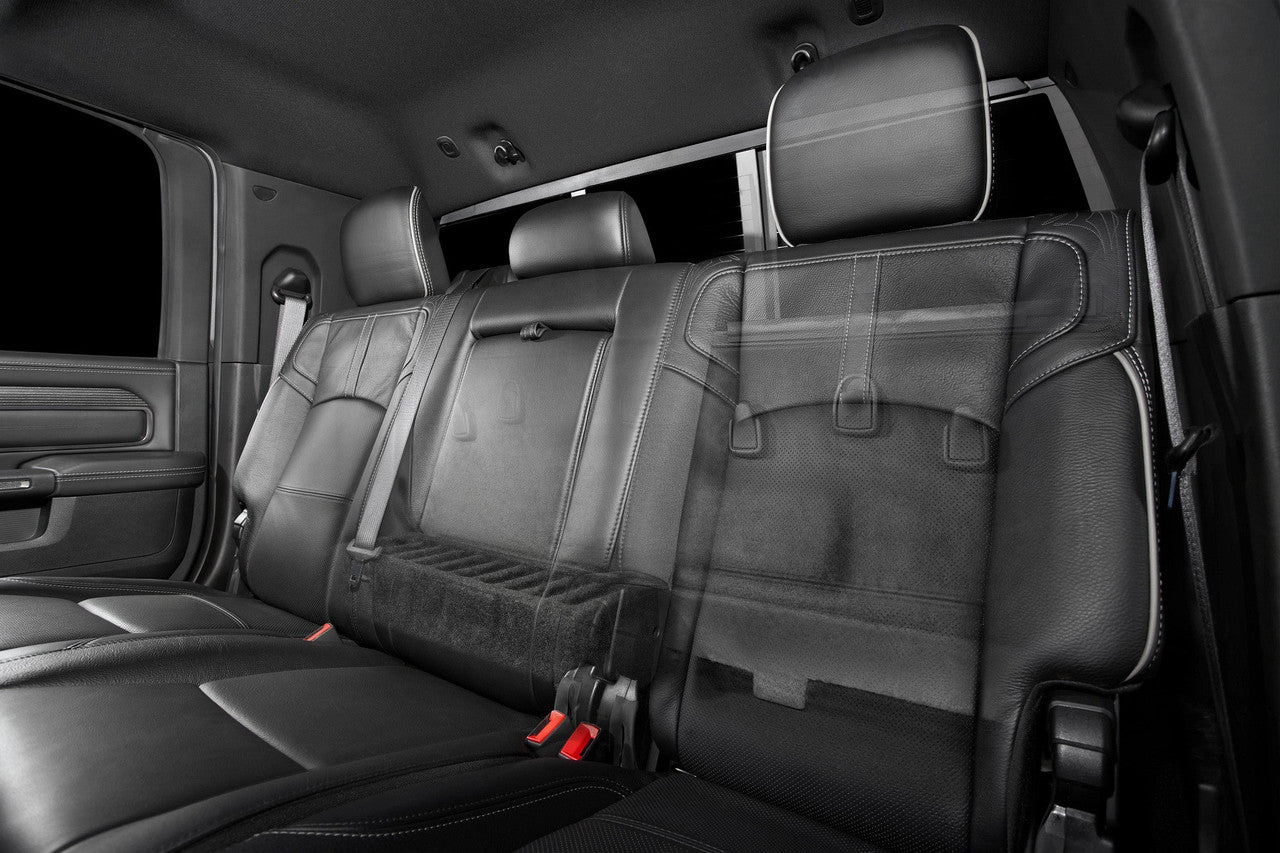

Ram's mega cab delivers a cavernous cabin through one of the largest interiors available in a pickup.  Too bad the factory Audio systems are ill equipped and struggle in the bass reproduction department.  To overcome this challenge, our engineers developed a Subwoofer solution that installs neatly, behind the back seat of this monstrous people mover, without compromising rear seat comfort.

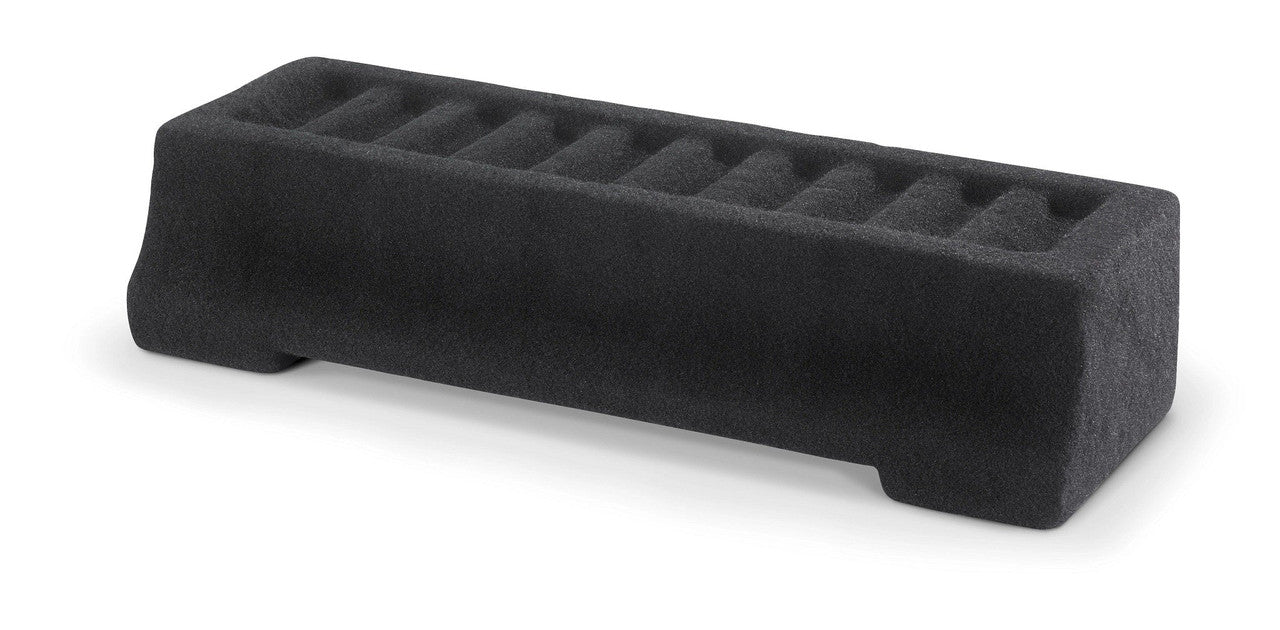

This Stealthbox is outfitted through 2 of our innovative, 10" TW1-Series thin line Subwoofers in a custom formed, sealed enclosure.  The result is outstanding sub bass performance through deep extension and solid impact.  For those looking for even more performance, 2 enclosures can be installed side by side for up to 6 dB more of jaw dropping output.

The hard data: contains two 10TW1-4 in a sealed enclosure. 600 W power handling.  Wired for 2-Ohms mono.  Installation requires removal of rear seat storage compartment and OEM Subwoofer, if equipped.

Specifications:

• Includes two 10" TW1-Series (thin line) Single 4-Ohms Subwoofers
• Power handling: RMS: 300 W each / 600 W total; recommended power range: 75 - 300 W
• Impedance: single 4-Ohms
• Injection molded, mica filled polypropylene cone
• Rubber surround
• No pole vent: permits mounting close to rear wall of enclosure.
• Ultra compact sealed enclosure volume requirements
• Long linear excursion capability
• DMA optimized motor designs
• Engineered lead wire system
• Patented concentric tube architecture
• Patented floating cone attach method technology
• Cast alloy frame through flat edges for tight driver grouping
• Steel mesh grille included through each driver
• Precision built at JL Audio's factory
• Mounting depth: 4.4"
• Cutout dimensions: 9.1"
• Free air resonance (FS): 38.1 hz
• Sensitivity: 82.2 dB
• XMAX: 10.0 mm
• Equivalent compliance (VAS): 12.2 L
• Frequency response: 26 - 200 hz
