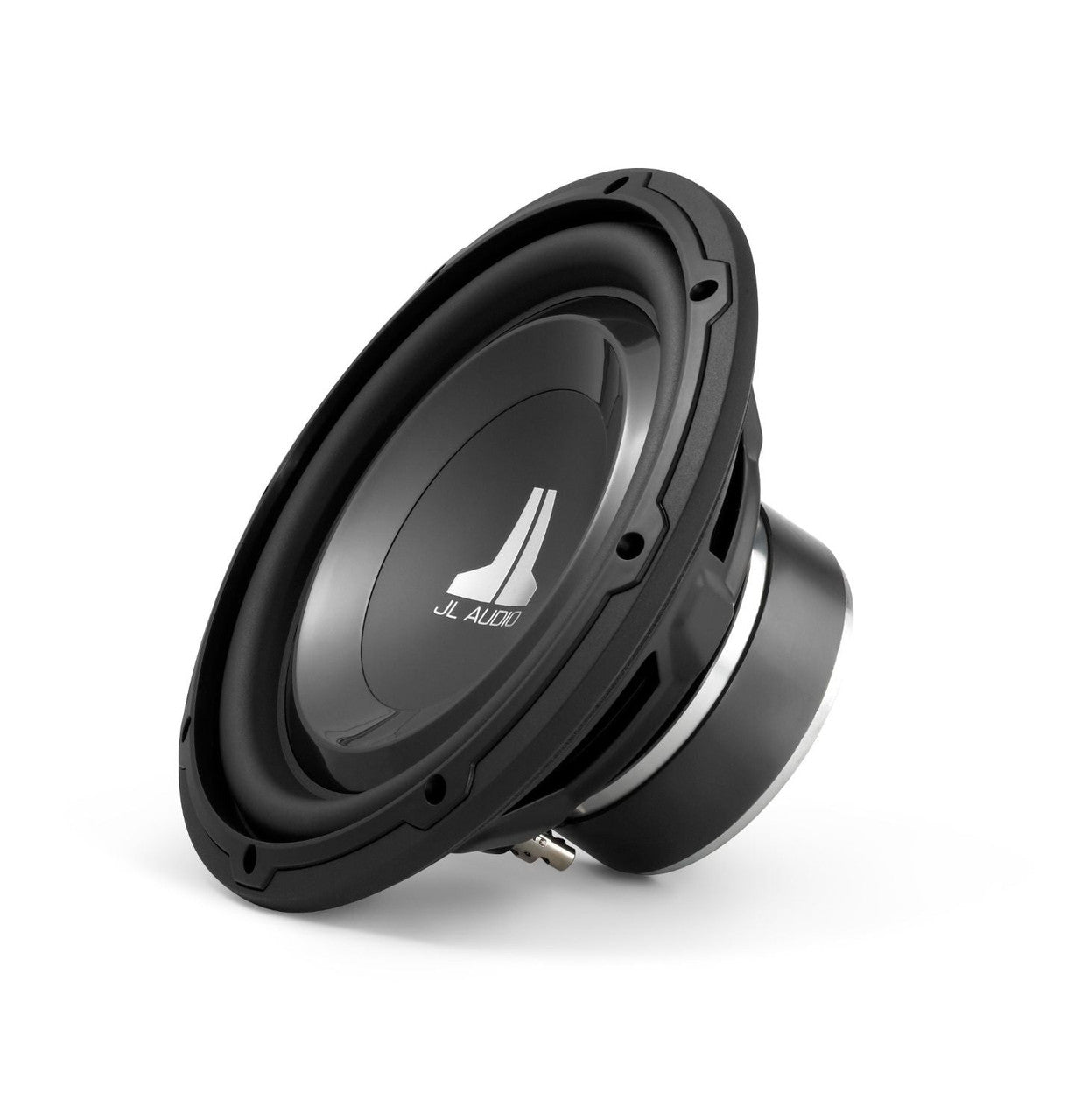

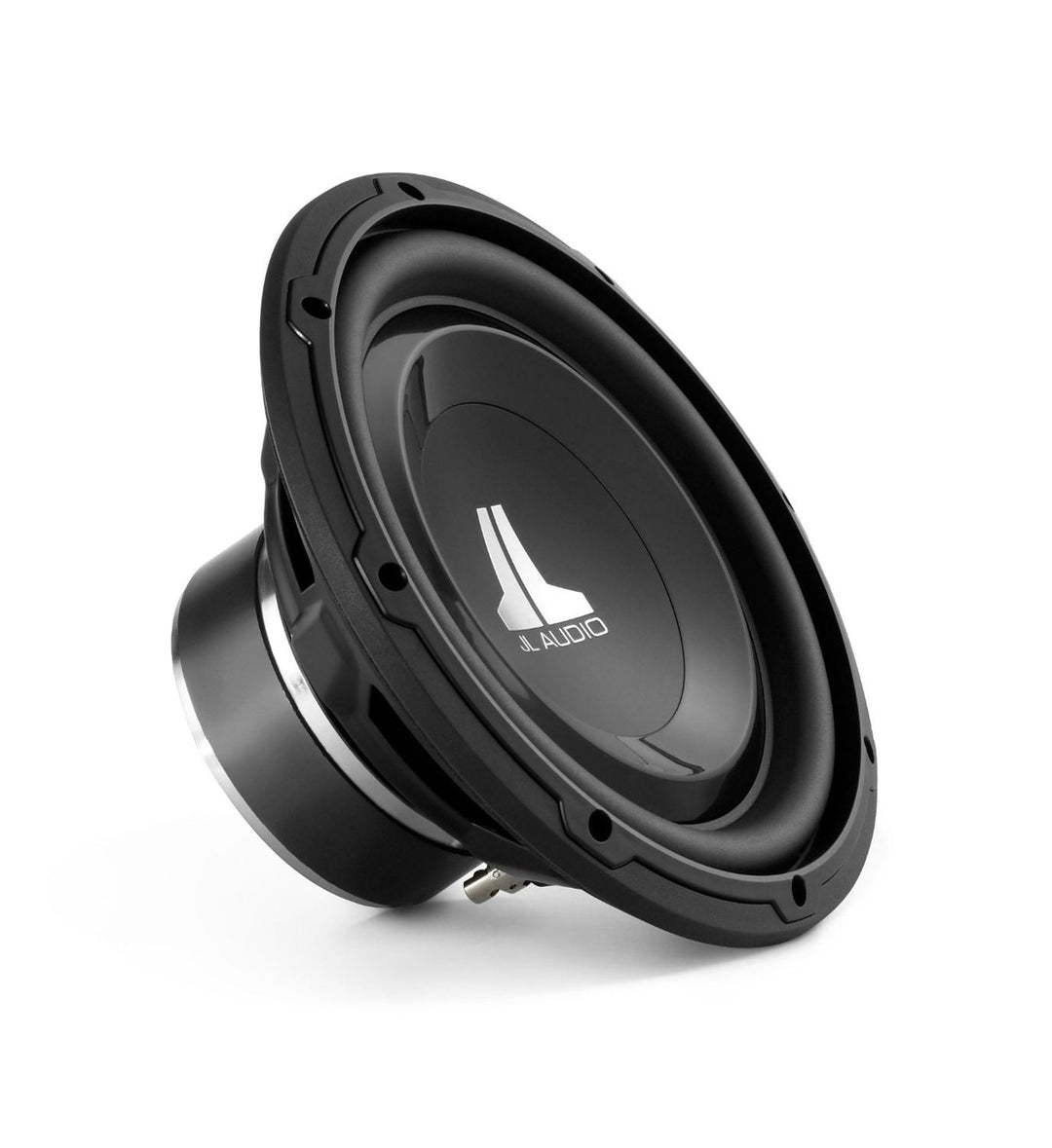

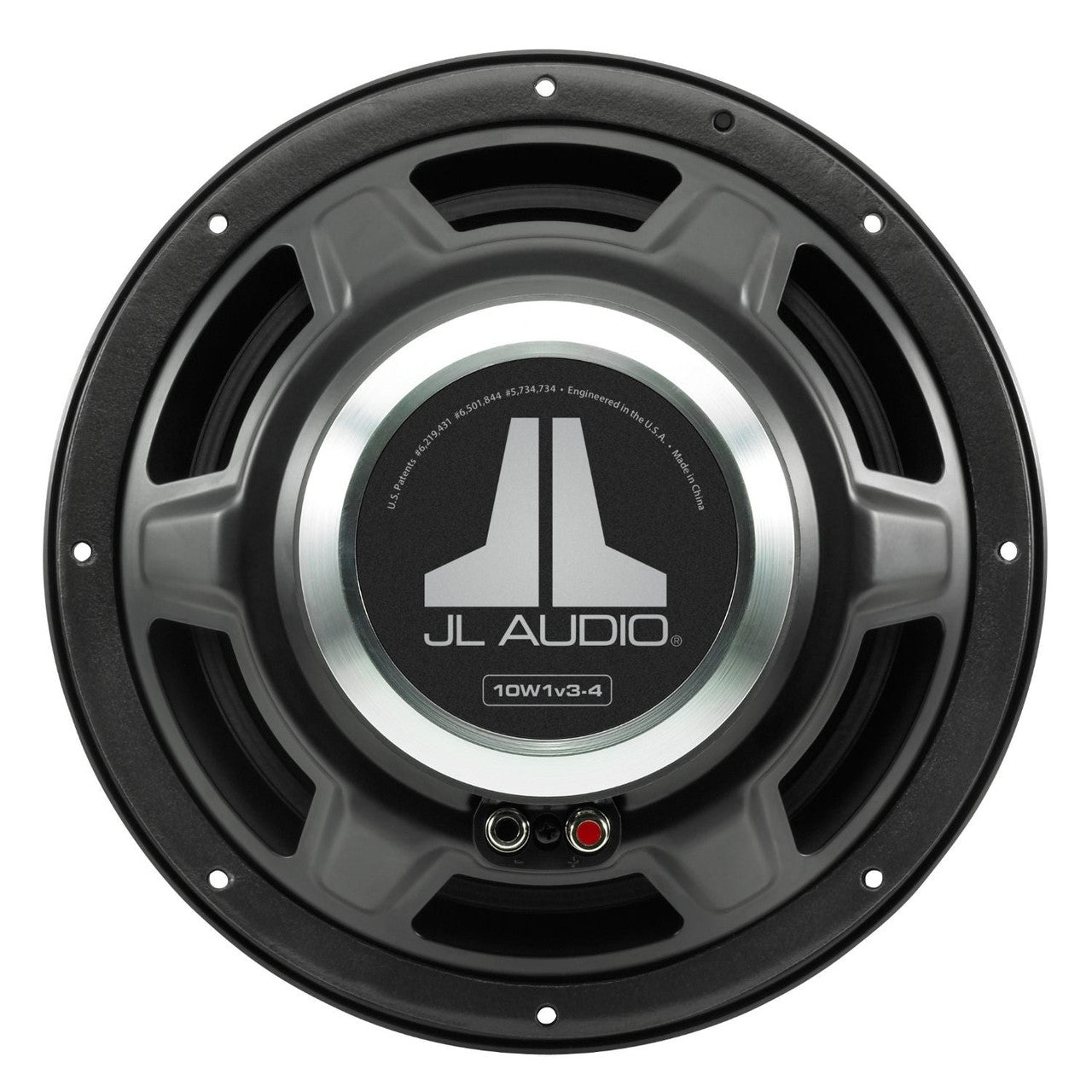

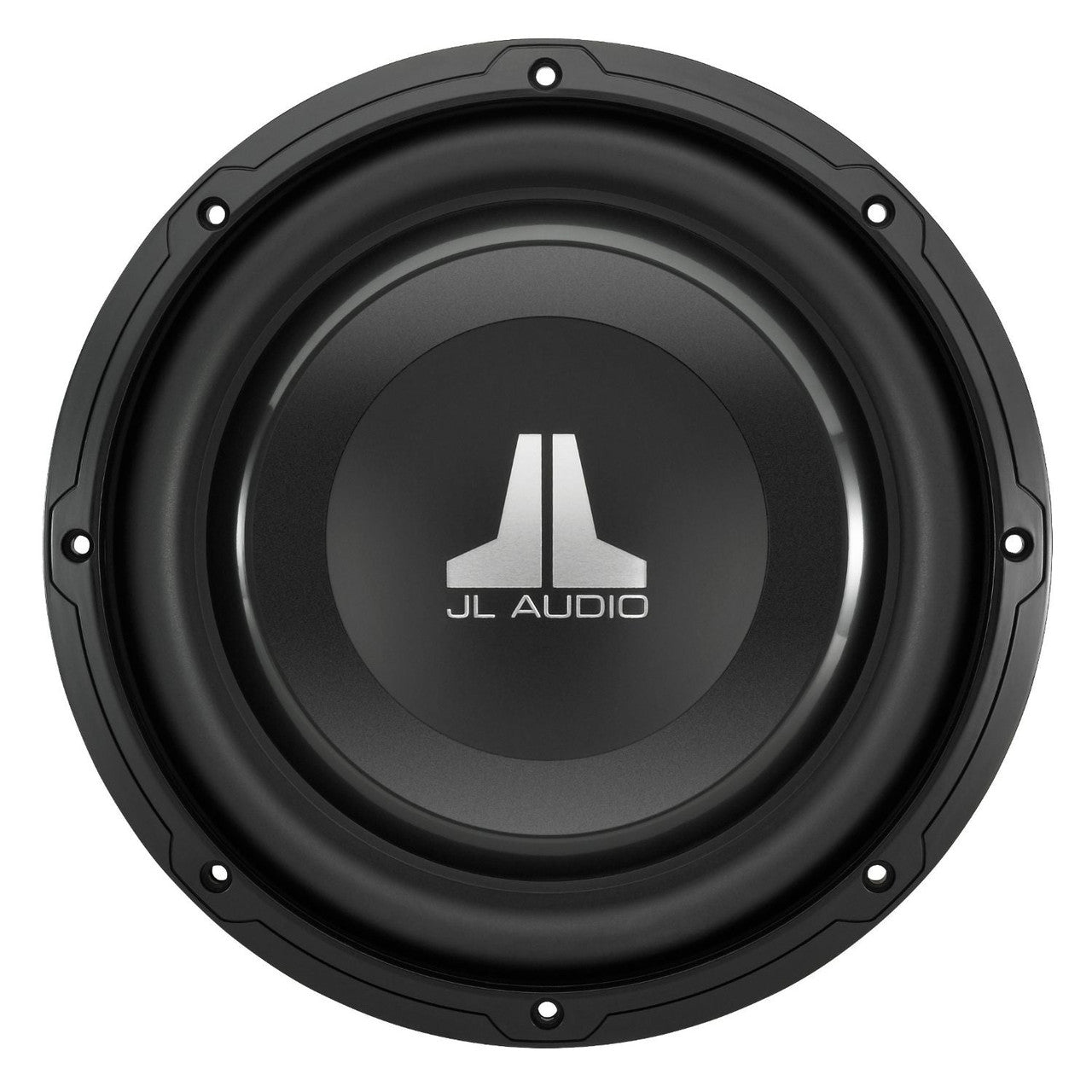

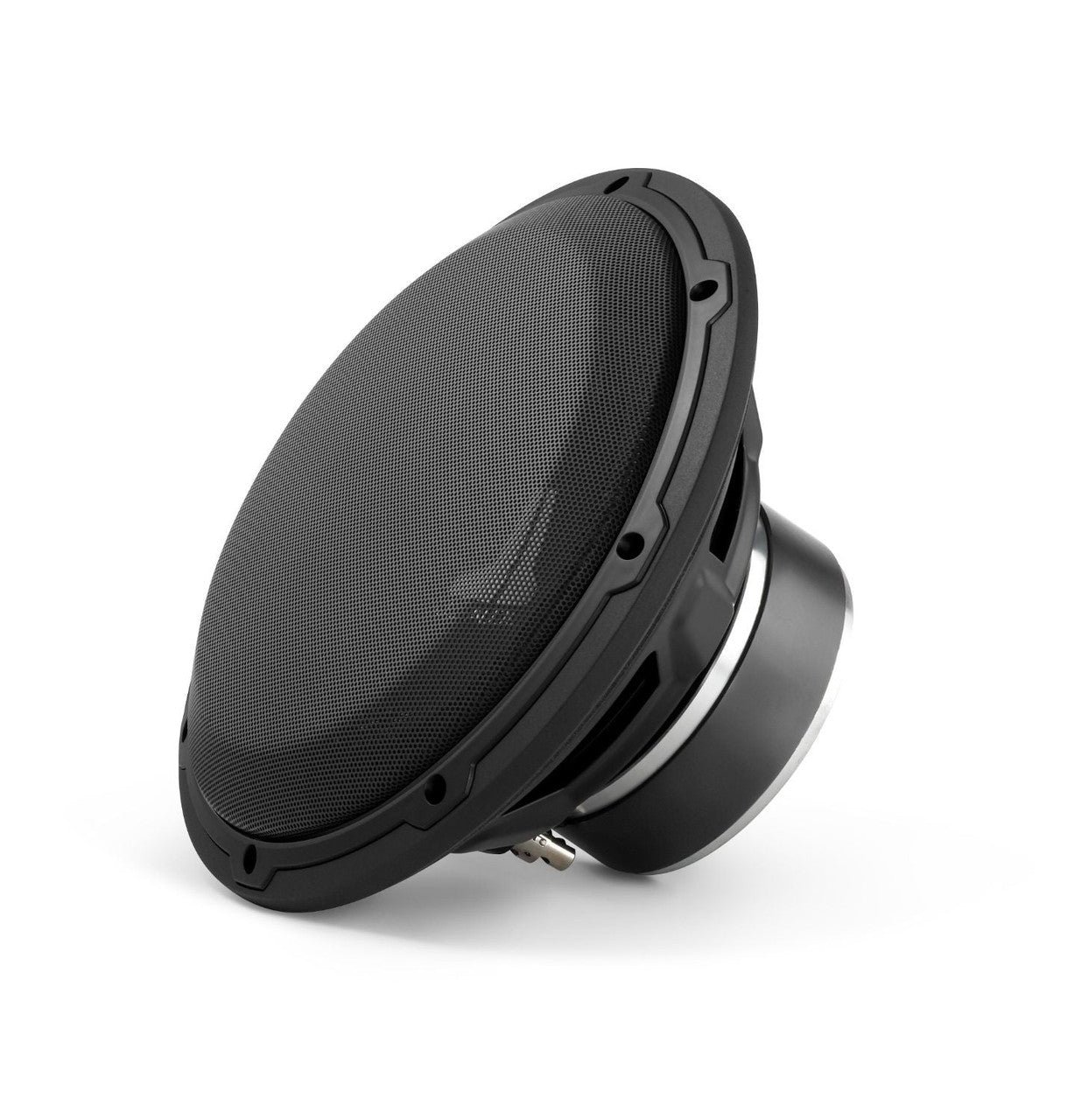

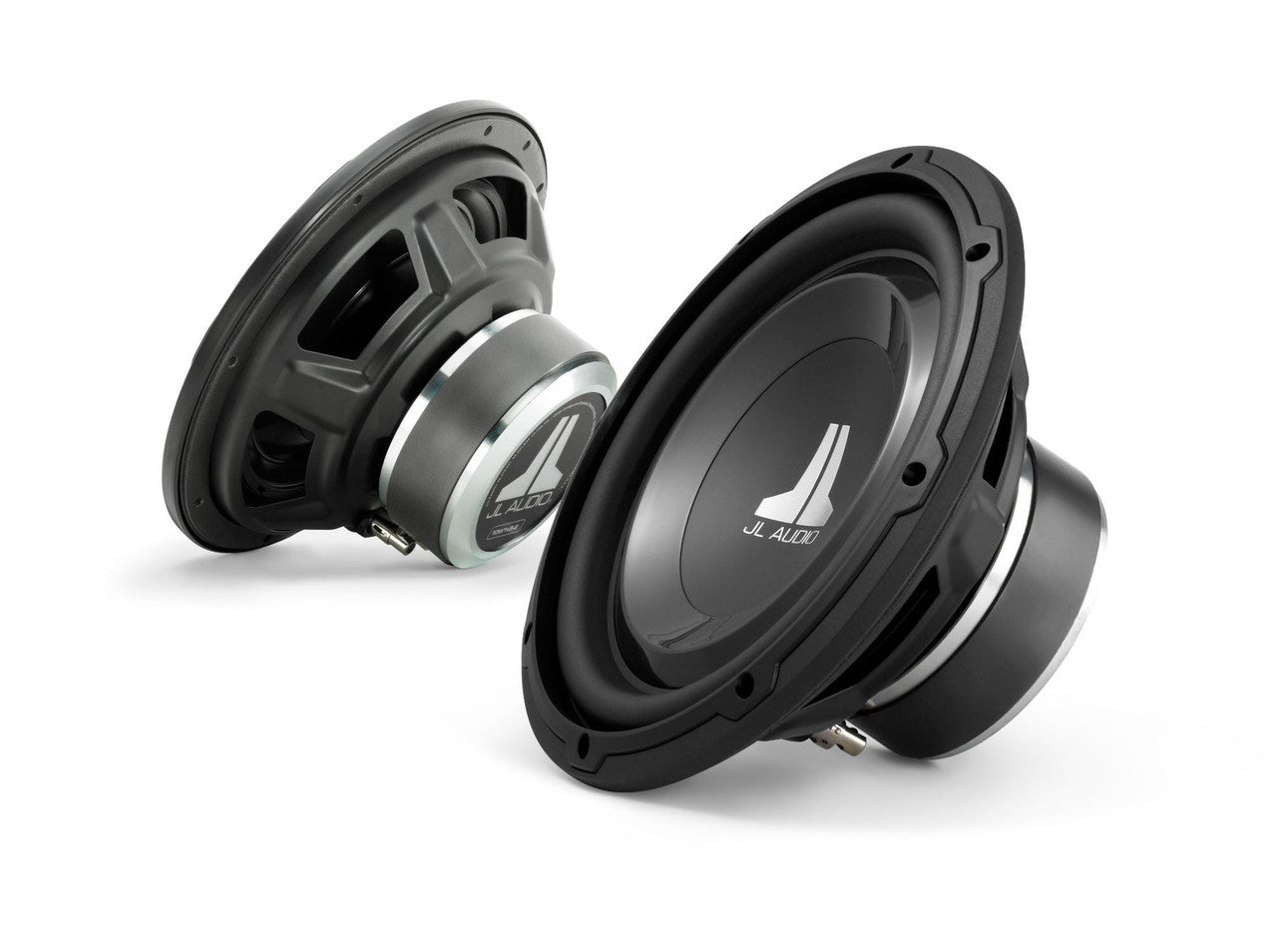

JL Audio 10W1V3-4: 10" 300 W RMS 4-Ohms W1V3-Series SVC Subwoofer

About the JL Audio 10W1V3-4: 10" 300 W RMS 4-Ohms W1V3-Series SVC Subwoofer

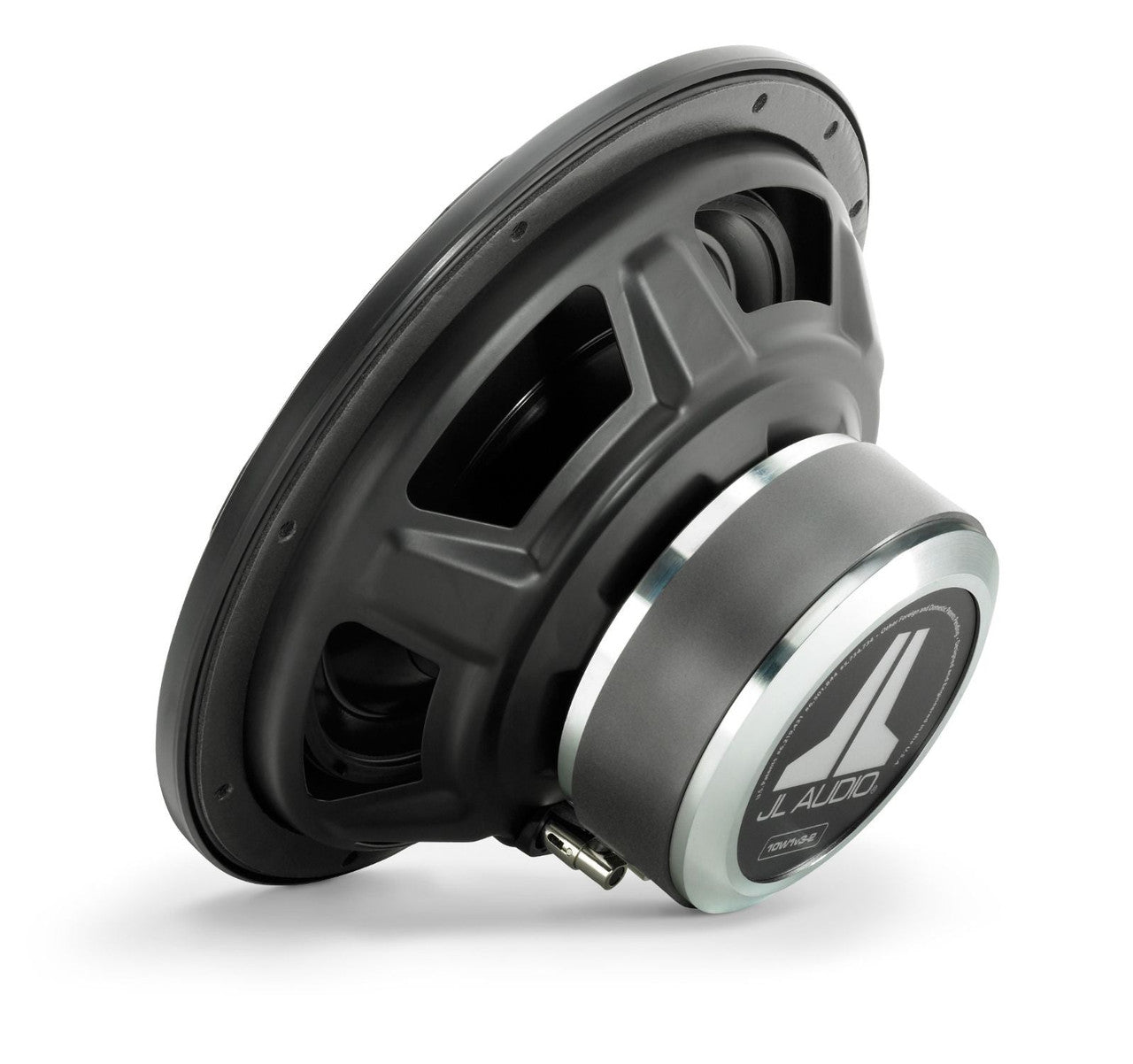

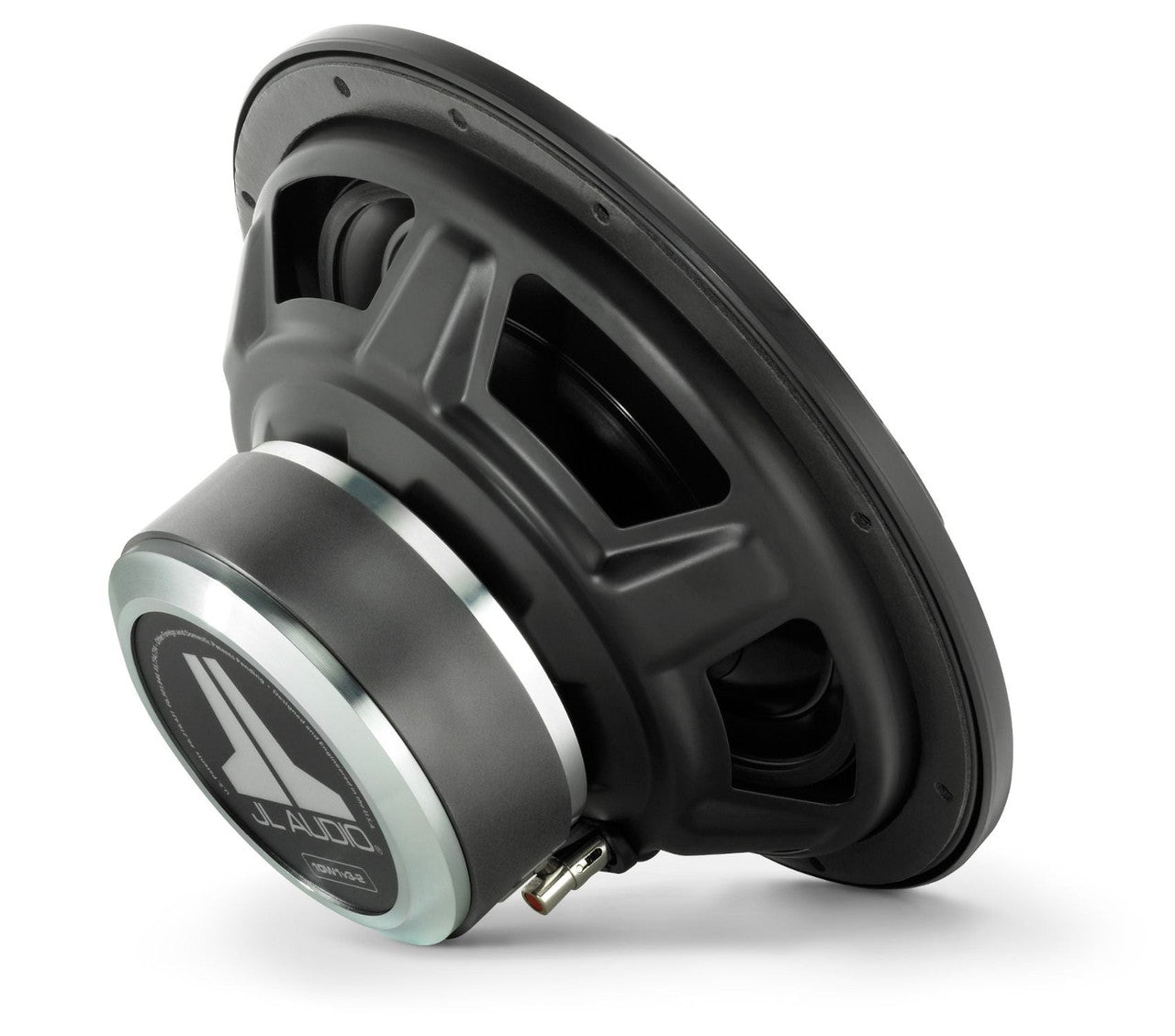

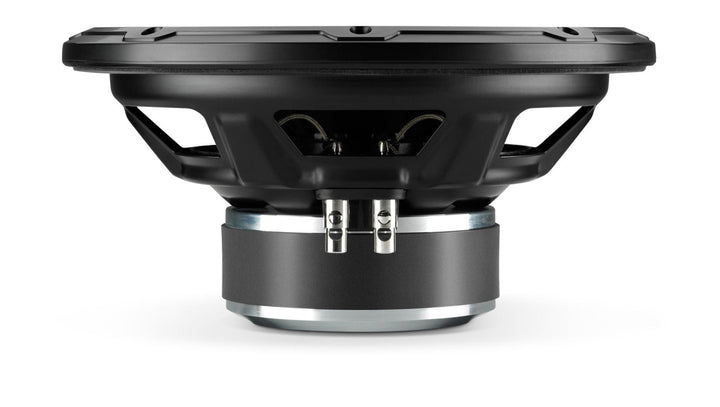

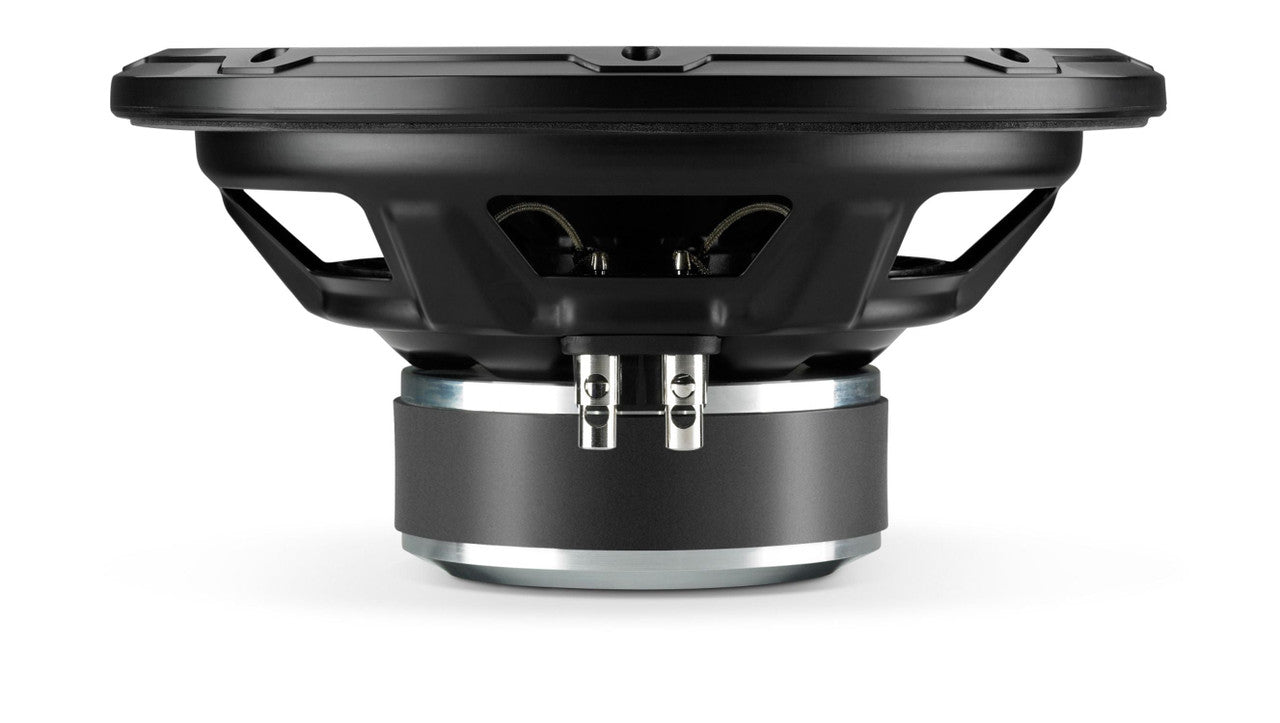

The 10W1V3-4 is an outstanding choice when space is very tight and amplifier power is moderate.  It features shallow mounting depth (4.6" / 117 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 10" driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary.  Excellent excursion capability and linearity allow it to reproduce sub bass through shocking extension and quality.  Several of JL Audio's proprietary technologies enhance its performance and reliability.

The 10W1V3-4 is best used through amplifier power in the 75 - 300 W range and is optimized to operate in a compact 0.6 cubic FT (15.6 L) sealed enclosure.

Enclosure notes:

• The enclosure recommendations listed above are external dimensions which assume the use of 0.8" (19 mm) thick material.  If you are using 0.6" (16 mm) thick material, subtract 0.3 in (6.5 mm) from each dimension.  Do not use any material through a thickness of less than 0.6" (16 mm) as this may compromise the rigidity of the enclosure
• All enclosure volumes listed above are net internal volumes!  Driver, port and brace displacement must be added to obtain the final gross internal volume.  All enclosure dimensions above have already taken this into account
• When using multiple Subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions.  For assistance please contact your authorized JL Audio dealer or JL Audio technical support
• We recommend the use of this speaker in a bi amplified system using high quality satellite speakers and a high quality amplifier.  We do not recommend the use of this Subwoofer through a passive crossover (coil), as this type of device will adversely affect performance
• All specifications are subject to change without notice

Safety notice:

• Prolonged exposure to sound pressure levels in excess of 100 dB can cause permanent hearing loss.  This high performance speaker can exceed this level.  Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity
• When installing a Subwoofer in your vehicle, it is extremely important to secure the enclosure firmly.  We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle through large diameter washers for reinforcement.  If an enclosure is not firmly attached, it can become a projectile in a collision.  This is particularly important in a hatchback, station wagon, sports utility vehicle, or van

General specifications:

Features:

What's in the box:
