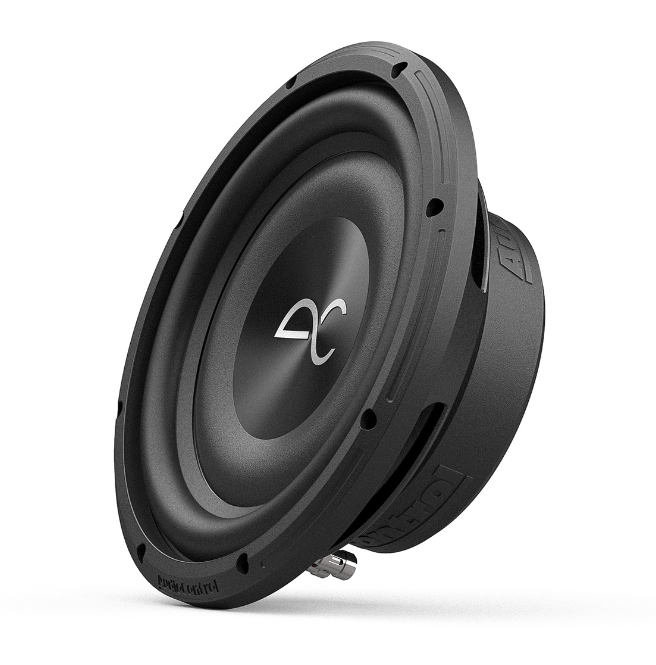

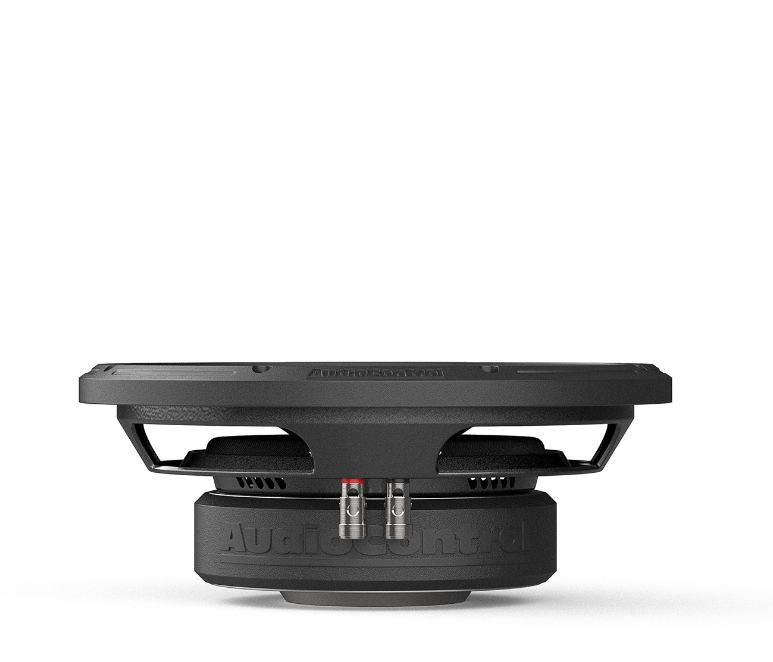

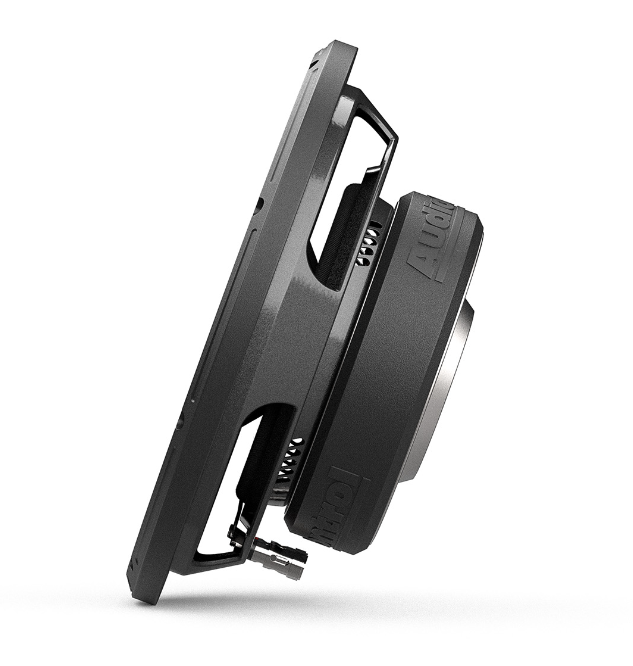

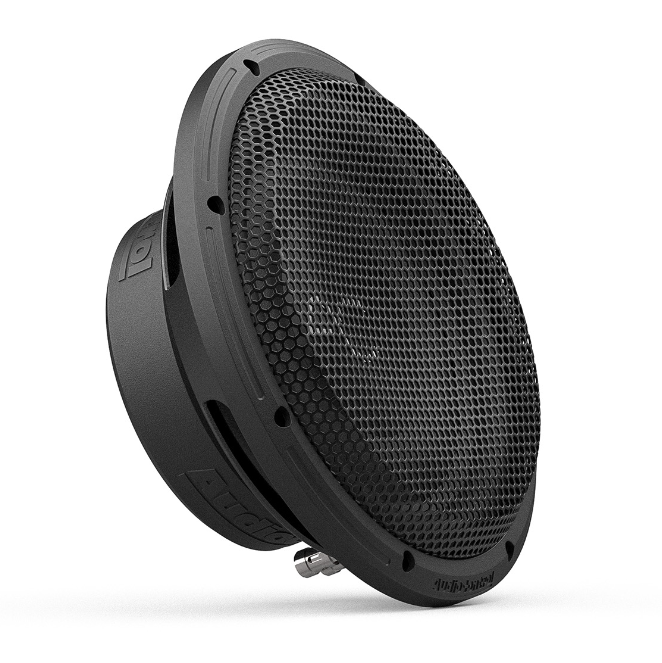

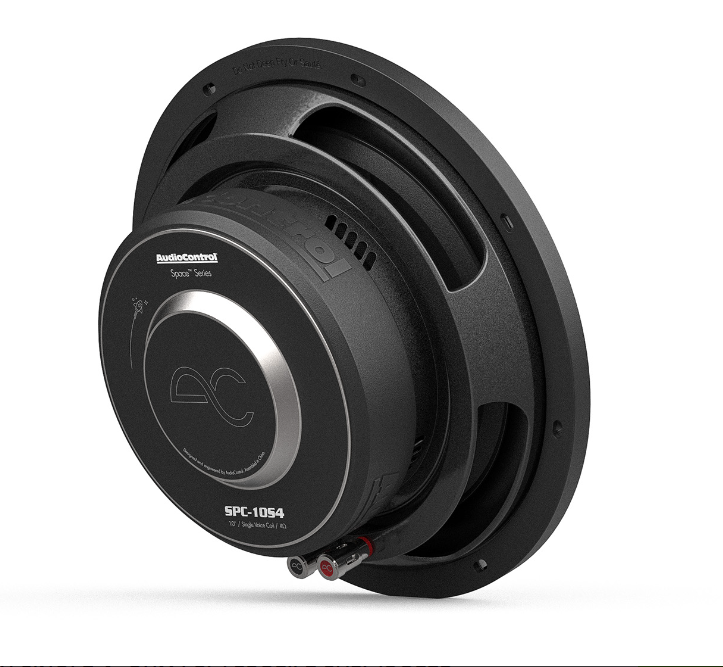

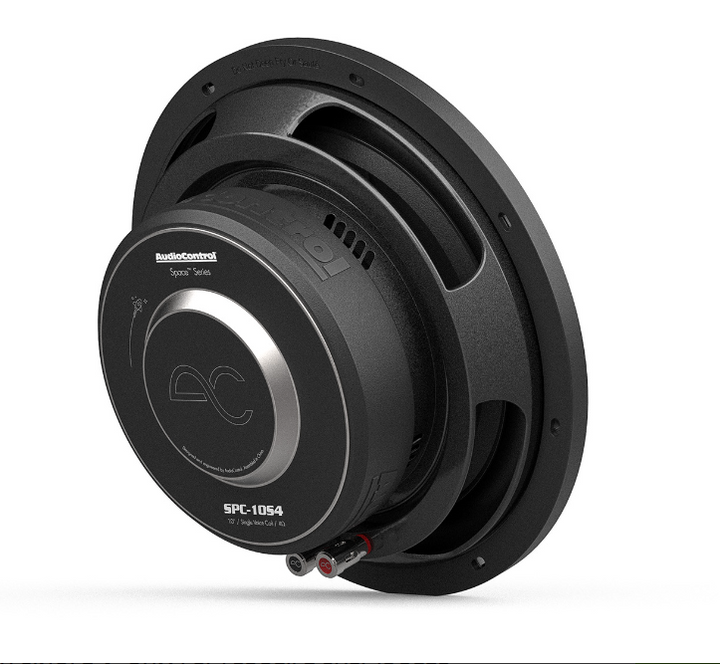

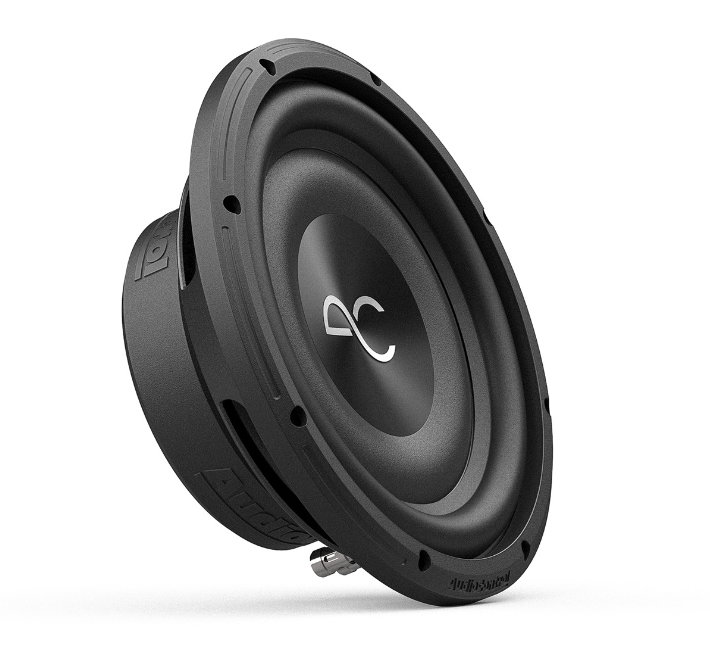

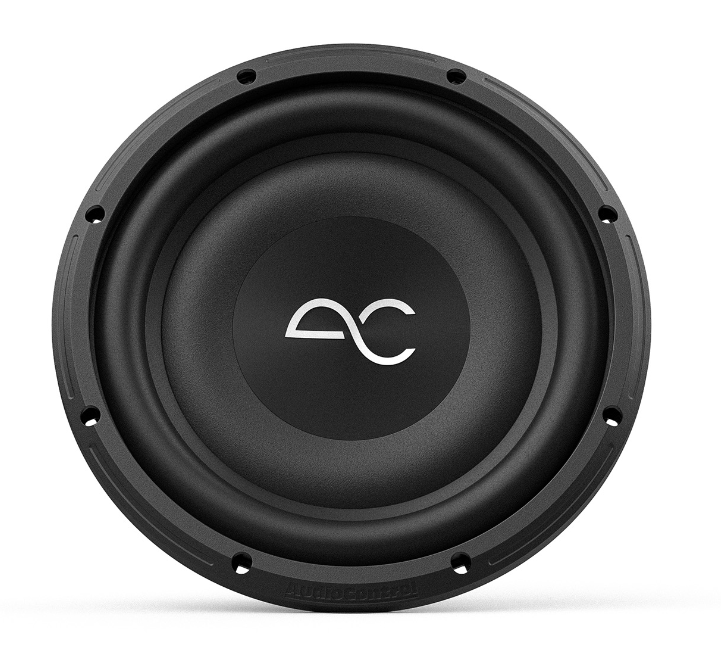

AudioControl SPC-10S4: 10" 4 Ω 400 W RMS Space-Series Single Shallow Subwoofer
- In stock, ready to ship
Specifications:
Thiele / small parameters:
- Nominal impedance (Z): 4 ohms
- DC resistance (RE): 3.2 ohms
- Resonance Frequency (FS): 37.4 hz
- Piston Area (SD): 0 m ²
- Force factor (BL): 14.0 T.M
- Mechanical Q factor (QMS): 2.9
- Electrical Q factor (QES): 0.4
- Total Q factor (QTS): 0.4
- Sensitivity 1 W / m (SPL): 87.3
- Mechanical comp (CMS): 0.2 mm / N
- Moving mass (MMS): 105.7 g
- Linear excursion (Xmax): 9 mm
- Volume acoustic comp (VAS): 26.1 L / 0.9 cubic FT
- Reference efficiency (NO.): 0.32% RMS
- Power (PE): 400 W
- Frequency response: 20 - 250 hz
- Voice coil diameter: 2.5" / 63.5 mm
- Displacement: 0.0 cubic FT / 1.3 L
In the box:
- SPC-10S4
- Manual
- Warranty
Dimensions:
- Overall dimensions: 10.4" / 264 mm
- Cut out diameter: 9.1" / 232 mm
- Mounting depth: 3.5" / 89 mm
- Mounting height (without grille): 0.7" / 18 mm, 1.2" / 31 mm
Ported enclosure:
- External dimensions: 24.0" W x 14.5" H x 12" D
- Net internal volume: 1.4 cubic FT
- Total internal volume: 1.8 cubic FT
- Gross external volume: 2.4 cubic FT
- Material thickness: 0.8"
- Tuning frequency: 40 hz
- Port area: 22.8" ²
- Port inlet: 1.8" W x 13" H
- Port length: 22.3"
- F3 (hz): 34
Sealed enclosure:
- External dimensions: 26" W x 14.5" H x 5.0" D
- Net internal volume: 0.6 cubic FT
- Total internal volume: 0.7 cubic FT
- Gross external volume: 1.1 cubic FT
- Material thickness: 0.8"
- F3 (hz): 60
- QTC: 0.7
- Enclosure size recommendations do not include driver and / or port displacement
