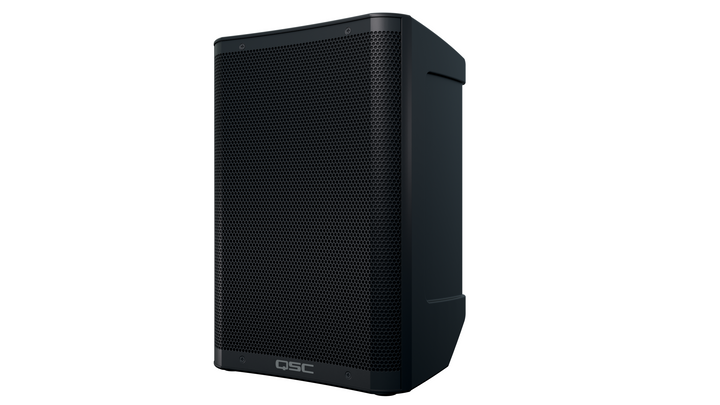

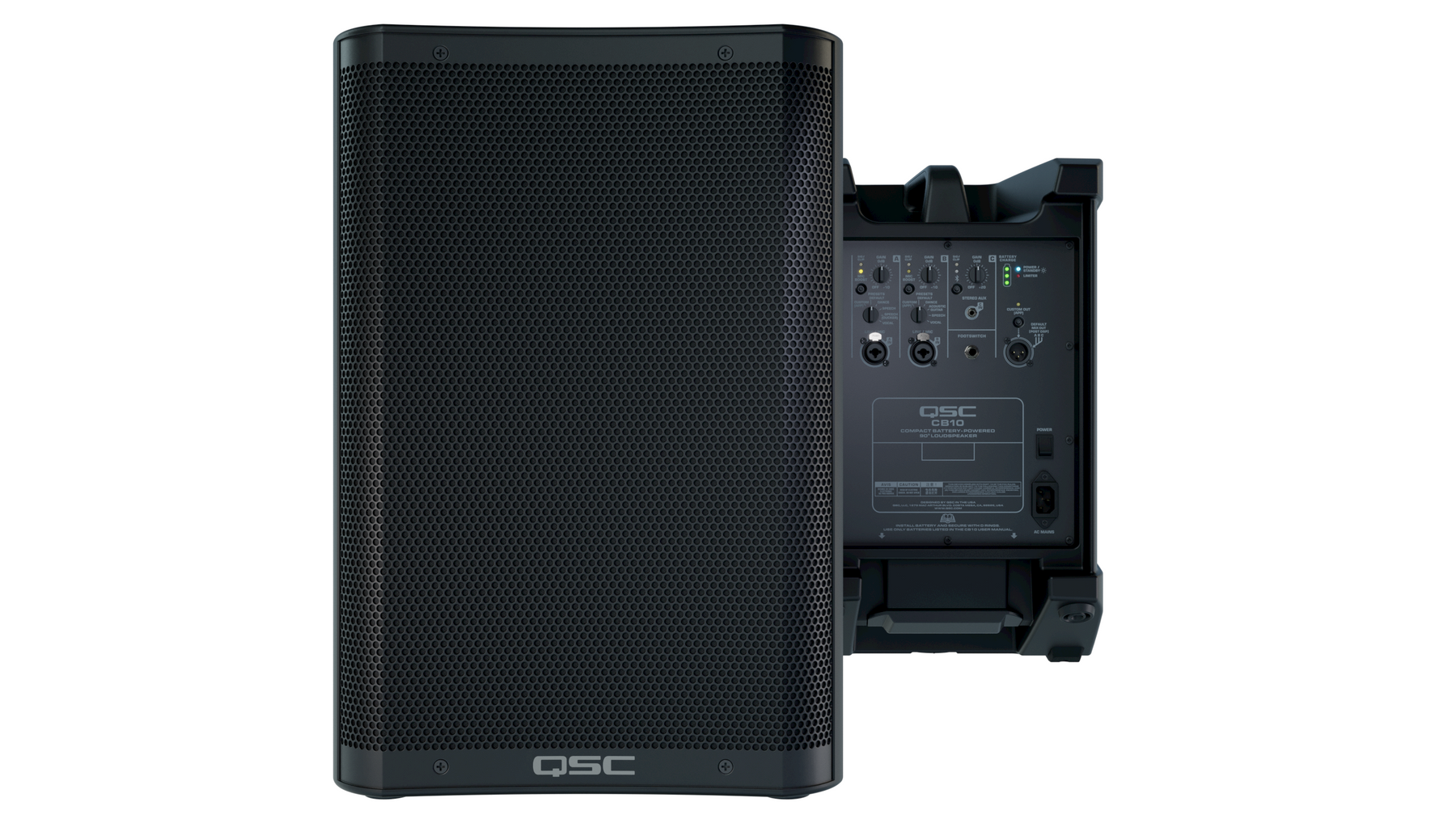

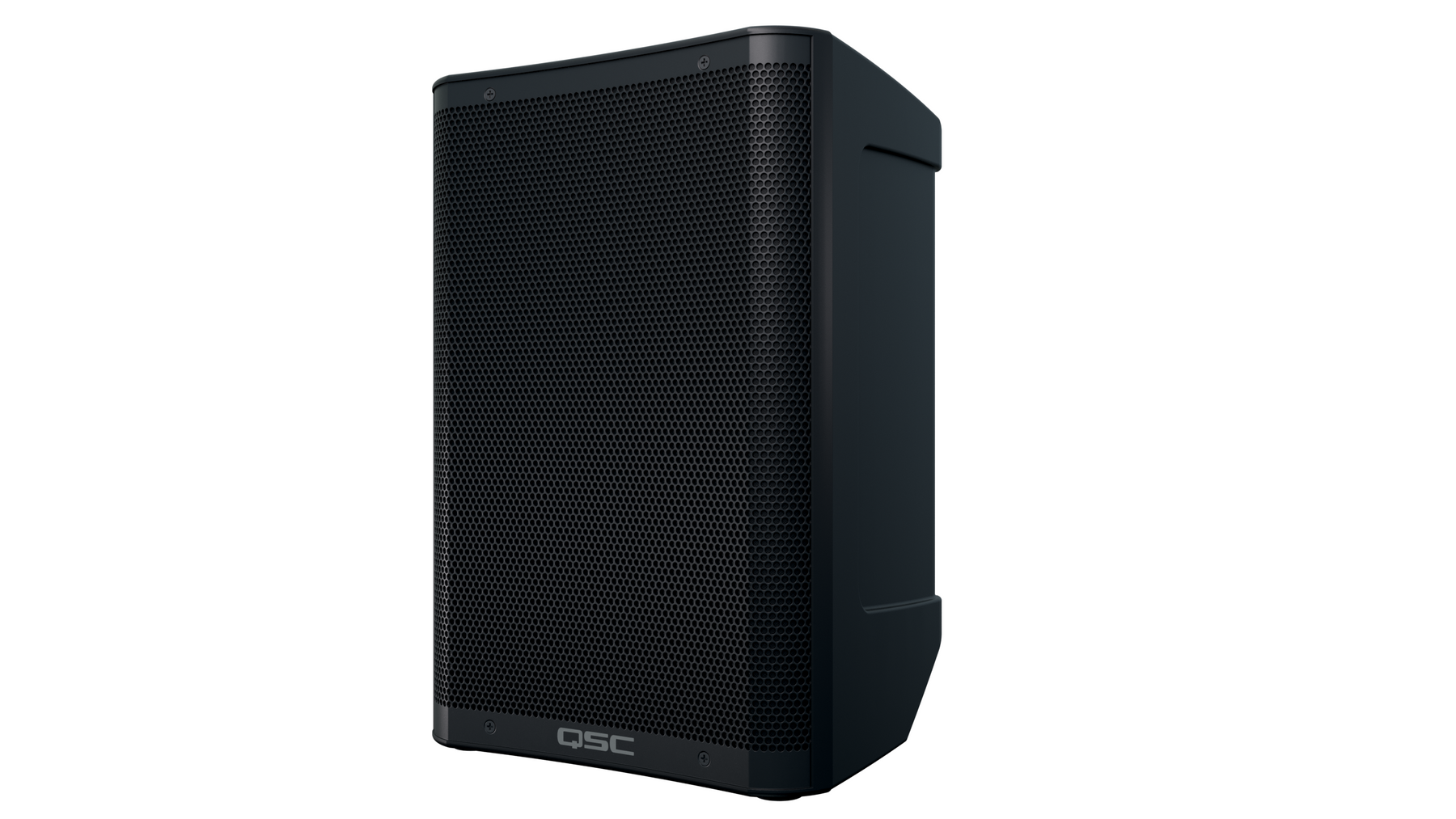

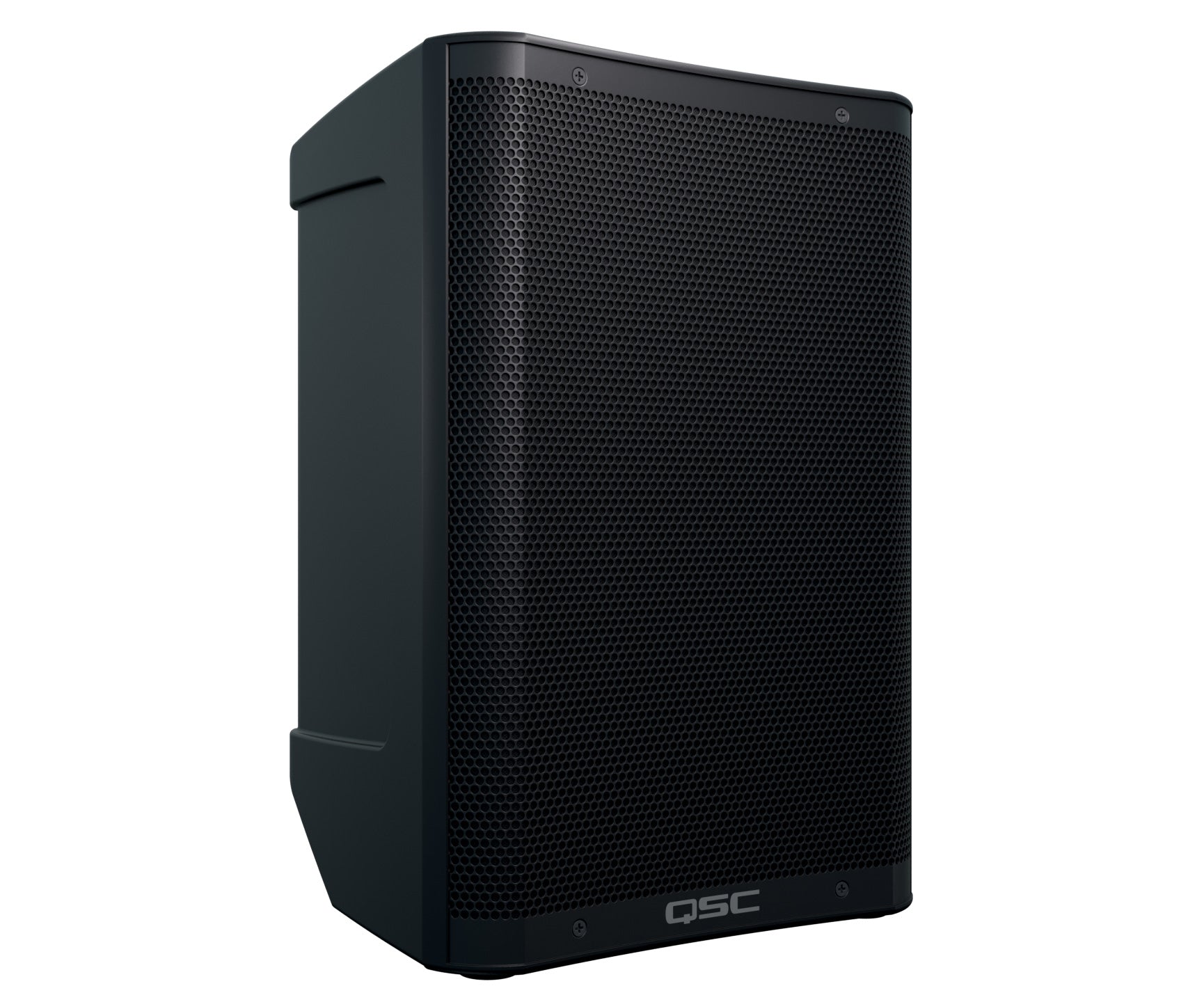

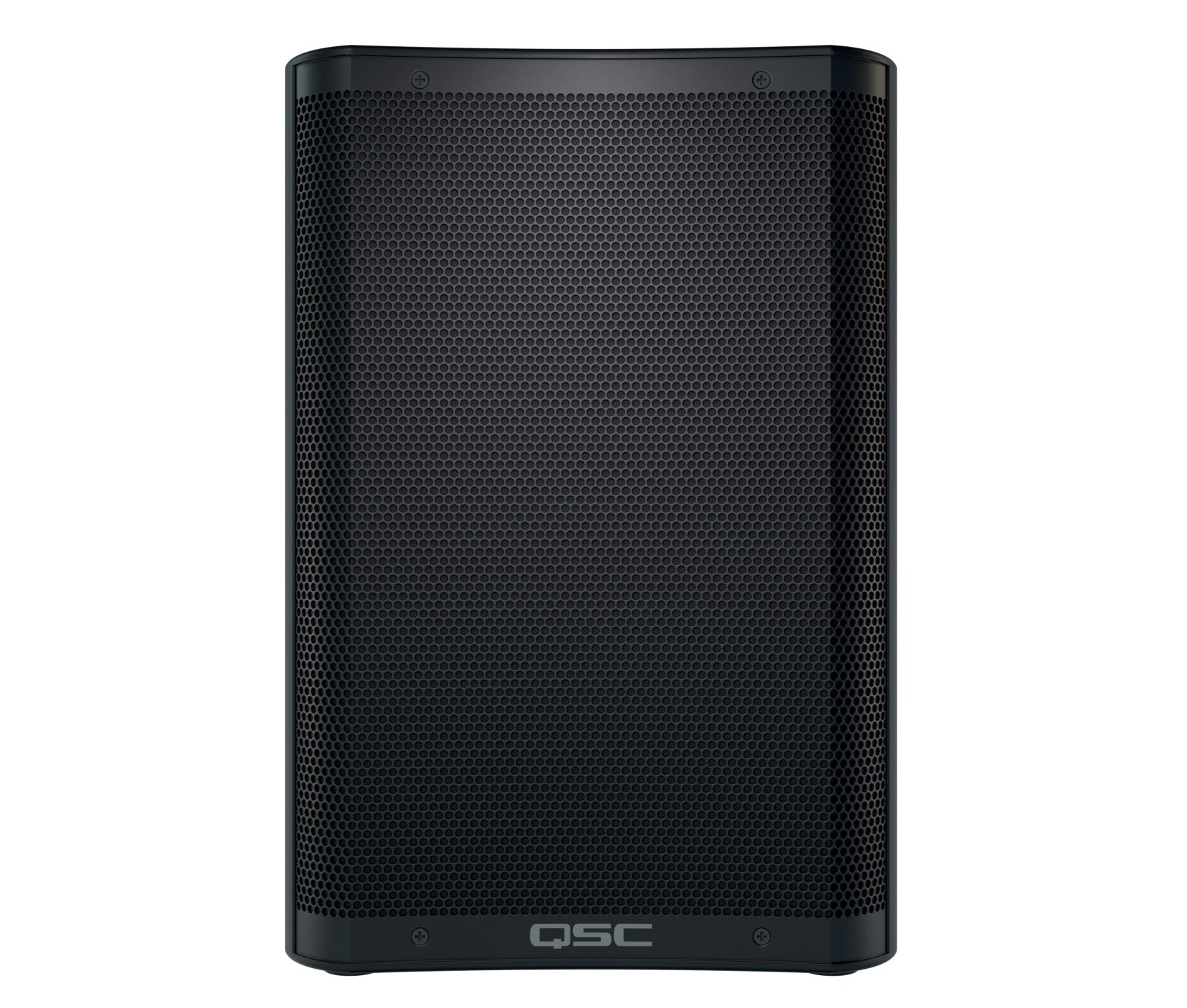

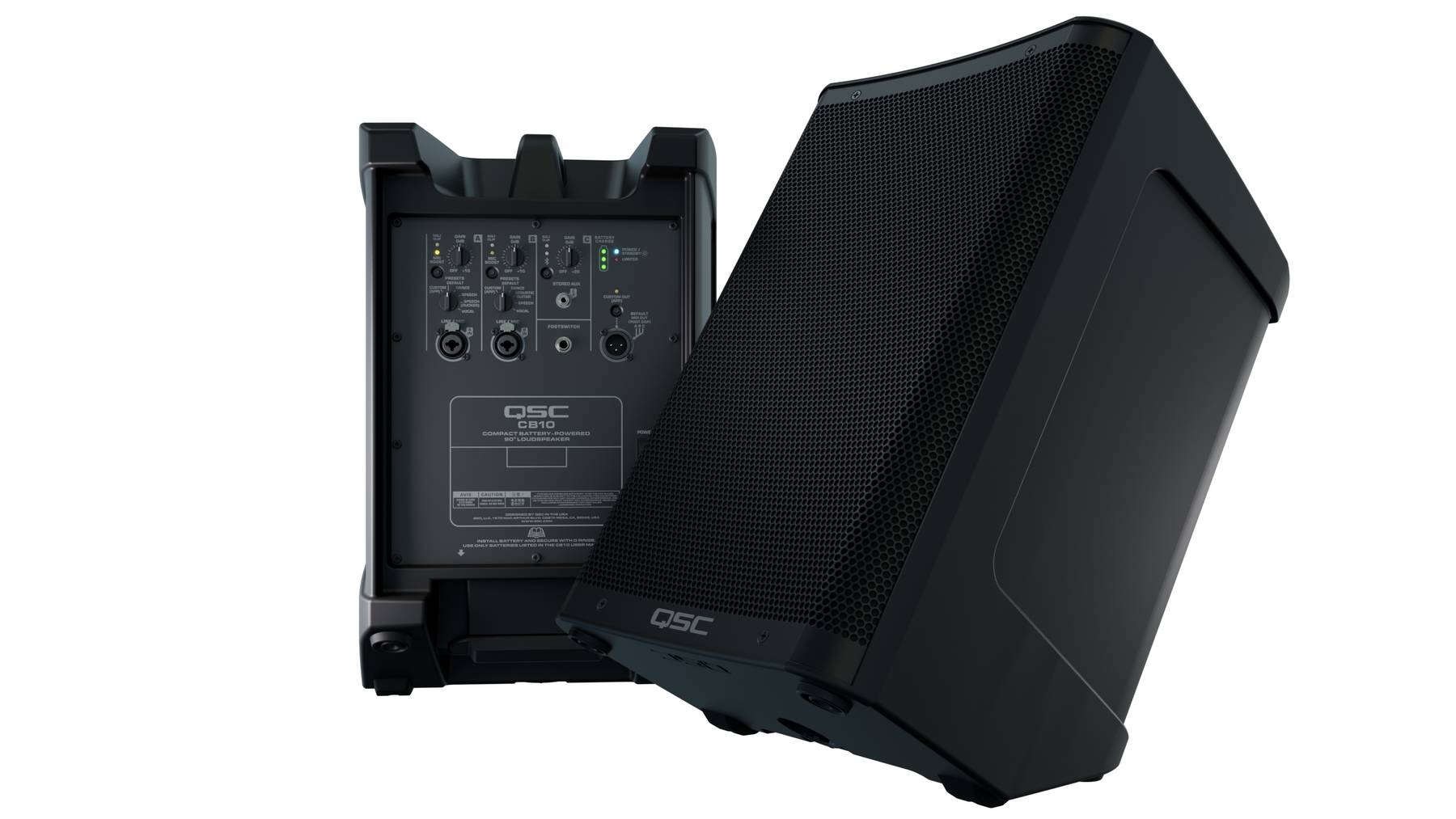

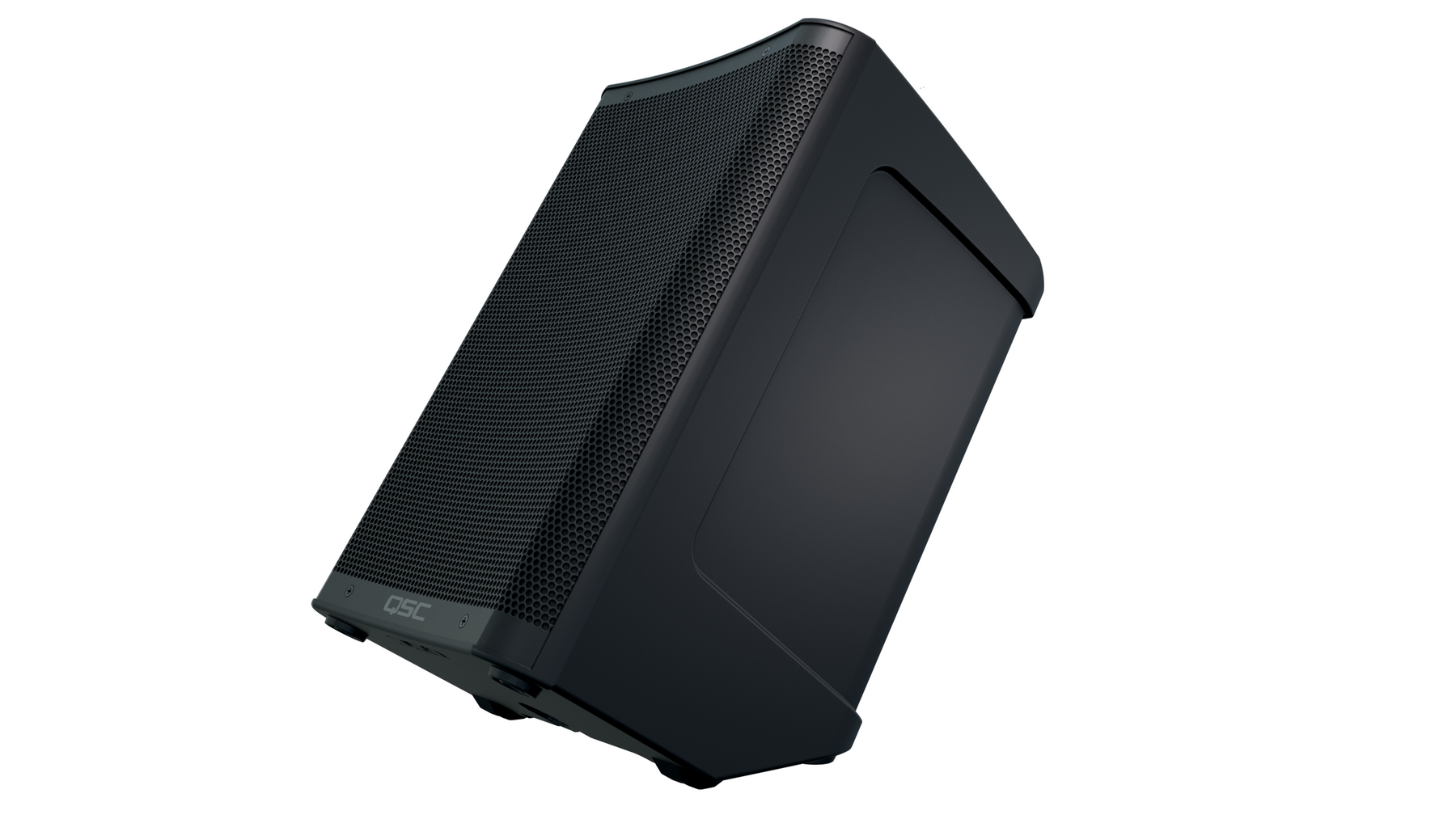

QSC CB10: Compact Battery-Powered Loudspeaker System

About the QSC CB10: Compact Battery-Powered Loudspeaker System

The CB10 is the ultimate Compact Loudspeaker System, offering unrivaled audio performance, unmatched versatility and Battery-Powered portability.  Ease of use is further enhanced through Bluetooth audio and control via the QSC Loudspeaker control app.

The CB10 is ideal for DJ's and mobile entertainers, event production professionals, musicians and bands, and any application where high performance audio is needed through the portability and versatility of a Battery-Powered system.

The CB10's Compact but-Powerful 10" LF driver delivers exceptional low end reproduction and extension, while its class leading 1" compression driver ensures superior high frequency response and coverage, without distortion.  The integrated 3 channel mixer allows simple and easy connections of microphones and instruments, as well as the option to stream Bluetooth music.  Input presets and DSP further optimize system performance and ease of setup, while the intuitive rear panel coupled through expanded control via the QSC Loudspeaker control app, offers simple plug and play operation and more expansive customization.  Additionally, programmable room delay makes the CB10 an ideal System extension for distributed PA deployments.

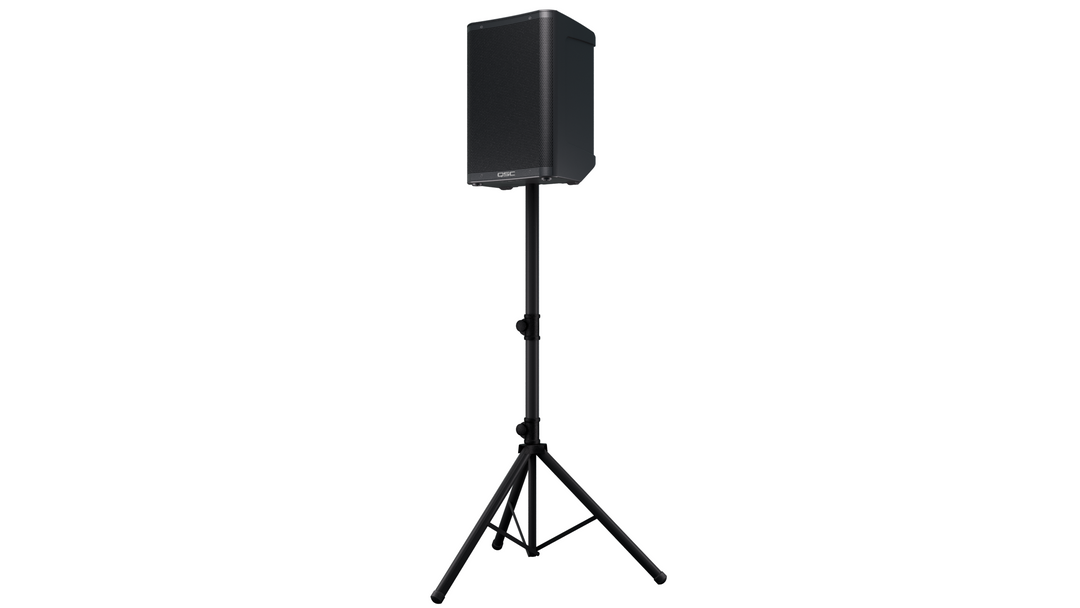

The CB10 can be mounted on a Loudspeaker stand or deployed on the floor via its tilt back angle.  CB10 is backed by a 6 years warranty through product registration within 30 days of purchase (1 year warranty on battery).

Features:

• Battery-Powered
• Bluetooth audio
• Lightweight & portable
• 10" woofer; 1" compression driver
• QSC Loudspeaker
• Control app
• 6 year warranty
• Professional PA performance
• -Powerful, Compact 2 way System
• 440 W of peak-Power (class-D)
• 10" woofer
• 1" HF compression driver
• 127 dB @ 1 m (peak SPL)
• Integrated 3 channel mixer wireless remote control
• 2 combo XLR inputs through independent factory presets
• QSC Loudspeaker control app (iOS & android) for convenient System remote control
• 200 ms (maximum) of room delay
• Versatile
• Simple to use

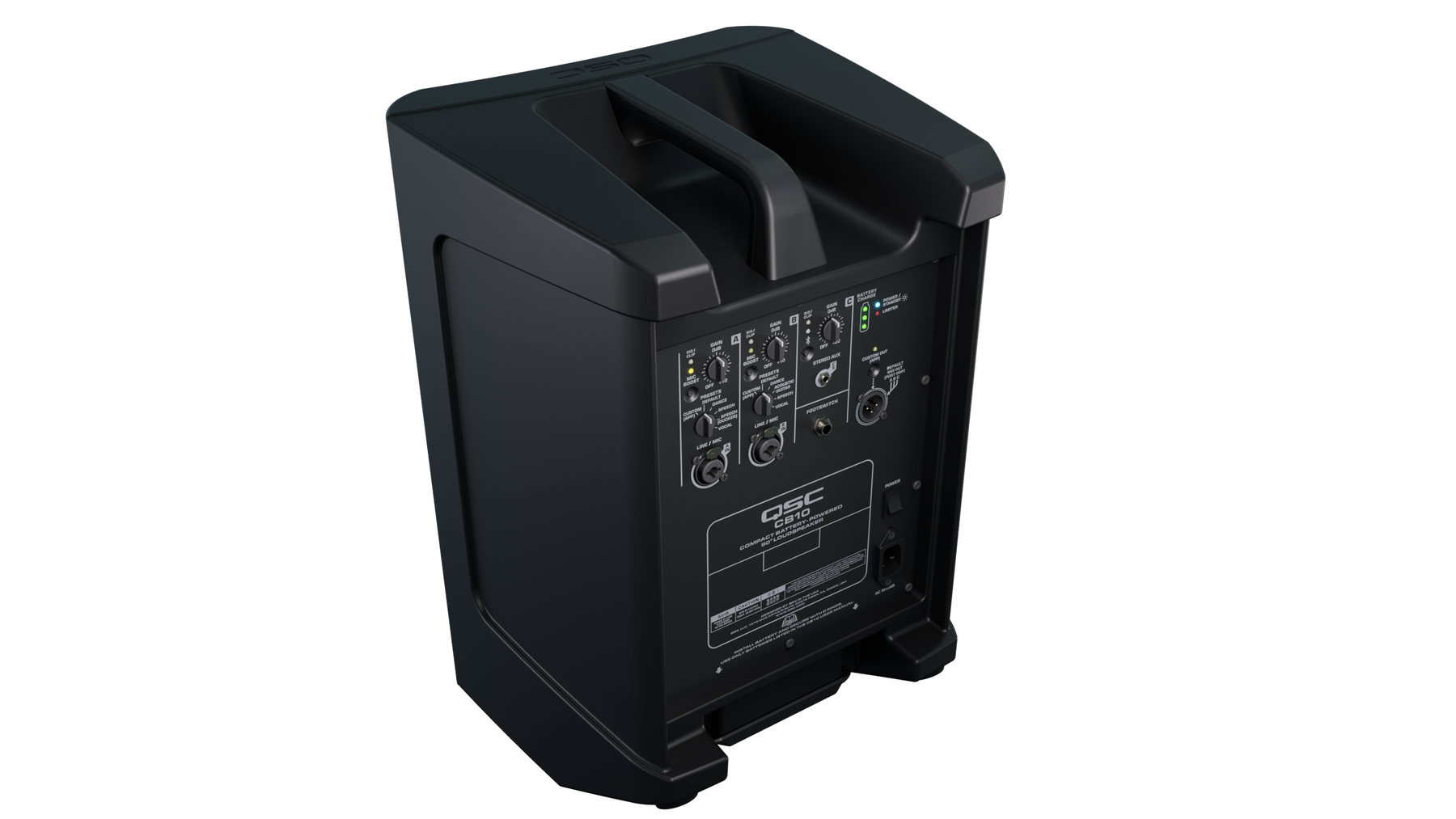

• Large carry handle on the enclosure top
• Lightweight and portable

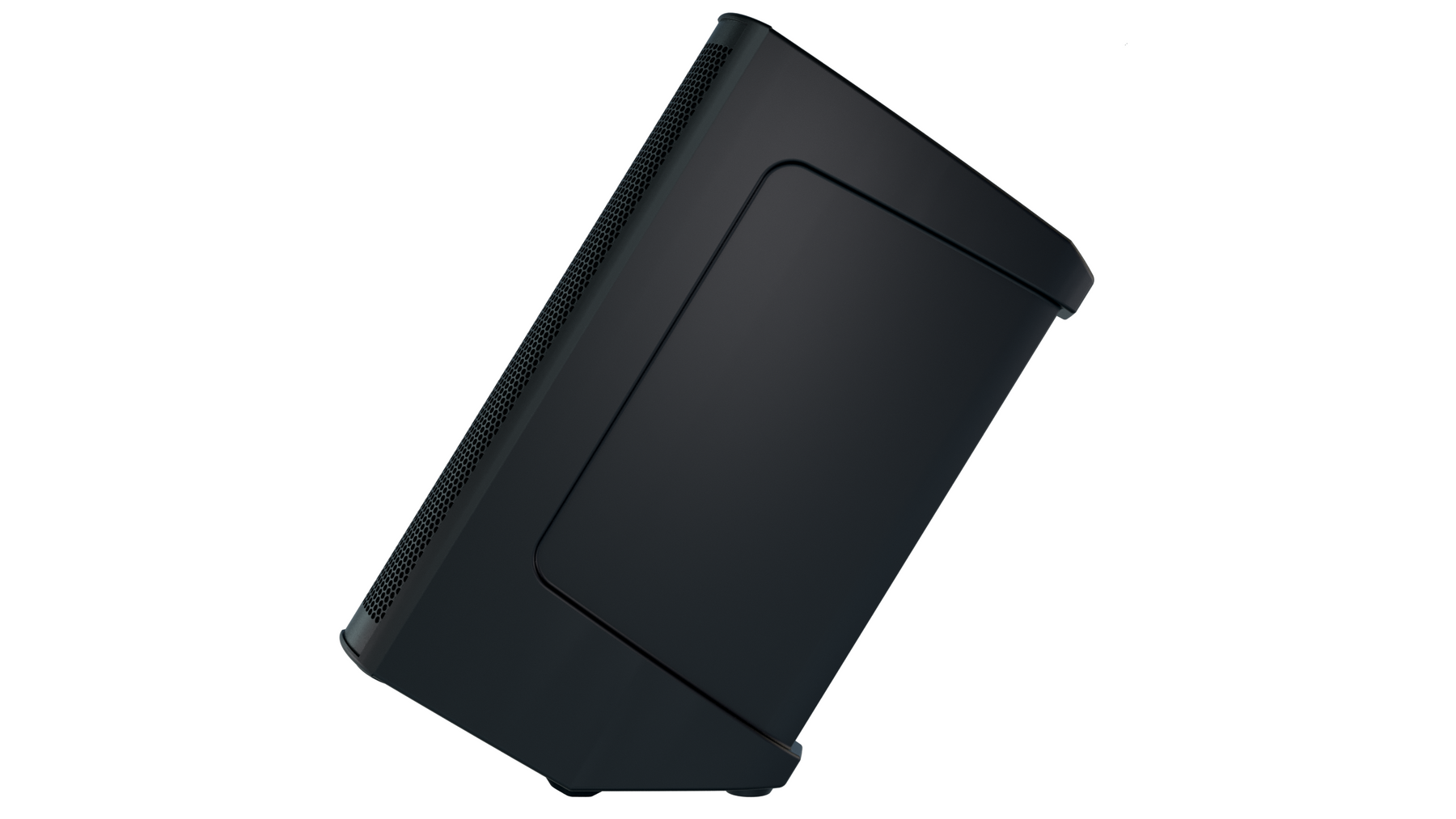

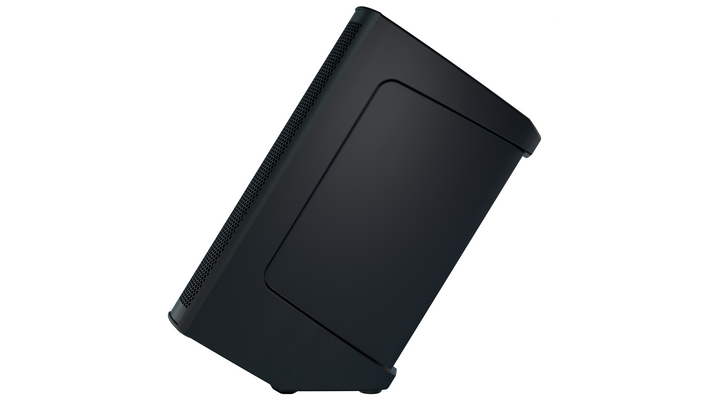

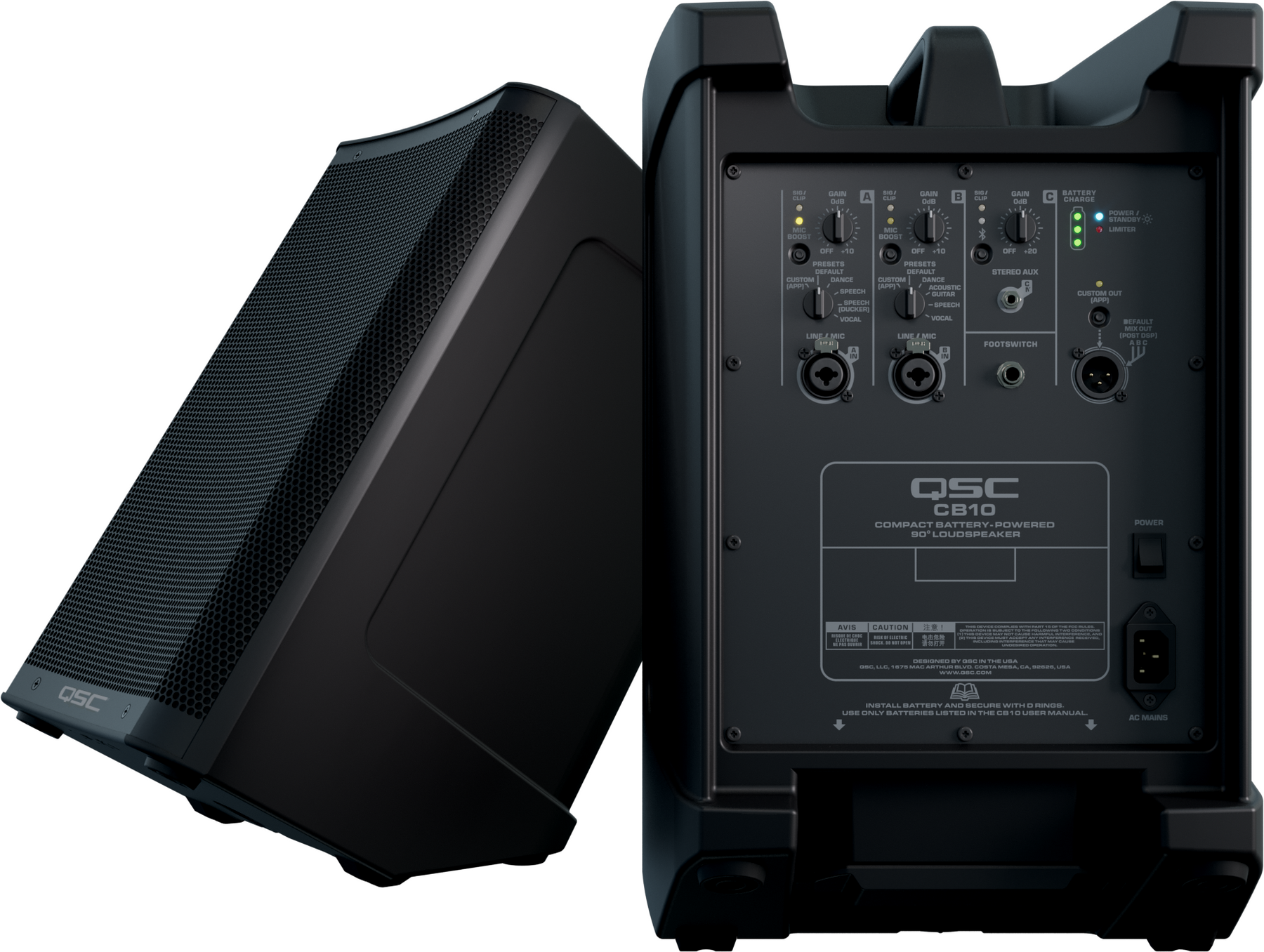

• 30 ° tilt back (floor deployment)

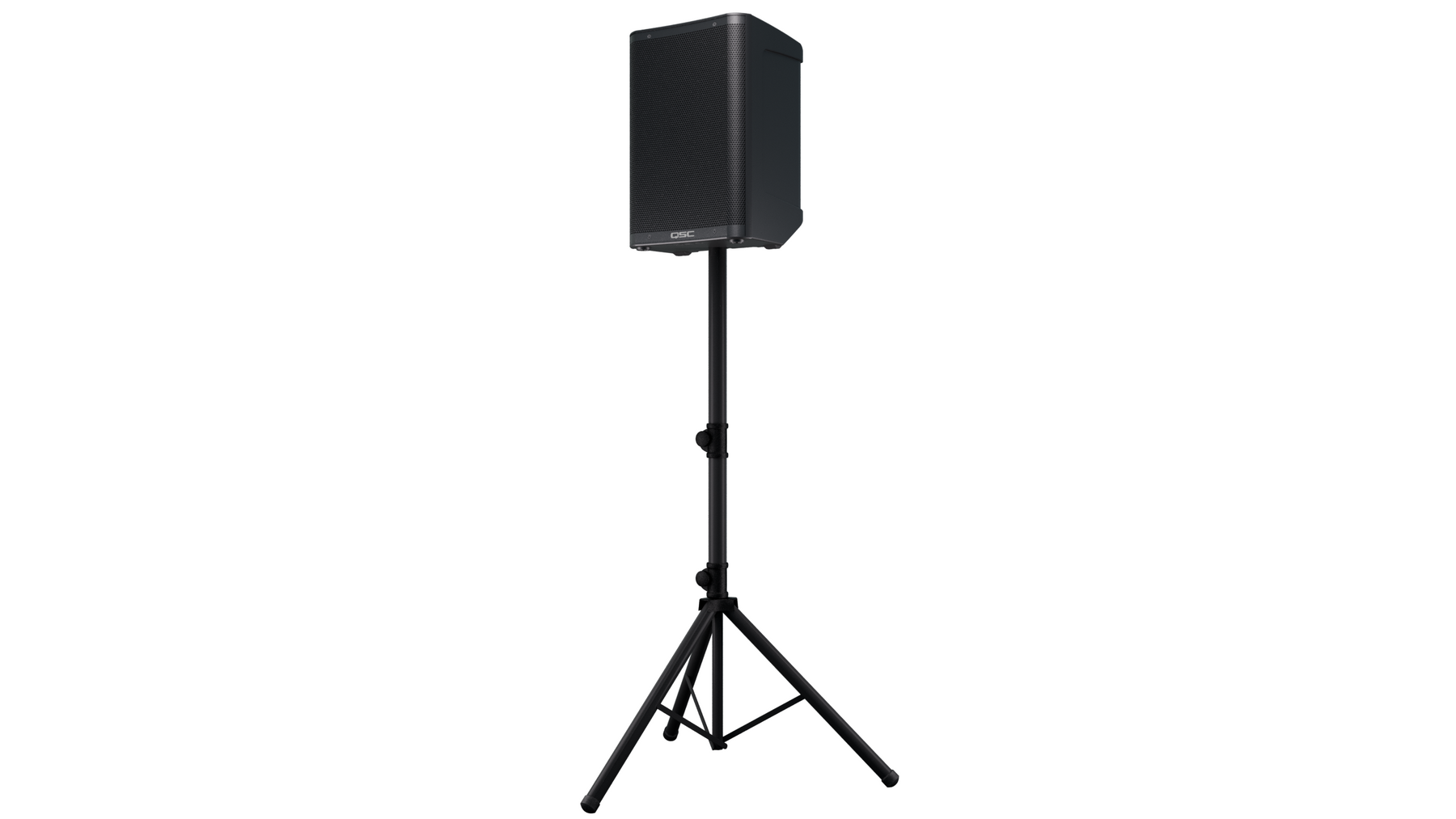

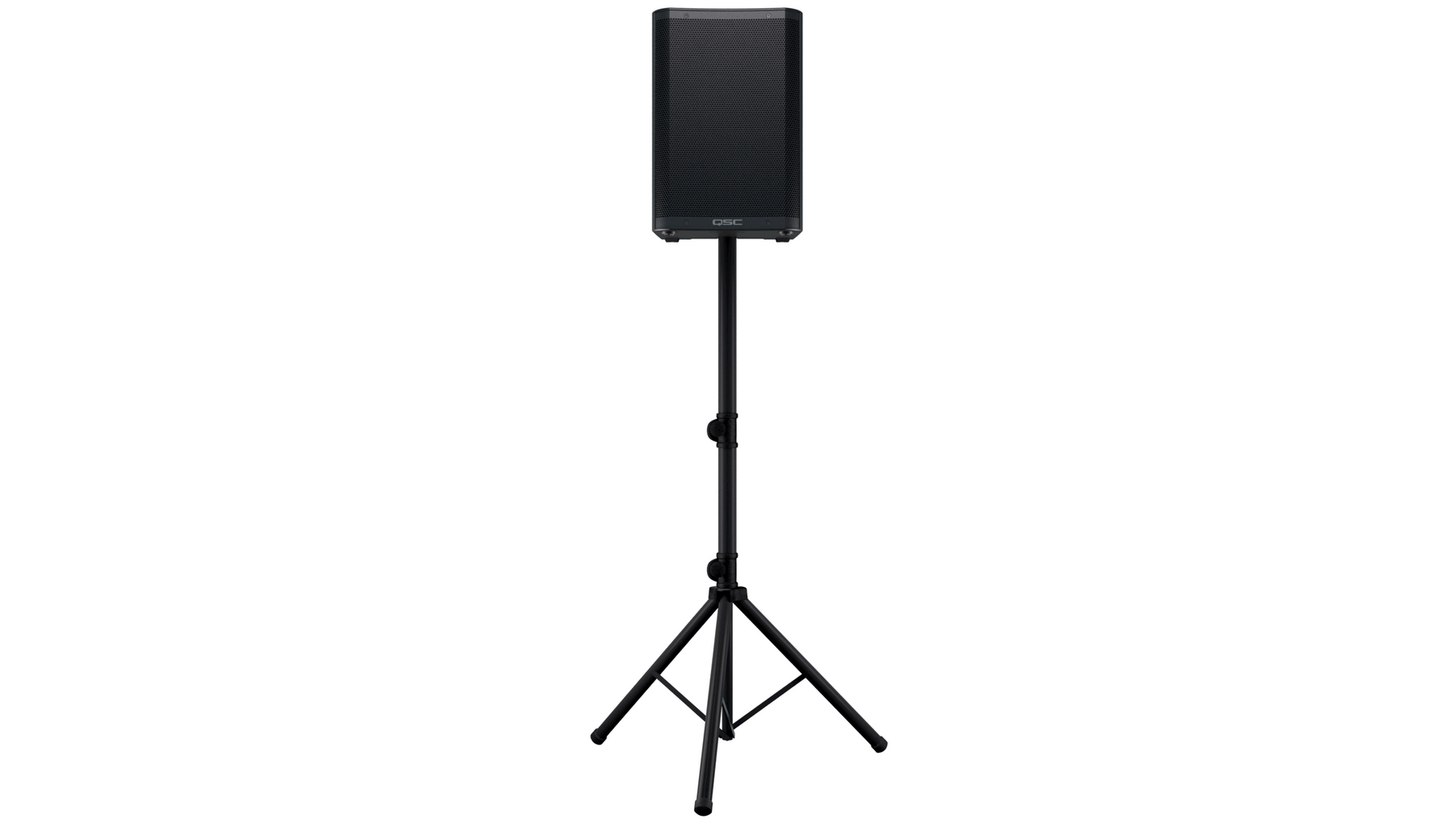

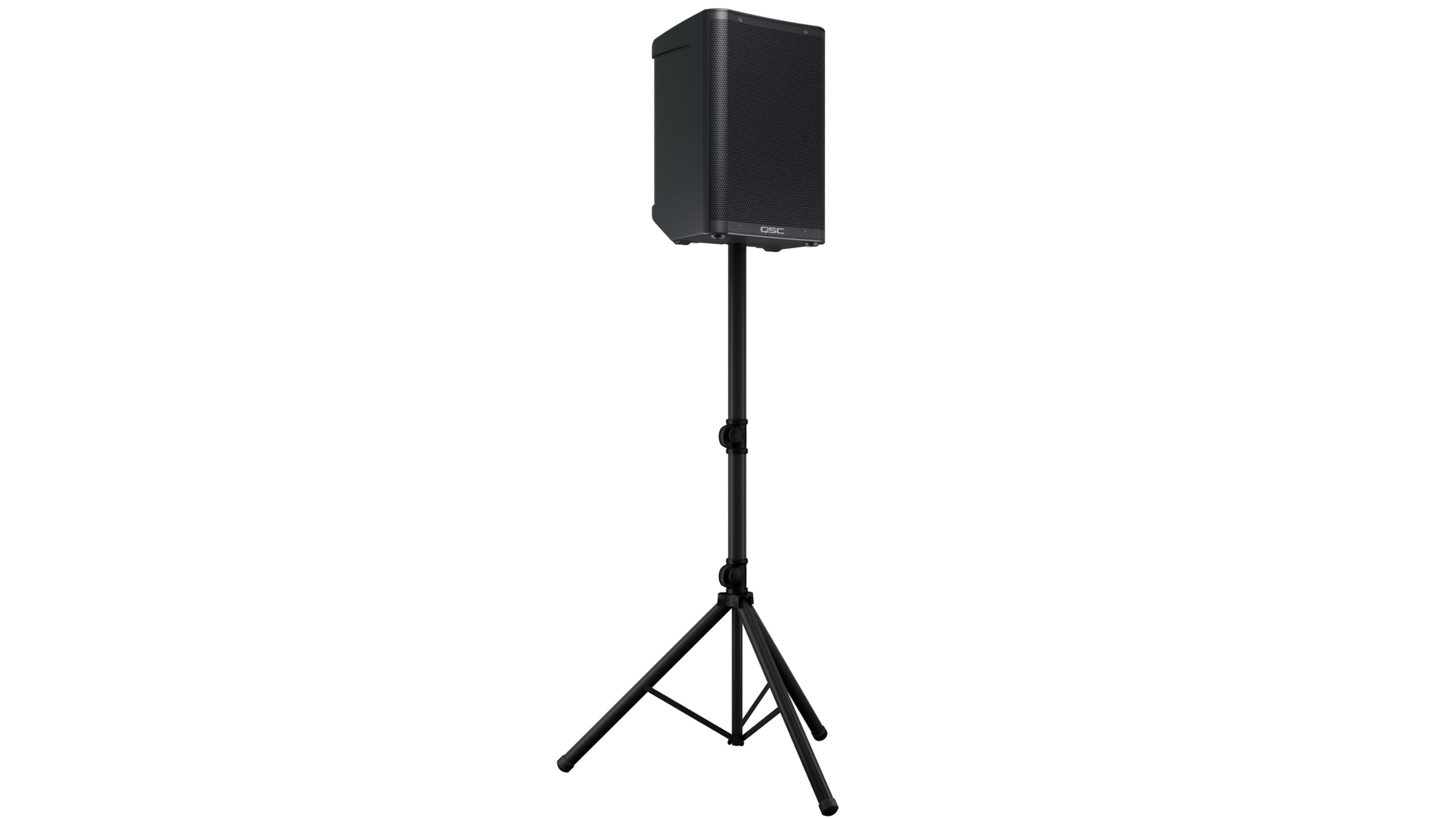

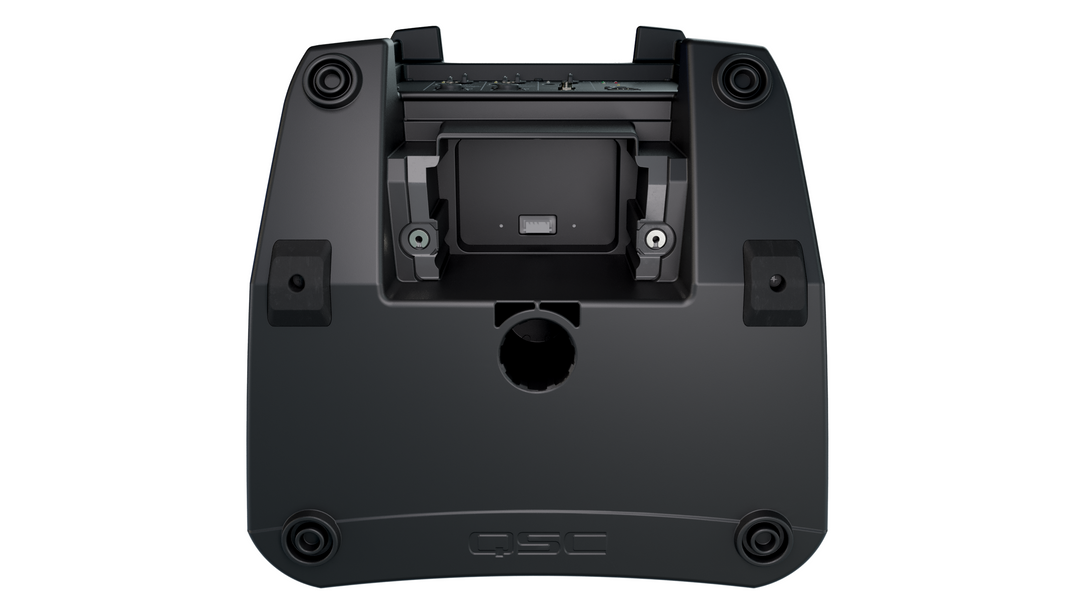

• Integrated pole cup (stand deployment)
• Bluetooth 5.1 audio
• For control and audio through true wireless stereo (TWS) Bluetooth
• Battery and AC-Power
• Up to 12 hours of battery-Power (rechargeable in approximately 4 hours)

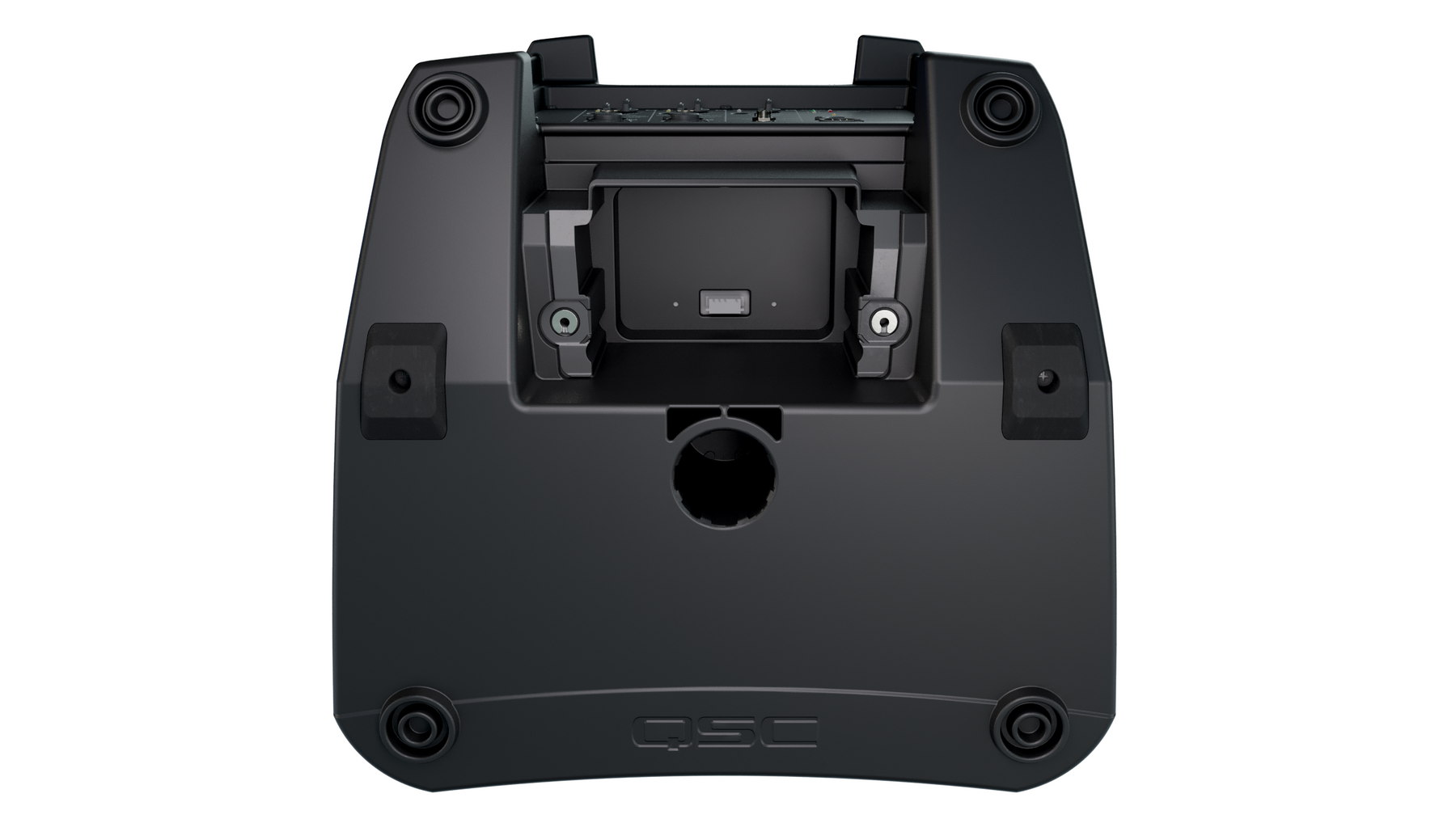

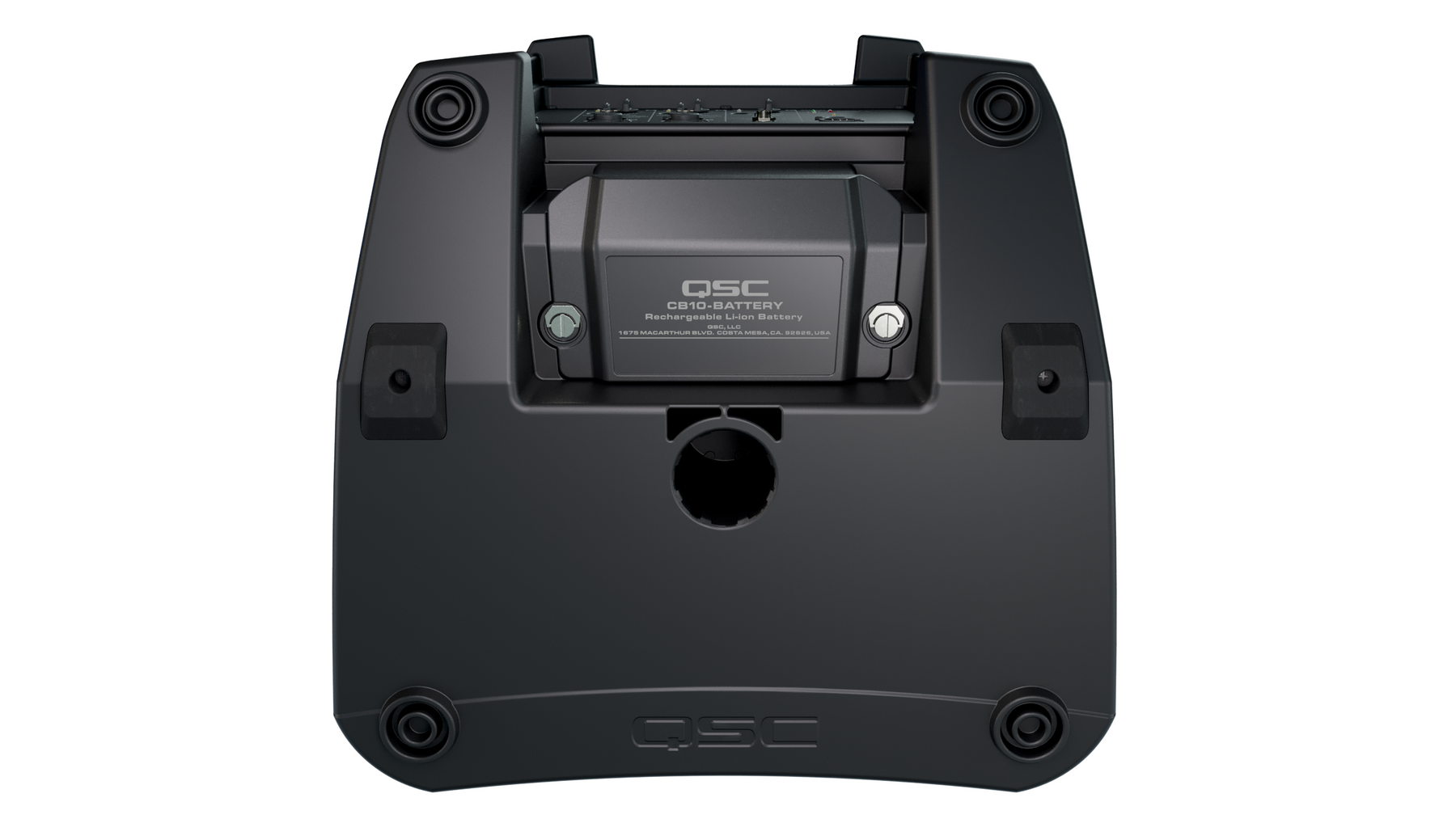

• User installable / removable battery pack
• AC power for unlimited steady operation

Specifications:

• Configuration: 2 way rechargeable Loudspeaker System
• LF transducer: 254 mm (10"), cone
• HF transducer: 25.4 mm (1"), compression driver
• Frequency response (- 6 dB): 51 hz - 18 kHz
• Frequency range (- 10 dB): 47 hz - 20 kHz
• Nominal coverage angle: 90 ° axis symmetric
• Maximum rated SPL: 127 dB @ 1 m
• Amplification (peak): class-D, 440 W
• Cooling: convection cooling

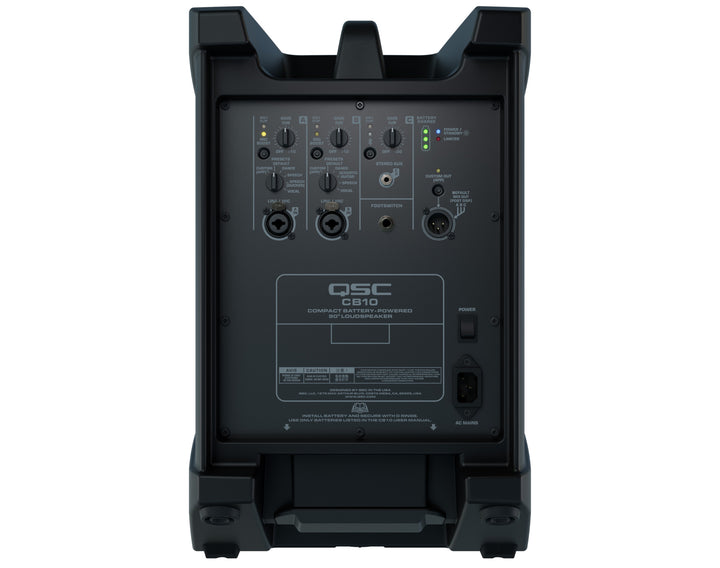

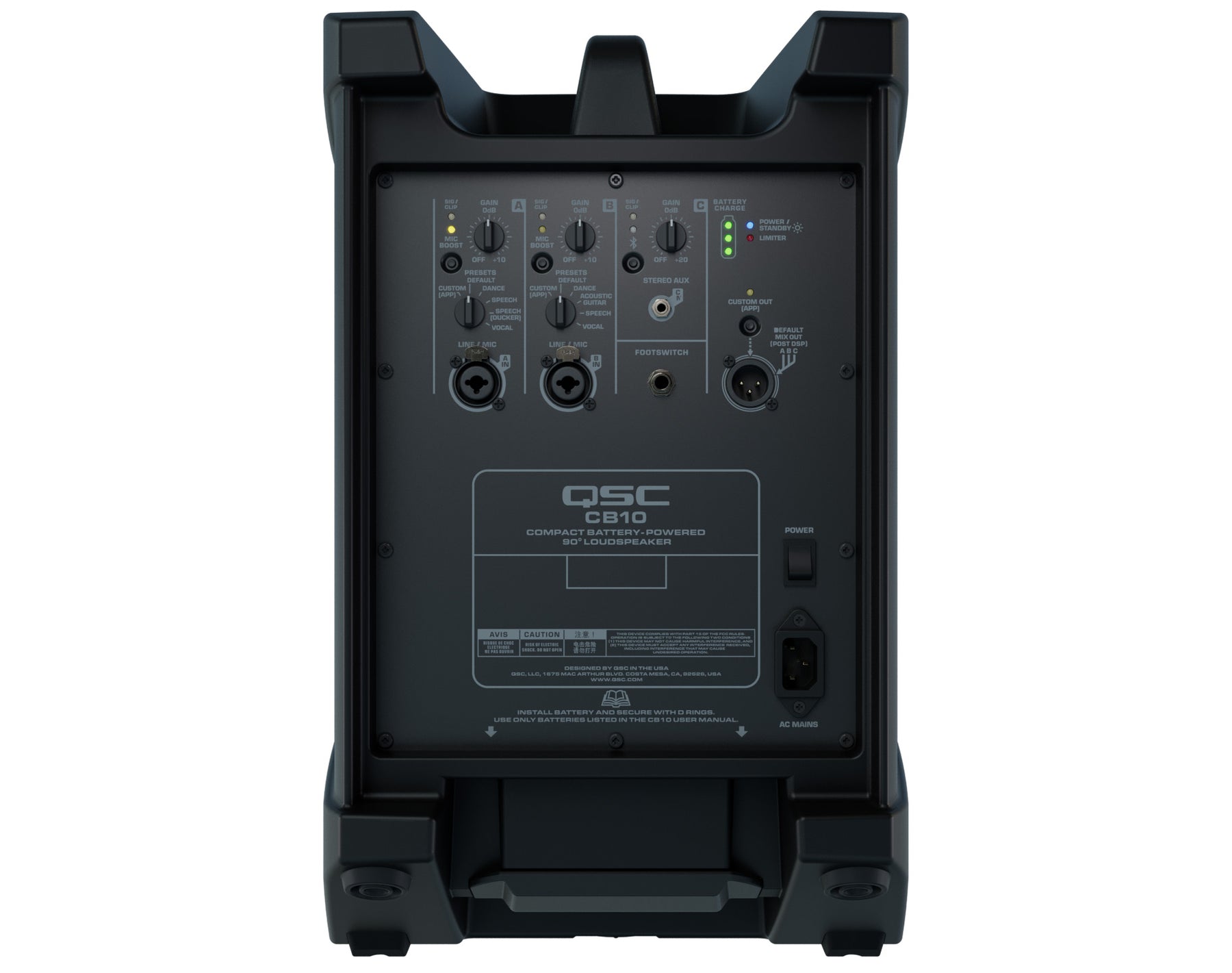

• Back panel controls
• 3 rotary level potentiometers (gain) and input signal / clip and battery charge and selected and limiter active and Bluetooth and output select and-Power / standby LED's
• 2 microphone boost push switch and 6 way contour selection rotary switch (featuring custom app controls) and locking XLR / F 1 / 4" combo (microphone / line input)

• 1 Bluetooth and output select and AC-Power switch and 3.5 and 6.3 mm TR and S and XLR / M (stereo input and footswitch and mix output) and locking IEC-Power connector
• Loudspeaker control app functions
• Input channels: gain control, presets and reverb and ducker (channels A and B), EQ

• Custom output routing
• Footswitch functionality: channel and FX mute, or boost
• Bluetooth audio configuration
• Loudspeaker firmware updates
• Back panel indicators
• Connectors
• DC-Power (Battery-): rechargeable lithium ion 22.2 V, 4400 mAh, 97 WH Battery-module
• Battery-life: up to 12 hours
• Battery-charging time: approximately 4 hours
• Battery-chemistry: lithium nickel manganese cobalt oxide
• AC-Power input: universal-Power supply: 100 - 240 VAC, 50 / 60 hz
• AC-Power consumption: 100 VAC, 1 A / 120 VAC, 0.9 / 240 VAC, 0.5 A
• Enclosure material: polypropylene
• Color: black (RAL 9011)

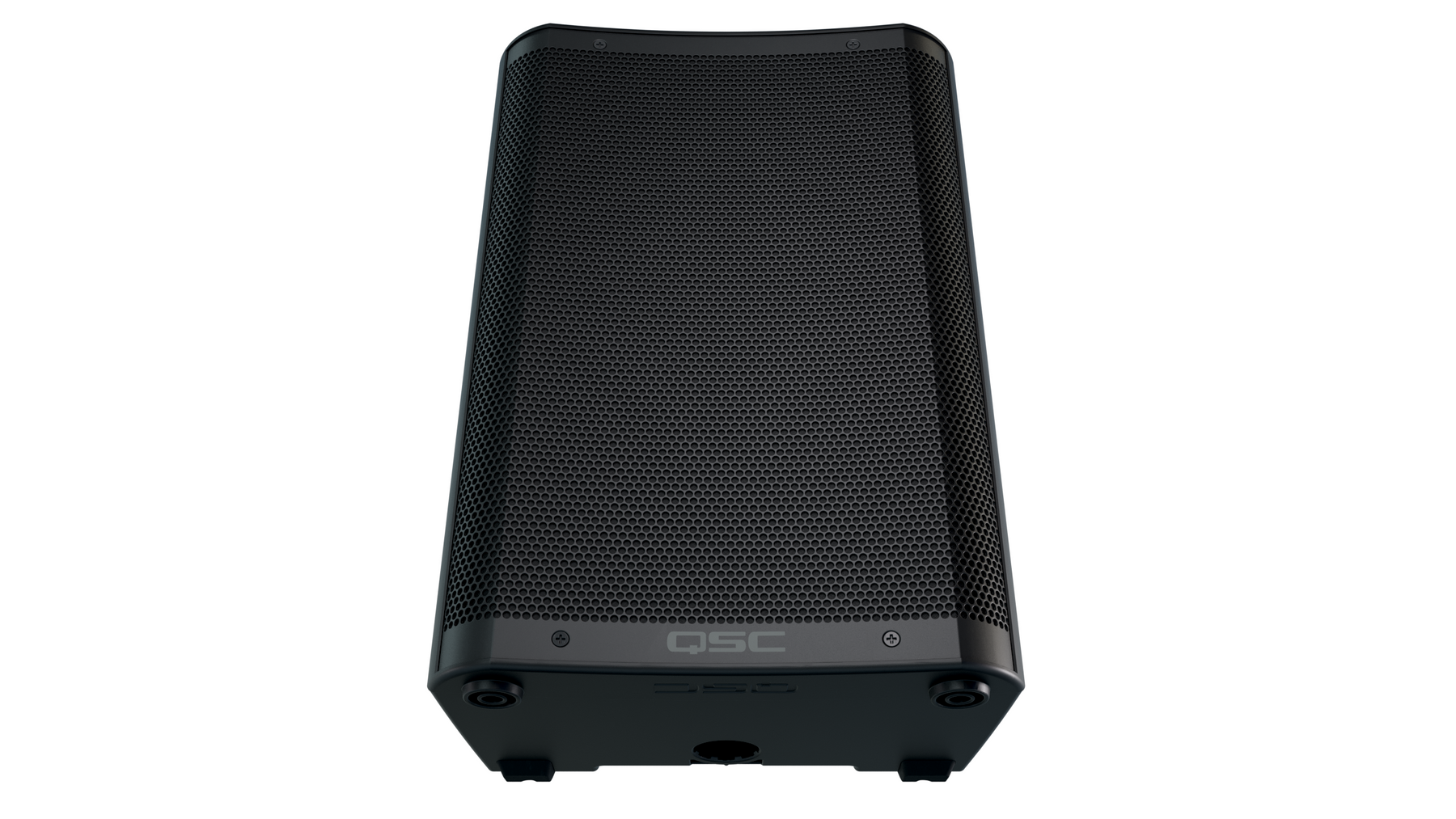

• Grille: powder coated steel through internal lining (18 gauge)
• Regulatory: CE, WEEE, TUV, China ROHS and II, FCC class-A
• Optional accessories
• CB10-CVR: weatherized cover for the CB10 Loudspeaker System

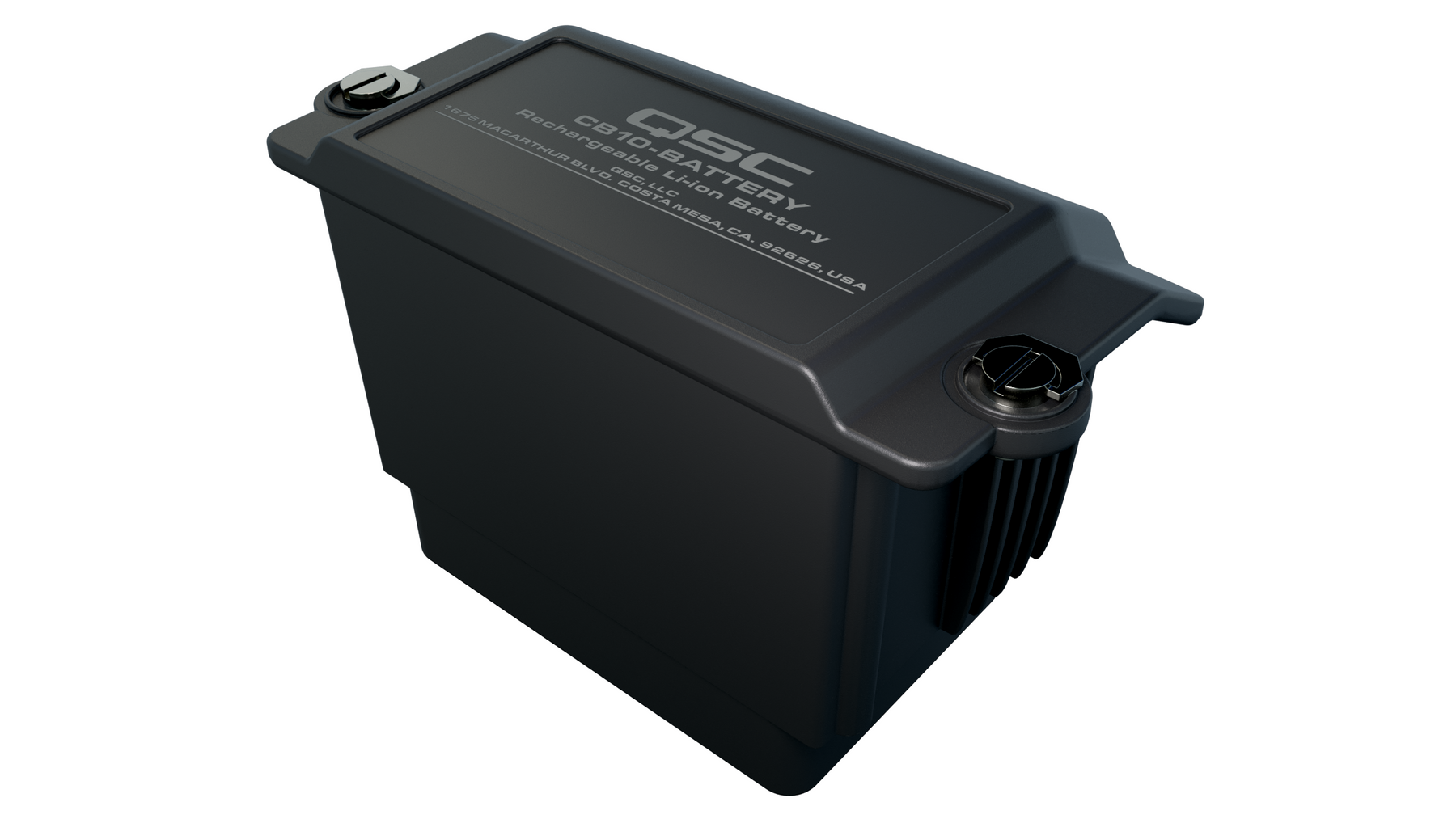

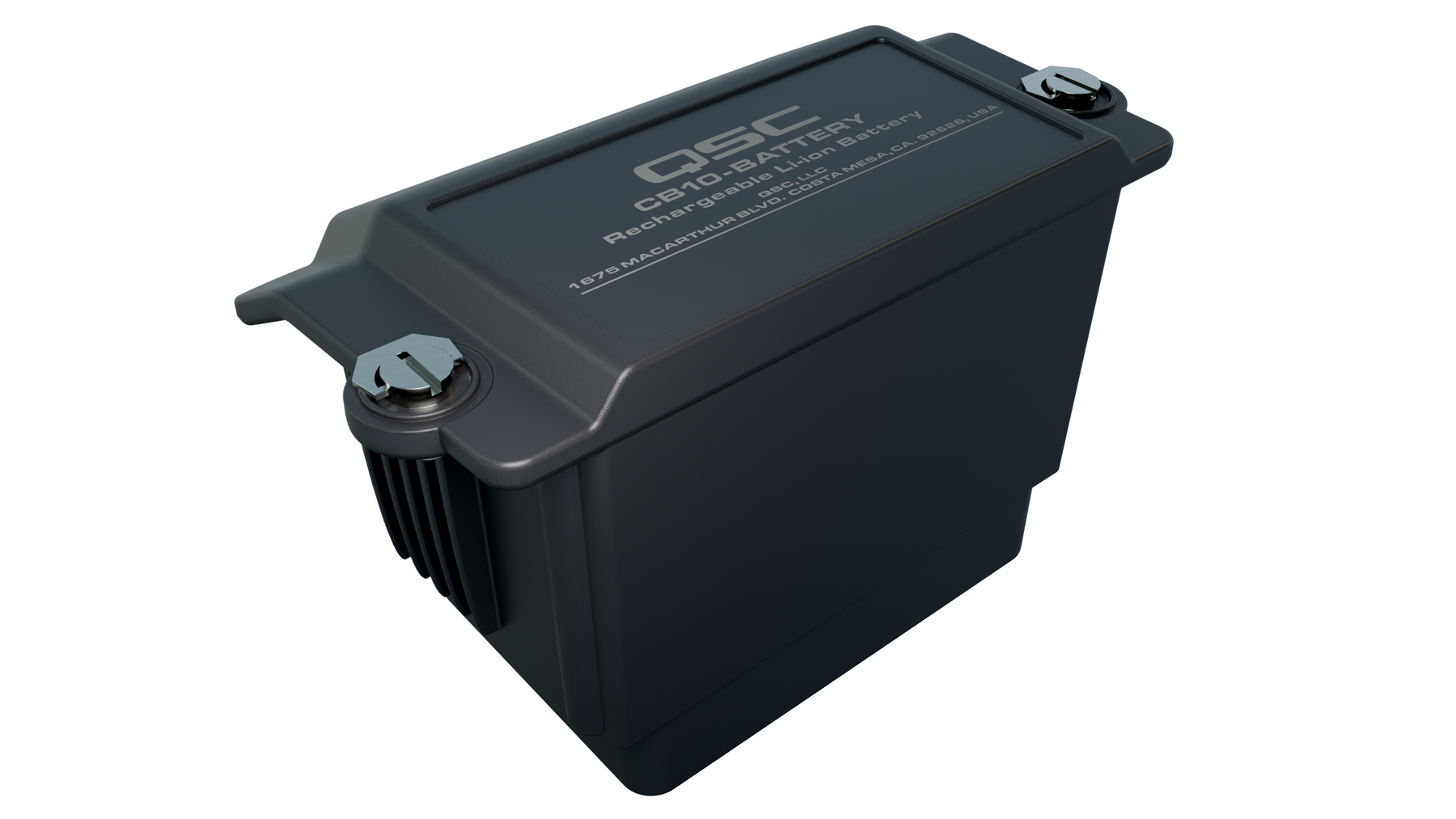

• CB10-BATTERY: rechargeable lithium ion 22.2 V, 4400 mAh, 97 WH Battery-module
• Dimensions (H x W x D): 18.3 x 12.3 x 11.3" (465 x 313 x 287 mm)
• Weight: 26.9 lbs (12.2 kg)
