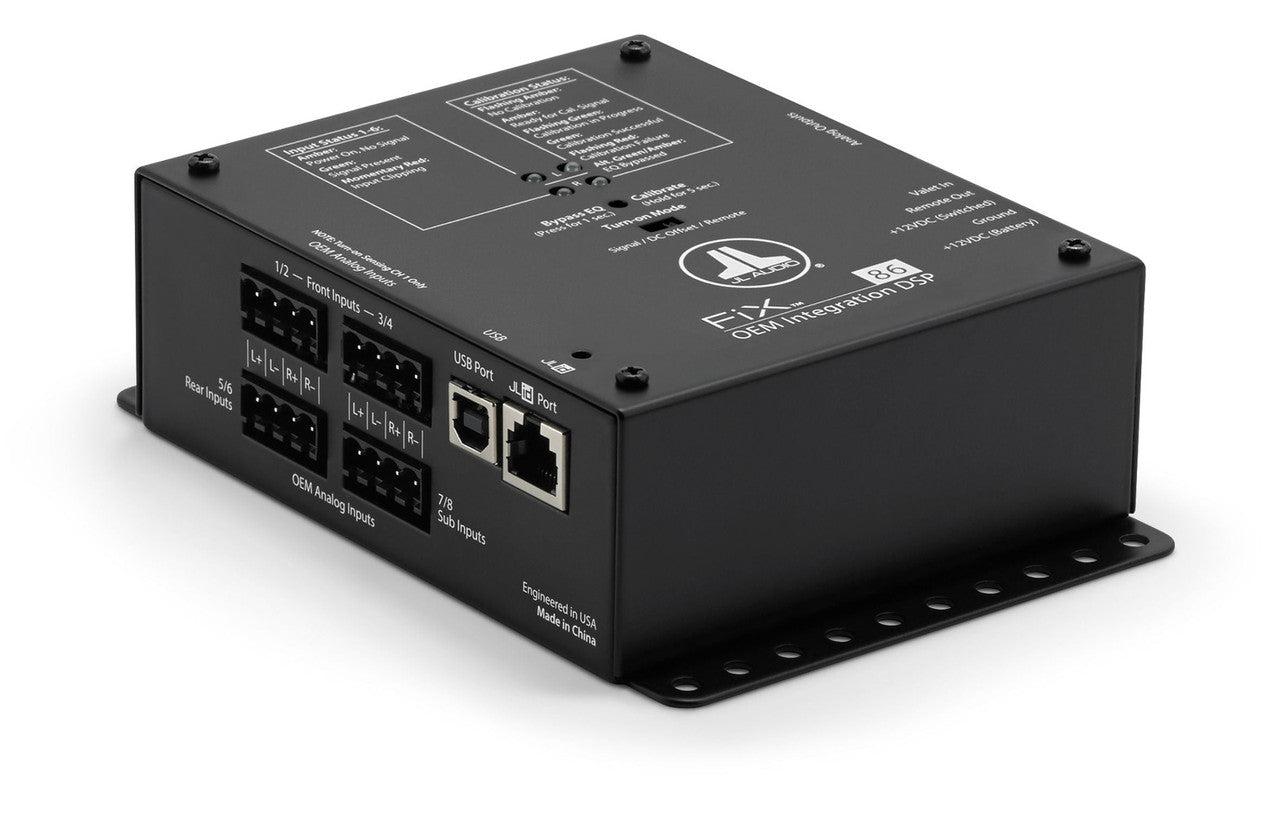

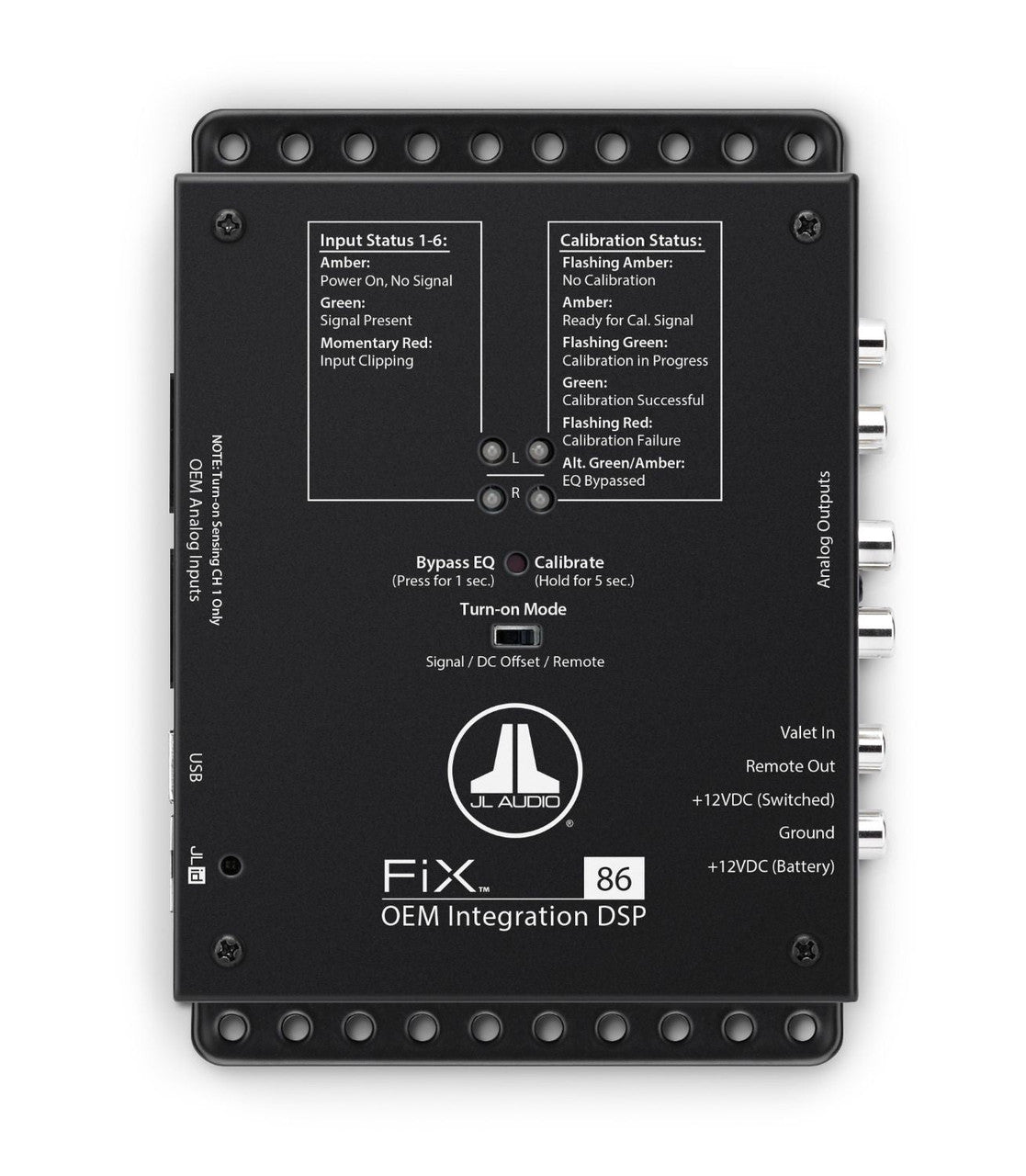

JL Audio FIX-86: 6 Outputs OEM Integration DSP Sound Processor
About the JL Audio FIX-86: 6 Outputs OEM Integration DSP Sound Processor

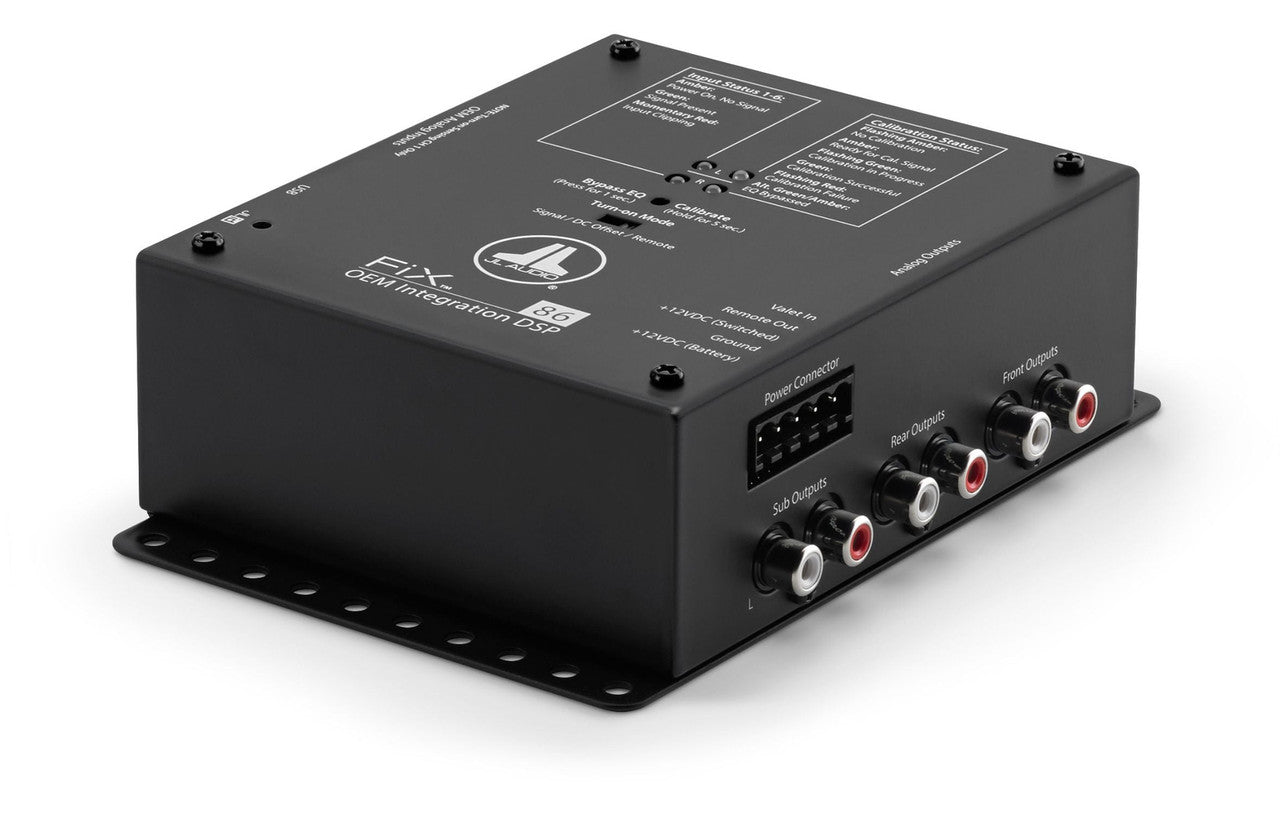

The FIX-86 is a state of the art digital signal Processor engineered to deliver outstanding Sound from factory source units, while retaining OEM fader control. Unlike typical OEM interface products, the FIX-86 automatically corrects time delayed factory Outputs prior to signal summing and EQ correction. Calibration takes just a single button press and about 30 seconds to complete, and no special equipment needed.
Through a powerful 24 bits DSP processor and quad 1 / 3" octave equalizers onboard, complex factory signals, up to 3 way front and 2 way rear, are combined and level matched automatically into 6, full range stereo signals: front and rear (fader controlled), and subwoofer (non fading, front + rear summed) Outputs.

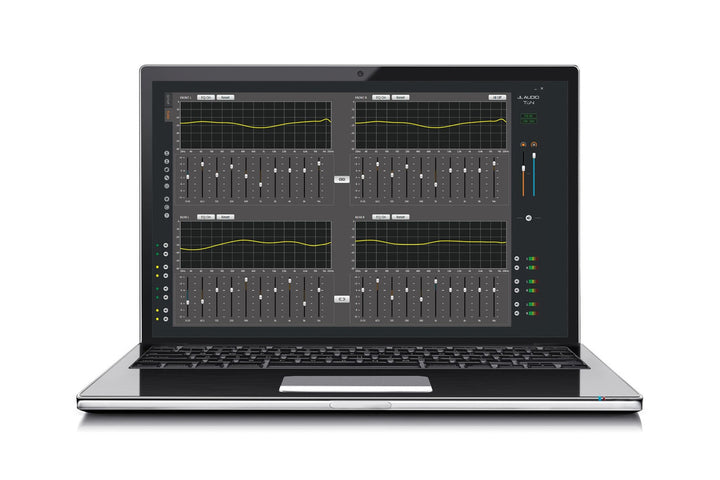

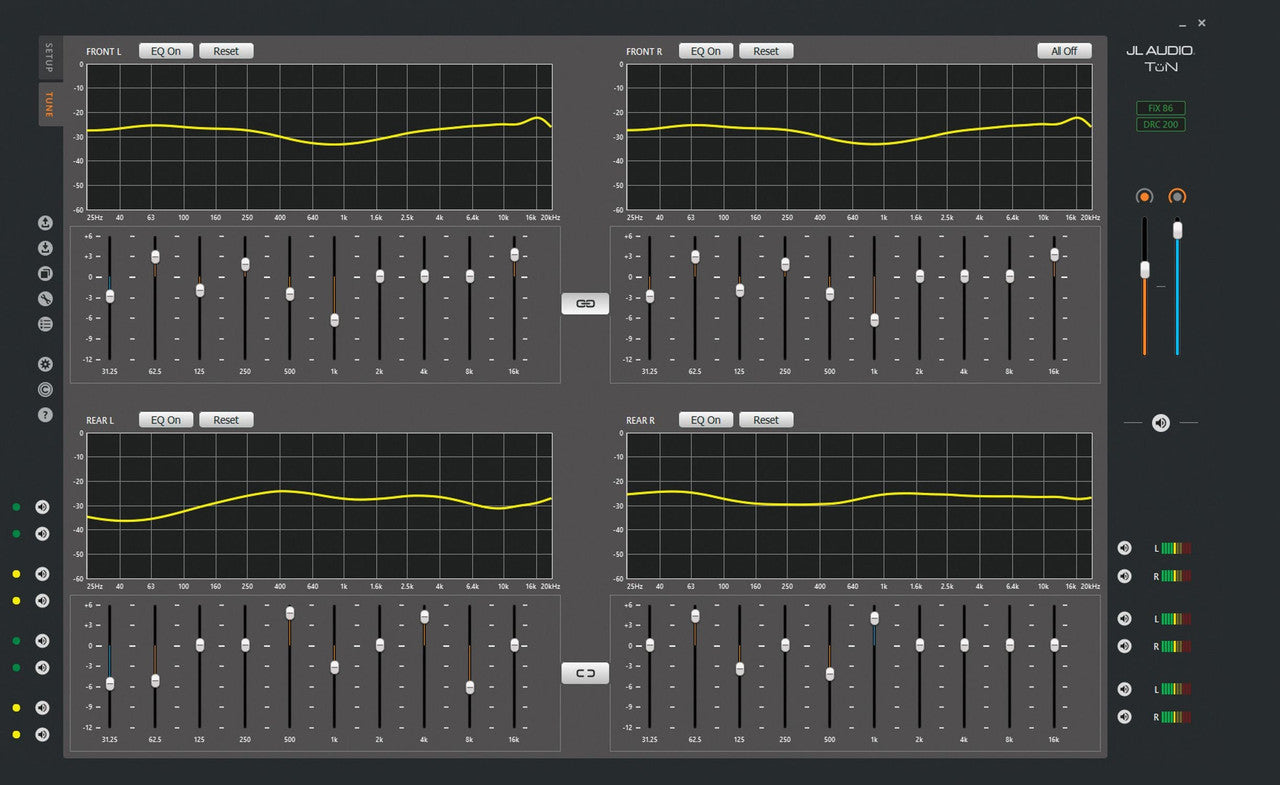

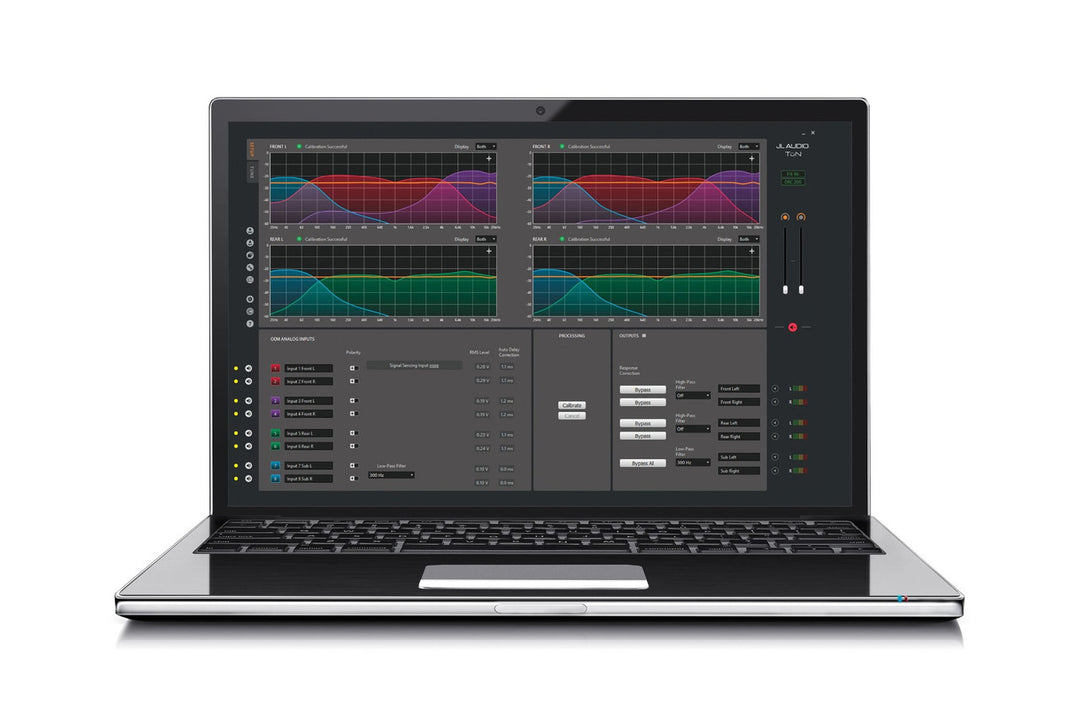

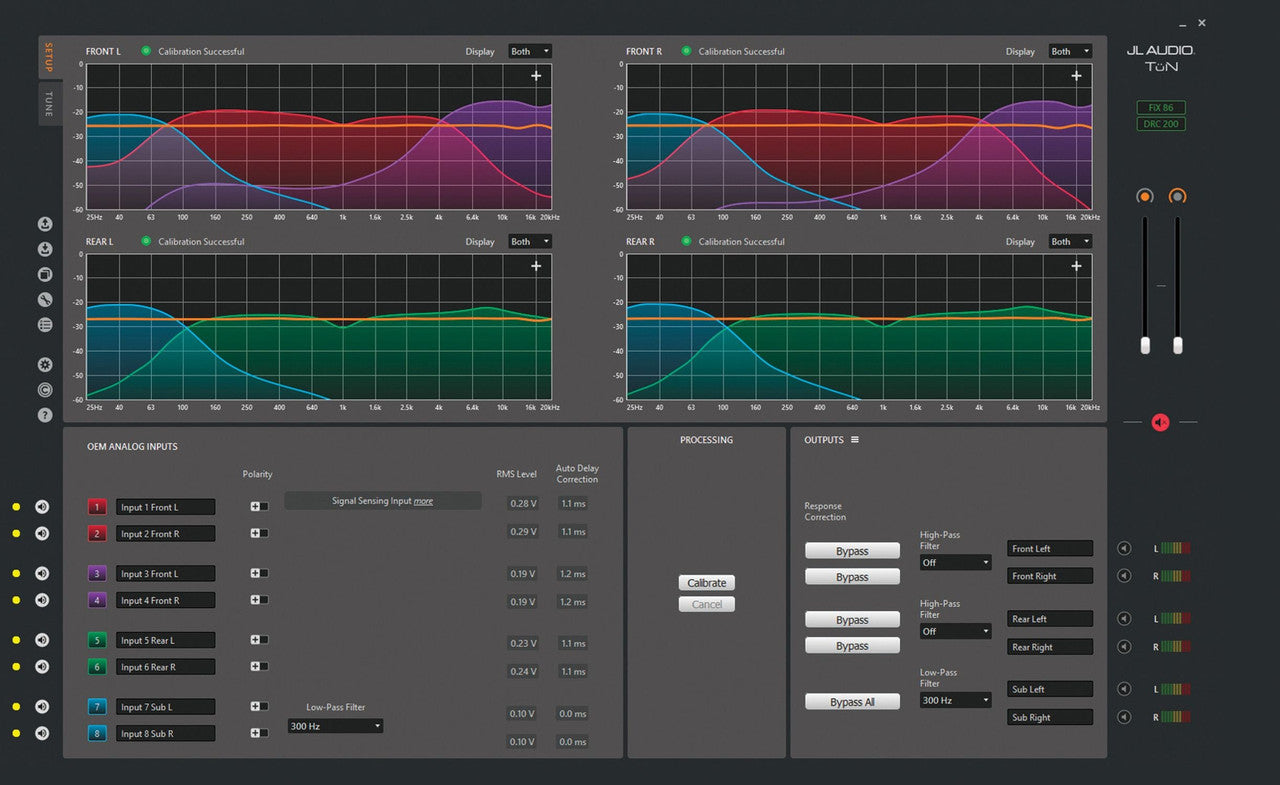

By connecting a PC running TUN software via USB, you can also access a complete suite of diagnostic panels that show the frequency response of input signals, as well as the corrected Outputs. Adjustments can be made to input polarity, muting, and filtering, and new calibrations can be initiated from the PC as well. By clicking on the "tune" tab of the TUN interface, you can also access 4, user adjustable, 10 bands, graphic equalizers to fine tune the Output signals.

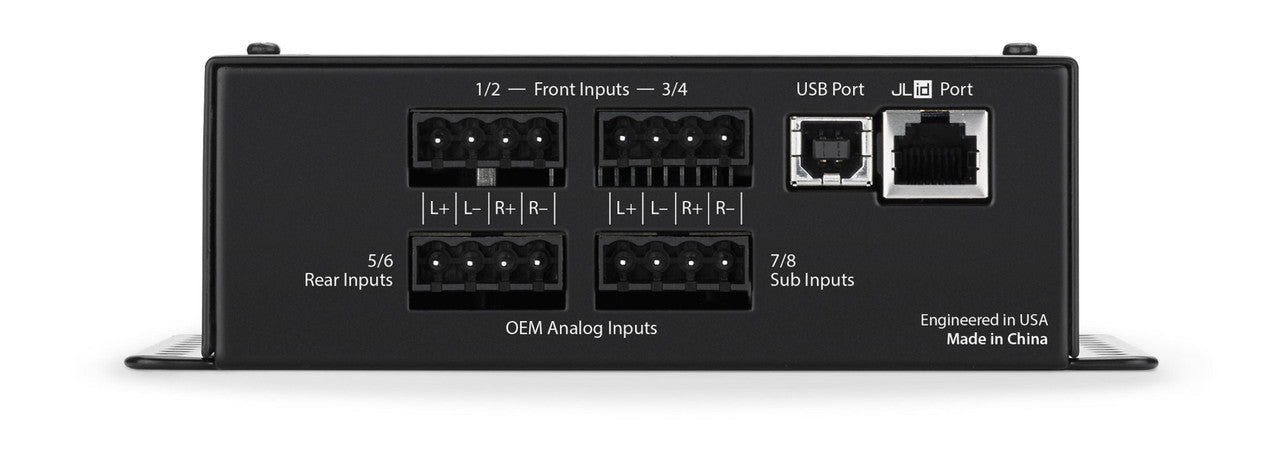

Differential balanced inputs accept virtually any OEM analog Audio signal, from low voltage, line level to high power, amplified speaker level outputs (up to 30 V RMS). Activation methods include 12 V or auto turn on (signal / DC offset sensing) to trigger a dedicated remote turn on output for aftermarket equipment. An optional DRC-100 / 200 digital remote controller (sold separately) adds master volume control and / or subwoofer level control from the driver's seat. Achieving great sound from your factory stereo has never been easier, or sounded better, now through fader retention and subwoofer Output!
Features:
- System integration digital Sound Processor through automatic time alignment, channel summing, and equalization
- Removes factory sound processing for aftermarket speakers and amplifiers
- 8 speaker level inputs (channel 1 - 2: full range; 7 - 8: subwoofer)

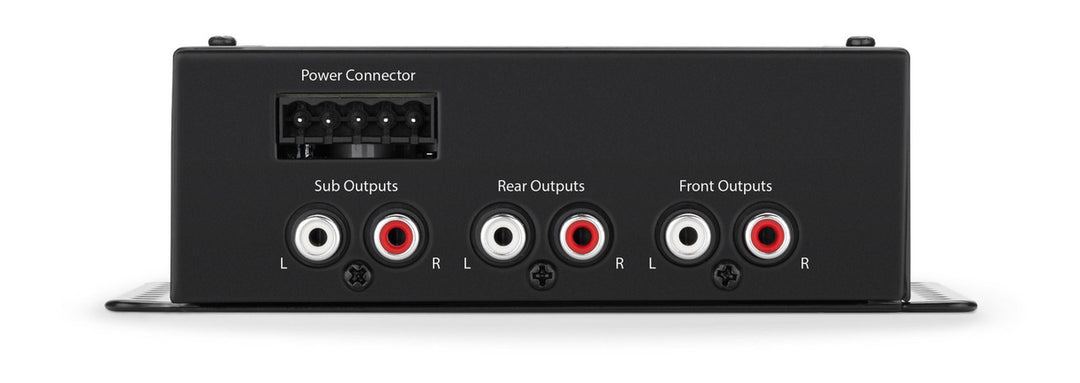

- 6 preamp Outputs (3 pairs RCA) for connection to external processors and amplifiers
- 24 bits / 48 kHz digital Audio resolution
- Calibration CD included
- Digital signal Processing via windows PC and JL Audio's TUN software
- Displays frequency response before and after Processing
- 10 bands graphic EQ on Outputs
- Control FIX calibration process
- Reverse polarity of any input
- High pass filters on front and rear Outputs
Specifications:
- Power supply type regulated: DC-DC SMPS
- Input operating voltage: 10 - 16 VDC
- Standby current draw: <1.5 mA
- Operating current draw: 0.7 A
- Recommended fuse value: 1 A
- Input channels: 8
- Input type: differential balanced
- Input voltage range: 250 mV - 30 V RMS
- Minimum input voltage: 10 mV RMS
- Input level setting: fully automatic
- Output channels: 6 (front / rear / sub Output pairs)
- Analog Output: unbalanced, stereo RCA jacks
- Digital Output: N / A
- Output impedance: 450 Ω
- S / N ratio: 96 dB (A weighted, referred to 4 V RMS Output)
- THD + N @ rated Output: 0.0 % (20 hz - 20 kHz)
- Dimensions (W x H x D): 4.3" x 1.9" x 6.1" (109 x 47 x 156 mm)
- Net weight: 2.6 lbs / 1.2 kg
Signal Processing:
- Audio resolution: 24 bits / 48 kHz
- Number of EQ bands: 30 x 2 channels
- EQ resolution: 1 / 3" octave (25 hz - 20 kHz)
- Remote level control: optional (DRC-100 / 200)
- Remote level functions: master volume control, hands free optimization, LED status reporting (DRC-200 adds subwoofer level control)
What's in the box:
- Processor
- Four and one 4 and 5 pins euroblock (phoenix) connectors
- Owner's manual
- Calibration disc
