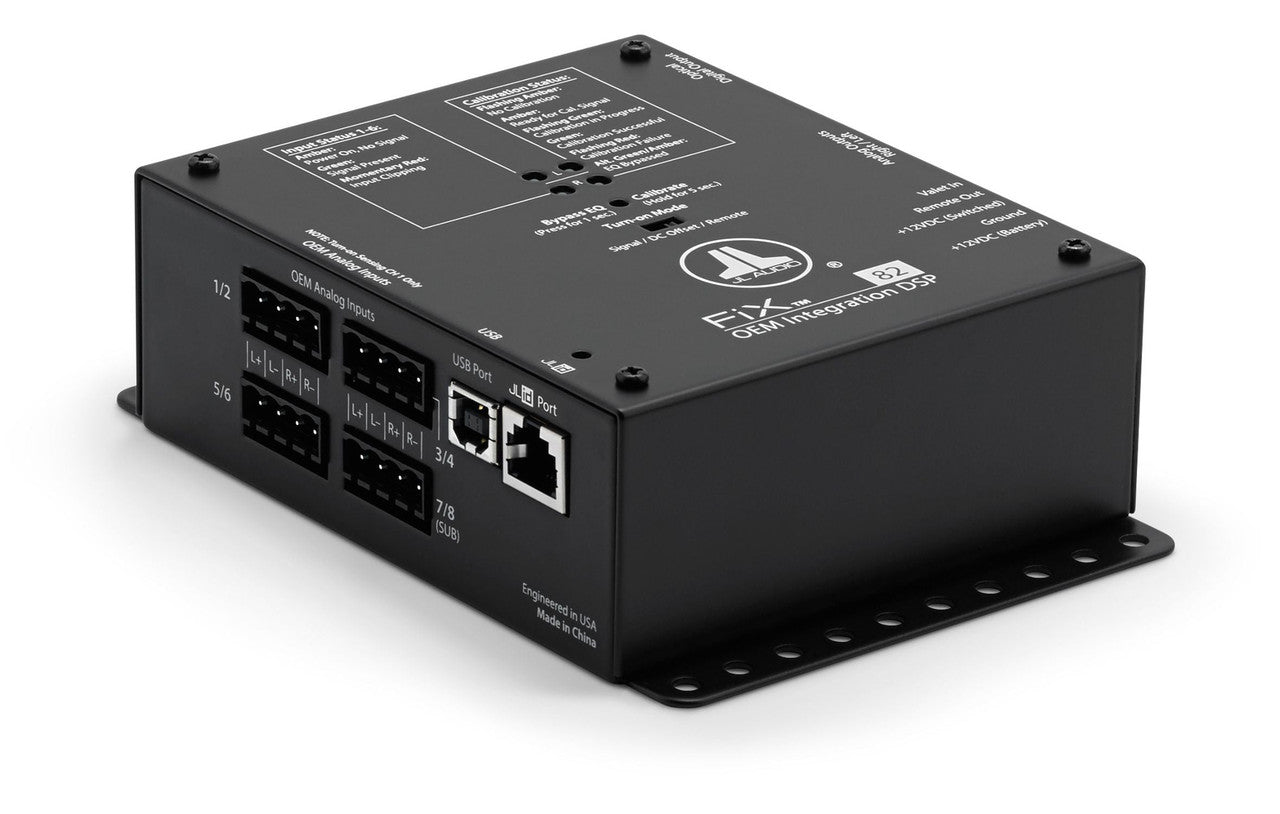

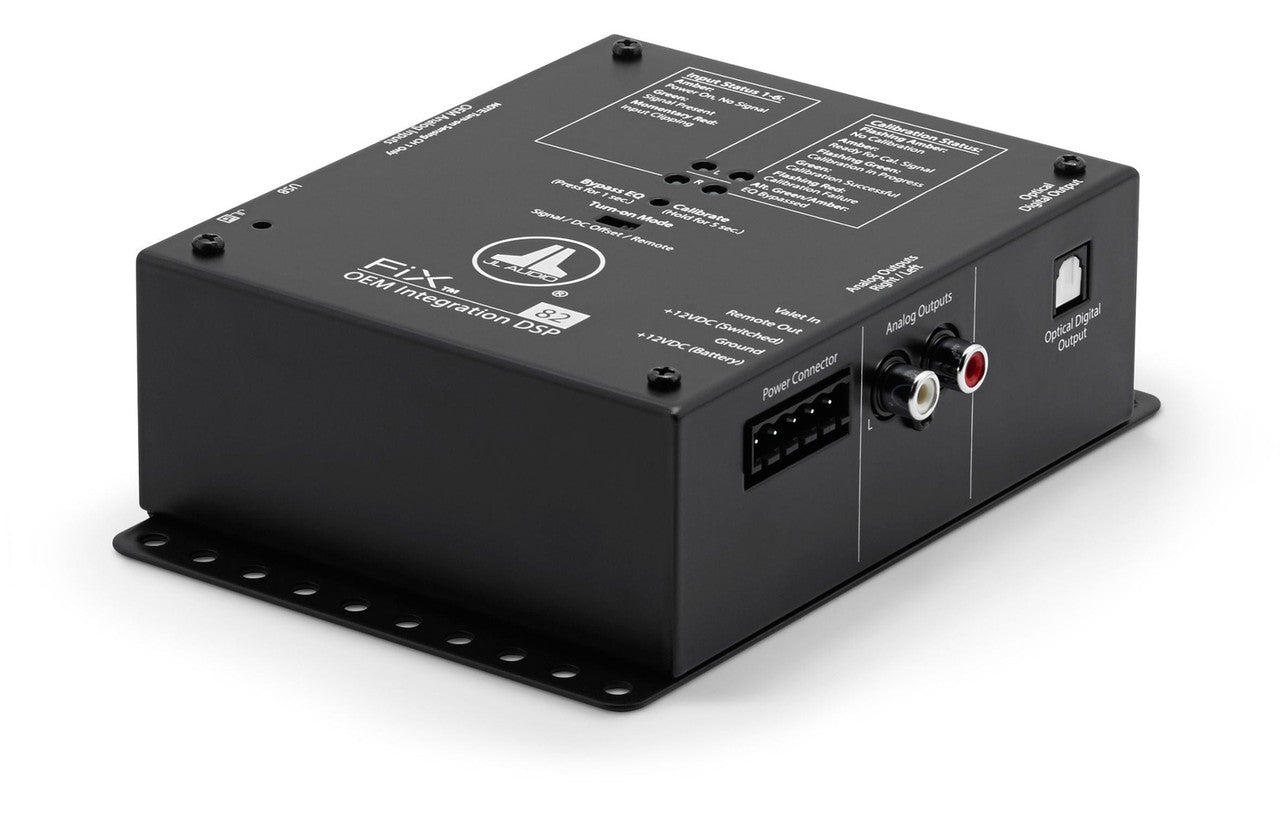

JL Audio FIX-82: 2 Outputs OEM Integration DSP Sound Processor
About the JL Audio FIX-82: 2 Outputs OEM Integration DSP Sound Processor
The FIX-82 is a state of the art digital signal Processor engineered to deliver world class Sound from factory Audio systems, without replacing the OEM source unit. The FIX-82 is the first DSP to automatically correct time delayed factory Outputs prior to signal summing and EQ correction. Through a powerful 24 bits DSP Processor and dual 1 / 3" octave equalizers onboard, complex 2, 3 and 4 way factory Audio Outputs are combined and level matched automatically into a flat, full range stereo signal. Differential balanced inputs accept virtually any OEM analog audio signal, from low voltage, line level to high power, amplified speaker level Outputs (up to 30 V RMS).

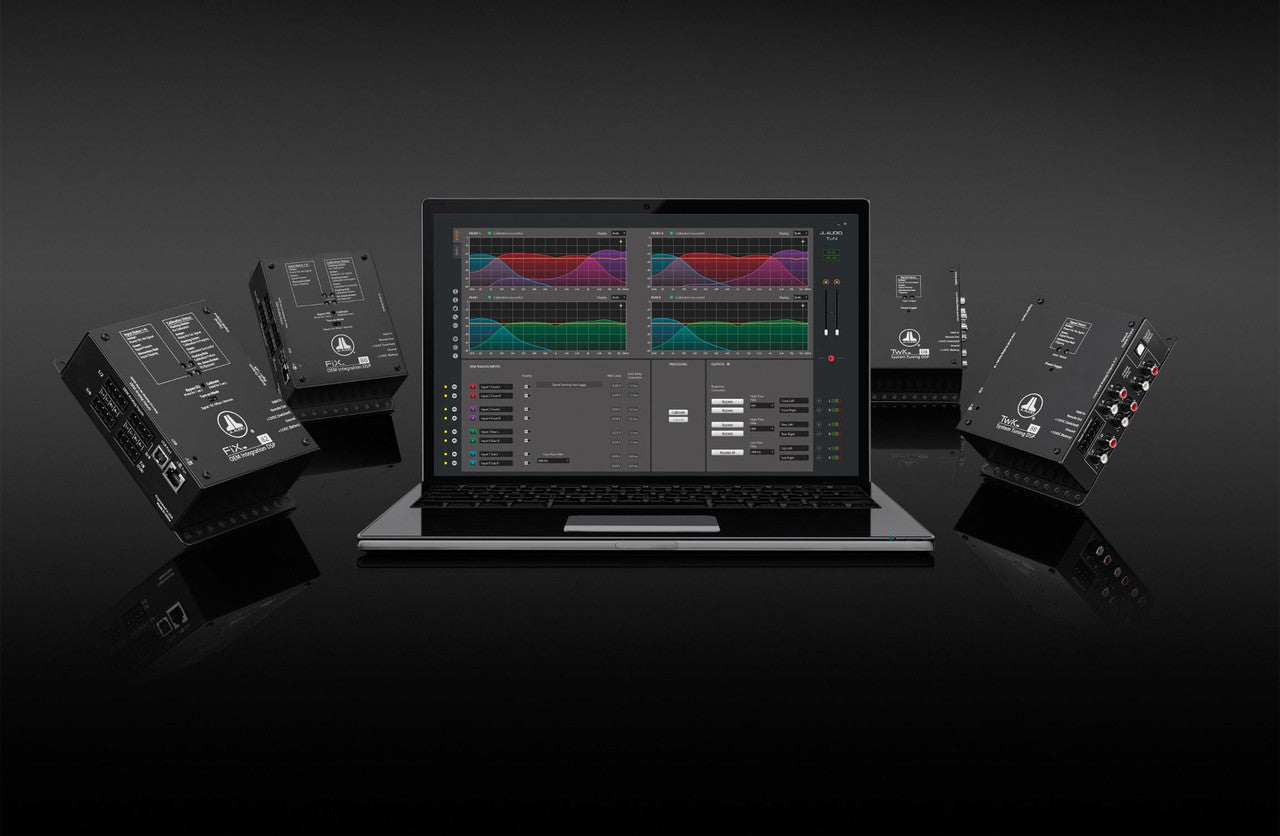

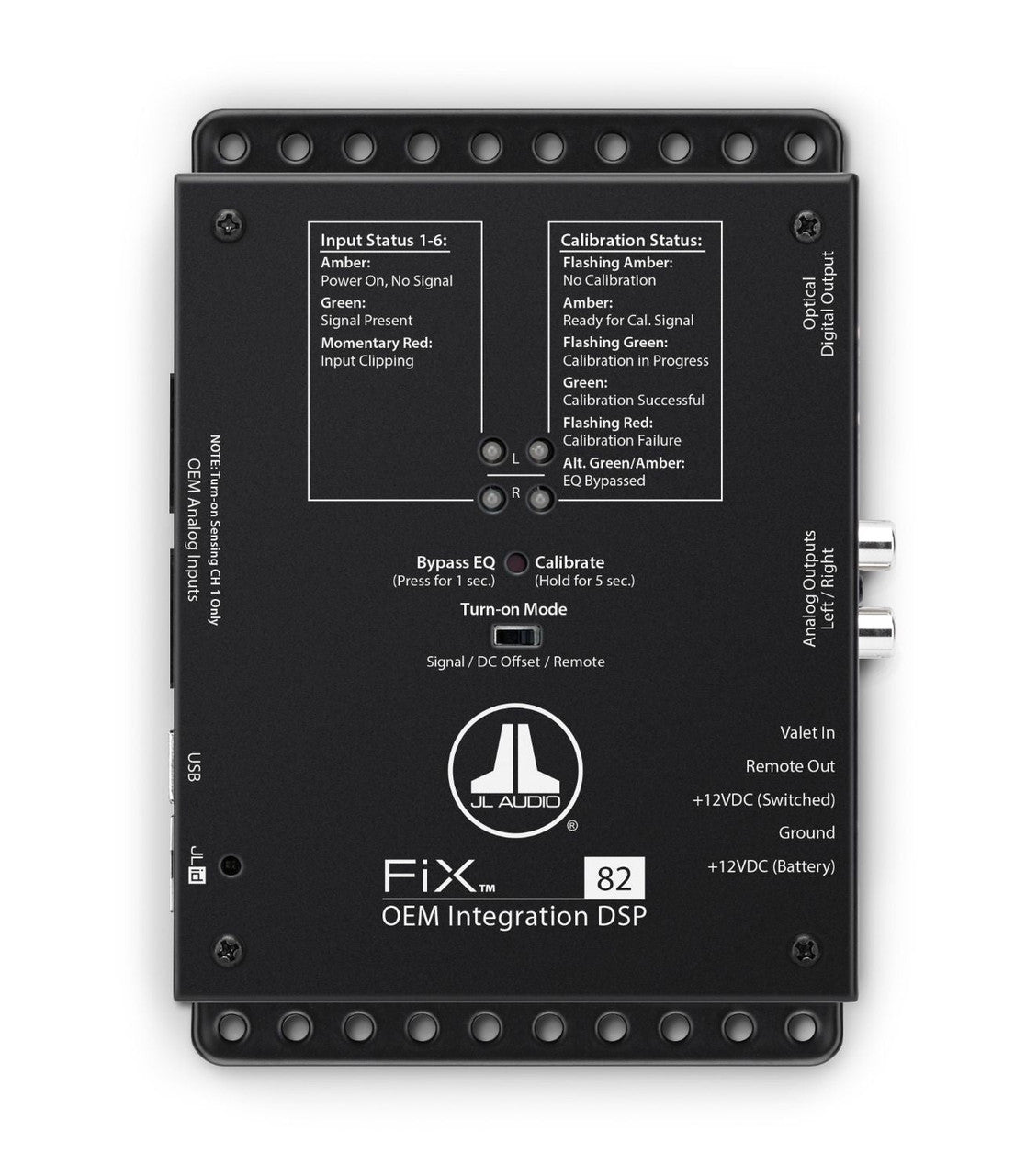

Calibration is initiated through just a single button press and takes only about 30 seconds to complete, and no special equipment needed! By connecting a PC running TUN software via USB, you can also access a complete suite of diagnostic panels that show the frequency response of input signals, as well as the corrected Outputs. Adjustments can be made to input polarity, muting, and filtering, and new calibrations can be initiated from the PC as well. By clicking on the "tune" tab of the TUN interface, you can also access a pair of user adjustable, 10 bands, graphic equalizers to fine tune the Output signals.

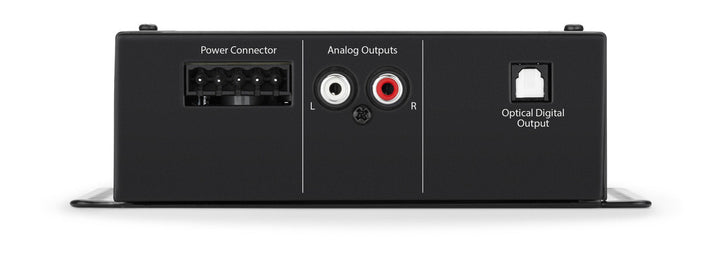

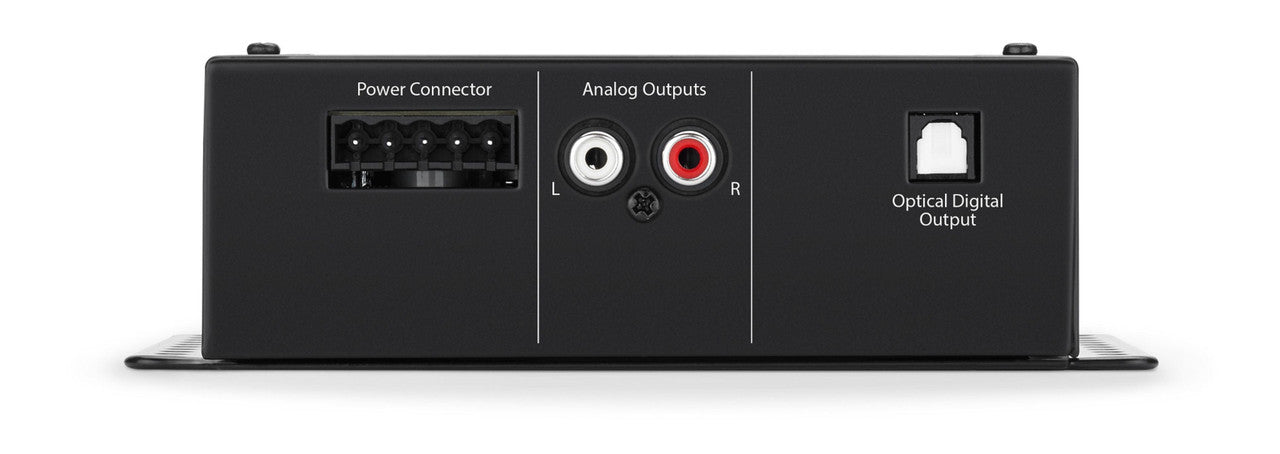

Output options include dual RCA jacks (4 V RMS) or a digital optical (toslink) output, supporting PCM audio (S / PDIF) at 24 bits / 48 kHz resolution. Activation methods include 12 V or automatic (signal / DC offset sensing), plus a dedicated remote turn on output for activating your aftermarket equipment. Connect the optional DRC-100 digital remote controller (sold separately) to add master volume control capabilities from the driver's seat. Clipped input signals and overall condition are also reported via the DRC-100's multi color status LED. Achieving great sound from your factory stereo has never been easier, or sounded better.
Features:
- System integration digital Sound Processor through automatic time alignment, channel summing, and equalization
- Removes factory sound processing for aftermarket speakers and amplifiers

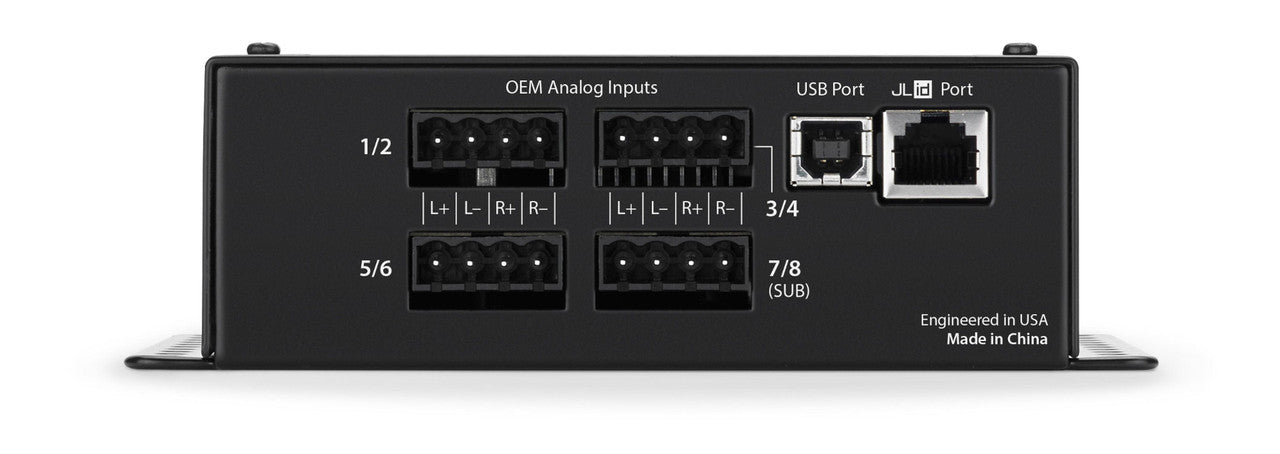

- 8 speaker level inputs (channel 1 - 6: full range; 7 - 8: subwoofer)
- 2 stereo Outputs (analog RCA and optical digital S / PDIF) for connection to external processors and amplifiers
- 24 bits / 48 kHz digital Audio resolution
- Calibration CD included
- Digital signal Processing via windows PC and JL Audio's TUN software
- Displays frequency response before and after Processing
- 10 bands graphic EQ on Outputs
- Control FIX calibration process
- Reverse polarity of any input
Specifications:
- Power supply type regulated: DC-DC SMPS
- Input operating voltage: 10 - 16 VDC
- Standby current draw: <1.5 mA
- Operating current draw: 0.7 A
- Recommended fuse value: 1 A
- Input channels: 8
- Input type: differential balanced
- Input voltage range: 250 mV - 30 V RMS
- Minimum input voltage: 10 mV RMS
- Input level setting: fully automatic
- Output channels: 2
- Analog Output: unbalanced, stereo RCA jacks
- Digital Output: optical (toslink) output (S / PDIF)
- Output impedance: 450 Ω
- S / N ratio: 96 dB (A weighted, referred to 4 V RMS Output)
- THD + N @ rated Output: 0.0 % (20 hz - 20 kHz)
- Dimensions (W x H x D): 4.3" x 1.9" x 6.1" (109 x 47 x 156 mm)
- Net weight: 2.6 lbs / 1.2 kg
Signal Processing:
- Audio resolution: 24 bits / 48 kHz
- Number of EQ bands: 30 x 2 channels
- EQ resolution: 1 / 3" octave (25 hz - 20 kHz)
- Remote level control: optional (DRC-100)
- Remote level functions: master volume control, hands free optimization, LED status reporting
What's in the box:
- Processor
- Four and one 4 and 5 pins euroblock (phoenix) connectors
- Owner's manual
- Calibration disc
