AudioControl DM-RTA-PRO-KIT: Real Time Analyzer & Multi Test Tool Case

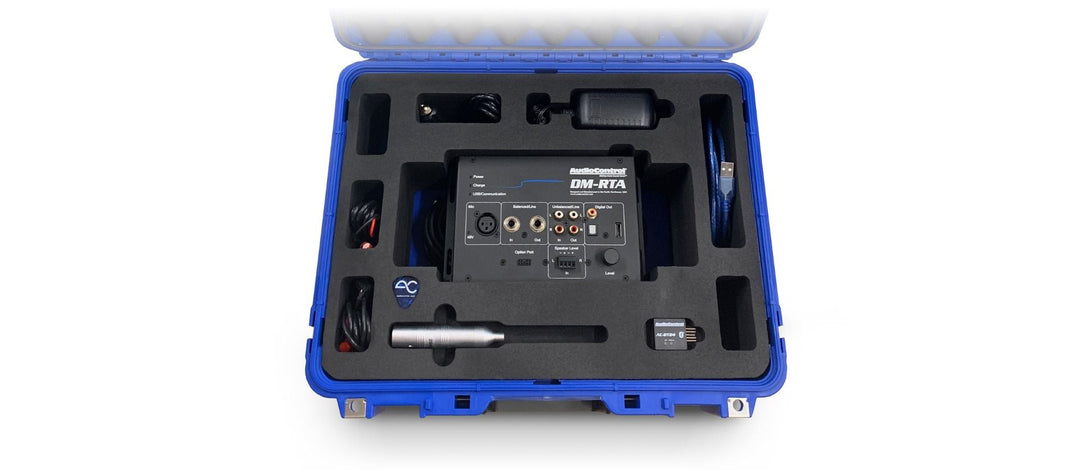

The DM-RTA-PRO-KIT includes everything you need for a complete mobile audio measurement solution.  Nestled snuggly in the fetching blue hard Case, you will find a DM-RTA, AC and 12 V DC power supplies, all of the required interconnects, and custom test leads for line and speaker level measurements.  Included also is the AC-BT24 Bluetooth streamer / programmer, which allows you to connect to the DM-RTA using your tablet or phone.

Included:

• DM-RTA Real Time Analyzer
• 110 and 12 V A and DC power supply / charging adapter

• USB A - B and A cable

• AC-BT24 Bluetooth streamer & programmer
• CM-10 measurement microphone
• XLR microphone cable
• Speaker and RCA input to spring loaded test leads cable

• AudioControl tuning pick (looks a lot like a guitar pick)

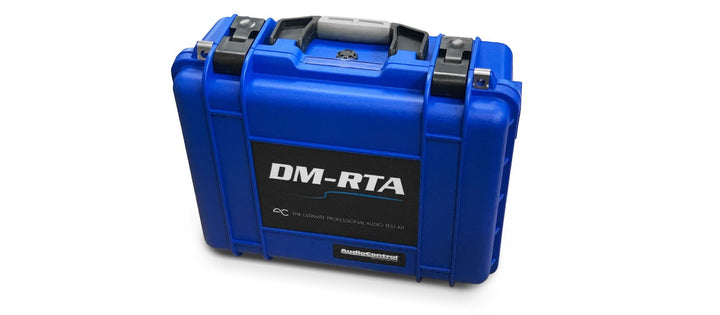

• Blue hard Case and laser cut foam

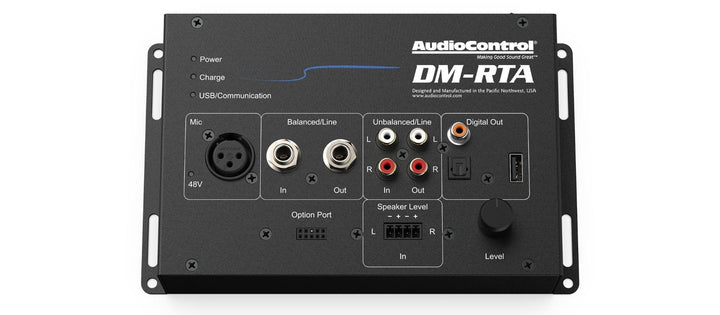

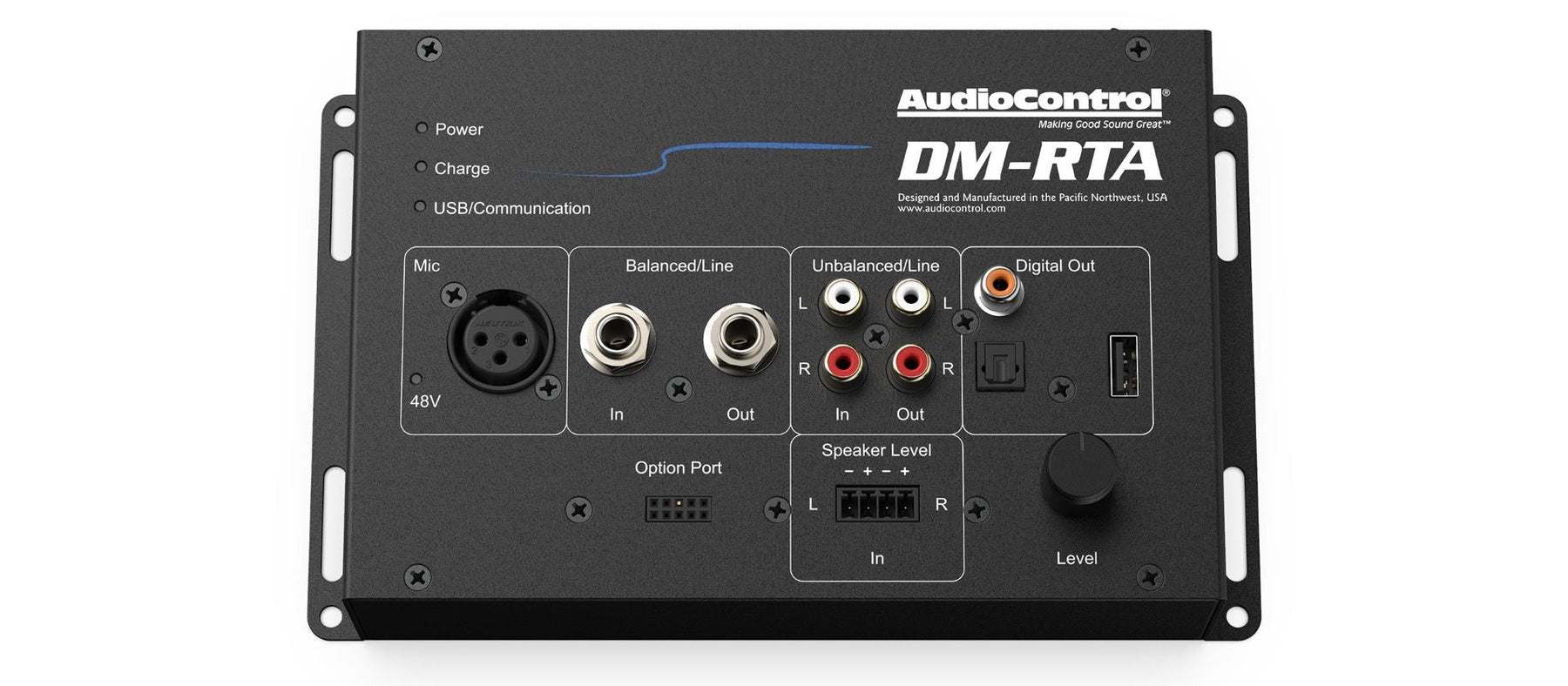

Inputs:

• 1 Balanced and unbalanced (input impedance 3.2 kΩ) and microphone (input impedance 10 kΩ) and speaker level (input impedance 16.2 kΩ)

• Maximum low and high level input voltage: 8 and 40 VRMS


Outputs:

• 1 balanced and unbalanced and coax digital (output impedance: 51 and 75 Ω) and toslink and USB
• Maximum output voltage from signal generator: 5 VRMS / 7 V peak

General:

• Power supply:
• Battery life: approximately 5 Hours

Weights & dimensions:

• Dimensions: 8" W x 4.8" D x 2.4" H
• Weight: 2.6 lbs (1.2kg)

In the box:

• DM-RTA
• USB cable
• Power supply
• Manual
• Warranty

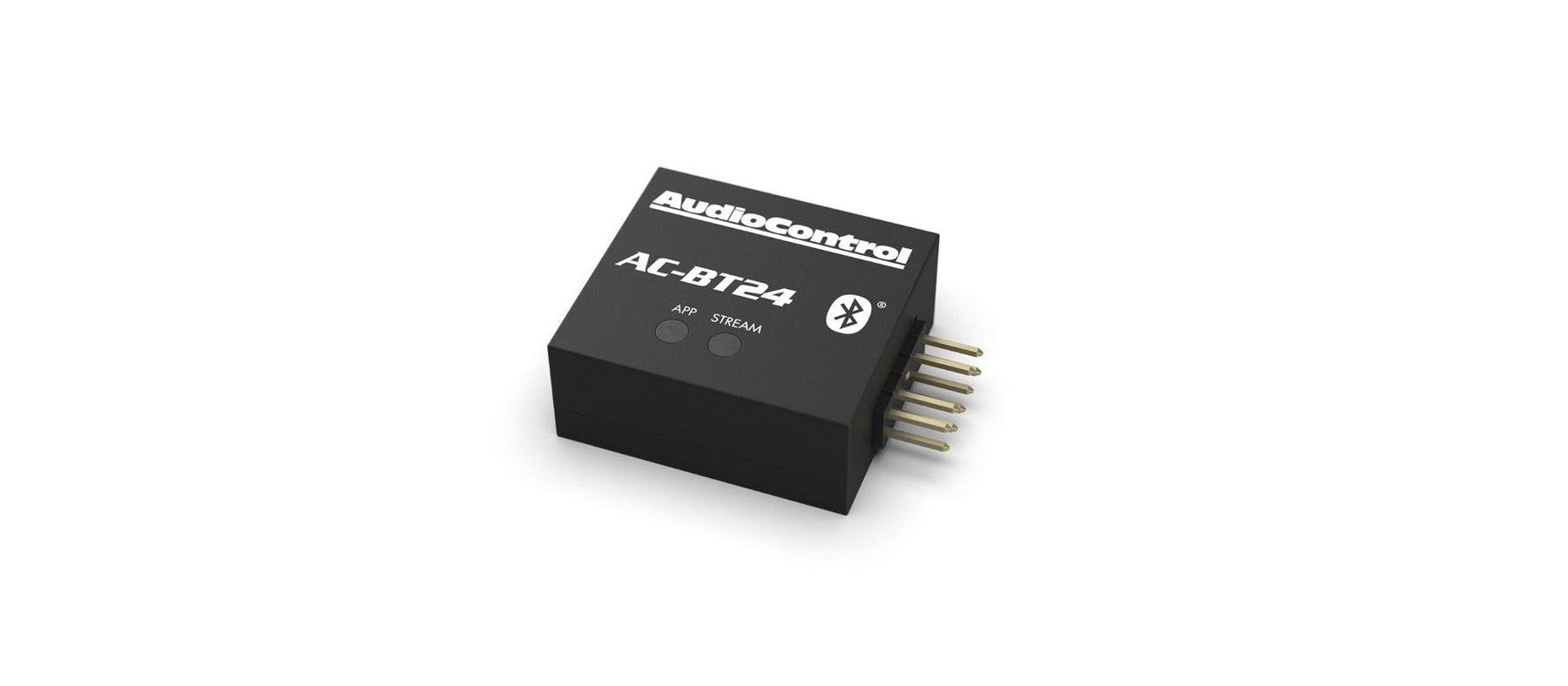

BT-24:

Bluetooth:

• Version: 4.2
• APTX HD compatible
• UART interface

Output:

• Dual differential class-AB output stage

Performance:

• Signal to noise ratio: 96 dB
• Maximum data rate: 3 MBPS (typical 1.6 MBPS)
• Operating range: 10+ meters (depending on environment)

General:

• Power requirements: provided by option port

Weights & dimensions:

• Dimensions: 1.4" L x 1" W x 0.5" H
• Weight: 0.3 oz (9 g)

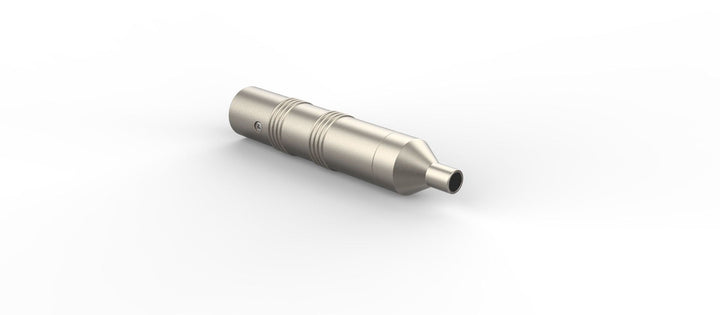

CM-10:

Performance:

• Frequency response: 20 hz - 20 kHz
• Maximum SPL: 136 dB SPL
• Connector: 3 pins XLR, 2 pins positive

In the box:

• CM-10 microphone
• XLR cable
