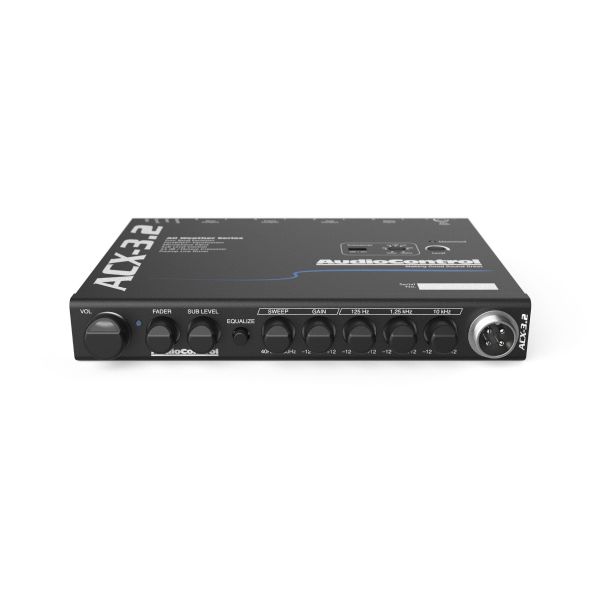

AudioControl ACX3.2: In-Dash All-Weather EQ & Crossover Sound Processor

The ACX3.2 All-Weather Sound Processor is a high output preamp, for all systems on and off road, or off shore.  The ACX3.2 can serve as the main control unit in your Audio system allowing you to control the output to all of your amplifiers.  It features a 4 band graphic equalizer that can be used to tweak your system, depending upon your mood or music selection.  The built in Crossover gives you the ability to separate high and low frequencies, and send them to the appropriate amplifier and speakers, maximizing the performance of your system.  Adding an ACX3.2 to your system gives you the assurance that your system can play longer, louder, and cleaner through less distortion.

The low profile ACX3.2 takes your experience to another level by combining all of its Audio features through a PA microphone!  If you are out on your boat ACX3.2 allows you to play music and communicate to the person wakeboarding or tubing behind you.  Own a food truck?  This is great for playing music inside for the cooks, outside for the patrons, and allowing you the ability to call out an order number for a waiting customer.

The ACX3.2 is a game changer, by offering a quality real world solution for all of those unique installation needs.  This multi functional piece is part of our All-Weather line up making it the perfect solution for any adventure.

Features:

• 4 band stereo graphic EQ
• Parabass low frequency contouring
• Variable 24 dB / octave linkwitz riley crossover
• Front, rear, and subwoofer outputs
• Master volume, fader, and sub level control
• Parabass bass control
• High gain input stage
• Line driver: 13 V peak output
• Dash or console mountable
• Included paging microphone
• Selectable illumination (red or blue)

Specifications:

Inputs:

• Preamp inputs: 1 (2 channels)
• Input gain: 0 - 20 dB
• Input impedance: 20 kΩ

Outputs:

• Preamp outputs: 6
• Maximum output level: 7.5 VRMS / 9.5 V peak
• Output impedance: 150 Ω

Performance:

• Frequency response: 20 hz - 20 kHz ± 0.0 dB
• Total harmonic distortion: 0.0%
• Signal to noise: 123 dB (inputs set to balanced)
• EQ frequencies: 40 - 80 hz (parametric), 125 hz, 1.3 kHz, 10 kHz
• EQ cut / boost: ±10 dB
• Crossover type: 24 dB / octave linkwitz riley
• Factory crossover setting: 100 hz
• Microphone frequency response: 100 hz - 6 kHz
• Microphone maximum SPL: 123 dB

Control:

• Remote in

General:

• Power supply: high headroom PWM switching
• Current draw: 300 mA
• Recommended fuse rating: 1 A

Weights & dimensions:

• Dimensions: 6.8" W x 5" D x 1" H
• Weight: 1.6 lbs

What's in the box:

• ACX3.2
• Paging microphone
• Mounting brackets
• Power connector
• Manual
• Warranty
