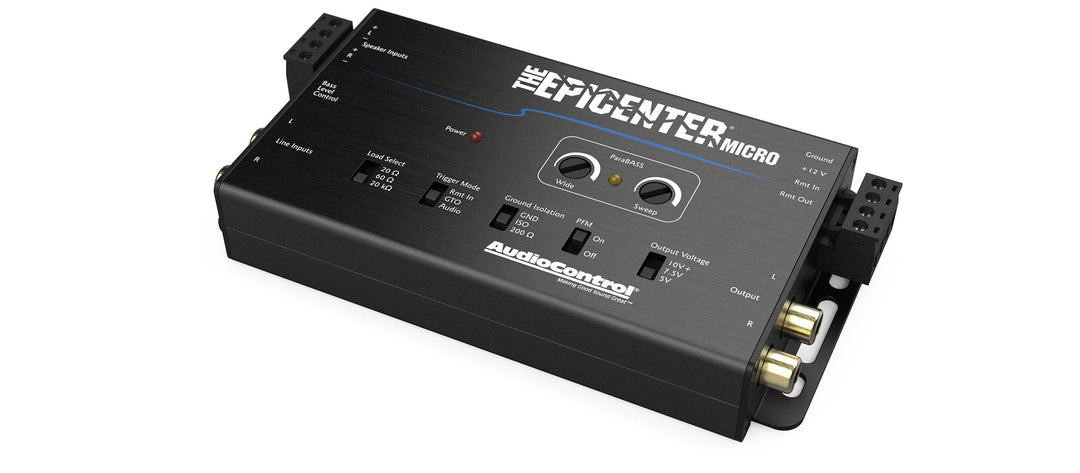

AudioControl EPICENTER-MICRO: Bass Restoration Processor & Line Output Converter

AudioControl EPICENTER-MICRO: Bass Restoration Processor & Line Output Converter

Regular price$529.95
/
Shipping calculated at checkout.

  • In stock, ready to ship
  • Backordered, shipping soon

The EPICENTER-MICRO combines AudioControl's legendary digital Bass Restoration and world renowned OEM integration capabilities.  Featuring a speaker level input stage through selectable impedance loads, as well as traditional line level inputs, the EPICENTER-MICRO brings out the best Bass in any system.  Trigger modes include traditional + 12 V remote in, GTO signal sense, and Audio sense.  The PFM subsonic filter can be bypassed for the truly dedicated, and the 10 V + output voltage setting beckons only the bravest among us.  Use the included ACR-4 remote to independently adjust Bass Restoration and Output level.

Features:

  • Patented digital Bass Restoration
  • Para Bass shaping
  • Speaker and Line level inputs
  • Load matching circuit
  • Multiple trigger modes
  • ACR-4 dual knob dash mount control included

Specifications:

Inputs:

  • Speaker level input: 1 (2 channels)
  • Maximum speaker level input: 40 VRMS / 400 W (20 K Ω setting)
  • Speaker level input impedance (selectable): 20, 60, and 20 K Ω
  • Line level input: 1 (2 channels)
  • Line level input impedance: 7 K Ω

Outputs:

  • Preamp Outputs: 1 (2 channels)
  • Maximum Output level: 9.5 VRMS / 13 V peak
  • Output impedance: 150 Ω

Performance:

  • Total harmonic distortion: 0.0%
  • Signal - noise: > 105 dB
  • Frequency response: 10 hz - 22 kHz ± 1 dB

Control:

  • Remote in / GTO signal sense / Audio sense
  • 12 V DC remote out (always active when unit is on)

General:

  • Current draw: 300 mA
  • Recommended fuse rating: 1 A

Weights and dimensions:

  • Dimensions: 5.9" L x 3" D x 1" H
  • Weight: 0.6 lbs (0.3 kg)

In the box:

  • EPICENTER-MICRO
  • ACR-4
  • 20 FT phone cable
  • Speaker and power connectors
  • Manual
  • Warranty

Orders are typically processed and Shipped within 1 - 2 business days. Delivery usually takes 7 - 15 business days via Canada post, FedEx, or UPS.
