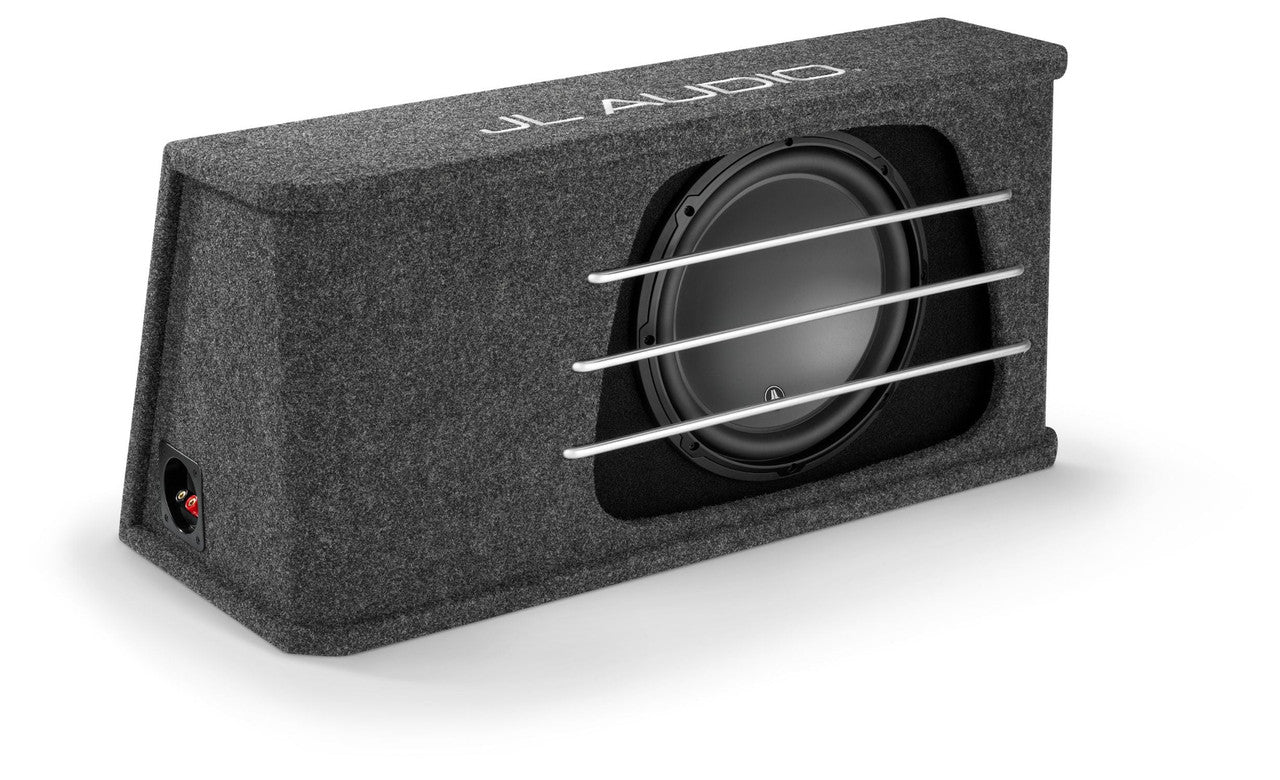

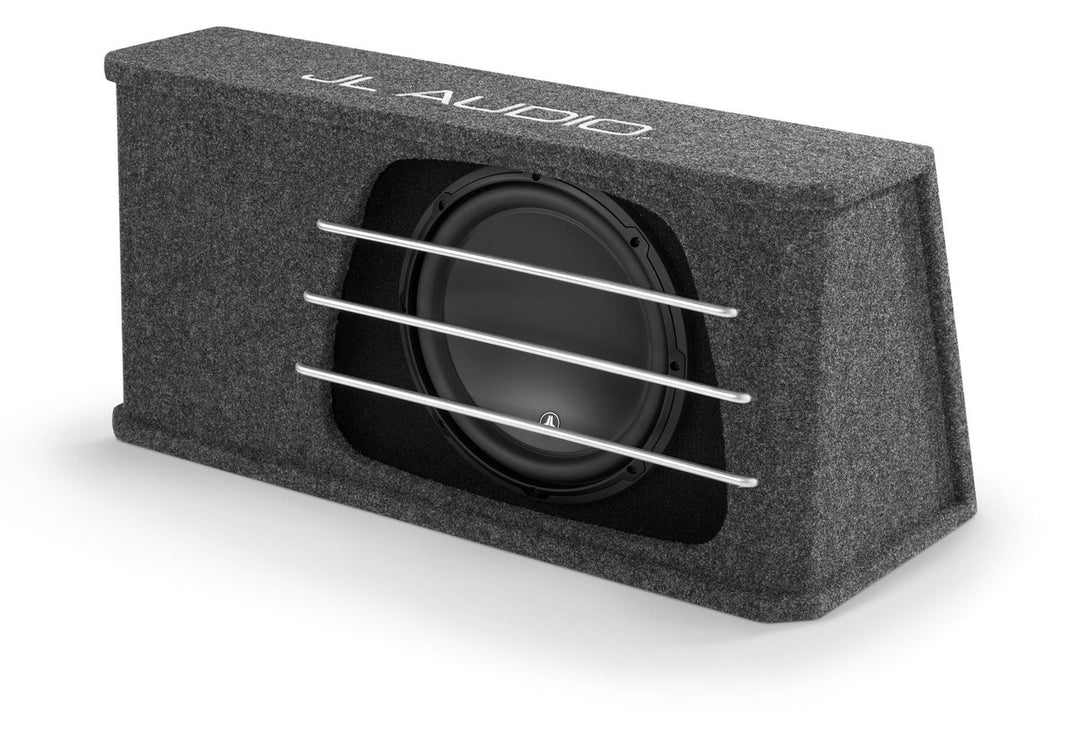

JL Audio HO112RG-W3V3: 12" 500 W RMS HO-Series Single Wedge Ported Enclosure
About the JL Audio HO112RG-W3V3: 12" 500 W RMS HO-Series Single Wedge Ported Enclosure
JL Audio's high output Enclosures are designed to deliver the ultimate high performance bass experience through a rare combination of superb sound quality and awesome output.
JL Audio's chamber coupled Port design wraps around the inner Enclosure boundary and terminates on one side of the woofer, coupling the Port output to the woofer's direct output. This also provides the necessary surface area and Port length to maximize the performance of the W3V3 driver.
This Enclosure design has been carefully engineered to the optimum Ported alignment for the 12W3V3, and has been fine tuned through extensive real world listening. This efficient system will produce superb output through as little as 150 W of amplifier power, but performs best through 300 - 500 W of power.
This subwoofer system is shipped wired, loaded and ready to connect via a 5 way binding post terminal. 3 solid aluminum bars provide stylish and rugged woofer protection.
The angled back design saves precious cargo space by allowing the Enclosure to fit tightly against the back of a vehicle's rear seat.
General specifications:
- Continuous power handling (RMS): 500 W
- System nominal impedance: 2 Ω
- Enclosure type: chamber coupled, slot ported, rear firing design
- Finish: dark gray carpet through black insert and carpet on woofer baffle. "JL Audio" is embroidered in silver on the top surface of the Enclosure
- Grille included: aluminum bar grille
- Construction: CNC cut high grade MDF
Features:
- 12" subwoofer in Ported Enclosure and 12W3V3 speaker through 2 ohms voice coil
- 5 / 8" medium density fiberboard sealed enclosure through carpet covering
- Patented chamber coupled port design maximizes bass performance
- Maximum power handling: 500 W RMS
- Dimensions: 32 - 1 / 4" W x 15 - 1 / 4" H x 13.5" D1 x 7.5" D2
- Weight: 45 - 15 / 16 lbs
What's in the box:
- HO112RG-W3V3 Ported subwoofer enclosure (loaded through one 12W3V3-2 subwoofer)
- 3 aluminum grille rods (installed)
- Specification card
- Warranty information
