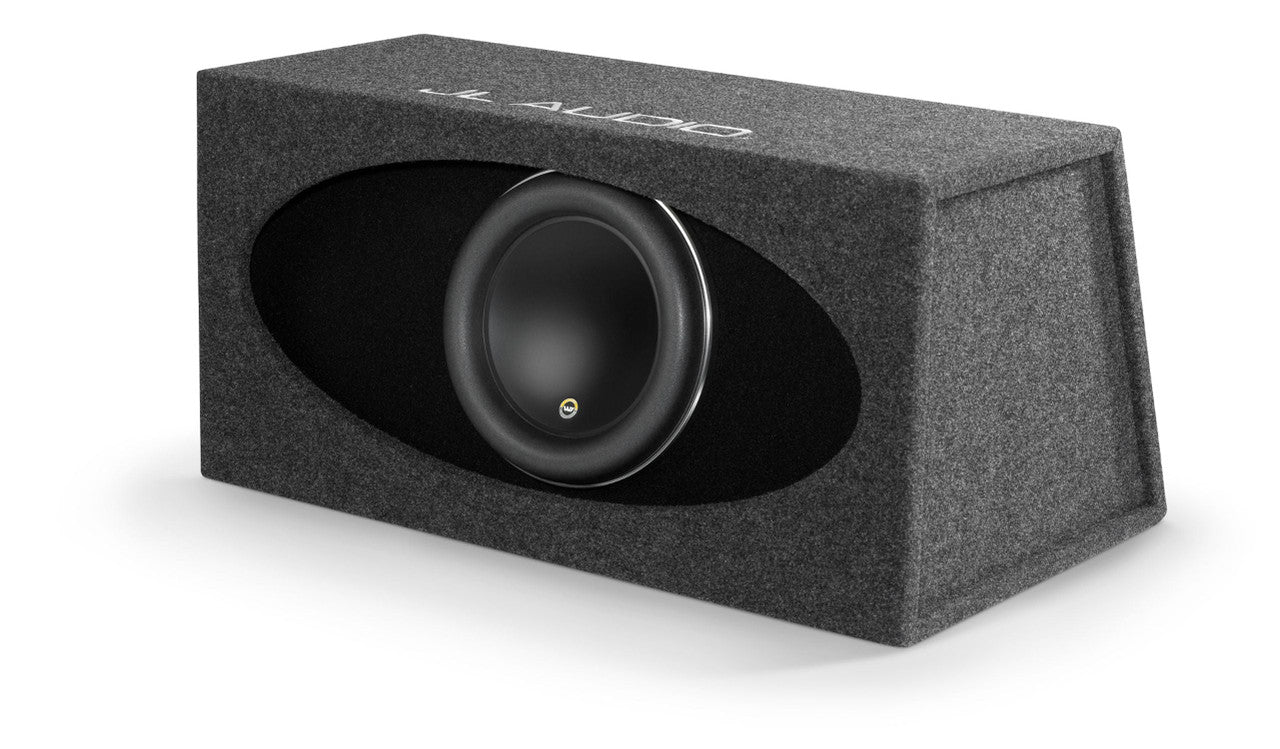

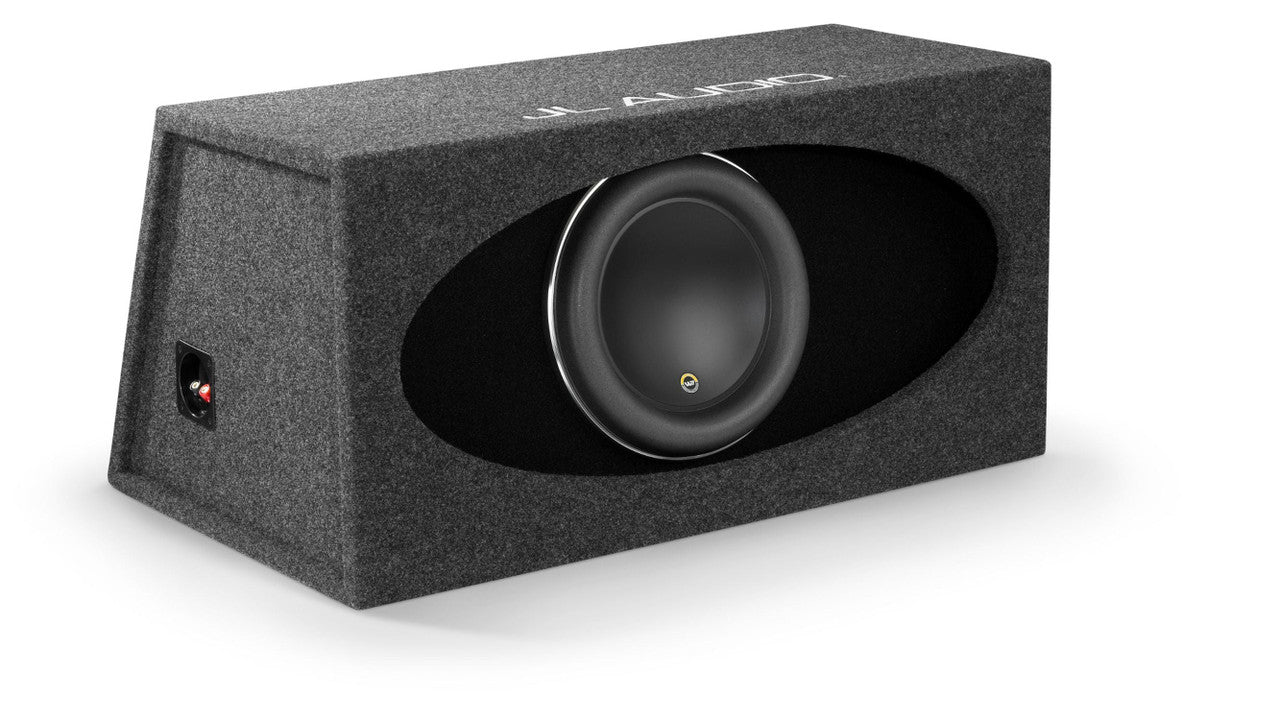

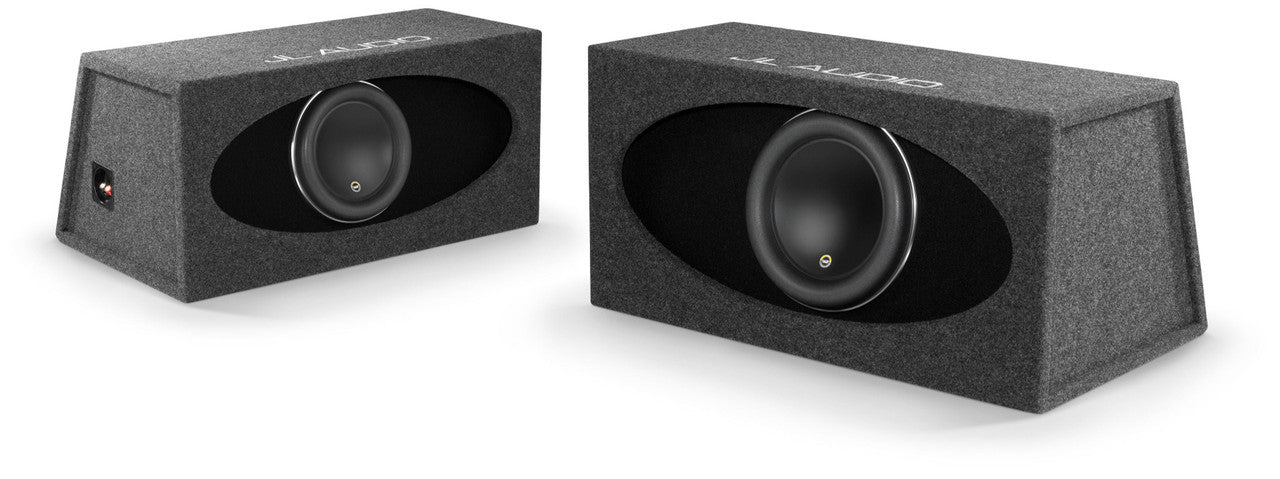

JL Audio HO112R-W7AE: 12" 1000 W RMS HO-Series Single Wedge Ported Enclosure
About the JL Audio HO112R-W7AE: 12" 1000 W RMS HO-Series Single Wedge Ported Enclosure
JL Audio's high output Enclosures are designed to deliver the ultimate high performance bass experience through a rare combination of superb sound quality and awesome output.
JL Audio's chamber coupled Port design wraps around the inner enclosure boundary and terminates just above the woofer, coupling the Port output to the woofer's direct output. This also provides the necessary surface area and Port length to maximize the performance of the W7AE driver.
This Enclosure design has been carefully engineered to the optimum ported alignment for the 12W7AE-3 and has been fine tuned through extensive real world listening. The high power handling of the 12W7AE, combined alongside the efficiency of this subwoofer system, produce a devastating performance combination.
This subwoofer system is shipped wired, loaded and ready to connect via a 5 way binding post terminal. While no grille is provided, the recessed mounting baffle provides some protection for the woofer. The angled back design saves precious cargo space by allowing the Enclosure to fit tightly against the back of a vehicle's rear seat.
Features:
- Ported Enclosure and one 12" W7AE subwoofer
- 5 / 8" medium density fiberboard construction covered through gray carpet
- 1" medium density fiberboard mounting baffle through black carpet cover
- 3 ohms total impedance
- Power handling: 400 - 1000 W RMS (2000 W peak power)
- Frequency response: 18 - 200 hz
- Sensitivity: 86 dB
Specifications:
- Continuous power handling (RMS): 1000 W
- System nominal impedance: 3 Ω
- Enclosure type: chamber coupled, slot ported, rear firing design
- Construction: CNC cut high grade MDF
- Finish: dark gray, high grade automotive carpet through black insert and carpet on woofer baffle. "JL Audio" is embroidered in silver on the top surface of the Enclosure
- Grille included: no
Weight & dimensions:
- External width: 34" / 864 mm
- External height: 17" / 432 mm
- External depth: 20.5" / 521 mm
- External top surface depth: 14.5" / 368 mm
- Net weight: 119 lbs / 54 kg
What's in the box:
- Ported hatchback style Enclosure and one 12" 12W7AE-3 subwoofer installed
- HO-Series sheet
- Warranty information
