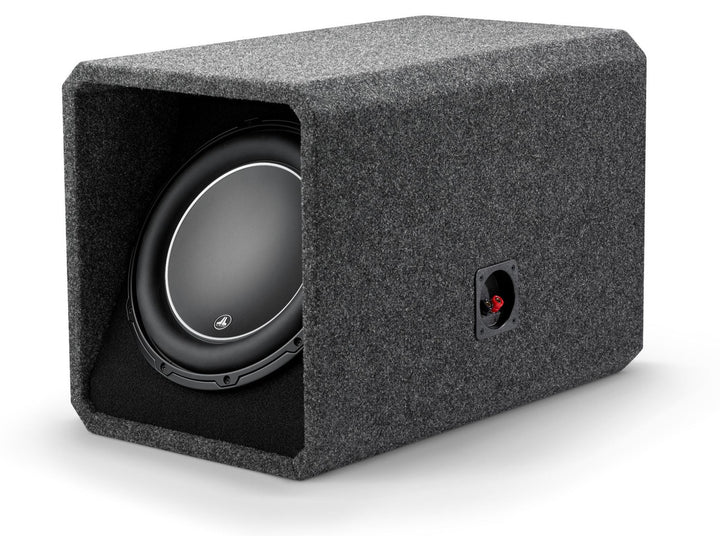

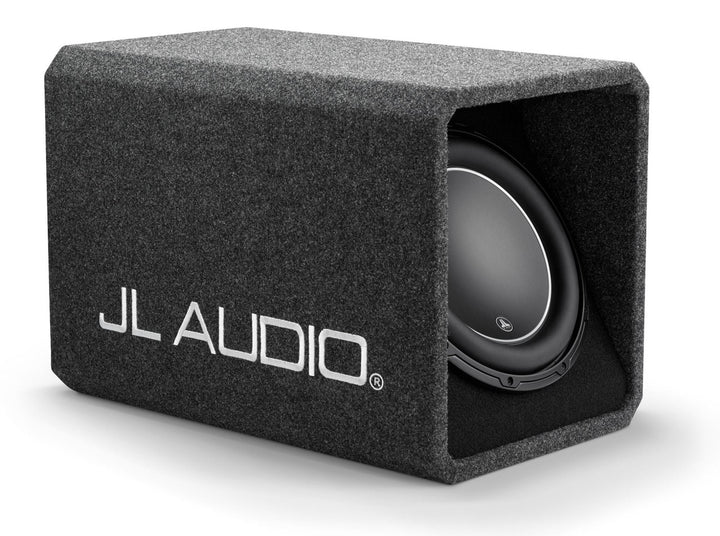

JL Audio HO112-W6V3: 12" 600 W RMS HO-Series Single Wedge Ported Enclosure
About the JL Audio HO112-W6V3: 12" 600 W RMS HO-Series Single Wedge Ported Enclosure
JL Audio's high output Enclosures are designed to deliver the ultimate high performance bass experience through a rare combination of superb sound quality and awesome output. In the HO112-W6V3, the high power handling of the 12W6V3 subwoofer, combined alongside its small enclosure requirements, results in a very compact subwoofer system that is capable of impressive output through moderate amplification.
JL Audio's chamber coupled Port design wraps around the inner enclosure boundary and terminates just above the woofer, coupling the Port output to the woofer's direct output. This also provides the necessary surface area and Port length to maximize the performance of the W6V3 driver. This Enclosure design has been carefully engineered to the optimum ported alignment for the 12W6V3, and has been fine tuned through extensive real world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a 5 way binding post terminal. While no grille is provided, the recessed mounting baffle provides some protection for the woofer. A steel mesh woofer grille insert can be purchased separately (model: SGR-12W6V2 / V3), if additional woofer protection is desired.
General specifications:
- Continuous power handling (RMS): 600 W
- System nominal impedance: 2 Ω
- Enclosure type: chamber coupled, slot ported, rear firing design
- Finish: dark gray, automotive carpet, through black insert and carpet on woofer baffle. "JL Audio" is embroidered in silver on the side surface of the Enclosure
- Grille included: no
- Construction: CNC cut high grade MDF
- Recommended amplifier power: 200 - 600 W
Features:
- 12" subwoofer in ported enclosure and 12W6V3 speaker including dual 4 ohms voice coils
- 5 / 8" medium density fiberboard Ported Enclosure through carpet covering
- Enclosure's patented chamber coupled port design maximizes bass performance
- Maximum power handling: 600 W RMS
- 2 ohms total impedance
- Dimensions: 14 - 3 / 8" W x 16 - 1 / 4" H x 23 - 7 / 8" D
- Weight: 60.7 lbs
What's in the box:
- Ported high output Enclosure and one 12" 12W6V3 subwoofer installed
- Warranty information
