JL Audio HO110-W6V3: 10" 600 W RMS HO-Series Single Wedge Ported Enclosure

About the JL Audio HO110-W6V3: 10" 600 W RMS HO-Series Single Wedge Ported Enclosure

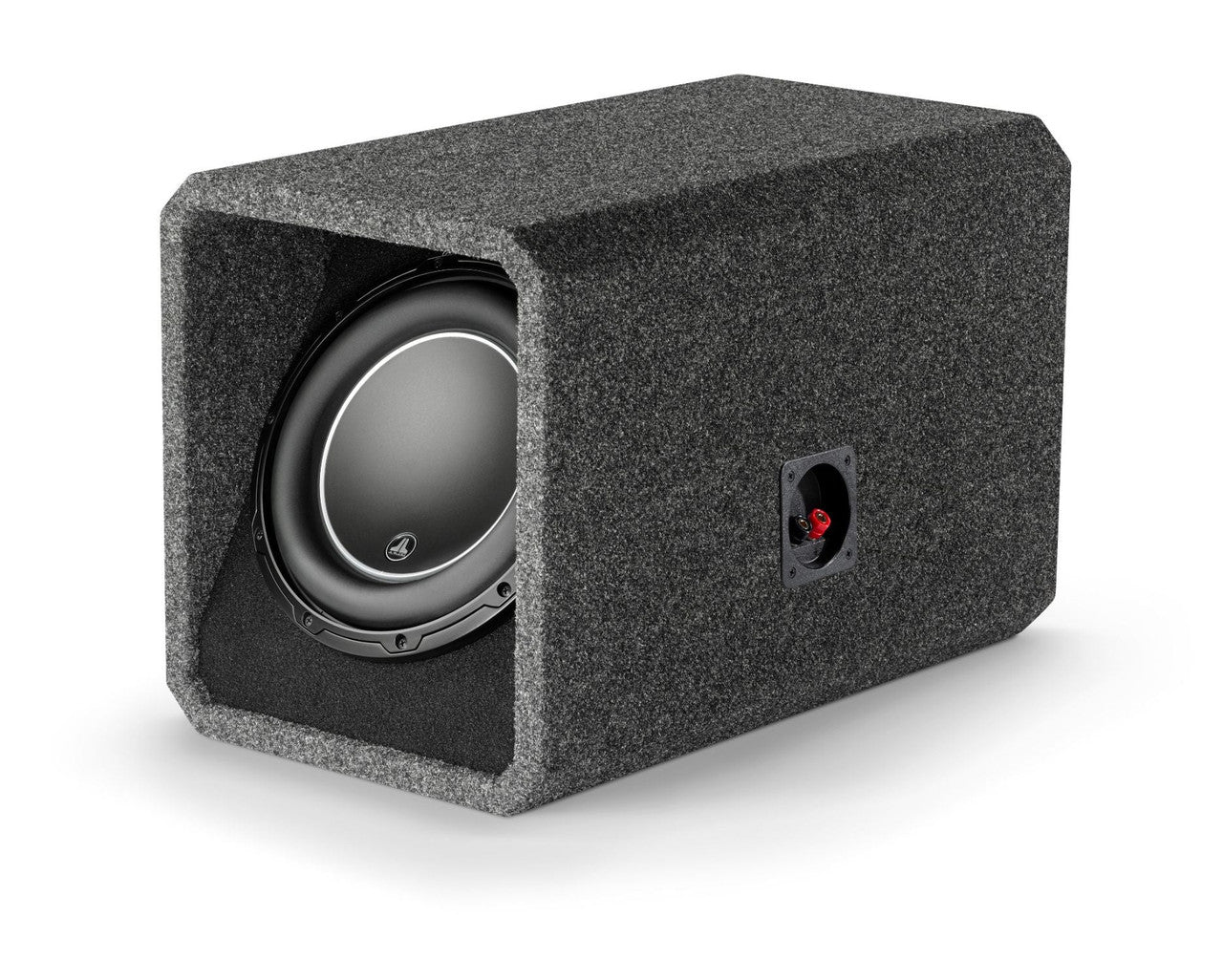

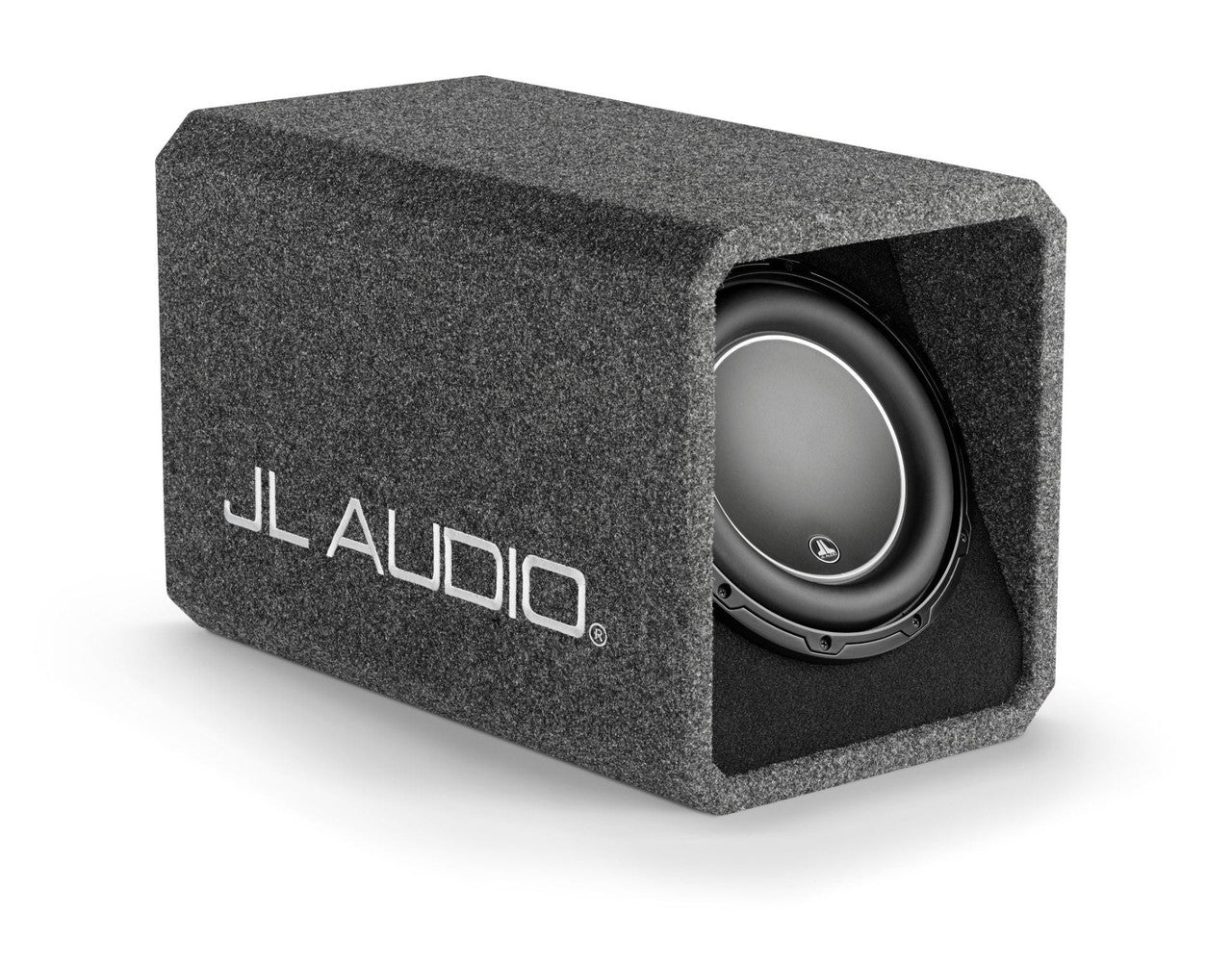

JL Audio's high output Enclosures are designed to deliver the ultimate high performance bass experience through a rare combination of superb sound quality and awesome output. In the HO110-W6V3, the high power handling of the 10W6V3 subwoofer, combined through its small Enclosure requirements, results in a very compact subwoofer system that is capable of impressive output through moderate amplification.

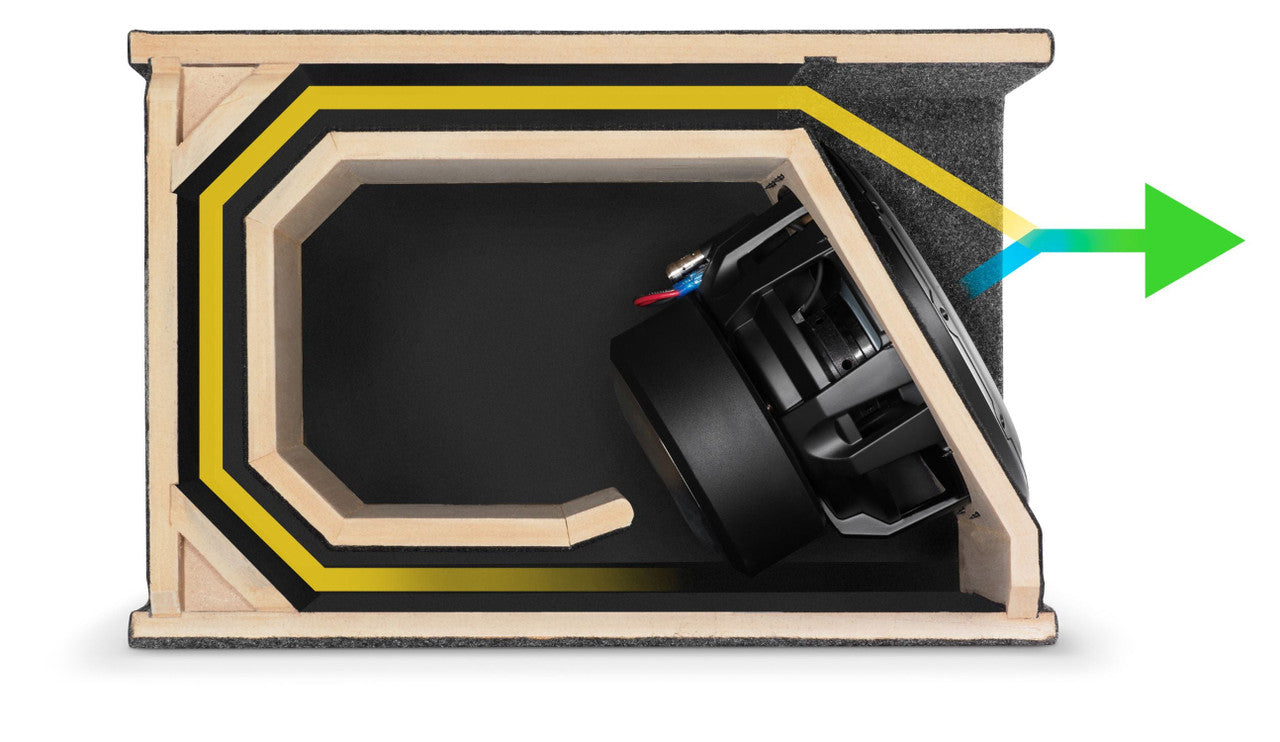

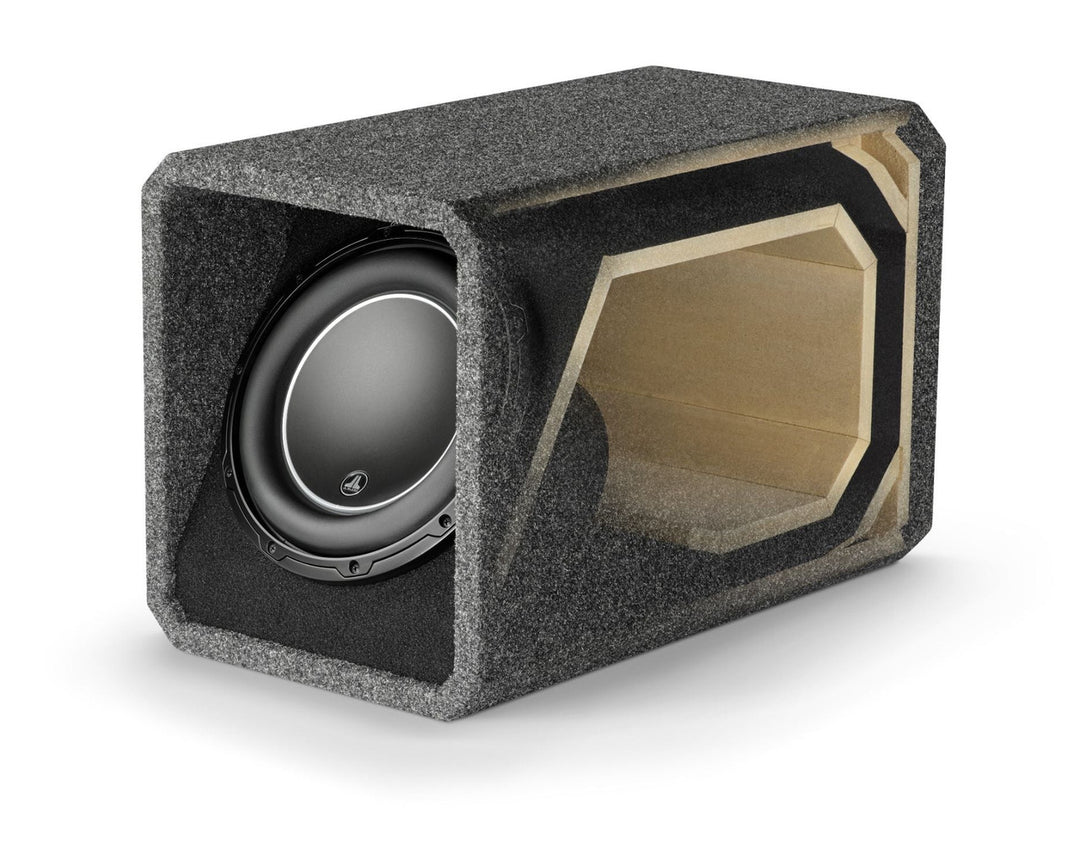

JL Audio's chamber coupled port design wraps around the inner Enclosure boundary and terminates just above the woofer, coupling the Port output to the woofer's direct output. This also provides the necessary surface area and Port length to maximize the performance of the W6V3 driver.  This Enclosure design has been carefully engineered to the optimum ported alignment for the 10W6V3, and has been fine tuned through extensive real world listening.

This subwoofer system is shipped wired, loaded and ready to connect via a 5 way binding post terminal.  While no grille is provided, the recessed mounting baffle provides some protection for the woofer.  A steel mesh woofer grille insert can be purchased separately (model: SGR-10W6V2 / V3), if additional woofer protection is desired.

Features:

• Ported Enclosure and one 10" W6V3 subwoofer
• 5 / 8" medium density fiberboard construction covered through gray carpet
• 2 ohms total impedance
• Power handling: 200 - 600 W RMS (1200 W peak power)
• Frequency response: 22 - 200 hz
• Sensitivity: 82.7 dB
• Finish: dark gray, high grade automotive carpet, through black carpet on woofer baffle.  "JL Audio" is embroidered in silver on the side surface of the Enclosure

Specifications:
