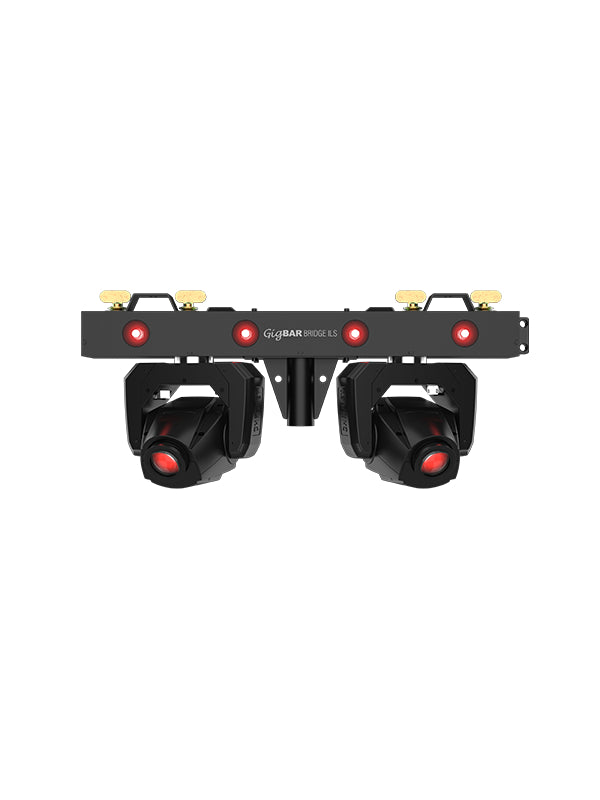

Chauvet DJ GIGBAR-BRIDGE-ILS: Lighting System

About the Chauvet DJ GIGBAR-BRIDGE-ILS: Lighting System

Enjoy a customizable party Lighting setup that suits your needs through the connectable GIGBAR-BRIDGE-ILS.  This 2 in 1 Lighting System has a minimal setup time thanks to its moving heads and wash Lights that come pre mounted onto a single bar. ILS compatibility makes creating coordinated Light shows through this unit and different fixture types easy as 1, 2, 3.  Create dynamic dance floor moments through just one System.

• 2 in 1 Lighting System that includes moving heads and washes pre mounted on a single bar
• Quickly and securely connect multiple fixtures through the built in locking System
• Built in D FI transceiver communicates DMX or ILS signals wirelessly
• Safely mounts onto trusst or mobile tripods using the removable bracket
• Easy navigation and access all functions directly from the full color LCD display
• Powerful moving heads through separate colour and gobo wheels allow for creative programming
• Totem mode keeps the moving heads focused on the dance floor
• Save time running cables and extension cords by power linking multiple units
• ILS compatibility for use in the ILS ecosystem

Specifications:

• DMX channels: 3, 16 or 46
• DMX connectors: 3 pin XLRV
• Strobe rate: 0 - 20 hz
• Operating frequency: 2.4 GHz
• Power linking: 8 units @ 120 V; 13 units @ 230 V
• Input voltage: 100 - 240 VAC, 50 / 60 hz (auto ranging)
• Weight: 18.6 lbs (8.4 kg)
• Size: 26 x 2.8 x 12" (660 x 71 x 305 mm)
• Approvals: CE, RoHS , FCC
• Colours (moving head): 9 + open, split colours, continuous scroll at variable speeds
• Gobos (moving head): 9 + open, continuous scroll at variable speeds
• Light source (moving head): 1 LED (cool white) 70 W (3A), 50,000 hours life expectancy

• Light source (wash): 4 LEDs (hex colour RGBA W + UV) 10 W (1.3 A), 50,000 hours life expectancy.
• Beam angle (wash): 22 °
• Field angle (wash): 38 °
• Power and current: 191 W, 1.5 A @ 120 VAC, 60 hz: 191 W, 1.5 A @ 120 VAC, 60 hz
• Power and current: 175 W, 1 A @ 230 VAC, 50 hz
• Fits tripod sizes: 1.5" (37.4 mm)
• Maximum unobstructed distance (D Fi): 600 FT (183 m)
• Optional controllers: RF, footswitch, ILS command

What's included:

• GIGBAR-BRIDGE-ILS
• Power cord
• 2 hanging brackets
• Quick reference guide
