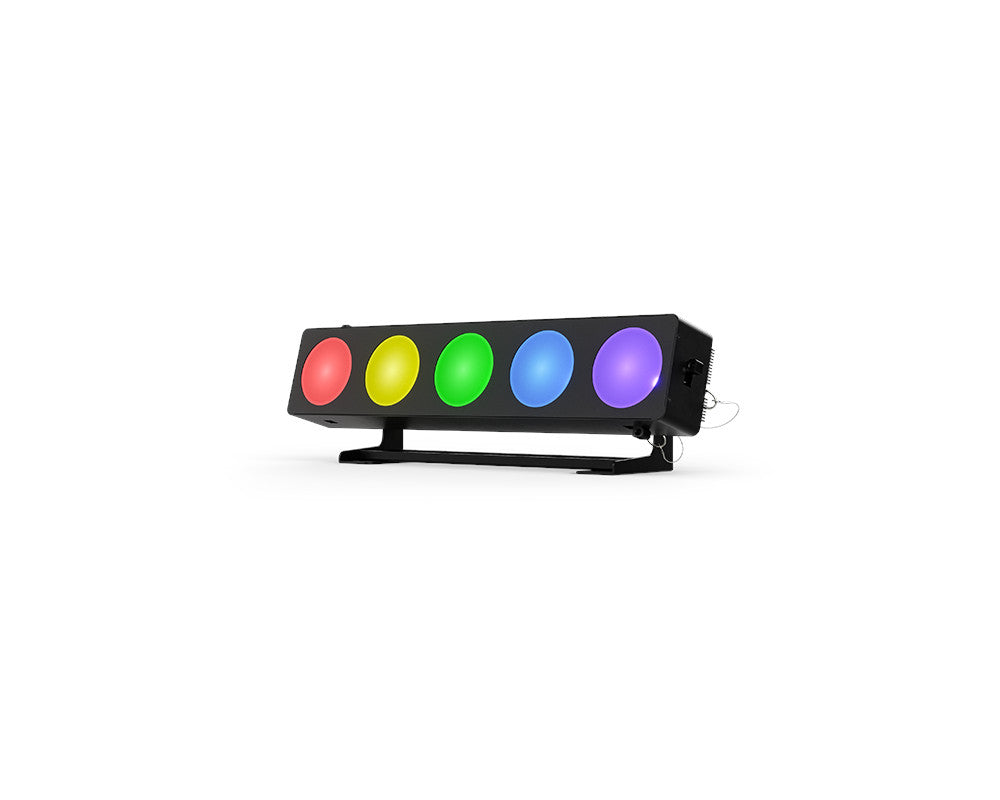

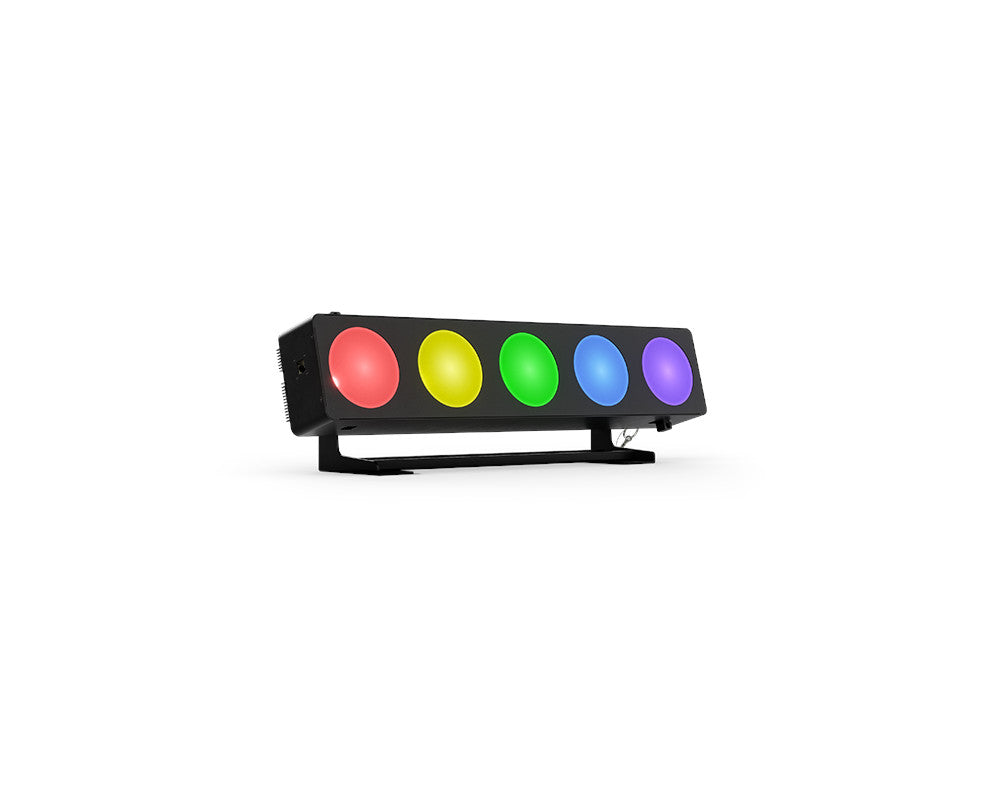

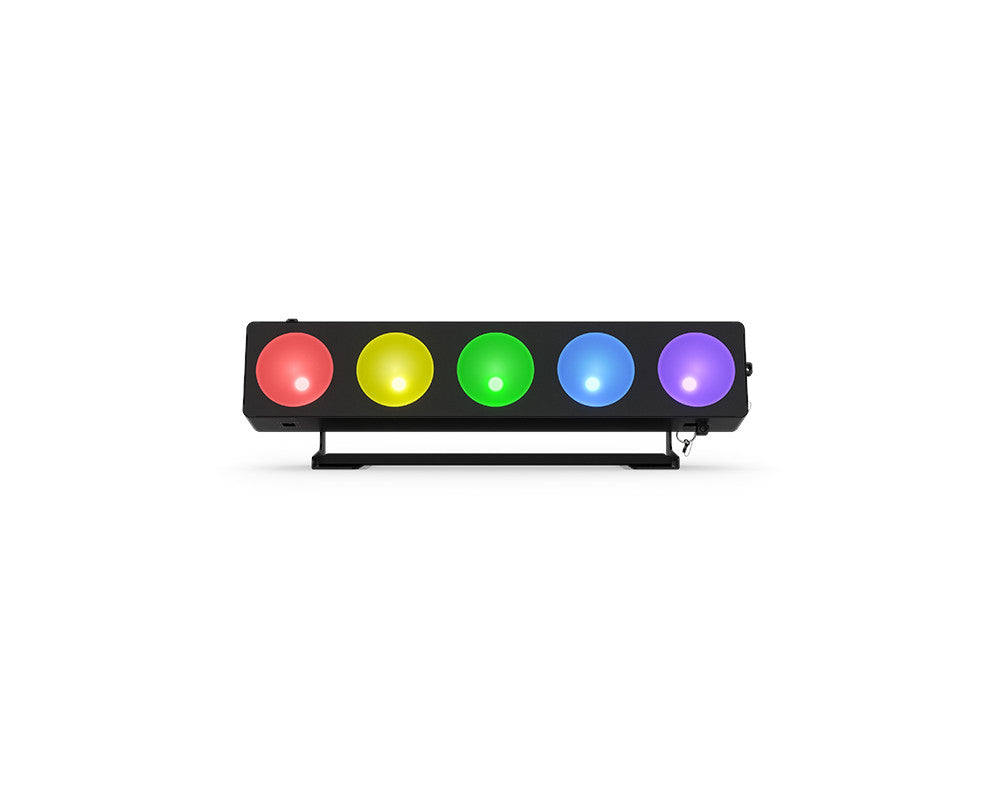

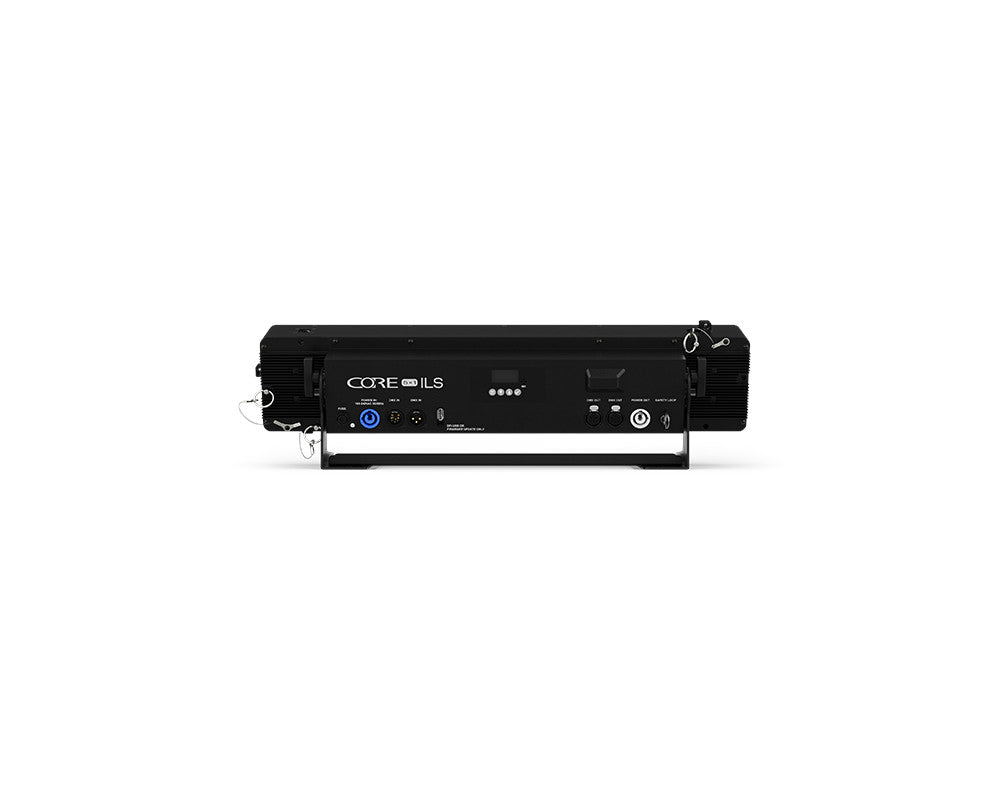

Chauvet DJ CORE5X1ILS: LED Linear Wash Light

About the Chauvet DJ CORE5X1ILS: LED Linear Wash Light

The CORE5X1ILS projects smoothly saturated color through COB technology and a large reflector design ideal for bringing the most natural color tones to live setups.  Create custom shapes through built in tool free connecting hardware.  Add a D FI USB (sold separately) to wirelessly sync the CORE5X1ILS through multiple ILS fixtures of different types.  Floor mount for a perfect uplight or attach multiple fixtures together for high impact pixel mapped looks, runway chase effects, blinder bursts or color washes.

Features:

• Multi purpose effect Light functions as a pixel mapping effect, chase effect, blinder, or Wash Light.
• Attach multiple fixtures together using the built in, toolless connecting hardware
• ILS compatibility for use in the ILS ecosystem (D FI USB sold separately)
• Connect up to 6 fixtures together vertically using the toolless linking hardware
• Generates a broad spectrum of colors and achieves natural looking color temperatures through COB technology
• Withstand the harshness of traveling from gig to gig through a robust housing
• Offers multiple control options, including stand alone, DMX, ILS, RF, or master / slave

Specifications:

• DMX channels: 4, 8, / 22
• DMX connectors: 3 and 5 pins XLR
• Light source: 5 LED's (quad color RGB + WW) 35 W, (1.2 A) 50,000 hours life expectancy
• Strobe rate: 0 - 20 hz
• Beam angle: 54 °
• Field angle: 75 °
• Illuminance: 953 LUX @ 2 m
• Lumens: 2875
• Power linking: 6 units @ 120 V; 10 units @ 230 V
• Input voltage: 100 - 240 VAC, 50 / 60 hz (auto ranging)
• Power and current: 120 W, 1.8 A @ 120 V, 60 hz
• Cable length: 5 FT (1.5 m)
• Bracket mounting hole: 13 mm
• Optional controllers: ILS command, RFC, RFC-XL
• Approvals: CE, ROHS
• Size: 23.6 x 3.1 x 4.7" (600 x 79 x 120 mm)
• Weight: 11 lbs (5 kg)

What's included:

• CORE5X1ILS
• Power cord
• Quick reference guide
