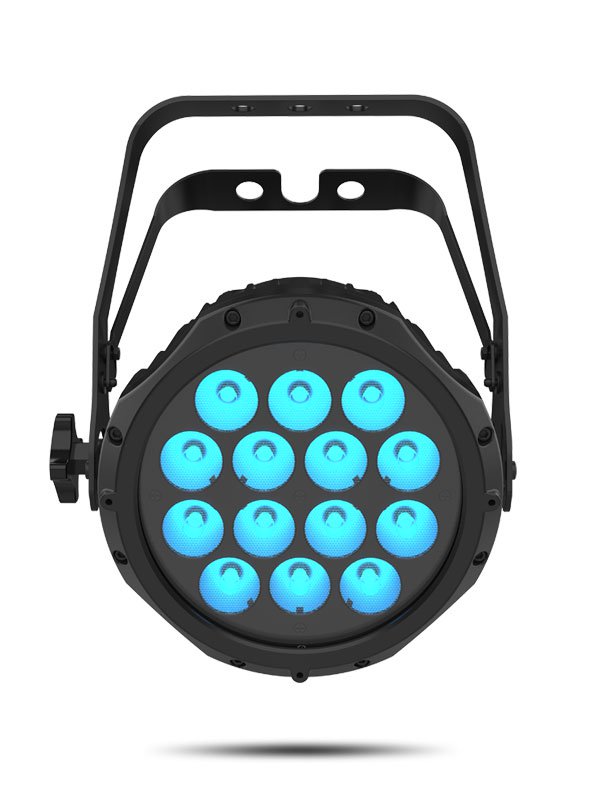

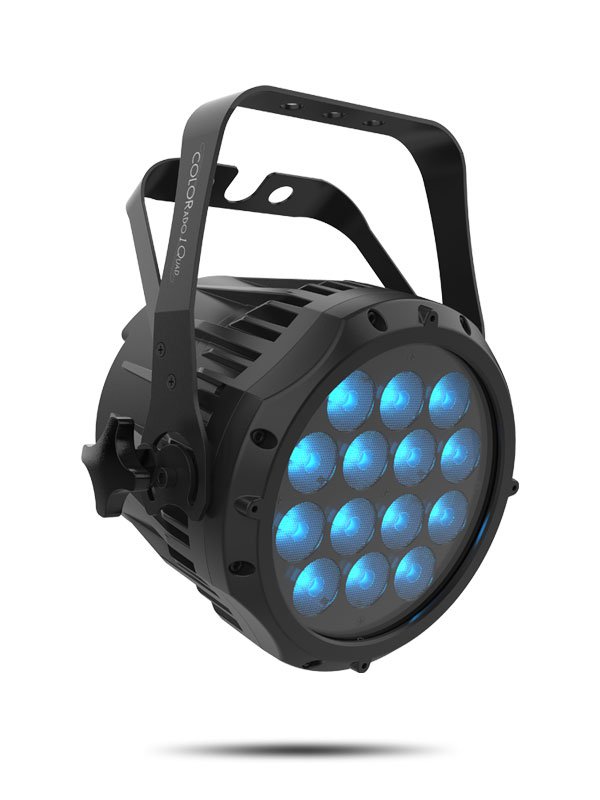

Chauvet DJ COLORADO1-QUAD: IP65 Professional Wash Light

About the Chauvet DJ COLORADO1-QUAD: IP65 Professional Wash Light

The COLORADO1-QUAD is an excellent indoor / outdoor robust Wash Light that includes fourteen 5 W RGBW LED's that deliver big power from a compact, yet solid IP65 housing.  A 13 ° beam angle gives you ample control over the beam and selectable dimming curves facilitate the integration of the fixtures into existing rigs.  And outdoor rated power and data connectors allow for easy connections without propriety cabling.

Features:

• RGBW LED Wash for touring, rental, and production, indoors or out
• All environment operation through IP rated power and DMX connections
• Color temperature presets, from 3200 - 10000 K
• Selectable, smooth dimming curves for programming versatility
• LED display through password protection
• M 12 gore valve for assured internal equalization
• Simple and complex DMX channel profiles for programming versatility
• Double bracket yoke doubles as floor stand

Specifications:

Optical:

• Light source: 14 LED's (quad color RGBW) 5 W, (350 mA), 50,000 hours life expectancy.
• Color temperature (range): 2800 - 10,000 K
• Beam angle: 13 °
• Field angle: 26 °
• Lumens: 1633
• Illuminance (total): 1510 LUX @ 5 m

Dynamic effects:

• Dimmer and shutter / strobe: electronic

• Strobe rate: 0 - 14 hz
• Standalone color mixing: yes
• Color temperature presets: yes
• Dim modes: 5
• Dim curves: 4
• Built in automated and customizable and recall custom programs: yes

Construction / physical:

• Dimensions: 12 x 10 x 8" (304 x 246 x 202 mm)
• Weight: 9.8 lbs (4.5 kg)
• Exterior color: black
• Housing material: aluminum die cast
• Accessory holder / gel frame size: 7.5" (191 mm)

Connections:

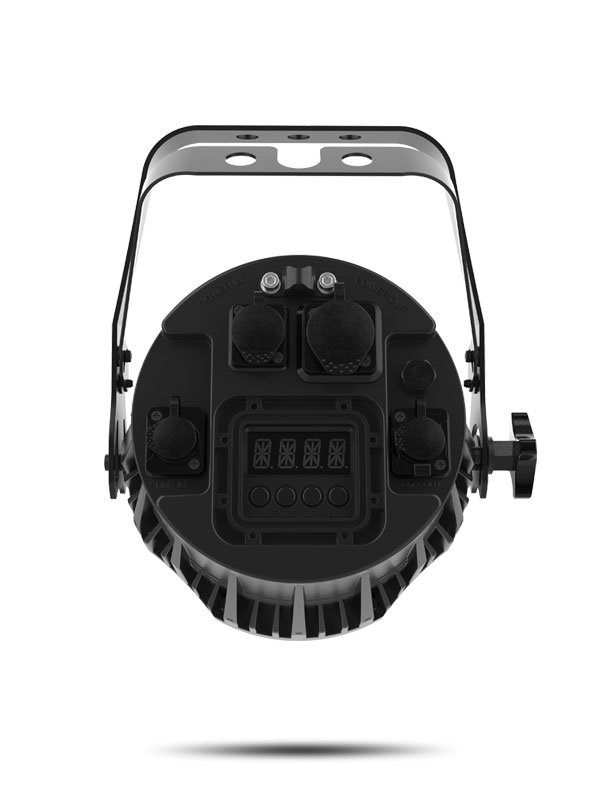

• Power connection and in and output and data connectors: Edison (local) plug to seetronic Powercon and 5 pins IP65 XLR

• Cable length (power): 5 FT (1.5 m)

Control:

• Control protocol: DMX, RDM
• DMX channels: 4, 5, 6, 7, 9, 10, 13 / 15
• Modes / personalities (RGB and W): 3 and 6 personalities (TOUR, TR16, AR1 and 2.D and 2 and S, SSP, 16 and 8 bits)


Electrical:

• Input voltage: 100 - 240 VAC, 50 / 60 hz (auto ranging)
• Power linking: 15 units @ 120 V; 25 units @ 208 V; 27 units @ 230 V
• Power and current: 109 W, 0.9 A @ 120 V, 60 hz; 110 W, 0.5 A @ 208 V, 60 hz; 112 W, 0.5 A @ 230 V, 50 hz

Certifications / qualifications:

• CE, met
• IP rating: IP65, outdoor / wet, through pressure equalizing M 12 gore valve
• Temperature (ambient): -4 - 113 ° F (-20 - 45 ° C)

What's included:

• COLORADO1-QUAD
• Seetronic Powercon IP65 power cord
• Gel frame holder (7.5" / 191 mm accessories)

Optional accessories:

• Professional clamps: CTC-50HC and N
• Neutrik true1 power linking cables
• 5 pins IP rated DMX cables
• Color blending filters: DF60X1 and 20D

Note: limited time offer, will take 5 days to order from Chauvet DJ
