Kenwood KW-M795BW: 6.9" Digital Multimedia Receiver

About the Kenwood KW-M795BW: 6.9" Digital Multimedia Receiver

Apple CarPlay, connect wirelessly or via USB:

A smarter, safer and more fun way to use your IPhone in the car.  Apple CarPlay gives IPhone users an intuitive way to make calls, use maps, and listen to music through just a word or a touch.

Android auto, connect wirelessly or via USB:

Android auto was designed through safety in mind.  Through larger touch targets, a split screen interface, and easy to use voice actions, it's designed to minimize distraction so you can stay focused on the road.  Compatible android phone and compatible active data plan required.  Some features and devices may not be available in all countries.  Subject to availability.

Wireless mirroring for compatible smartphones:

By installing the "carbit link easy connection" app, your mobile phone is seamlessly displayed on the Receiver's screen without cable.  You can enjoy a variety of apps such as waze, YouTube, and Instagram.  Selected mobile phones only

HDMI mirroring for compatible smartphones:

Display your smartphone screen on the KW-M795BW's display via an HDMI cable and 3rd party adapter.  KS-U70, optional HDMI cable and smartphone specific 3rd party adapter are required (sold separately).

High definition display (1280 x 720 pixels):

The HD display is about 2.4 times higher resolution than the conventional WVGA panel. Through this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images.  In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high definition images.

IDatalink maestro, advanced vehicle integration:

IDatalink maestro RR / RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles.  Radar detector information can also be displayed on the screen when used through a compatible K40 radar detector system (sold separately).  Available features may vary depending on the vehicle.  The IDatalink maestro RR is sold separately by automotive.

2 camera inputs:

Enable users to add a rear facing camera and additional front facing camera (sold separately).  Additionally this Receiver is equipped through a front camera left / right switching function, allowing you to use the optional (sold separately) KV-CM30 as a front camera.

HD rear camera input:

An optional high definition camera can be connected to the Receiver's rear camera input, displaying the image in true 1280 x 720 (720 pixels) high definition on compatible Receivers.

Time alignment:

By selecting the speaker type and the distance to the center of the listening position, the Receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

13 bands equalizer:

Use the 13 bands equalizer to manually adjust the sound to your taste.

Sirius XM ready (optional Sirius XM tuner required, sold separately):

Ready for Sirius XM radio.  You can listen to over 100 channels of music, sports, and entertainment.

Short chassis:

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

High current 2.1 A charging

Rapidly charge your smartphone using the USB port, through up to a maximum of 2.1 A.  Compatibility depends on the smartphone.

3 V high voltage 3 preouts:

Equipped through 3 RCA terminals for preouts and 3 V high voltage.  Increasing the output voltage from the preouts helps reduce transmission noise and distortion when connected through an external amplifier.

Steering wheel remote control ready:

Factory steering wheel control functions can be retained through a 3rd party adapter (sold separately).

Remote control (optional):

Remote control (RM-RK259) is optionally available.  Available functions depend on mobile phone.  Compatible android phone and compatible active data plan required.  (IPhone) SE (2nd and 3rd generation), XS and R, max, 11 and 12 and 13 and 14 and 15 and pro and max and plus.  The service may not be available in certain countries.

Features:

• Digital Media Receiver featuring 6.9" HD capacitive touch control monitor
• Apple CarPlay and android auto and mirroring (wireless, wired)
• HDMI input
• Sirius XM ready
• iDatalink maestro ready
• Bluetooth

Monitor

• High definition monitor: yes
• Screen size: 6.9" HD screen
• Touch panel: capacitive
• Touch panel surface: anti finger print and glare
• Key illumination: color blue
• Dimmer: yes
• Multilingual display: yes (English / Spanish / French)

Media playback:

• MP3 and WMA and WAV and AAC and FLAC and H.264 and WMV and MPEG 0.5 and 4 compatible alongside tag: USB

Bluetooth control:

• Built in Bluetooth (1): yes (version 5.3, wired microphone included)
• Hands free call: yes (HFP 1.6)
• 2 phones full time connection: yes
• Audio streaming & control (A2DP and VRCP): yes
• Supported audio formats: AAC / SBC
• Voice dialing (voice recognition compatible mobile phone required): yes
• Phone book access profile (PBAP): yes

WiFi control:

• Built in WiFi: yes

Android control:

• Android auto (2) and mirroring for android: yes (via WiFi / USB)

IPod / IPhone control:

• Apple CarPlay and mirroring for IPhone (3): yes (via WiFi / USB)

USB:

• USB port: 1 type A (USB 2 high speed)
• Position: rear
• USB power supply: 2.1 A (BC 1.2)

Radio tuner:

• Sirius XM ready: yes
• Radio broadcast data system (RBDS): Yes
• Preset stations: 20 (FM: 15 channel, AM: 5 channel)
• Auto memory entry: yes
• FM frequency range: 87.9 - 107.9 MHz
• AM frequency range: 530 - 1700 kHz

Audio:

• Maximum power output (front & rear): 50 W x 4
• Full bandwidth power (front & rear): 22 W x 4 (at less than 10 % THD)
• EQ: yes (13 bands graphic EQ)
• Preset EQ: yes (7 preset + 1 user)
• Bass boost: yes
• High and low pass filter: yes
• 3 way X'Over: yes
• Time alignment: yes

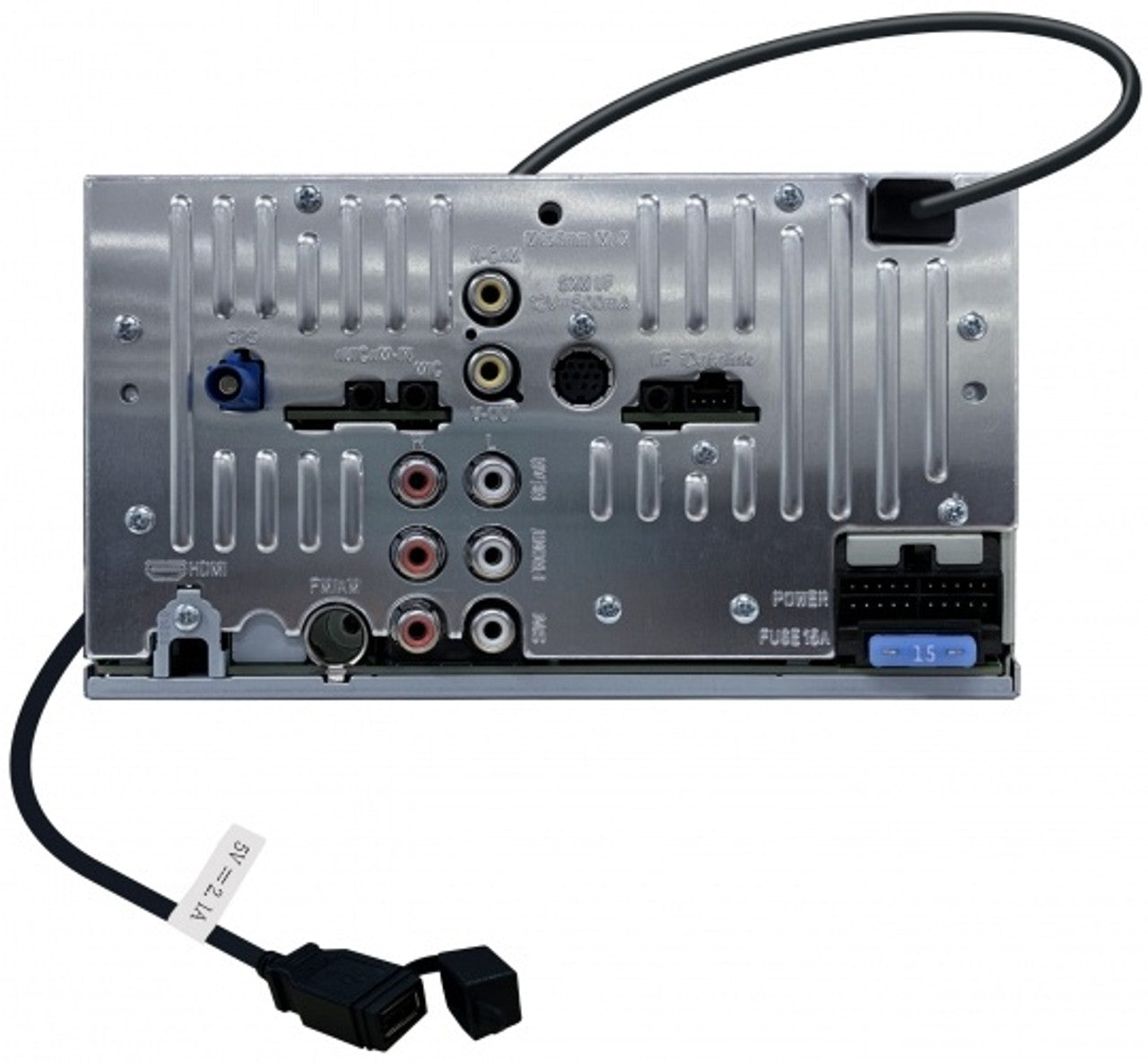

Inputs and outputs:

• AV input: mini jack (AV / camera in switchable) x 1
• Video out: RCA x 1
• HDMI terminal: yes
• HD and rear view camera input: yes (only for rear camera in)
• Line output terminals: 3 pairs (front + rear + sub)
• Pre output level / impedance: 3 V
• Subwoofer output through level / frequency control: yes

General:

• IDatalink maestro ready: yes (RR, RR2)
• Wireless remote control: optional (RM-RK259)
• Steering remote control ready: yes

Dimensions (W x H x D) / weight:

• Installation size: 7 x 3 - 15 / 16 x 4 - 5 / 16" (178 x 100 x 109 mm)
• Weight: 2.6 lbs (1.1 kg)
• Unit weight in individual package: 4.1 lbs (1.8 kg)
