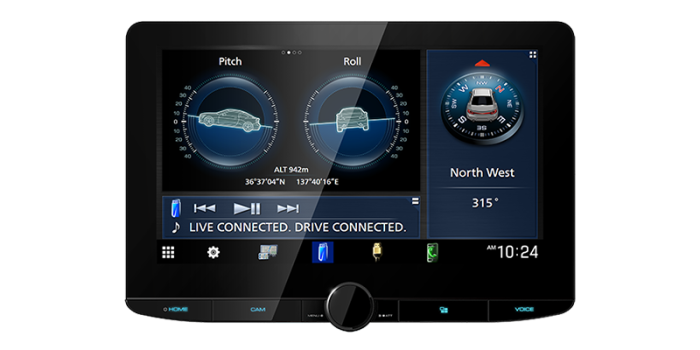

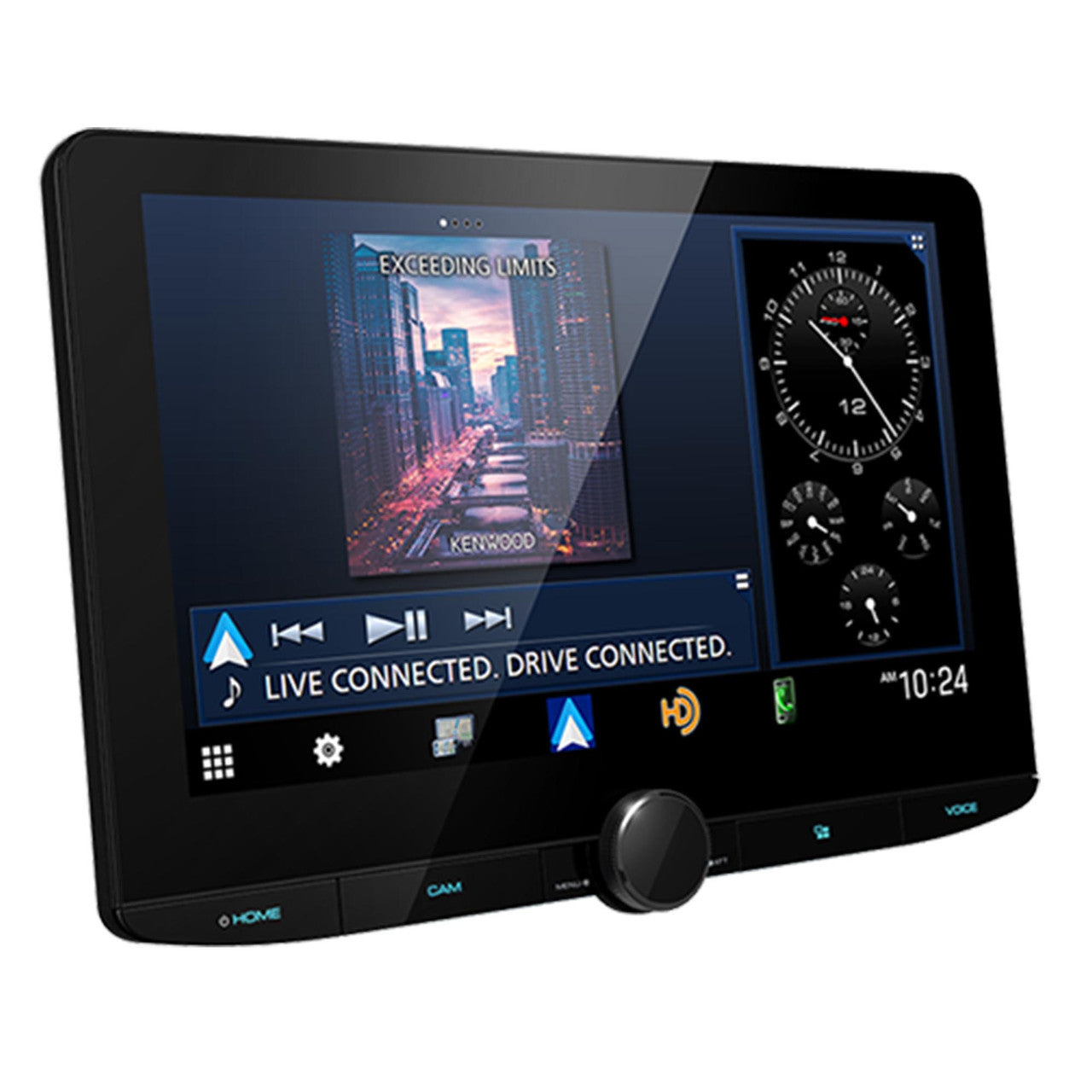

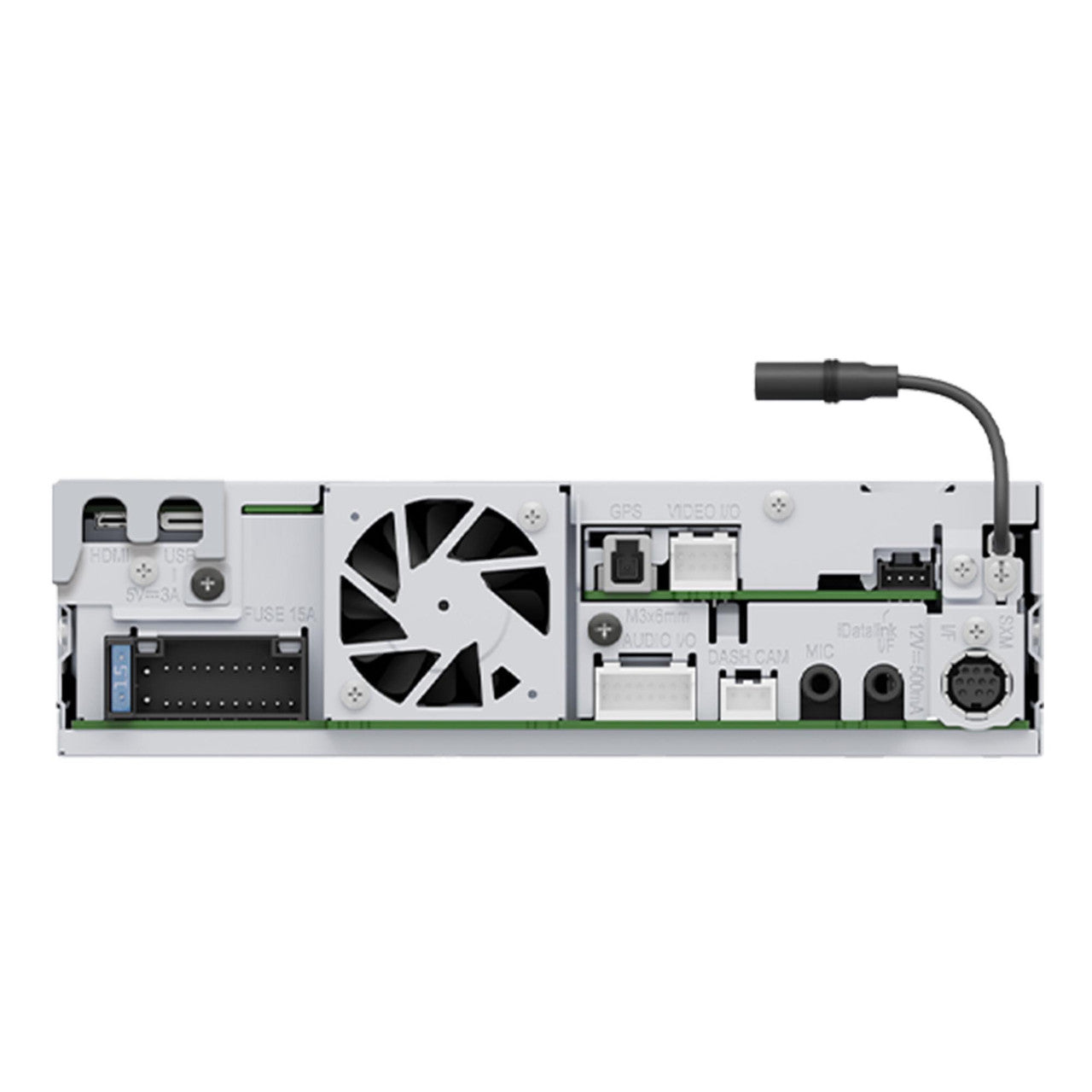

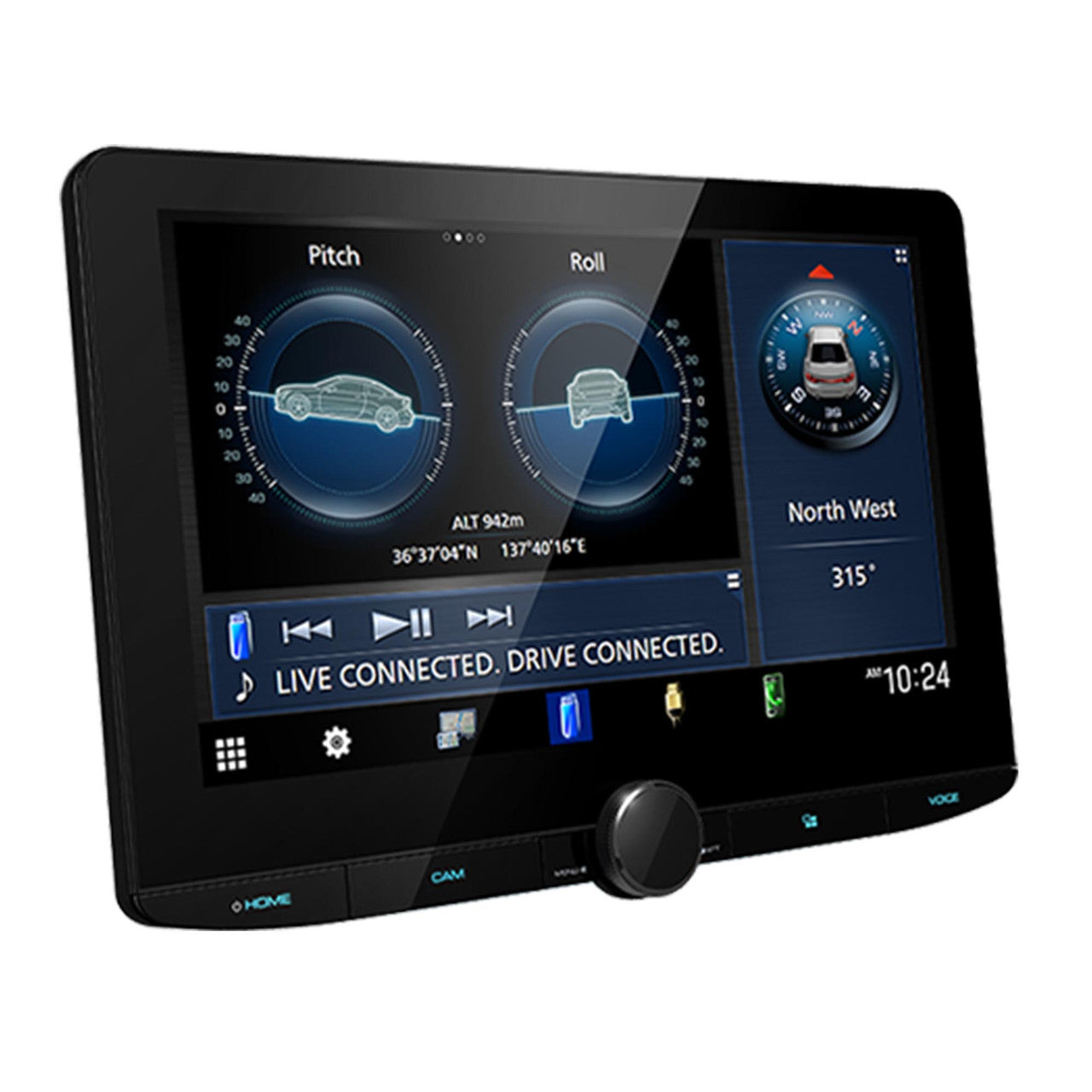

Kenwood DMX1038S: 10.1" HD Capacitive Screen Media Receiver

General features:

• Operating voltage: 12 V DC car battery

• Set weight: 2.5 kg / 5.6 lbs

• Chassis dimensions W x H x D: 178 x 50 x 158 mm / 7 x 2 x 6 - 1 / 4"

• Weight: 1.3 kg / 2.9 lbs

• Monitor dimensions W x H x D: 262 x 181 x 52 mm / 10-5/16 x 7-1/8 x 2-1/16 inch

• Weight: 1.1 kg / 2.4 lbs

Monitor section:

• Picture size: 10.1" (diagonal) wide

• Dimensions: W x H: 223.7 x 125.8 (mm), 8 - 13 / 16 x 4 - 15 / 16"

• Display system: LCD panel

• Drive system: TFT active matrix system

• Number of pixels: 2,764,800, 1280 H x 720 V x RGB

• Effective pixels: 100%

• Pixel arrangement: RGB striped arrangement

USB I / F section:

• Connector type: type-C

• USB standard: USB 2 high speed

• File system: fat 16 / 32, exFAT, NTFS

• Maximum power supply current: DC 5 V = 3 A

• Audio decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis

• Video decoder: MPEG1/2, MPEG4 / WMV / H.264 / MKV

Bluetooth section:

• Technology: Bluetooth version 5.2

• Frequency: 2.4 - 2.5 GHz

• Maximum communication range: line of sight approximately 10 m (32.8 FT)

• Audio codec: SBC / AAC / LDAC

Digital FM:

• Frequency range: 87.9 - 107.9 MHz (frequency step) (200 kHz)

• Frequency response: 20 hz - 20 kHz (± 3.0 dB)

• S / N: 80 dB (stereo)

Digital AM:

• Frequency range: 530 - 1700 kHz (frequency step) (10 kHz)

• Frequency response: 40 hz - 15 kHz (± 3.0 dB)

• S / N: 80 dB (stereo)

FM:

• Frequency range: 87.9 MHz - 107.9 MHz (frequency step) (200 kHz)

• Usable sensitivity: 7.3 dBf

• S / N 30 dB: 0.7 μV / 75 Ω

• Frequency response (± 3.0 dB): 30 hz - 15 kHz

• S / N (dB): 70 dB (mono)

• Selectivity: over 80 dB (± 400 kHz)

• Stereo separation: 45 dB (1 kHz)

AM:

• Frequency range: 530 - 1700 kHz (frequency step) (10 kHz)
• Usable sensitivity: 30 dBμ

Video:

• Color system of external video input: NTSC / PAL

• External video input level (RCA jacks): 1 VP - P / 75 ohms

• Video input level (RCA jacks): 1 VP - P / 75 ohms

Audio:

• Maximum power output (front & rear): 50 W x 4

• Typical power output (front & rear): 29 W x 4 (4 Ω,1 kHz,10 % THD)

• Output frequency band: 20 - 88,000 hz

• Preout level (V): 5 V / 10 K ohms

• Preout impedance (Ω): = < 300 ohms

• Speaker impedance (Ω): 4 - 8 ohms
