Alpine I509-WRA-JL: 9" Weather Resistant Digital Media Receiver
- In stock, ready to ship
About the Alpine I509-WRA-JL: 9" Weather Resistant Digital Media Receiver

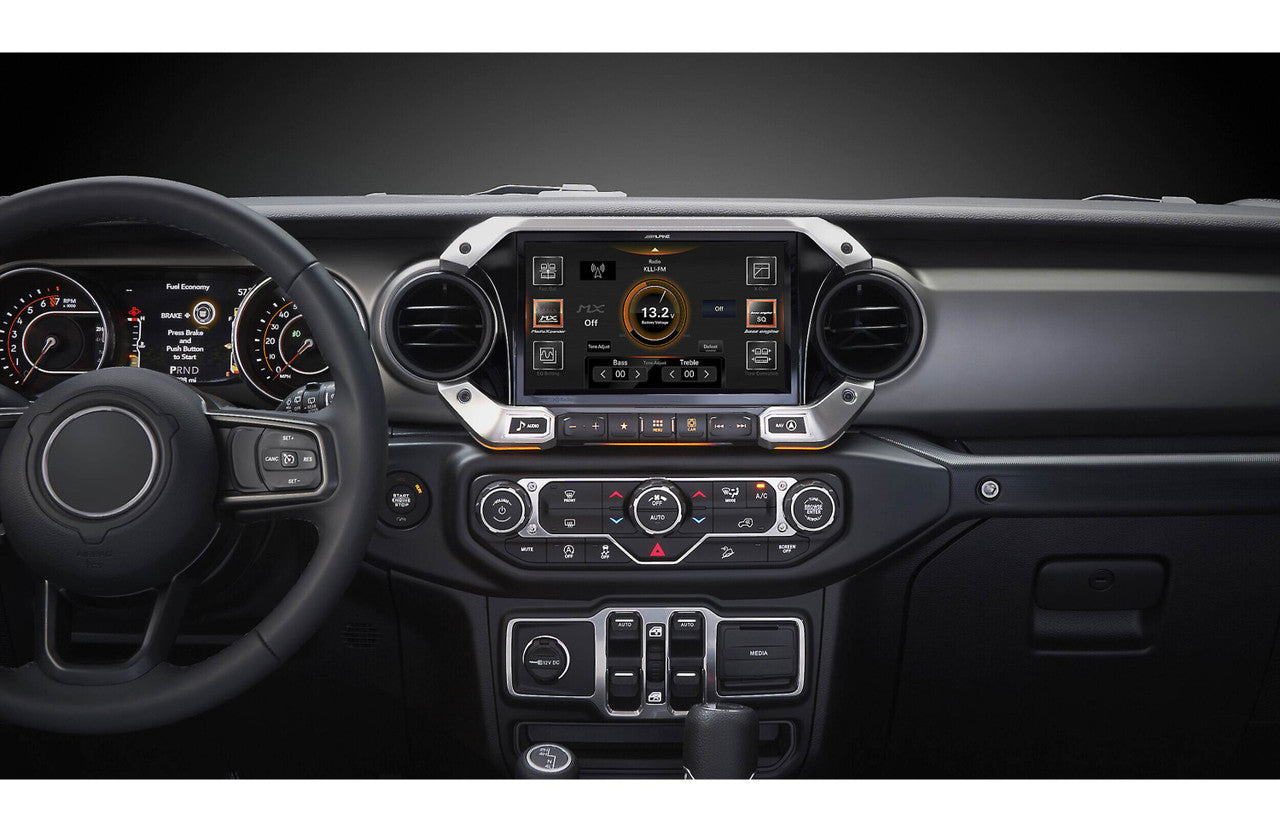

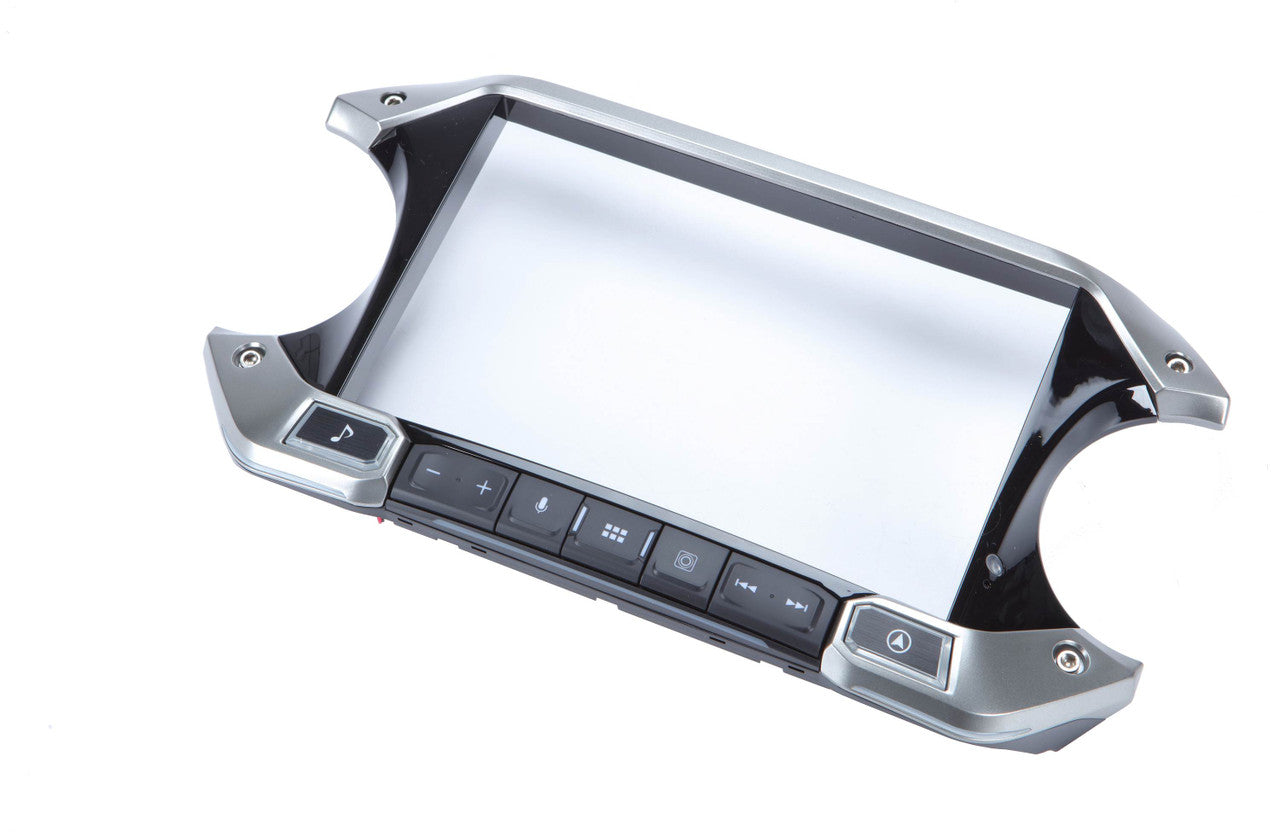

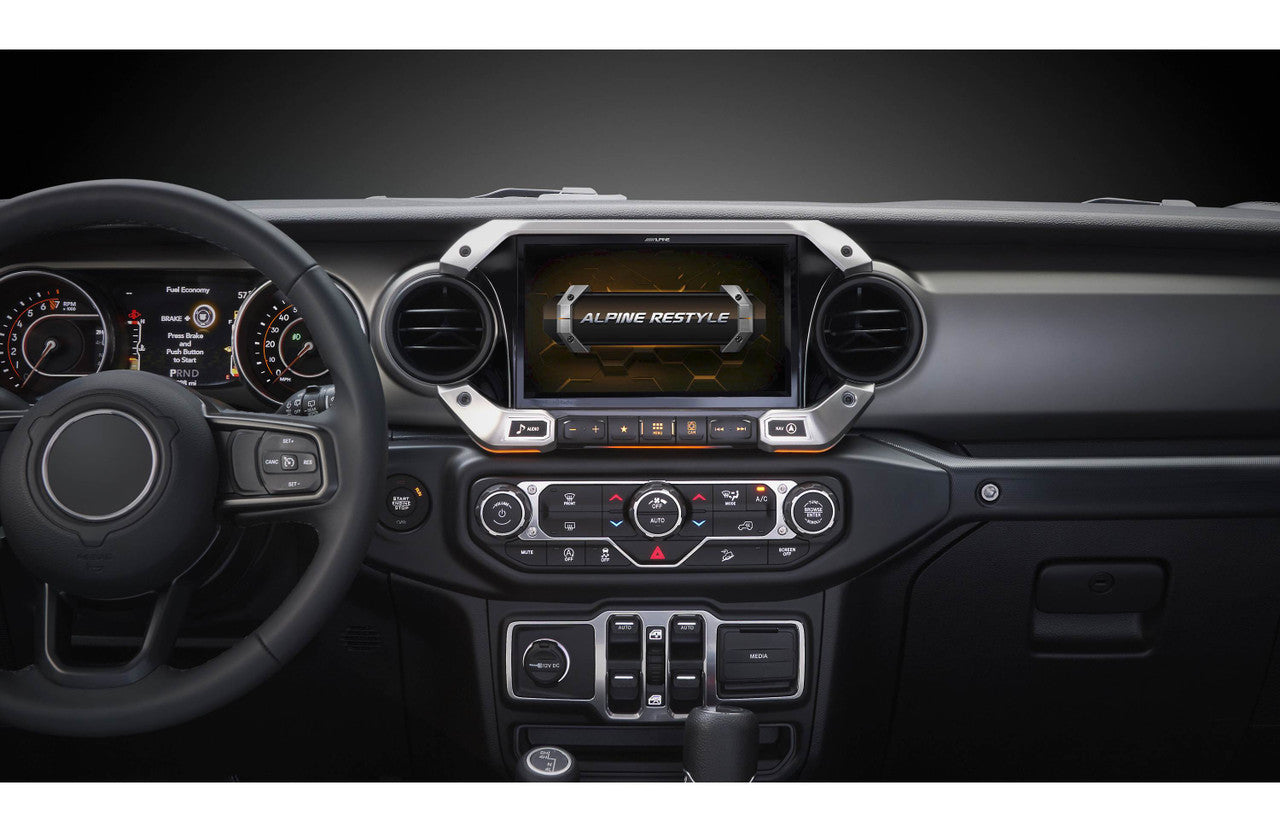

The display is housed in a jeep specific trim bezel that emulates the look and feel of the jeep dash. A jeep specific harness is included through the Receiver to take out the guesswork during installation and make it a true plug and play solution. The Weather Resistant display features a jeep specific opening screen and LED color scheme for a consistent design through factory jeep settings.
High resolution audio:
Experience incredible music detail through high resolution audio playback. High precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session through your favorite artist. Access your favorite songs on popular high resolution streaming services like apple music, tidal, amazon music HD, and more. The I509-WRA-JL plays high resolution music at it's intended specification of 96 kHz / 24 bits via a wired USB connection to a smartphone or wirelessly through Bluetooth connection. You can also purchase and download high resolution music files onto a USB drive from platforms like HD tracks and plug directly into the Receiver for high resolution playback.

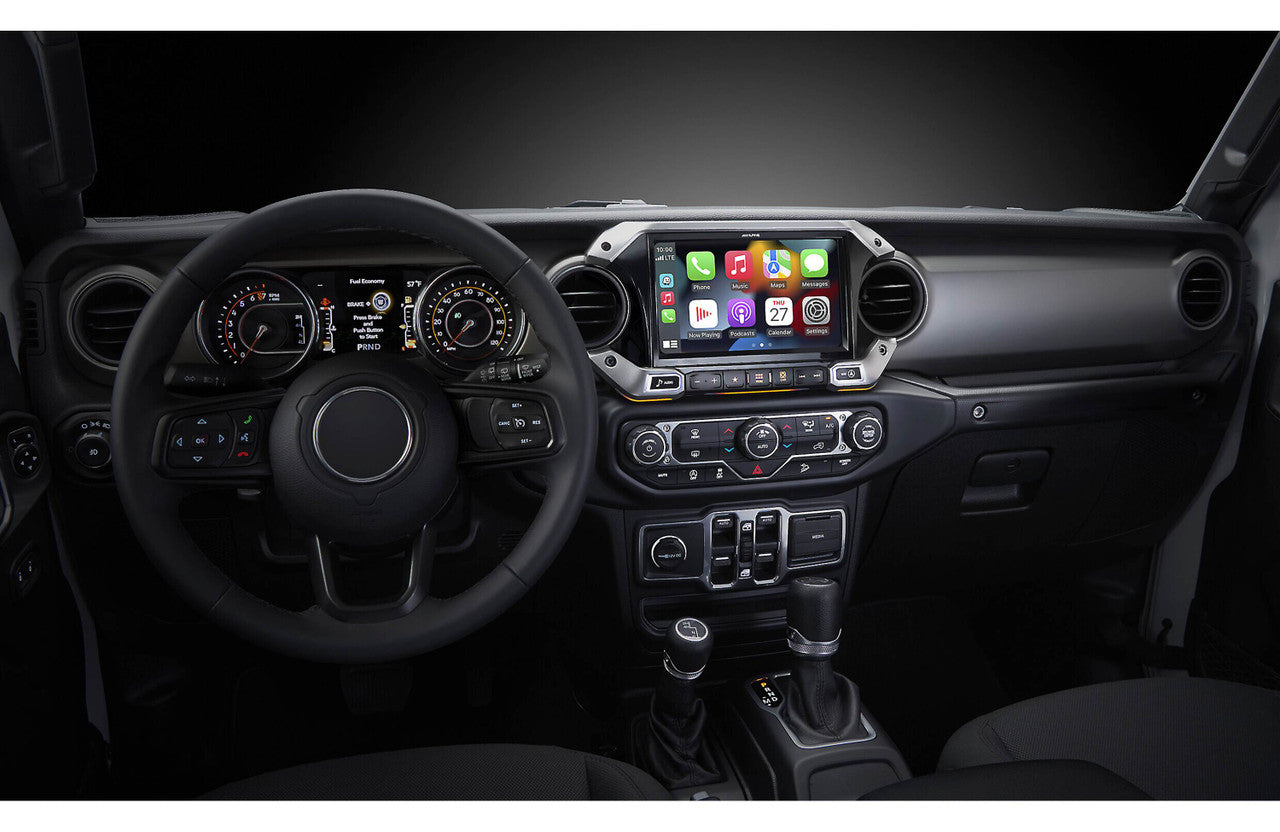

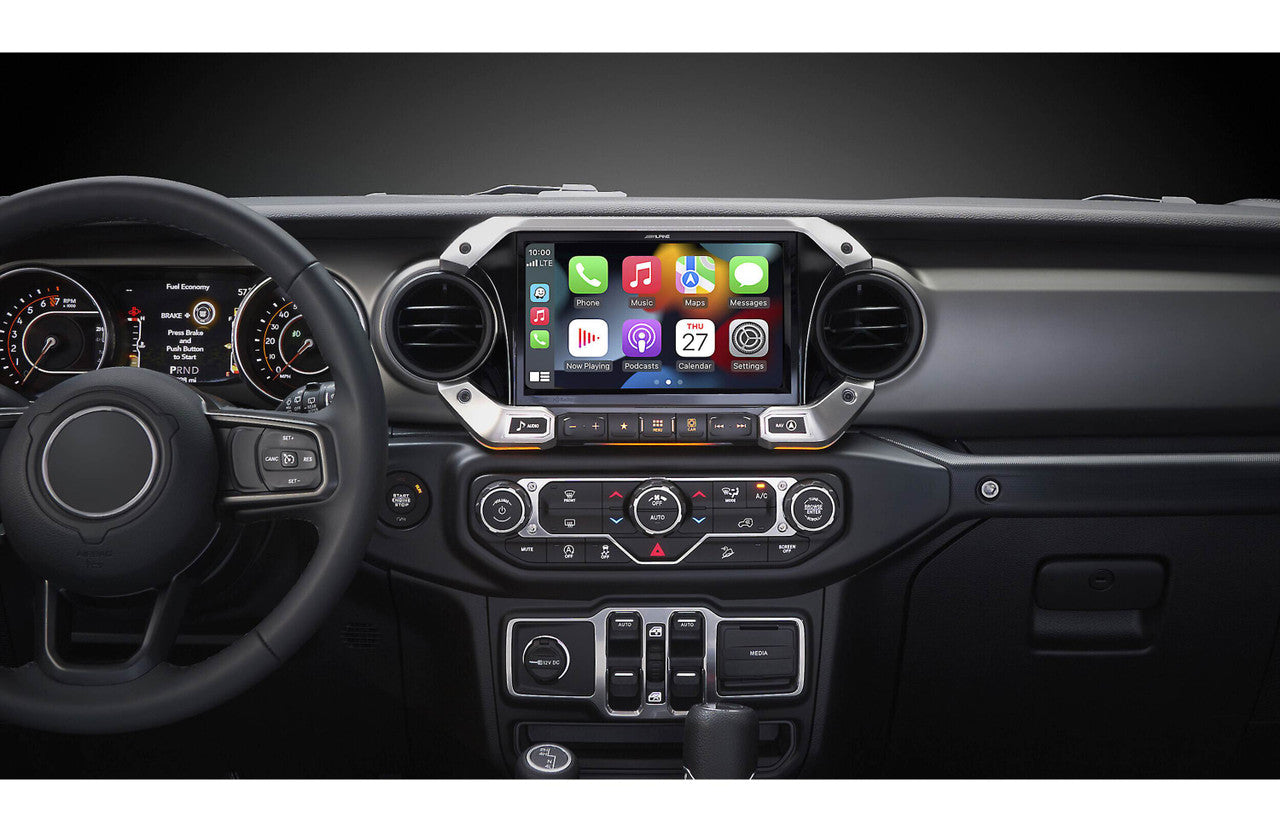

Apple CarPlay (wired & wireless):
The I509-WRA-JL works through apple CarPlay and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touchscreen or the microphone button to activate Siri voice control and is compatible alongside iPhone 5 and later.

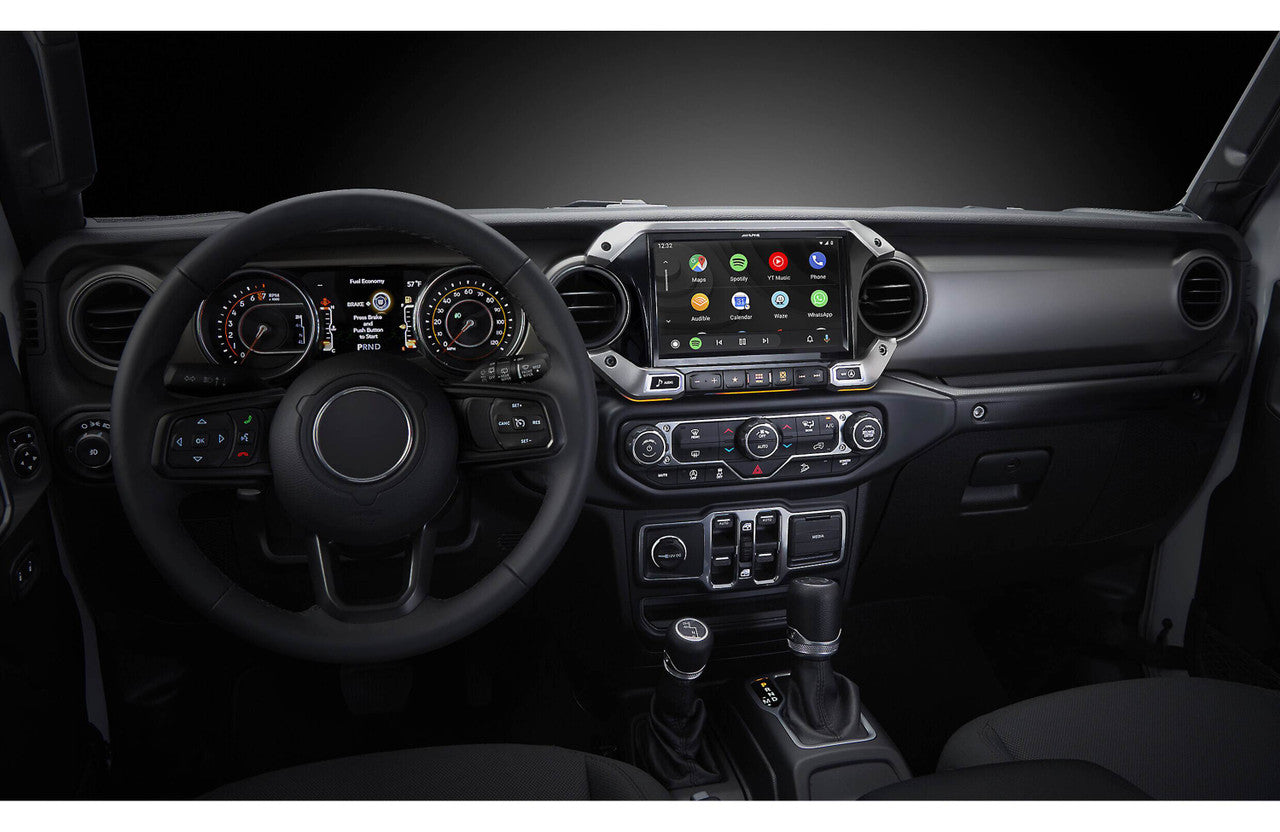

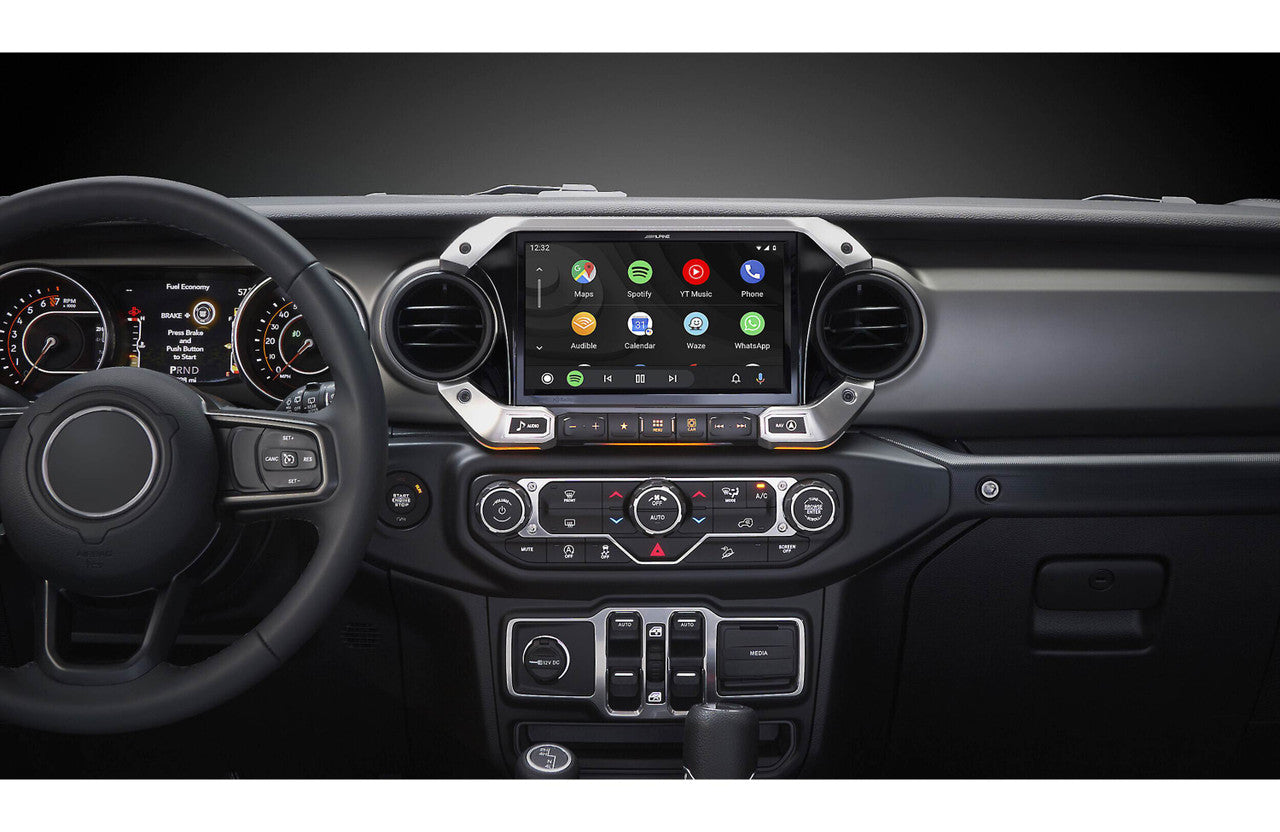

Android auto (wired & wireless):
The I509-WRA-JL includes android auto and works through the google assistant (requires both a USB cable and Bluetooth connection; requires an android phone running 5 (lollipop) or higher and the android auto app). To access the google assistant on android auto, say "OK google" or select the microphone button. Google assistant in android auto allows users to play their favorite music, get driving directions to their destination, interact alongside smart home devices, and reply to text messages, hands free.
General features:
- Digital Media Receiver including AM / FM tuner (does not play discs)
- Custom fit Receiver designed for select 2018 + jeep wrangler JL and 2020 + jeep gladiator JT models

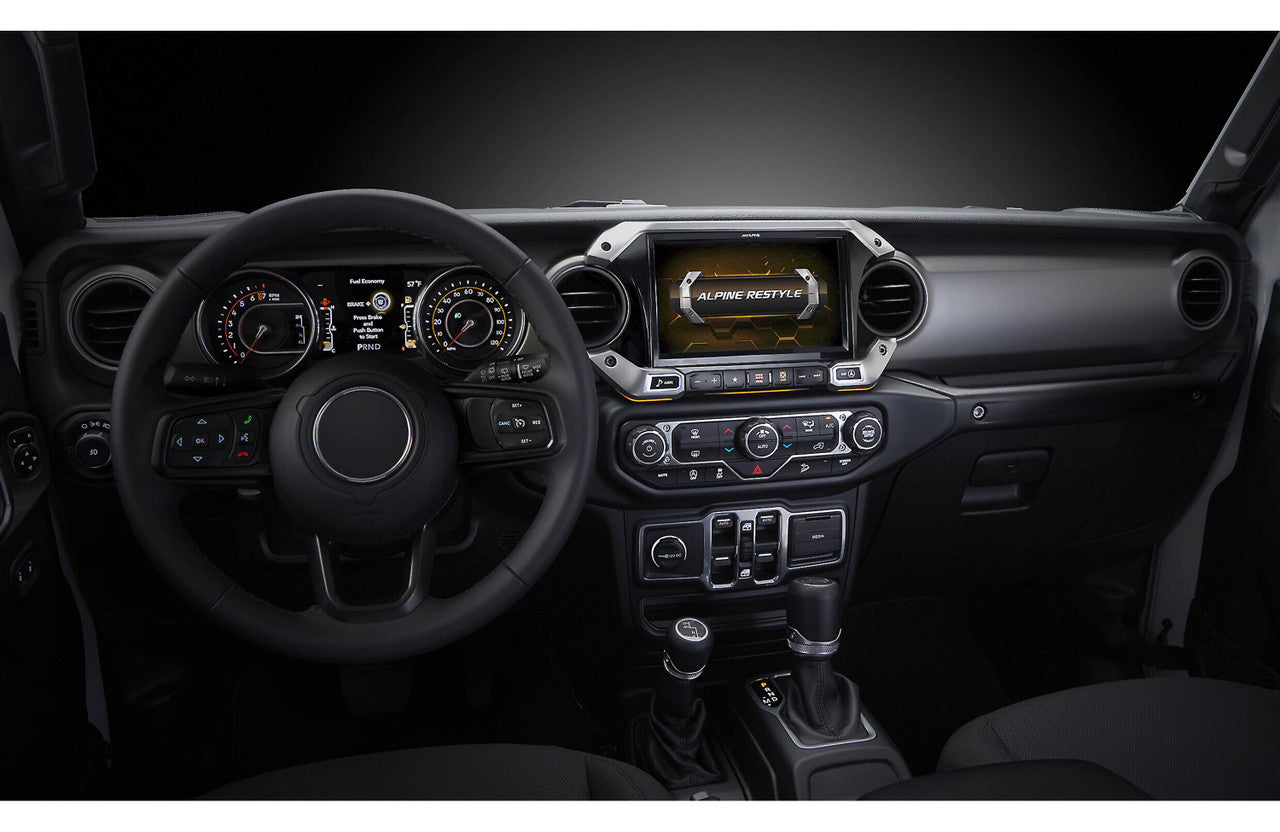

- Includes Alpine restyle package through all installation parts
- 9" capacitive touchscreen through high resolution (1280 x 720 P) display
- Splash and dustproof touchscreen and bezel (IP53 rated)

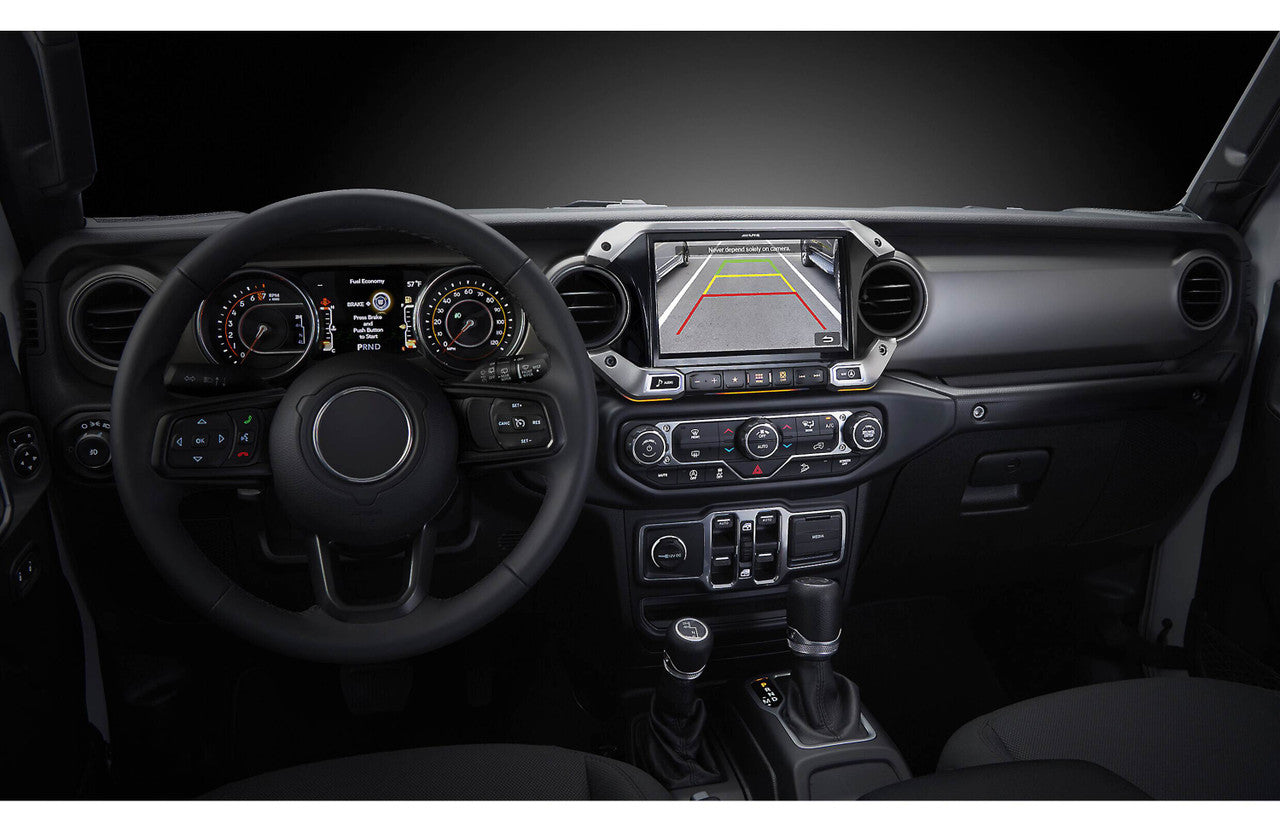

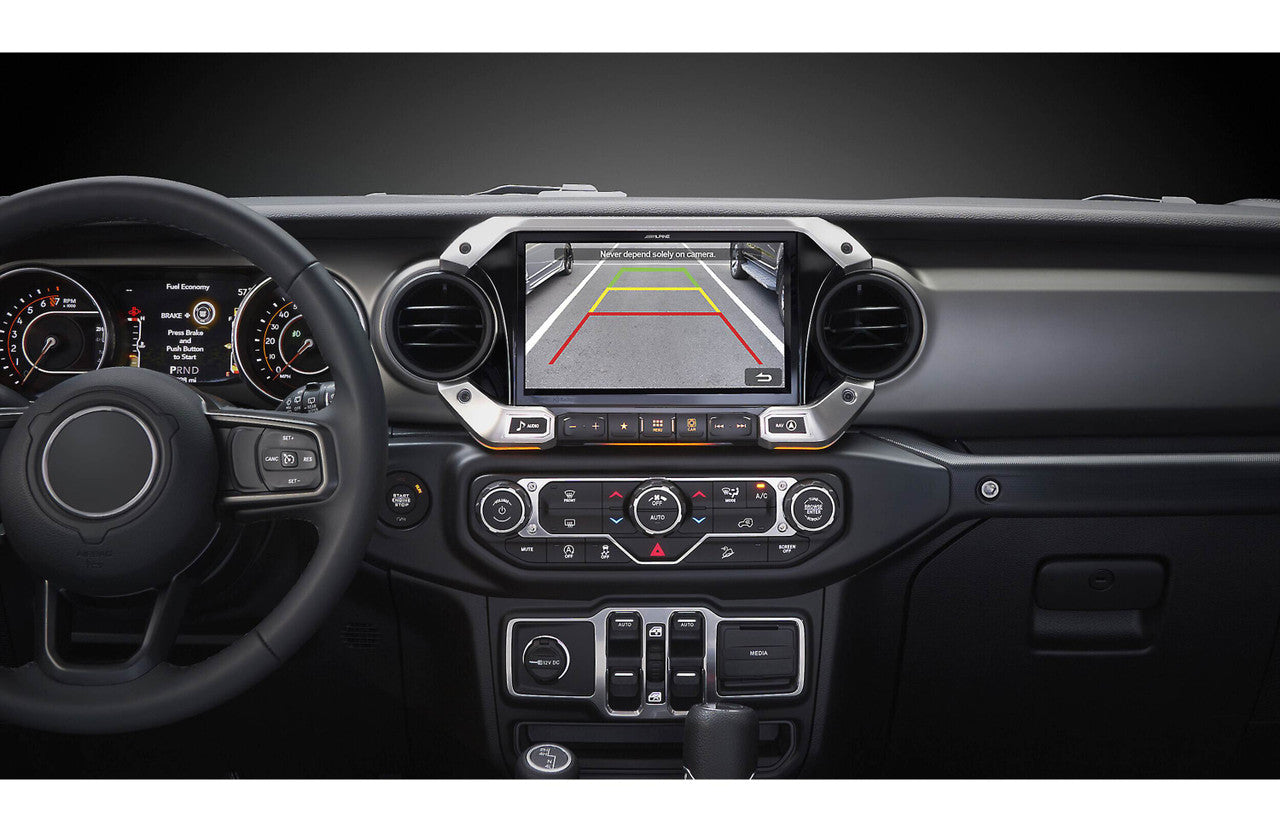

- Retains factory rear view camera
- Bluetooth hands free calling and audio streaming (external microphone included)
- Includes iDatalink maestro ALP-MRR module (requires windows PC for programming) HD radio tuner built in
- Retains factory features, including steering wheel controls

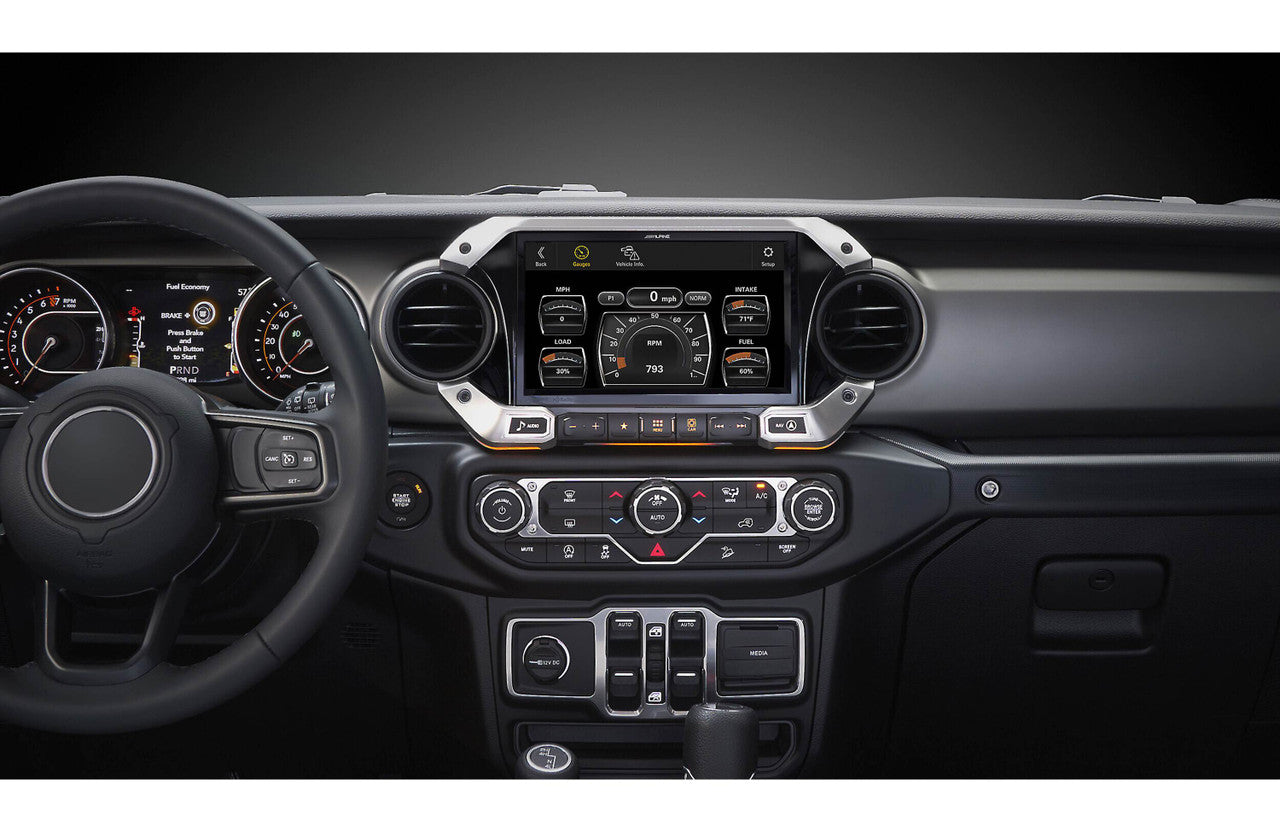

- Displays engine performance data on touchscreen
Smartphone features:
- Apple CarPlay and android auto compatible (wired and wireless)
- Built in iPod, iPhone, and iPad control
- Playback and control of music files on compatible android devices
- Full tidal integration through custom display (requires a WiFi connection and tidal smartphone app)
Audio / video features:
- Plays MP3, WMA, AAC, WAV, APE, and FLAC and AVI, MP4, MPG, MOV, and WMV music and video files
- 13 band parametric equalizer (basic or advanced)
- 6 channel time correction
- 10 EQ preset curves
- High and low pass crossovers
- Bass engine SQ
- MediaXpander HD
Expandability:
- Works through Sirius XM SXV300 tuner, supports tune mix, traffic & weather now, and sports flash features
- Inputs: 2 rear USB ports and HDMI and auxiliary input and proprietary camera inputs (one composite video adapter is included for non Alpine cameras)
- Outputs: rear HDMI output; 6 channel preamp outputs (4 V front, rear, sub)
Other information:
- Built in amplifier (16 W RMS CTA 2006 / 50 peak x 4 channels)
- Wired connection to parking brake required to access settings, video display, and other features on this Receiver (the parking brake must be connected and set, released, and set again)

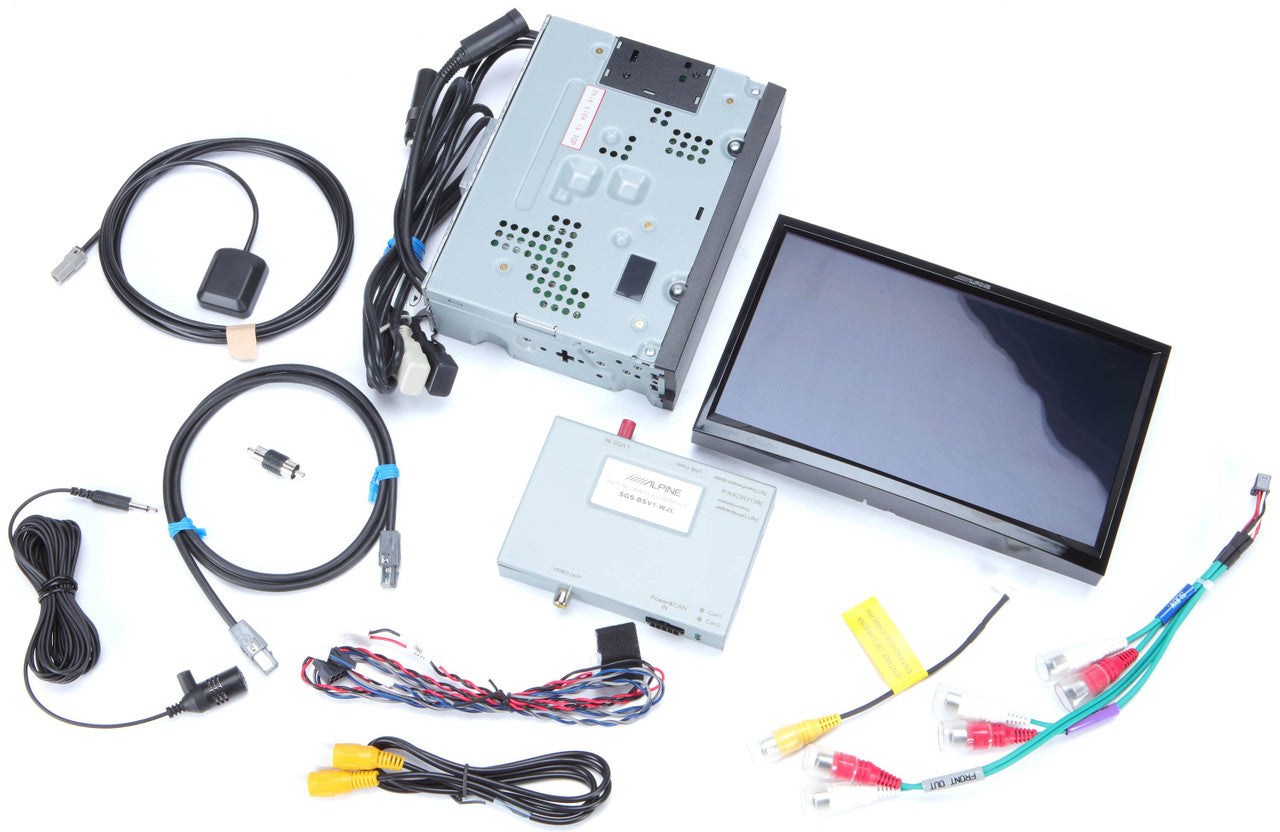

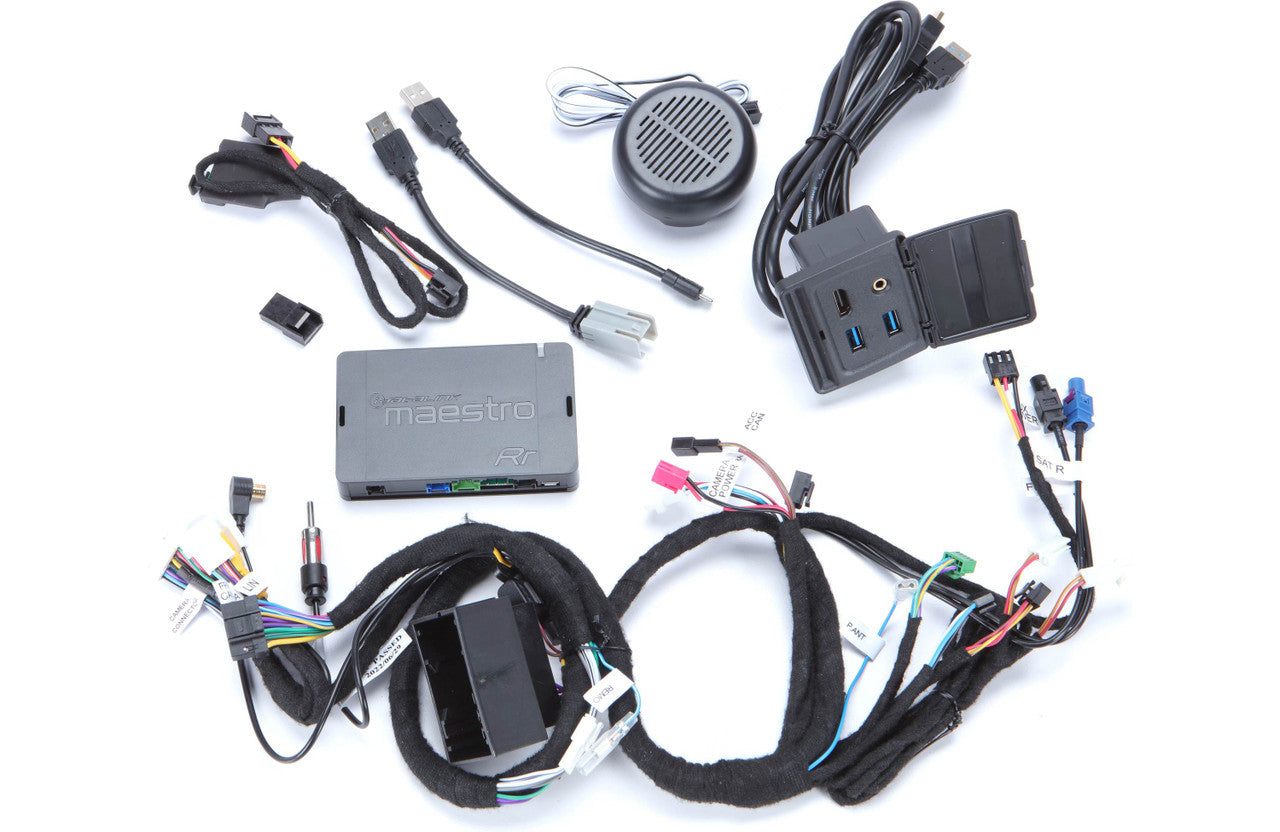

What's in the box:
- Wiring and preout and IDatalink / driver recorder / front camera and input adapter and microphone / SWC and main harness (15 A fuse)
- Microphone (including attached 12.5 FT cable terminated by a right angle stereo 3.5 mm connector)

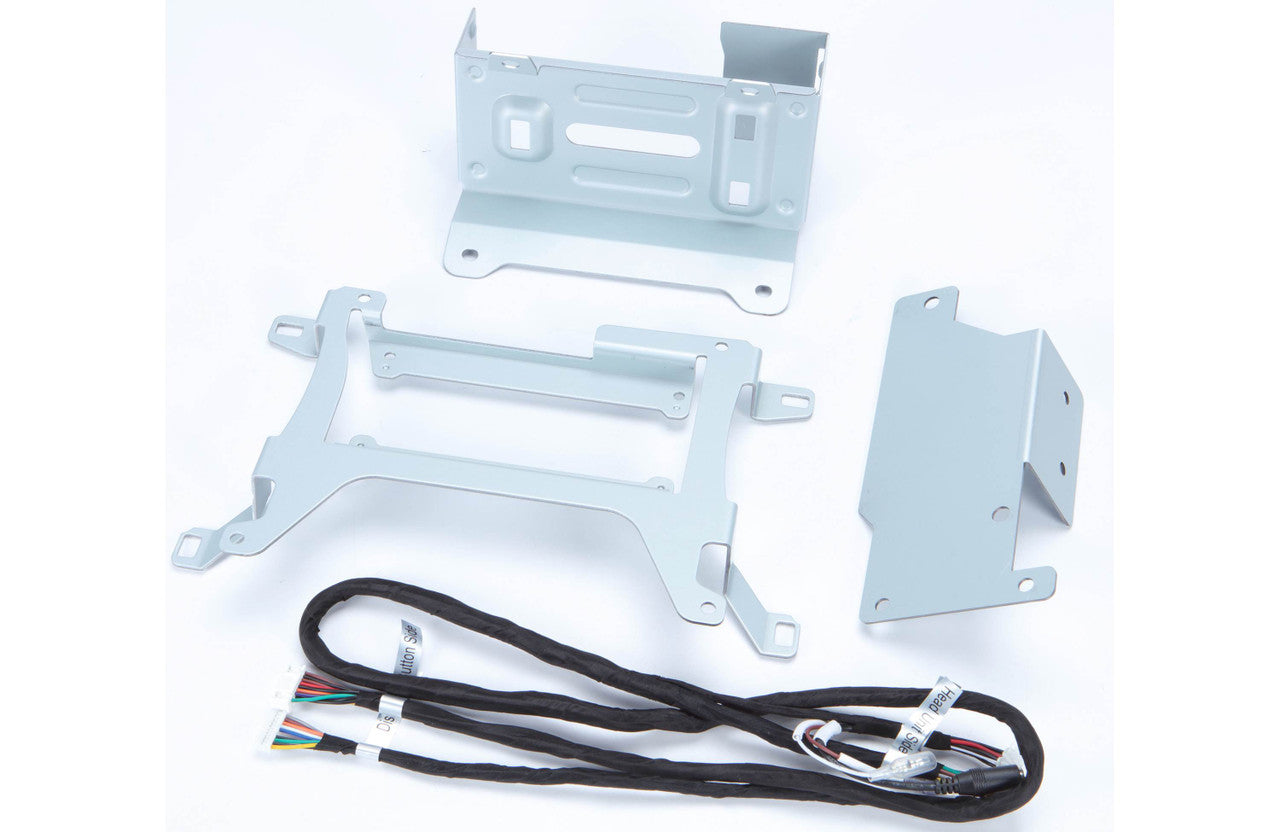

- Surface mount and display and power inverter and tuner bracket
- 2 sided tape
- GPS antenna (attached 8 FT cable through proprietary connector)
- 3 self adhesive cable clamps and mounting pad
- Power plate
- 2 rear covers
- HDMI connector clamp
- 4 and 3 pan head and counter sunk ISO and display screws (M 5 x 8 mm)
- 2 hinge and rear cover screws (M 3 x 4 mm) (M 2.6 x 6 mm)
- 4 and 2 rectangle and square and round and semi oval self adhesive sheets
- Online registration information and detailed manual card
- IDatalink maestro RR radio replacement interface module (ALP-MRR)
- Chime speaker
- USB / HDMI / AUX interface and power adapter and flashing cable
- Camera module and power harness
- 41" composite video cable (not used)
- RCA coupler
- Dash kit
- 2 screws and washers
- Display power / key harness
- Installation manual
- "Read before installation" note.
- Online registration sheet
- Warranty information
- 9" Touchscreen monitor
-
