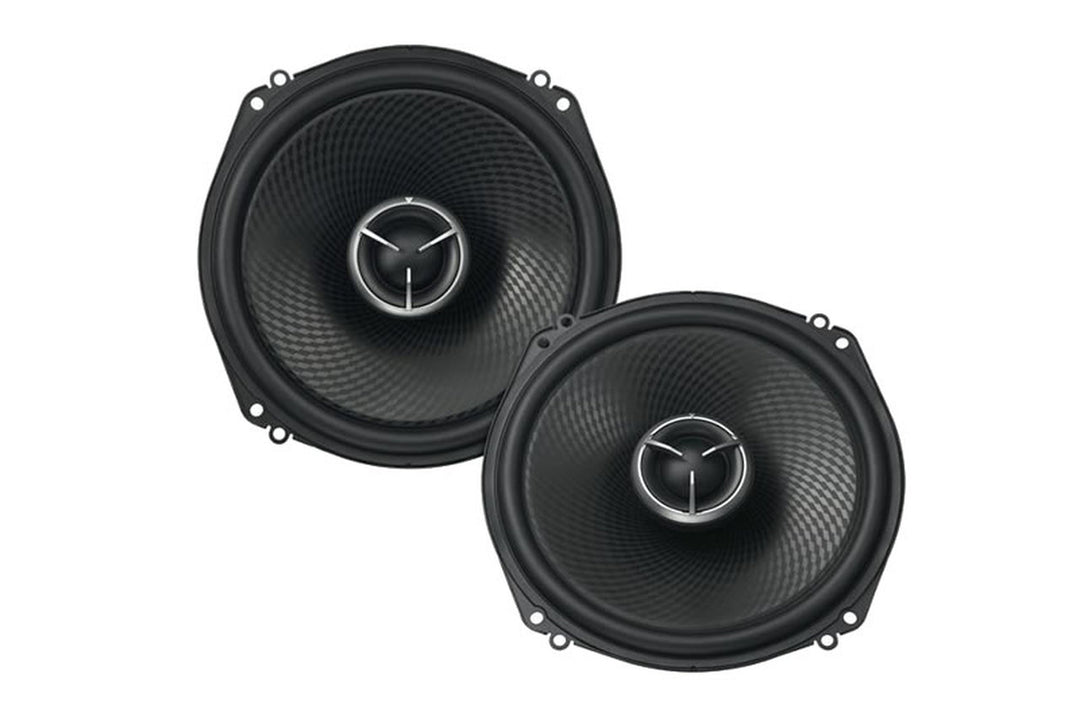

Kenwood KFC-X183C: 7" Speaker Oversized Custom Fit 2-Way

The new KFC-X183C is a true upgrade to a factory speaker system.  It can handle up to 280 W of of output and can be easily installed in Dodge, GM, Toyota and Chevrolet vehicles.  Each pair of KFC-X183C speakers comes with a special multi-fit bracket.  This bracket can be easily modified for use in a variety of makes associated with the above mentioned vehicle manufacturers.  In addition the speaker features an oversized diaphragm that is 28% bigger than the KFC-X173 so it delivers exceptional audio reproduction.

Peak Power: 280 W

Rated Input Power: 80 W

4Ohm Impedance

Frequency Response 63 Hz - 17 kHz

Mounting Depth 2-7 / 16"

1" Soft Dome Tweeter

Multi Bracket and 6 x 9" bracket

Diamond Array Pattern Diaphragm: Yes

Woofer

-  Woofer Size: 7 in (180 mm)

-  Woofer Diaphragm: P.P. Cone

-  Surround: Rubber

-  Basket: Steel (Black)

-  Magnet: Ferrite

Tweeter

-  Tweeter Size: 1 in (25 mm)

-  Tweeter Diaphragm: Soft Dome

Dimensions (without grill)

-  Width: 6-9 / 16" (166 mm)

-  Height: 6-9 / 16" (166mm)

-  Depth: 3-3 / 16" (81mm)

-  Mounting Depth: 2-7 / 16" (62 mm)

Warranty: 2-Year
